THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
ECN 4474: ADDED 1.0 FT LENGTH, UPDATED FORMAT, CHANGED NOTES, RoHS 1/7/10
D
LENGTH
4X, 4-40 UNC-2A
THUMBSCREW
D
PIN 1
PIN 1
C
"P1"
2X, DB9 MALE
CONNECTOR
GOLD PLATED PINS
UL STYLE 2464
9 CONDUCTOR CABLE
PVC JACKET, COLOR: BLACK
2X, MOLDED PVC
STRAIN RELIEF WITH
360 FOIL SHIELD
COLOR: BLACK
"P2"
C
B
WIRING MAP
"P1"
COLOR
1
BLACK
2
GRAY
3
RED
4
GREEN
5
BROWN
6
BLUE
7
ORANGE
8
YELLOW
9
PURPLE
SHELL DRAIN WIRE
PART NUMBER
"P2"
1
2
3
4
5
6
7
8
9
SHELL
CSMNB9MM-1
CSMNB9MM-2.5
CSMNB9MM-5
CSMNB9MM-10
CSMNB9MM-15
CSMNB9MM-25
CSMNB9MM-50
LENGTH
FEET METERS
1.0
0.31
2.5
.76
5.0
1.52
10.0
3.05
15.0
4.57
25.0
7.62
50.0
15.24
B
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2 [51] / -0
>60 [1524] ≤120 [3048] = +4 [102] / -0
>120 [3048] ≤300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = ± .2
.XX = ± .02
.XXX = ±.005
PROJECTION
APPROVALS
DRAWN BY
DATE
2/21/08
2/21/08
2/21/08
CATEGORY
D.FRISIELLO
CHECKED BY
A
NOTES:
1. CABLE ASSEMBLY SHALL BE TESTED FOR CONTINUITY.
2. CABLE ASSEMBLY SHALL BE INDIVIDUALLY PACKAGED IN
ACCORDANCE WITH L-COM PACKAGING SPEC. PS-0031.
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
D.FORTIN
APPROVED BY
S.SMITH
DATA CABLING
PRODUCT DESCRIPTION
A

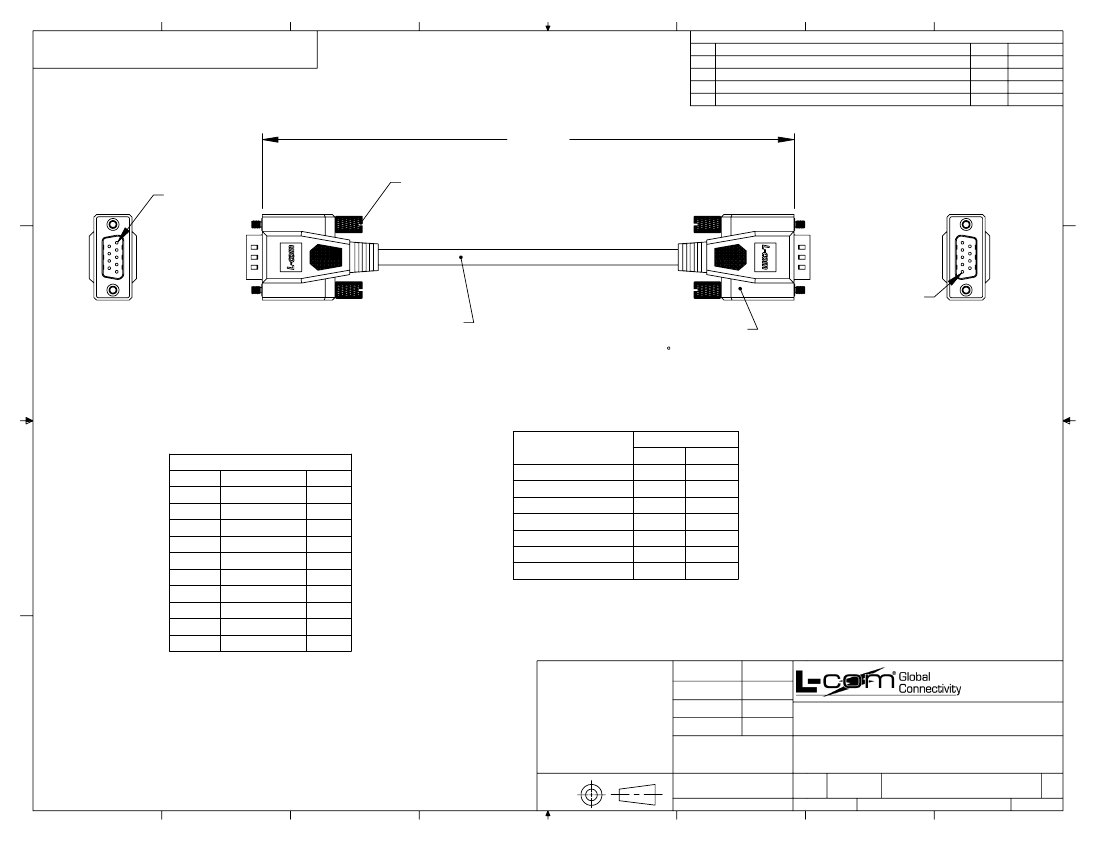

CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
REF
CSMNB-FS01
DLX MOLDED CBL, DB9M/M, BLACK
SIZE
A
43321
2
FSCM NO.
DWG. NO.
CSMNB9MM
1
REV.
SHEET 1 OF 1
SCALE: NONE
CAD FILE:
CSMNB9MM.SLDDRW
B
8
7
6
5
4
