2Mx8/1Mx16/512Kx32, 20 - 45ns, PGA
30A141-02
D

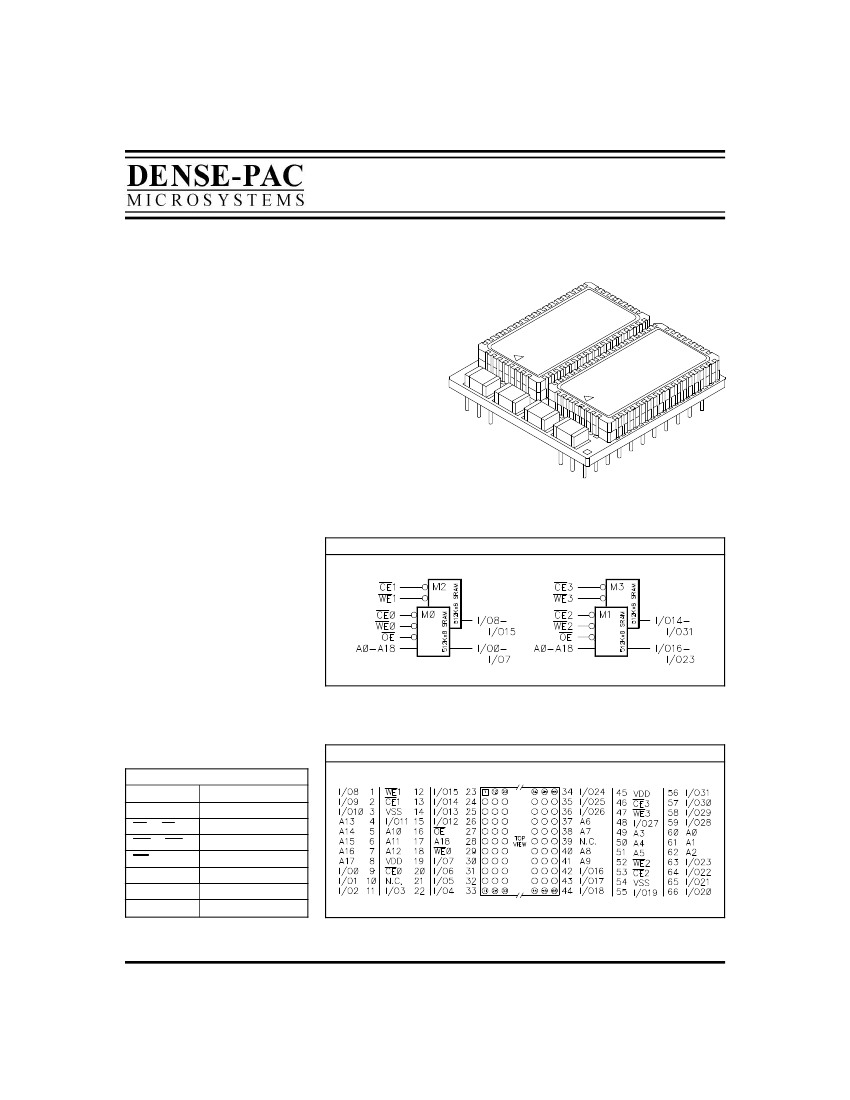

16 Megabit High Speed CMOS SRAM
DPS512C32MKV3
DESCRIPTION:
The DPS512C32MKV3 ‘’VERSA-STACK’’ module is a
revolutionary new high speed memory subsystem using
Dense-Pac Microsystems’ ceramic Stackable Leadless Chip
Carriers (SLCC) mounted on a co-fired ceramic substrate. It
offers 16 Megabits of SRAM in a package envelope of 1.190
x 1.190 x 0.250 inches.
The DPS512C32MKV3 contains four individual 512K x 8
SRAMs, packaged in their own hermetically sealed SLCCs
making the module suitable for commercial, industrial and
military applications.
By using SLCCs, the ‘’Versa-Stack’’ family of modules offers
a higher board density of memory than available with
conventional through-hole, surface mount, module, or
hybrid techniques.
FEATURES:
•
Organizations Available:
512K x 32, 1 Meg x 16,
or 2 Meg x 8
•
Access Times:
20, 25, 35, 45ns
•
Fully Static Operation
- No clock or refresh required
•
Low Power Dissipation
•
Single +5V Power Supply,
±10%
Tolerance
•
TTL Compatible
•
Common Data Inputs and Outputs
•
Low Data Retention Current
•
66-Pin PGA Special ‘’VERSA-STACK’’
Package with Compatable Footprint
FUNCTIONAL BLOCK DIAGRAM
PIN-OUT DIAGRAM
PIN NAMES
A0 - A18
I/O0 - I/O31
CE0 - CE3
WE0 - WE3
OE
V
DD
V
SS
N.C.
Address Inputs
Data Input/Output
Low Chip Enables
Write Enables
Output Enable
Power (+5V)
Ground
No Connect
30A141-02
REV. D
This document contains information on a product that is currently released
to production at Dense-Pac Microsystems, Inc. Dense-Pac reserves the
right to change products or specifications herein without prior notice.
1
DPS512C32MKV3
TRUTH TABLE
Mode
Not Selected
D
OUT
Disable
Read
Write
H = HIGH
CE
H
L
L
L
WE
X
H
H
L
L = LOW
OE
X
H
L
X
I/O Pin Supply
Current
High-Z Standby
High-Z Active
D
OUT
Active
D
IN
Active
X = Don’t Care
Dense-Pac Microsystems, Inc.
RECOMMENDED OPERATING RANGE
Symbol
Characteristic
Min. Typ. Max. Unit
V
DD
Supply Voltage
4.5 5.0
5.5
V
V
IH
Input HIGH Voltage 2.2
V
DD
+0.3 V
V
IL
Input LOW Voltage -0.5
2
0.8
V
M -55 +25 +125
Operating
o
C
T
A
I
-40 +25 +85
Temperature
C
0 +25 +70
3
DC OUTPUT CHARACTERISTICS
Symbol
Parameter
Conditions Min. Max. Unit
V
OH
HIGH Voltage I
OH
= -4.0mA 2.4
V
V
OL
LOW Voltage
I
OL
=8.0mA
0.4 V
ABSOLUTE MAXIMUM RATINGS
Parameter
Value
Storage Temperature
-65 to +150
Temperature Under Bias -55 to +125
Supply Voltage
1
-0.5 to +7.0
1
Input/Output Voltage
-0.5 to V
DD
+0.5
3
Symbol
T
STC
T
BIAS
V
DD
V
I/O
Unit
°C
°C
°C
V
CAPACITANCE
4
:
T
A
= 25°C, F = 1.0MHz
Symbol
Parameter
Max. Unit Condition
C
ADR
Address Input
50
C
CE
Chip Enable
20
pF
V
IN2
= 0V
C
WE
Write Enable
25
C
OE
Output Enable
50
C
I/O
Data Input/Output
20
Symbol
I
IN
I
OUT
I
CC
I
SB1
I
SB2
I
DR3
I
DR2
V
OL
V
OH
Characteristics
Input
Leakage Current
Output
Leakage Current
Operating
Supply Current
DC OPERATING CHARACTERISTICS:
Over operating ranges
C
I
Typ.
Test Conditions
(†)
Min. Max. Min. Max.
V
IN
= 0V to V
DD
V
I/O
= 0V to V
DD
,
CE or OE = V
IH
, or WE = V
IL
Cycle=min., Duty=100%
I
OUT
= 0mA
X8
X16
X32
-
-
185
290
500
4.0
80
0.6
0.4
-
-
2.4
-20
-10
+20
+10
350
460
680
40
240
2.0
1.2
0.4
2.4
-20
-10
+20
+10
360
480
720
40
240
4.0
3.2
0.4
M
Min.
Max.
Unit
µA
µA
mA
mA
mA
mA
mA
V
V
-20
-10
+20
+10
360
480
720
60
240
8.0
7.2
0.4
Full Standby
Supply Current
Standby Current (TTL)
Data Retention
Supply Current (3V)
Data Retention
Supply Current (2V)
Output Low Voltage
Output High Voltage
V
IN
≥
V
DD
-0.2V or
V
IN
≤
V
SS
+0.2V
CE = V
IH
V
DR
= 3V, CE
≥
V
DR
-0.2V,
V
IN
≥
V
DD
-0.2V or V
IN
≤
+0.2V
V
DR
= 2V, CE
≥
V
DR
-0.2V,
V
IN
≥
V
DD
-0.2V or V
IN
≤
+0.2V
I
OUT
= 8.0mA
I
OUT
= -4.0mA
2.4
† Typical measurements made at +25
o
C, Cycle = min., V
DD
= 5.0V.
Symbol
V
DR
V
CDR
t
R
Parameter
V
DD
for Data Retention
Chip Disable to
Data Retention Time
Operation Recovery Time
Data Retention AC Characteristics
8
Test Conditions
CE
≥
V
DR
-0.2V
See Data Retention Waveform
See Data Retention Waveform
Min.
2.0
0
5
Typ.
-
-
-
Max.
-
-
-
Unit
V
ns
ms
30A141-02
REV. D
2
Dense-Pac Microsystems, Inc.
DPS512C32MKV3
AC TEST CONDITIONS
Input Pulse Levels
0V to 3.0V
Input Pulse Rise and Fall Times
5ns
Input and Output
1.5V
Timing Reference Levels
Load
1
2
C
L
30pF
5pF
OUTPUT LOAD
Parameters Measured
except t
LZ
, t
HZ
, t
OHZ
, t
OLZ
, and t
WHZ
t
LZ
, t
HZ
, t
OHZ
, t
OLZ
, and t
WHZ
Figure 1.
Output Load
* Including Probe and Jig
Capacitance.
V
DD
4.5V
2.3V
V
DR1
DATA RETENTION WAVEFORM:
CE Controlled.
+5V
480Ω
D
OUT
C
L
*
255Ω
CE
0V
CE
≥
V
DD
-0.2V
AC OPERATING CONDITIONS AND CHARACTERISTICS - READ CYCLE:
Over operating ranges
20ns
25ns
30ns
35ns
45ns
No. Symbol
Parameter
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
1
2
3
4
5
6
7
8
9
t
RC
t
AA
t
CO
t
OE
t
LZ
t
OLZ
t
HZ
t
OHZ
t
OH
Read Cycle Time
Address Access Time
CE to Output Valid
Output Enable to Output Valid
CE to Output in LOW-Z
4, 5
Output Enable to Output in LOW-Z
4, 5
CE to Output in HIGH-Z
4, 5
Output Enable to Output in HIGH-Z
4, 5
Output Hold from Address Change
20
20
20
10
3
0
0
4
8
8
25
25
25
12
3
0
0
5
10
10
30
30
30
15
3
0
0
5
15
15
35
35
35
20
3
0
0
5
20
20
45
45
45
25
3
0
0
5
25
25
AC OPERATING CONDITIONS AND CHARACTERISTICS - WRITE CYCLE
6, 7
:
Over operating ranges
20ns
25ns
30ns
35ns
45ns
No. Symbol
Parameter
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
10
11
12
13
14
15
16
17
18
19
t
WC
t
AW
t
CW
t
AS
t
WP
t
WR
t
WHZ
t
DW
t
DH
t
OW
Write Cycle Time
Address Valid to End of Write
Chip Enable to End of Write
Address Set-Up Time *
Write Pulse Width
Write Recovery Time
Write Enable to Output in HIGH-Z
4, 5
Data to Write Time Overlap
Data Hold from Write Time
Output Active from End of Write
20
13
13
3
13
0
0
9
0
3
8
25
15
15
3
15
0
0
10
0
3
10
30
20
20
3
20
0
0
12
0
3
12
35
25
25
3
25
0
0
15
0
3
15
45
35
35
3
35
0
0
20
0
3
20
* Valid for both Read and Write Cycles.
30A141-02
REV. D
3
DPS512C32MKV3

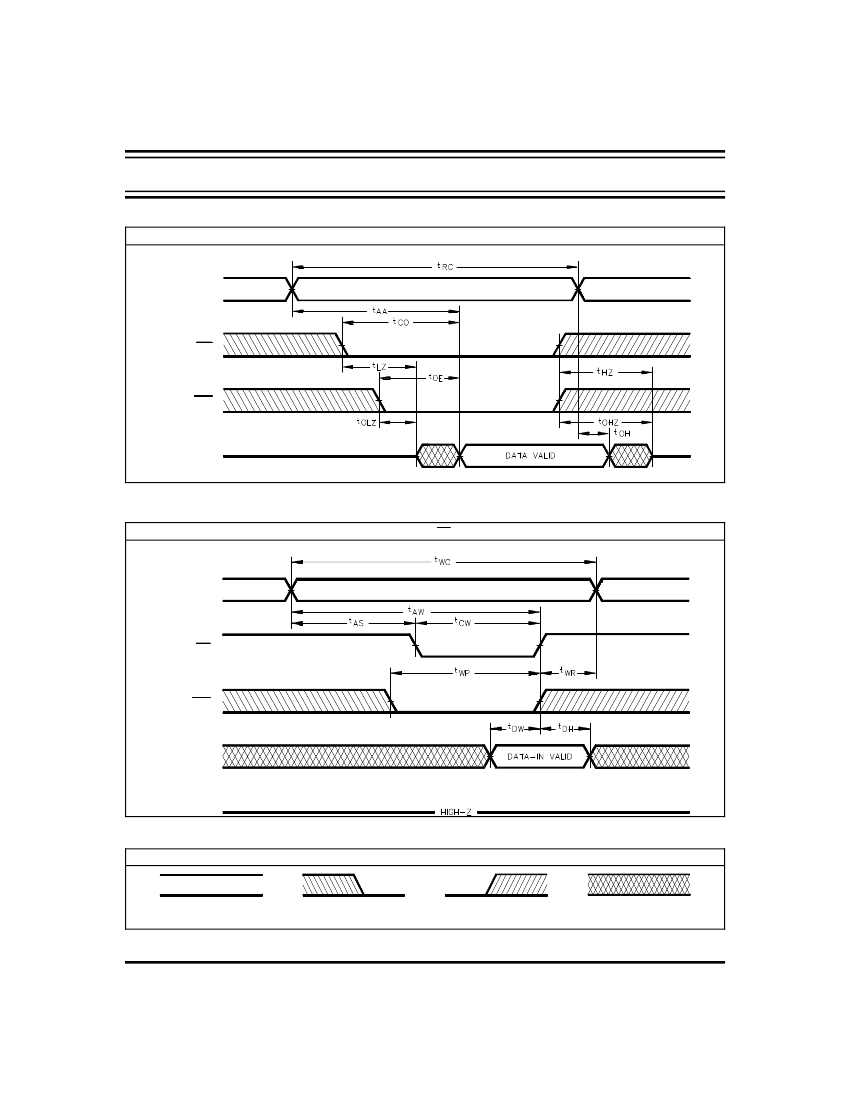

READ CYCLE
Dense-Pac Microsystems, Inc.
ADDRESS
CE
OE
DATA I/O
WRITE CYCLE 1:
CE Controlled.
ADDRESS
CE
WE
DATA IN
DATA OUT
WAVEFORM KEY
Data Valid
Transition from
HIGH to LOW
Transition from
LOW to HIGH
Data Undefined
or Don’t Care
4
30A141-02
REV. D
Dense-Pac Microsystems, Inc.

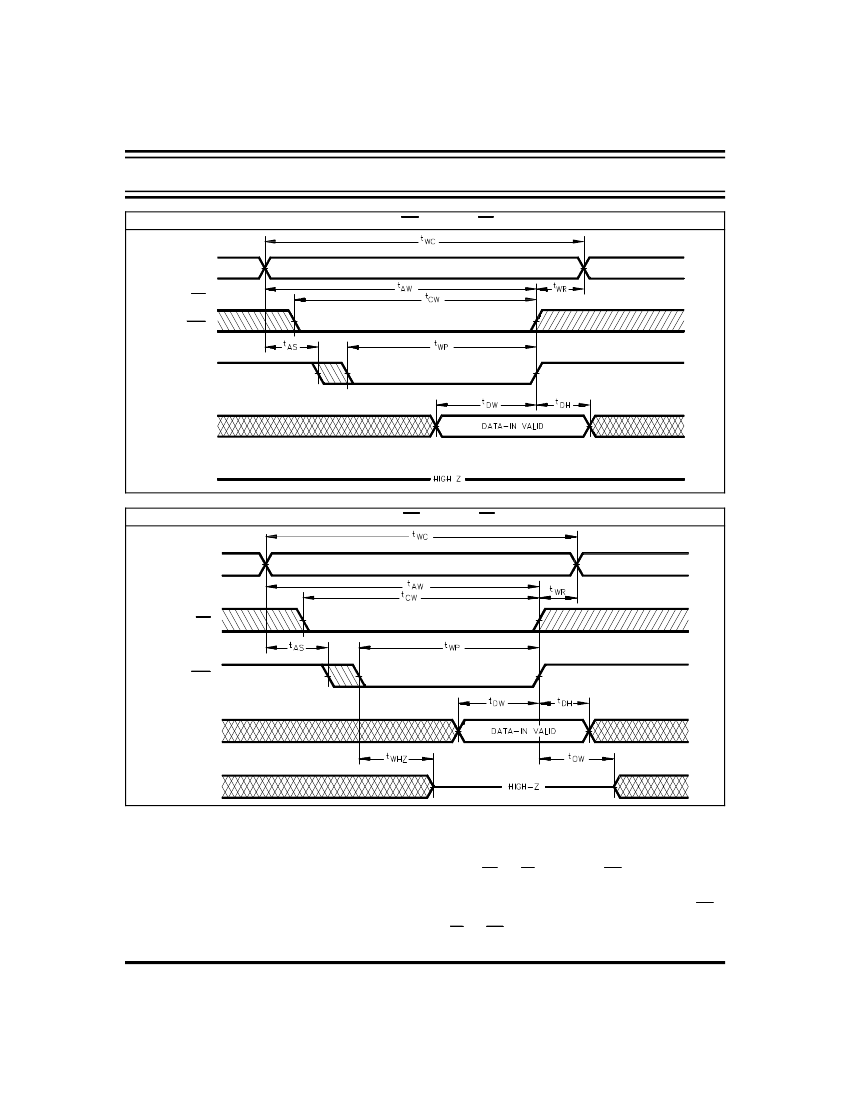

WRITE CYCLE 2:
WE Controlled. OE is HIGH.
8
DPS512C32MKV3
ADDRESS
CE
WE
DATA IN
DATA OUT
WRITE CYCLE 3:
WE Controlled. OE is LOW.
8
ADDRESS
CE
WE
DATA IN
DATA OUT
NOTES:
1.
All voltages are with respect to V
SS
.
2. -2.0V min. for pulse width less than 20ns (V
IL
min. = -0.5V
at DC level).
3. Stresses greater than those under
ABSOLUTE MAXIMUM
RATINGS
may cause permanent damage to the device. This
is a stress rating only and functional operation of the device
at these or any other conditions above those indicated in
the operational sections of this specification is not implied.
Exposure to absolute maximum rating conditions for
extended periods may affect reliability.
30A141-02
REV. D
4. This parameter is guaranteed and not 100% tested.
5. Transition is measured at the point of
±500mV
from steady
state voltage.
6. When OE and CE are LOW and WE is HIGH, I/O pins are
in the output state,and input signals of opposite phase to
the outputs must not be applied.
7. The outputs are in a high impedance state when WE is
LOW.
8. CE and WE can initiate and terminate WRITE Cycle.
5
