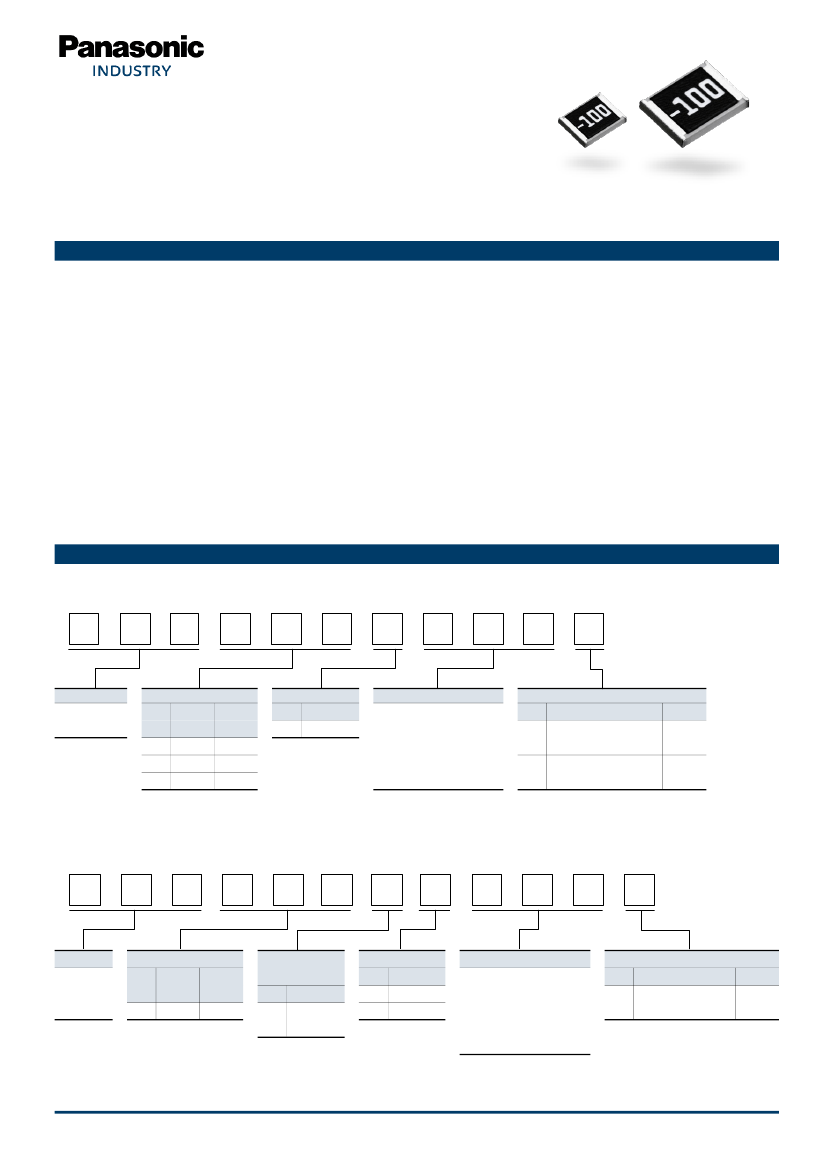

Anti-Pulse Thick Film Chip Resistors
ERJ T type
ERJ T06, T08, T14
series
ERJ T14L
series
Features
● Anti-Pulse characteristics
High pulse characteristics achieved by the optimized trimming specifications (ERJT06, T08, T14)
● Further high pulse characteristics achieved by trimming-less specifications (ERJT14L)
● High reliability
: Metal glaze thick film resistive element and three layers of electrodes
● Suitable for both reflow and flow soldering
0.25 W：0805 inch /2012 mm size(ERJT06)
● High power
0.33 W：1206 inch /3216 mm size(ERJT08)
0.50 W：1210 inch /3225 mm size(ERJT14，ERJT14L)
● Reference standard
: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
● AEC-Q200 compliant
● RoHS compliant
■
As for packaging methods, land pattern, soldering conditions and safety precautions,
please see data files.
Explanation of part numbers
1T ERJS02 ½ ERJS1Tシリーズ
● ERJT06, T08, T14 series
1
2
3
4
5
6
7
8
9
10
11
E
Product code
Thick film
chip resistors
R
J
T
0
6
J
1
Resistance value
0
0
V
Packaging methods
Size, Power rating
Code
T06
T08
T14
inch
0805
1206
1210
Power
rating
0.25 W
0.33 W
0.5 W
Resistance tolerance
Code Tolerance
J
±5 %
The first two digits are
significant figures of
resistance and the third
one denotes number of
zeros following.
(Ex.) 222 : 2.2 kΩ
Code
V
U
Packaging
Punched carrier taping
4 mm pitch, 5,000 pcs
Embossed carrier taping
4 mm pitch, 5,000 pcs
Part No.
ERJT06
ERJT08
ERJT14
● ERJT14L series
1
2
3
4
5
6
7
8
9
10
11
12
E
R
J
T
1
4
L
M
1
0
0
U
Packaging methods
Code
U
Packaging
Embossed carrier taping
4 mm pitch, 5,000 pcs
Product code
Thick film
chip resistors
Size, Power rating
Code
T14
inch
1210
Power
rating
0.5 W
Product
specifications
Code
Specifications
L
Trimming-
less
Resistance tolerance
Resistance value
The first two digits are
significant figures of
resistance and the third
one denotes number of
zeros following.
(Ex.) 222 : 2.2 kΩ
Code Tolerance
K
M
±10 %
±20 %
Part No.
ERJT14L
½ Please contact us for 0805 (inch) and 1206 (inch) size trimming-less types.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
1-Mar-20
Anti-Pulse Thick Film Chip Resistors

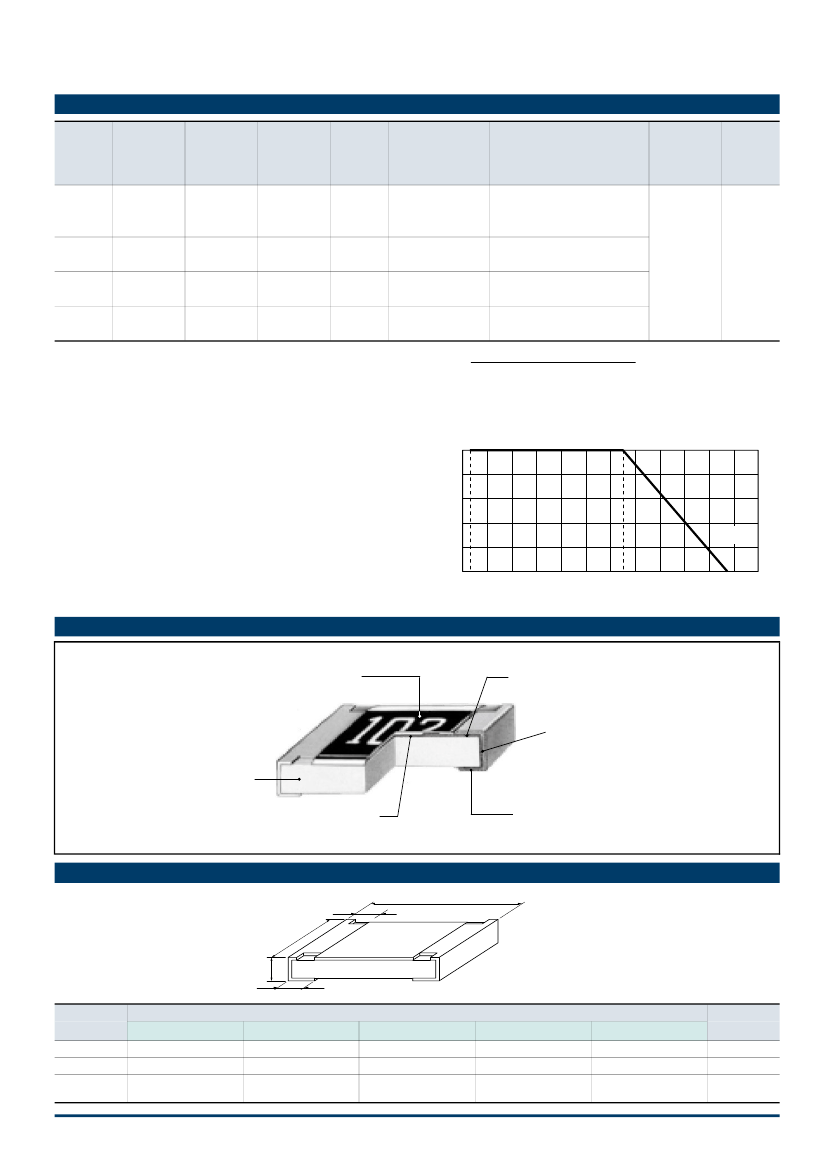

Ratings
Part No.
(inch size)
Power rating
(70
℃)(W)
*1
Limiting
element
voltage
*2
(V)
Maximum
overload
voltage
*3
(V)
Resistance
tolerance
(%)
Resistance
range
(Ω)
T.C.R.
(×10
-6
/K)
R<10 Ω
: –100 to +600
Category
temperature
range
(℃)
AEC-Q200
Grade
ERJT06
(0805)
ERJT08
(1206)
ERJT14
(1210)
ERJT14L
(1210)
0.25
150
200
±5
1 to 1 M
(E24)
10 Ω≤R<33 Ω
: ±300
33 Ω≤R
: ±200
R<10 Ω
: –100 to +600
10 Ω≤R
: ±200
R<10 Ω
: –100 to +600
10 Ω≤R
: ±200
R<10 Ω
: –100 to +600
10 Ω≤R
: ±200
–55 to +155
0.33
0.50
0.50
200
200
200
400
400
400
±5
±5
±10
±20
1 to 1 M
1 to 1 M
1 to 1 M
(E24)
(E24)
(E12)
Grade 0
*1: Use it on the condition that the case temperature is below the upper category temperature.
*2: Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=√Power Rating × Resistance Value,
or Limiting Element Voltage listed above, whichever less.
*3: Overload Test Voltage (OTV) shall be determined from OTV=Specified Magnification (refer to performance) × RCWV
or Maximum Overload Voltage listed above, whichever less.
-55
℃
70
℃
Rated load (%)
For resistors operated in ambient temperatures
above 70
℃,
power rating shall be derated in
accordance with the figure on the right.
Power derating curve
100
80
60
40
20
0
-60
-40 -20
0
20
40
60
80
100 120
140
160 180
155
℃
Ambient temperature (℃)
Construction
Protective coating
Electrode (Inner)
Electrode (Between)
Alumina substrate
Thick film resistive element
Electrode (Outer)
Dimensions (not to scale)
a
W
T
b
Part No.
ERJT06
ERJT08
ERJT14
ERJT14L
L
Unit : mm
L
2.00±0.20
3.20+0.05/-0.20
3.20±0.20
W
1.25±0.10
1.60+0.05/-0.15
2.50±0.20
Dimensions
a
0.25±0.20
0.40±0.20
0.35±0.20
b
0.40±0.20
0.50±0.20
0.50±0.20
T
0.60±0.10
0.60±0.10
0.60±0.10
Mass (Weight)
(Reference)
(g/1000 pcs)
4
10
16
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
1-Mar-20
Anti-Pulse Thick Film Chip Resistors
Limiting power curve
●
In rush pulse Characteristic
Pulse duration:
τ
Pp
Limiting
power
0
Test cycle
：1000
cycles
Spec
：Resistance
value = within ±5 %
Period time:10 s
: Anti-Pulse Thick Film Chip Resistors (Series ERJT14L)
: Anti-Pulse Thick Film Chip Resistors(Series ERJT)
: Thick Film Chip Resistors(Series ERJ
：1
Ω)
Limiting power : Pp (Ｗ）
Limiting power : Pp (Ｗ）
●ERJT06
(0805 inch size)
100
●ERJT08
(1206 inch size)
100
10
10
1
1
10
100
1000
1
1
10
100
1000
Pulse duration
τ
(msec)
Limiting power : Pp (Ｗ）
Pulse duration
τ
(msec)
1000
100
10
1
●ERJT14,
ERJT14L (1210 inch size)
※This
data is for reference purposes.
Please check with the actual equipment before use.
1
10
100
1000
Pulse duration
τ
(msec)
※
Please contact us for 0805 (inch) and 1206 (inch) size
trimming-less types.
Performance
Test Item
Resistance
T. C. R.
Overload
Resistance to
soldering heat
Rapid change of
temperature
High temperature
exposure
Damp heat,
Steady state
Load life in humidity
Endurance at 70℃
Performance
requirements
⊿R
Within specified
tolerance
Within specified
T. C. R.
±2 %
±1 %
±1 %
±1 %
±1 %
±3 %
±3 %
Test conditions
20
℃
+25
℃
/ +155
℃
Rated voltage× 2.5, 5 s
270
℃±3 ℃,
10 s ±1 s
–55
℃
(30 min.) / +155
℃
(30 min.), 100 cycles
+155
℃,
1000 h
60
℃
±2
℃,
90 % to 95 %RH, 1000 h
60
℃
±2
℃,
90 % to 95 %RH, Rated voltage ,
1.5 h ON / 0.5 h OFF cycle, 1000 h
70
℃
±2
℃，Rated
voltage,
1.5 h ON / 0.5 h OFF cycle, 1000 h
1-Mar-20
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Guidelines and precautions regarding the
technical information and use of our products
described in this online catalog.
■
If you want to use our products described in this online catalog for applications requiring special
qualities or reliability, or for applications where the failure or malfunction of the products may directly
jeopardize human life or potentially cause personal injury (e.g. aircraft and aerospace equipment,
traffic and transportation equipment, combustion equipment, medical equipment, accident prevention,
anti-crime equipment, and/or safety equipment), it is necessary to verify whether the specifications of
our products fit to such applications. Please ensure that you will ask and check with our inquiry desk
as to whether the specifications of our products fit to such applications use before you use our products.
■
The quality and performance of our products as described in this online catalog only apply to our
products when used in isolation. Therefore, please ensure you evaluate and verify our products under
the specific circumstances in which our products are assembled in your own products and in which our
products will actually be used.
■
If you use our products in equipment that requires a high degree of reliability, regardless of the
application, it is recommended that you set up protection circuits and redundancy circuits in order
to ensure safety of your equipment.
■
The products and product specifications described in this online catalog are subject to change for
improvement without prior notice. Therefore, please be sure to request and confirm the latest product
specifications which explain the specifications of our products in detail, before you finalize the design
of your applications, purchase, or use our products.
■
The technical information in this online catalog provides examples of our products' typical operations
and application circuits. We do not guarantee the non-infringement of third party's intellectual property
rights and we do not grant any license, right, or interest in our intellectual property.
■
If any of our products, product specifications and/or technical information in this online catalog is to
be exported or provided to non-residents, the laws and regulations of the exporting country,
especially with regard to security and export control, shall be observed.
<Regarding the Certificate of Compliance with
the EU RoHS Directive/REACH Regulations>
■
The switchover date for compliance with the RoHS Directive/REACH Regulations varies depending
on the part number or series of our products.
■
When you use the inventory of our products for which it is unclear whether those products are
compliant with the RoHS Directive/REACH Regulation, please select "Sales Inquiry" in the website
inquiry form and contact us.
We do not take any responsibility for the use of our products outside the scope of the
specifications, descriptions, guidelines and precautions described in this online catalog.
16-Apr-21
Fixed Resistors
Application
Guidelines (Fixed Resistors)
Safety precautions
• When using our products, no matter what sort of equipment they might be used for, be sure to make a written
agreement on the specifications with us in advance. The design and specifications in this catalog are subject to
change without prior notice.
• Do not use the products beyond the specifications described in this catalog.
• This catalog explains the quality and performance of the products as individual components. Before use, check
and evaluate their operations when installed in your products under the actual conditions for use.
• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment
where a defect in these products may cause the loss of human life or other significant damage, such as
damage to vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment,
electric heating appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention
equipment.
½
Systems equipped with a protection circuit and a protection device.
½
Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault.
½
Systems equipped with an arresting the spread of fire or preventing glitch.
Precautions for use
• These products are designed and manufactured for general and standard use in general elec tron ic equipment.
(e.g. AV equipment, home electric appliances, office equipment, information and communication equipment)
For applications in which special quality and reliability are required, or if the failure or malfunction of the
products may directly jeopardize life or cause threat of personal injury (such as for aircraft and aerospace
equipment, traffic and transport equipment, combustion equipment, medical equipment, accident prevention
and anti-theft devices, and safety equipment), please be sure to consult with our sales representative in
advance and to exchange product specifications which conform to such applications.
• These products are not intended for use in the following special conditions. Before using the products, carefully
check the effects on their quality and performance, and determine whether or not they can be used.
1. In liquid, such as water, oil, chemicals, or organic solvent.
2. In direct sunlight, outdoors, or in dust.
3. In salty air or air with a high concentration of corrosive gas, such as Cl2, H2S, NH3, SO2, or NOX .
4. Electric Static Discharge (ESD) Environment.
These components are sensitive to static electricity and can be damaged under static shock (ESD).
Please take measures to avoid any of these environments.
Smaller components are more sensitive to ESD environment.
5. Electromagnetic and Radioactive Environment.
Avoid any environment where strong electromagnetic waves and radiation exist.
6. In an environment where these products cause dew condensation.
7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with
resin or other materials.
• These products generate Joule heat when energized. Carefully position these products so that their heat will
not affect the other components.
• Carefully position these products so that their temperatures will not exceed the category temperature range
due to the effects of neighboring heat-generating components. Do not mount or place heat-generating
components or inflammables, such as vinyl-coated wires, near these products.
• Note that non-cleaning solder, halogen-based highly active flux, or water-soluble flux may deteriorate the
performance or reliability of the products.
• Carefully select a flux cleaning agent for use after soldering. An unsuitable agent may deteriorate the
performance or reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to
leave water residues. Otherwise, the insulation performance may be deteriorated.
• Do not apply flux to these products after soldering. The activity of flux may be a cause of failures in these
products.
• Refer to the recommended soldering conditions and set the soldering condition. High peak temperature or
long heating time may impair the performance or the reliability of these products.
• Recommended soldering condition is for the guideline for ensuring the basic characteristics of the products,
not for the stable soldering conditions. Conditions for proper soldering should be set up according to individual
conditions.
• Do not reuse any products after removal from mounting boards.
• Do not drop these products. If these products are dropped, do not use them. Such products may have
received mechanical or electrical damage.
• If any doubt or concern to the safety on these products arise, make sure to inform us immediately and
conduct technical examinations at your side.
01-Oct-19
京公网安备 11010802033920号
EEWORLD
