5252-1501-500 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5252-1501-500

Preview

5252-1501-500: DescriptionRF Connector Adapter, SLB-SLB, Cable Mount, Male-Male, Jack; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

5252-1501-500 Overview

RF Connector Adapter, SLB-SLB, Cable Mount, Male-Male, Jack

5252-1501-500 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Adapter type	SLB-SLB
Other features	INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact completed and terminated	GOLD
Contact point gender	MALE-MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	5252
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

Preview

Download Datasheet

View All

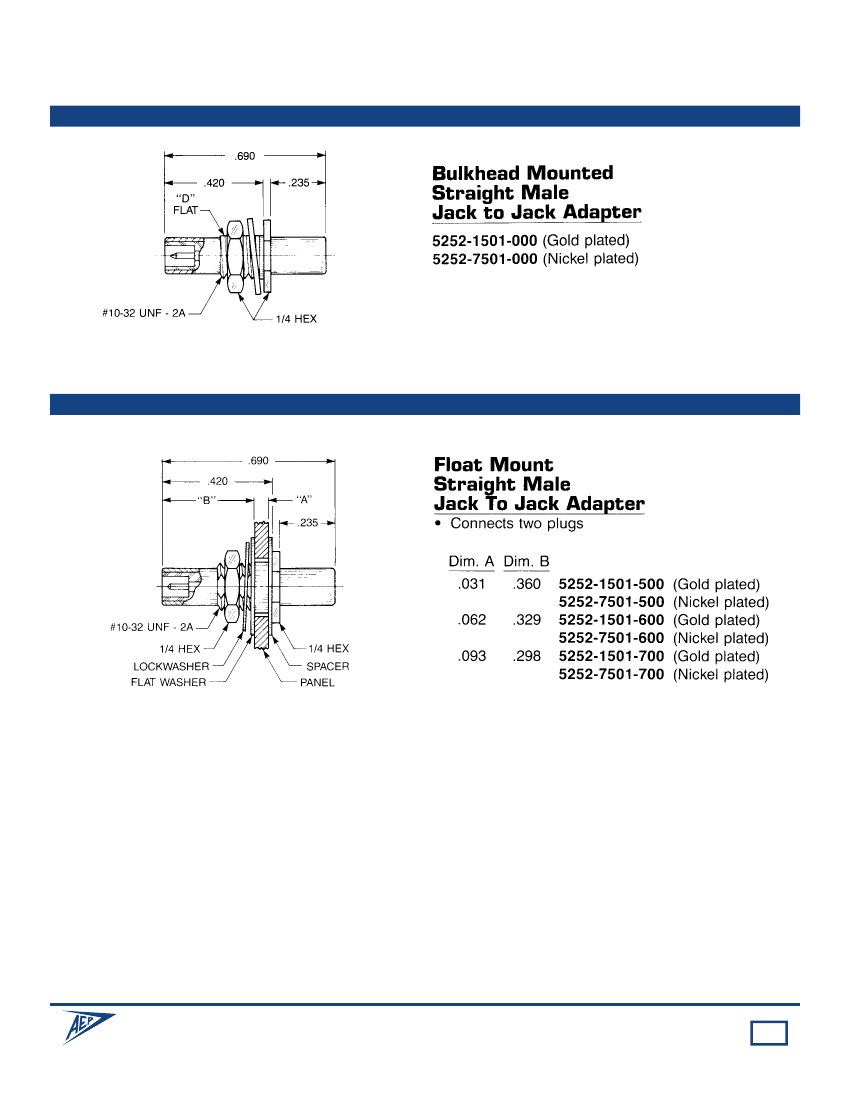

SLB Adapters

Straight Jack to jack, Bulkhead Mounted

Straight Jack to jack, Float Mounted

APPLIED ENGINEERING PRODUCTS

(203) 776-2813 • FAX (203) 776-8294

www.aepconnectors.com • aepsales@aepconnectors.com

22

5252-1501-500 Related Products

	5252-1501-500	5252-1501-600	5252-1501-000	5252-1501-700	5252-7501-500	5252-7501-600	5252-7501-700	5252-7501-000
Description	RF Connector Adapter, SLB-SLB, Cable Mount, Male-Male, Jack	RF Connector Adapter, SLB-SLB, Cable Mount, Male-Male, Jack	RF Connector Adapter, SLB-SLB, Panel Mount, Cable Mount, Male-Male, Jack	RF Connector Adapter, SLB-SLB, Cable Mount, Male-Male, Jack	RF Connector Adapter, SLB-SLB, Cable Mount, Male-Male, Jack	RF Connector Adapter, SLB-SLB, Cable Mount, Male-Male, Jack	RF Connector Adapter, SLB-SLB, Cable Mount, Male-Male, Jack	RF Connector Adapter, SLB-SLB, Panel Mount, Cable Mount, Male-Male, Jack
Maker	Radiall	Radiall	Radiall	Radiall	Radiall	Radiall	Radiall	Radiall
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Adapter type	SLB-SLB	SLB-SLB	SLB-SLB	SLB-SLB	SLB-SLB	SLB-SLB	SLB-SLB	SLB-SLB
Other features	INSERTION LOSS MAX AT 1.5 GHZ	INSERTION LOSS MAX AT 1.5 GHZ	INSERTION LOSS MAX AT 1.5 GHZ	INSERTION LOSS MAX AT 1.5 GHZ	INSERTION LOSS MAX AT 1.5 GHZ	INSERTION LOSS MAX AT 1.5 GHZ	INSERTION LOSS MAX AT 1.5 GHZ	INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	NICKEL	NICKEL	NICKEL	NICKEL
Contact point gender	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE	MALE-MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5252	5252	5252	5252	5252	5252	5252	5252
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	YES	NO	NO	NO	NO	YES
