Integrated Communications Processors
MPC8306 and MPC8306S
PowerQUICC II Pro Processors
Overview
The MPC8306 and MPC8306S processors
are part of the ultra low-end MPC830x
communications processor portfolio based
on the e300 core architecture. They address
the requirements of networking applications,
including I/O cards for low-end base stations,
residential gateways, modem/routers,
industrial control, factory automation and test
and measurement applications. The MPC830x
portfolio extends current PowerQUICC
offerings, providing similar DMIPS/MHz in
CPU performance, additional functionality
and faster interfaces while maintaining
code compatibility with PowerQUICC I
and PowerQUICC II processors. MPC830x
processors also provide competitive pricing,
low power consumption, compact board
footprint and a time to market advantage
through cost-effective evaluation kits with
optimized BSP and drivers.
Power Architecture
®
technology, which includes
16 KB of L1 instruction and data caches, dual
integer units and on-chip memory management
units (MMUs).
USB 2.0 controller, a 16-bit local bus and two
direct memory access (DMA) channels. In
addition, the MPC8306 also features 4 x CAN
and an enhanced SDHC controller.
In summary, the MPC8306S and MPC8306
devices provide users with a highly integrated,
fully programmable communications
processor for use in many networking and
industrial control applications. This helps
ensure that a cost-effective system solution
can be quickly developed and will offer
flexibility to accommodate new standards
and evolving system requirements.
QUICC Engine Technology
A communications complex, based on
QUICC Engine technology, forms the heart
of the networking capability of the MPC830x
portfolio. The QUICC Engine block contains
several peripheral controllers and a 32-bit
RISC controller. Protocol support is provided
by the main workhorses of the device—the
unified communication controllers (UCCs).
Each of the five UCCs can support a variety
of communication protocols, including 10/100
Mbps Ethernet and high-level data link
control (HDLC). Two of the UCCs can also
support IEEE
®
1588 version-2 time stamping
(MPC8306 configuration only).
Typical Applications
• I/O card for low-end base station
• Factory automation
• Industrial control
• Test and measurement equipment
System Interface Unit
The MPC8306S and MPC8306 processors
also include a 16-bit double data rate (DDR2)
memory controller, 4 x UARTs, High-Speed
Core Complex
The MPC8306 and MPC8306S incorporate
the e300c3 (MPC603e-based) core, built on
MPC8306/S Features
• High-performance, low-power and cost-
effective communications processor
• The e300 core, built on Power Architecture
technology, with dual integer units enables
more efficient operations to be conducted
in parallel, resulting in a significant
performance improvement
MPC8306/S Block Diagram
e300 Core
Complex
16 KB
D-Cache
16 KB
I-Cache
16-bit DDR2
Controller
• The single-RISC QUICC Engine
communications module offers a future-
proof solution for next-generation designs
by supporting programmable protocol
termination and network interface
termination to meet evolving protocol
standards
• DDR2 memory controller—one 16-bit
interface up to 266 MHz
• Peripheral interfaces such as 16-bit, 66
MHz local bus interface and High-Speed
USB 2.0, 4 x CAN, 4 x UARTs, enhanced
SDHC controller
Local Bus
QUICC Engine
Coherent System Bus
2 x DUART
I
2
C
Timers
SPI
GPIO
Interrupt Controller
Up to
2 x HDLC
3 x RMII/MII
/TDM
or
2 x with
IEEE
®
1588
eSDHC
8-bit
Or
4x
CAN
8-bit
USB
2.0
8-bit GPIO
Core
Accelerators
I/O
only in MPC8306
• High degree of software compatibility
with previous generation PowerQUICC
processor-based designs for backward
compatibility and easier software migration
- Asynchronous HDLC (bit rate up to
2 Mbps)
- Two TDM interfaces supporting up to 128
channels each running at up to 64 Kbps
The UCCs are similar to the PowerQUICC II
peripherals in that the serial communications
controller (SCC) supports the UART and HDLC
bus and fast serial communications controller
(FCC) supports fast Ethernet and HDLC.
software for product development. The BSP
components provide the tools, device drivers
and additional features needed for embedded
Linux
®
OS projects.
QUICC Engine Technology Features
• Single 32-bit RISC controller for flexible
support of communications peripherals
• Serial DMA controller for receive and
transmit on all serial channels
• Five UCCs supporting the following
interfaces (not all simultaneously)
- 10/100 Mbps Ethernet/IEEE Std. 802.3
through MII and RMII interfaces
- IEEE 1588 version-2 support (only on
MPC8306)
- HDLC/transparent (bit rate up to QUICC
Engine operating frequency divided by
eight)
- HDLC bus (bit rate up to 10 Mbps)
- PROFIBUS protocol support
MPC8306-KIT Contents
• MPC8306 SOM board
• MPC830x carrier card
• BSP
• UART cable
• Ethernet cable
• Power adaptor (12V–5A) and cable
Enablement
The MPC8306-KIT is a cost-optimized
reference development kit for the MPC8306
processor. The kit consists of a carrier card
and processor-specific system on module
(SOM) card. The SOM interfaces with
peripherals through the carrier card. This same
carrier card can be used for the MPC8309
processor SOMs.The MPC830x-KIT board
support package (BSP) can be customized
per project and combined with off-the-shelf

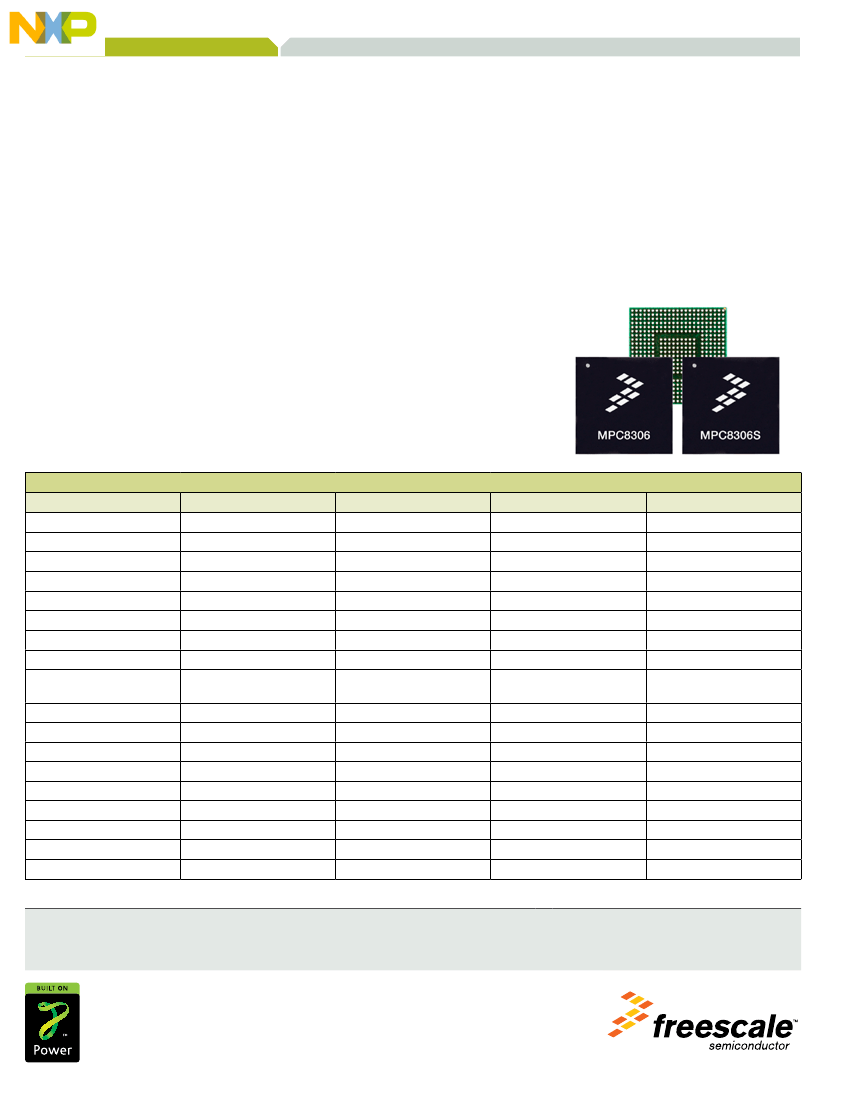

MPC830x PowerQUICC II Pro Processor Portfolio
MPC8308
Core
I-Cache/D-Cache
Floating Point Unit
Core Frequency
Memory Controller
Local Bus
PCI Interface
Ethernet
USB 2.0
UART
I C Controller
2
MPC8309
e300
16K/16K
Yes
266/333/400/417
32-bit RISC
8/16-bit up to 66 MHz
32-bit up to 66 MHz
3 x 10/100 MII/RMII or 2 x
10/100 with IEEE 1588 V2
Yes
Yes (4 x)
Dual
Yes
IPIC
Yes
Yes
Yes
489-pin MAPBGA
MPC8306
e300
16K/16K
Yes
133/200/266
32-bit RISC
8/16-bit up to 66 MHz
No
3 x 10/100 MII/RMII or 2 x
10/100 with IEEE 1588 V2
Yes
Yes (4 x)
Dual
Yes
IPIC
Yes
Yes
Yes
369-pin MAPBGA
MPC8306S
e300
16K/16K
Yes
133/200/266
32-bit RISC
16-bit DDR2
8/16-bit up to 66 MHz
No
3 x 10/100 MII/RMII
Yes
Yes (4 x)
Dual
Yes
IPIC
No
No
No
369-pin MAPBGA
e300
16K/16K
Yes
266/333/400
QUICC Engine Subsystem
No
8/16-bit up to 66 MHz
No (1 x PCI Express)
2 x 10/100/1000
MII/RGMII
Yes
Yes (2 x)
Dual
Yes
IPIC
Yes
Yes
16/32-bit DDR2 with ECC 16/32-bit DDR2 with ECC
16-bit DDR2
SPI
Interrupt Controller
IEEE
®
1588 Support
eSDHC
FlexCAN
Package
N
o
473-pin MAPBGA
Learn More:
For current information about Freescale
products and documentation, please visit
freescale.com/PowerQUICC.
Freescale, the Freescale logo and PowerQUICC are trademarks of Freescale Semiconductor, Inc. Reg. U.S. Pat. &
Tm.Off. QUICC Engine is a trademark of Freescale Semiconductor, Inc. All other product or service names are the
property of their respective owners. The Power Architecture and Power.org word marks and the Power and Power.
org logos and related marks are trademarks and service marks licensed by Power.org.
© 2010–2011 Freescale Semiconductor, Inc.
Document Number: MPC8306FS
REV 3
