SPECIFICATIONS
Current rating:
3 amps AC/DC
Voltage rating:
250 VAC
Contact resistance:
20 milliohms max.
Housing material:
Nylon, UL94V-0
Insulation resistance: 1000 megohms min.
Withstanding:
1500 VAC/1-min.
Operating temp.:
-40°C to +105°C
Terminal retention to housing 6.6 lbs (3.0kg) min.
Pin
2
3
4
5
6
7
8
9
10
11
12
13
14
A
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
B
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02

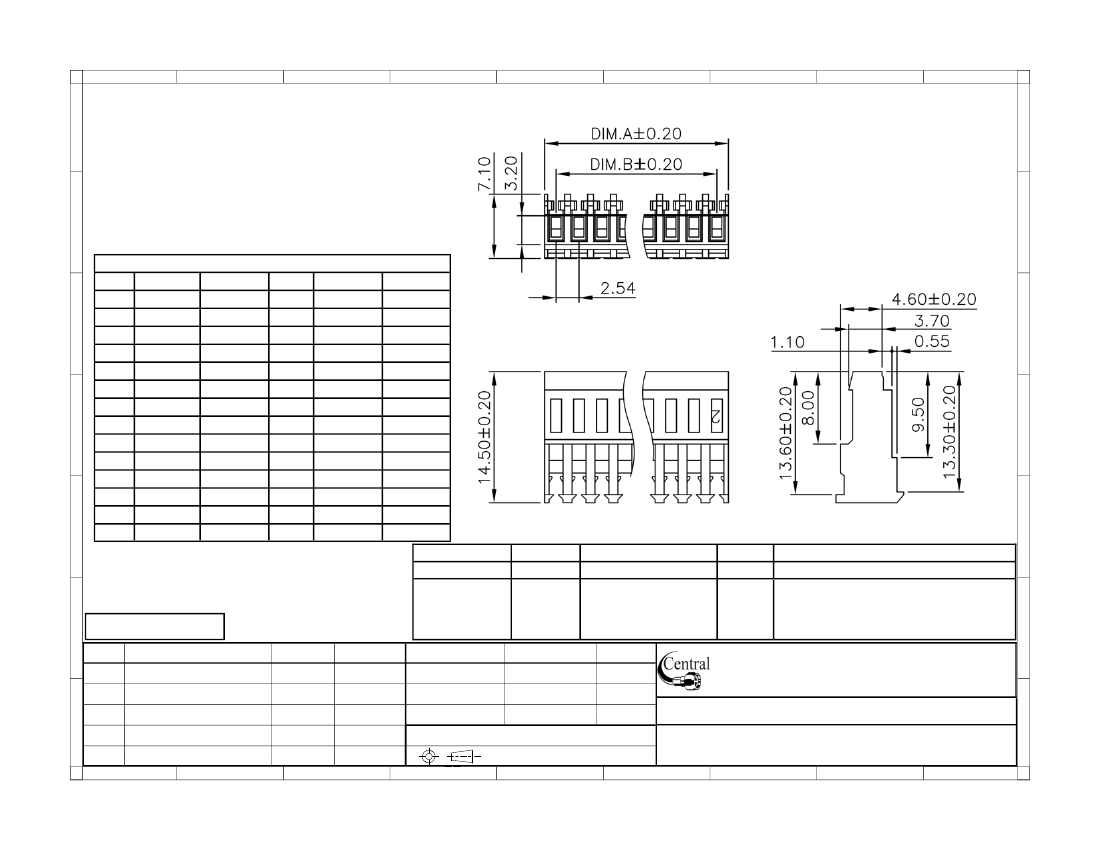

Dimensions
Pin
15
16
17
18
19
20
21
22
23
24
25
26
27
28
A
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
71.12
B
35.56
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
A
A=.100 X No. positions
B=.100 X No. spaces
B
C
C
D
D
E
E
F
RoHS compliant
Rev.
A PNT
Description
Date
Approved
03/22/10 Greg
Series
Pitch
Wire size
Positions
Options
CMT
XXX
XX
XX
XX
Mass termination 254=0.100” 22, 24, 26, 28 (254 pitch) 2-28
[blank]=With ramp no rib FT=Feed thru type
IDC type housing 396=0.156” 18, 20, 22, 24 (396 pitch)
NR=No locking ramp
V2=UL94V-2
P=Polarizing rib
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
8/10/99
8/10/99
8/10/99
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
Part No.:
G
CMT-254-XX-XX-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Mass termination connector (Mascon)
