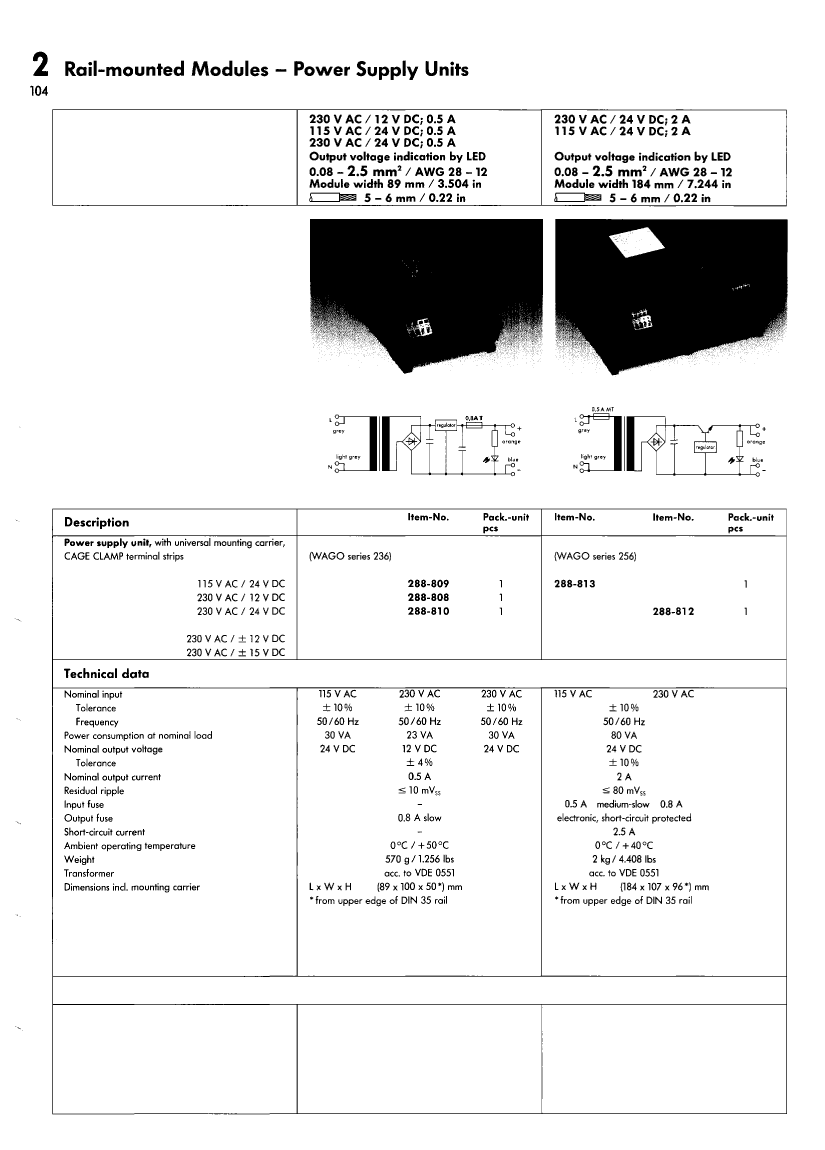

288-813: DescriptionAC-DC Regulated Power Supply Module, 1 Output, 184 X 107 MM, 96 MM HEIGHT MODULE; CategoryPower/power management The power supply circuit; File Size66KB，2 Pages; ManufacturerWAGO; Websitehttps://www.wago.com/

Download Datasheet Parametric Compare View All

288-813 Overview

AC-DC Regulated Power Supply Module, 1 Output, 184 X 107 MM, 96 MM HEIGHT MODULE

288-813 Parametric

Parameter Name	Attribute value
Maker	WAGO
Parts packaging code	MODULE
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	126.5 V
Minimum input voltage	103.5 V
Nominal input voltage	115 V
JESD-30 code	R-XXMA-X
Number of functions	1
Output times	1
Maximum operating temperature	40 °C
Minimum operating temperature
Maximum output voltage	26.4 V
Minimum output voltage	21.6 V
Nominal output voltage	24 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

288-813 Related Products

	288-813	288-810	288-809	288-814	288-808	288-815	288-812
Description	AC-DC Regulated Power Supply Module, 1 Output, 184 X 107 MM, 96 MM HEIGHT MODULE	AC-DC Regulated Power Supply Module, 1 Output, 89 X 100 MM, 50 MM HEIGHT MODULE	AC-DC Regulated Power Supply Module, 1 Output, 89 X 100 MM, 50 MM HEIGHT MODULE	AC-DC Regulated Power Supply Module, 2 Output, 94 X 100 MM, 55 MM HEIGHT MODULE	AC-DC Regulated Power Supply Module, 1 Output, 89 X 100 MM, 50 MM HEIGHT MODULE	AC-DC Regulated Power Supply Module, 2 Output, 94 X 100 MM, 55 MM HEIGHT MODULE	AC-DC Regulated Power Supply Module, 1 Output, 184 X 107 MM, 96 MM HEIGHT MODULE
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Reach Compliance Code	compliant	unknow	compli	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	126.5 V	253 V	126.5 V	253 V	253 V	253 V	253 V
Minimum input voltage	103.5 V	207 V	103.5 V	207 V	207 V	207 V	207 V
Nominal input voltage	115 V	230 V	115 V	230 V	230 V	230 V	230 V
JESD-30 code	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	2	1	2	1
Maximum operating temperature	40 °C	50 °C	50 °C	40 °C	50 °C	40 °C	40 °C
Maximum output voltage	26.4 V	24.96 V	24.96 V	12.48 V	12.48 V	15.6 V	26.4 V
Minimum output voltage	21.6 V	23.04 V	23.04 V	11.52 V	11.52 V	14.4 V	21.6 V
Nominal output voltage	24 V	24 V	24 V	12 V	12 V	15 V	24 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO
package instruction	,	89 X 100 MM, 50 MM HEIGHT MODULE	89 X 100 MM, 50 MM HEIGHT MODULE	94 X 100 MM, 55 MM HEIGHT MODULE	89 X 100 MM, 50 MM HEIGHT MODULE	,	-
Base Number Matches	1	1	1	1	1	1	-
