Part Number

Search

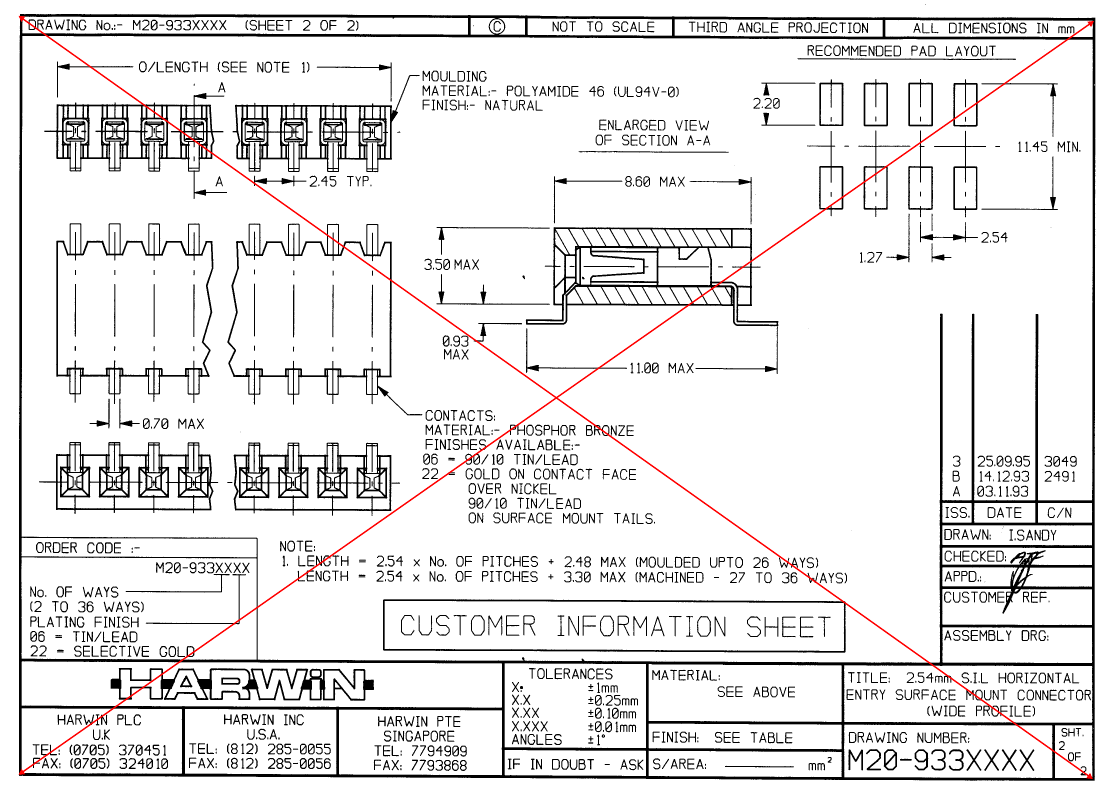

M20-9331506

Description
Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal
CategoryThe connector    The connector
File Size288KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric View All

M20-9331506 Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal

M20-9331506 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN LEAD
Contact completed and terminatedTIN LEAD
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberM20-933
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts15
Base Number Matches1
OBSOLETE
