HCG.2B.319.KNLP
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
19
0
0
0
0
0
0
2B
Female solder
68
0.00 - 0.00 mm
FGG.2B.319.KLAD72Z
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
HC*: Fixed receptacle, nut fixing, watertight or vacuum-tight (watertight when mated, back
panel mounting)
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (black chrome) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
P : Watertight
35.21 g
Performance
Configuration
Insulator
Rated Current
2B.319 : 19 Low Voltage
N: PBT (discontinued)
5 Amps
Specifications
Contact Type: Solder
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028in)
Bucket Dia.: 0.8 mm (0.031in)
Max. Solid Conductor: 0.34 mm^2 (AWG 22)
Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
R (max): 6.1 mOhm
Vtest (contact-shell): 1250 V (AC), 1770 V (DC)
Vtest (contact-contact): 950 V (AC), 1340 V (DC)
Others
Temp (min / max): -20°C / +80°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 20/80/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
Pressure: 40 bars
IP Rating: 68

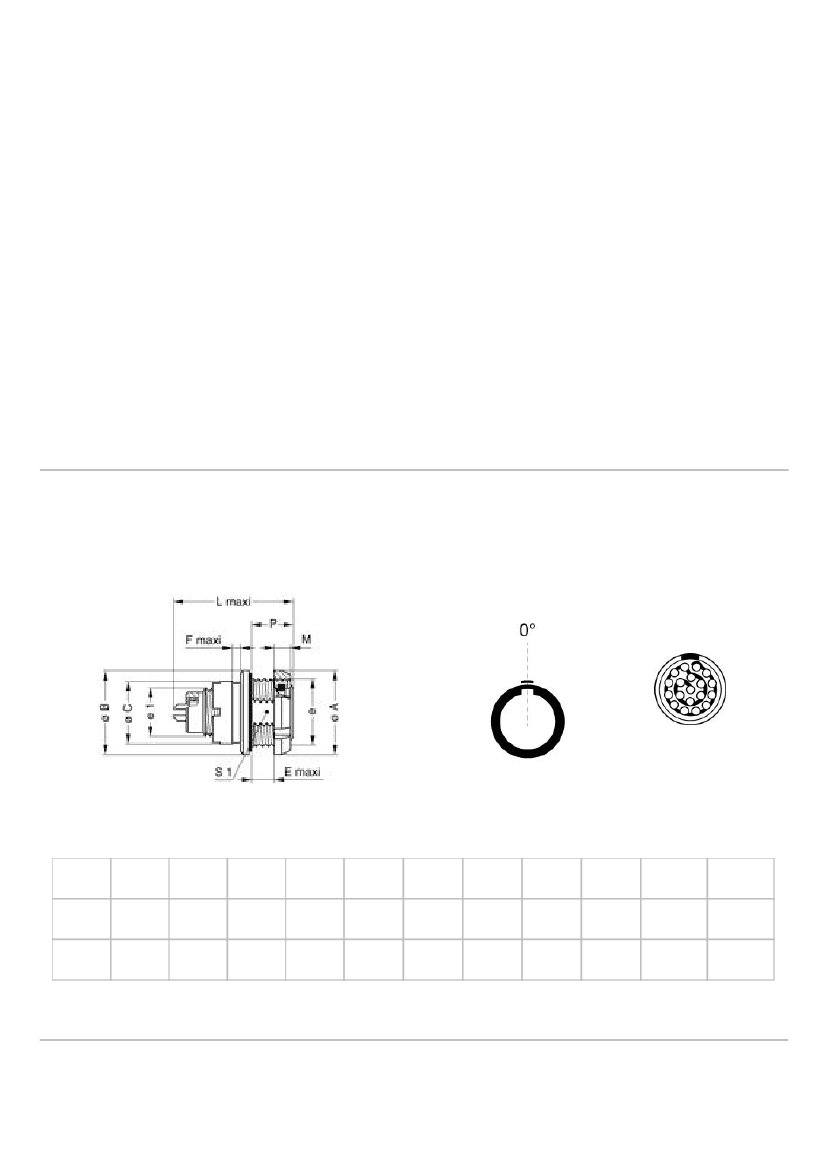

DRAWINGS
Draws
Dimensions
A
mm.
in.
24
0,94
B
24
0,94
C
17.5
0,69
E
6.7
0,26
F
1.5
0,06
L
33.7
1,33
M
3.5
0,14
P
11.3
0,44
S1
17
0,67
e
M14x1.0
e
M19x1.0
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
None
Cables
CMN.19.T22.079QGZE
CMN.19.T22.080PGCE
CMN.19.T22.080PGZE
CMN.19.T22.080PNCE
CMN.19.T22.080PNZE
PVC
TPR (medical)
PVC
Grey
GREY
Grey
Black
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/3
