F213-1121-100-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> F213-1121-100-Z

F213-1121-100-Z: DescriptionCard Edge Connector, 11 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size846KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

F213-1121-100-Z Overview

Card Edge Connector, 11 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking

F213-1121-100-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.138 inch
body length	0.618 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	50VAC V
maximum insertion force	ZIF N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	4.4958 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

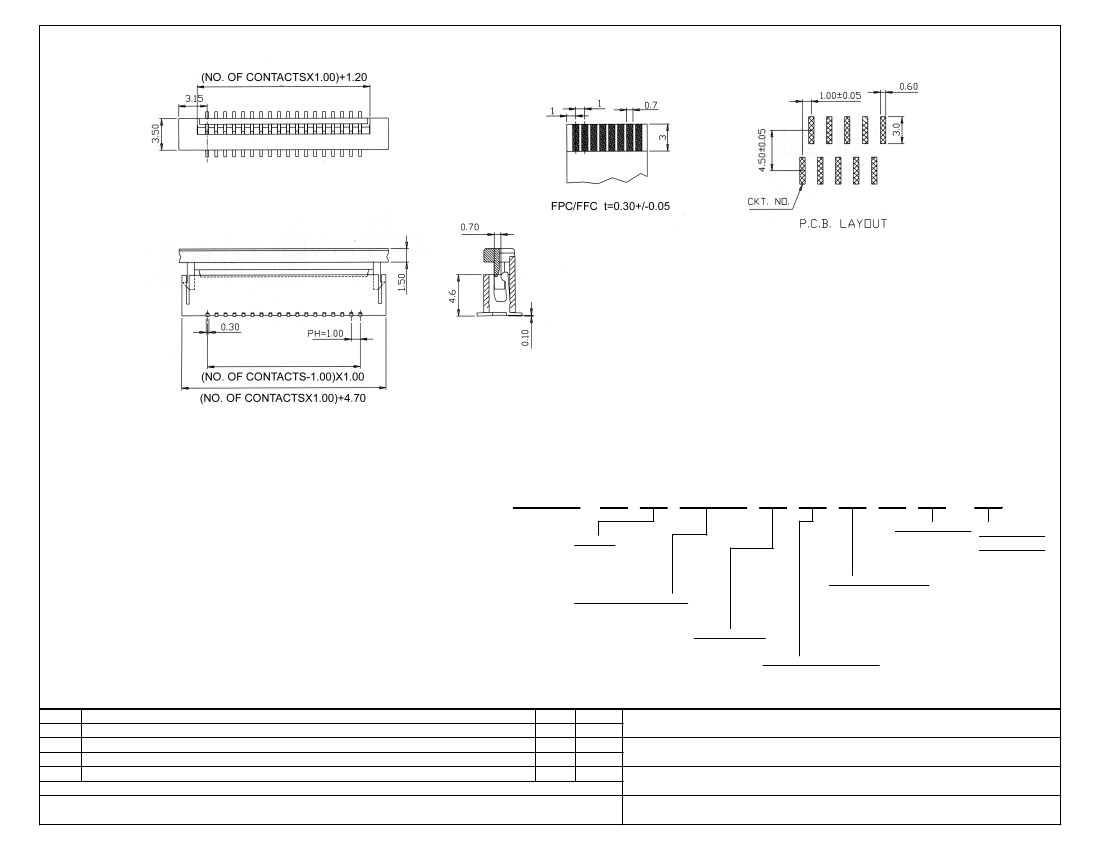

ELECTRICAL:

CURRENT RA TING: 0.5A

CONTA CT

RESISTA NCE:

30 Millio hm Max.

INSULA TION RESISTA NCE:

> 1000 Megaohm Min.

DIELECTRIC WITHSTA NDING V OLTA GE:

50V (rms) A C f or 1 Minute

OPERA TING TEMPERA TURE: -40°C to +105°C

INSULA TOR: Thermoplastic

FLA MMA BILITY RA TING: UL 94V -0

CONTA CT MA TERIA L: Copper A lloy

PLA TING: Tin Plating over Nickel

HOW TO ORDER :

RoHS

COMPLIANT

P IT C H :

3 - 1.00mm P IT CH

P A C K A G IN G :

0 - T UB E

MATERIAL

NUMBER OF CONTACTS:

0 3 t h ru 3 0

D E F IN IT IO N :

2 - SM T

C O N T A C T P O IN T

1 - SIN G L E C O N T A C T

SOLDERABILITY:

Rev

PER MIL-STD-202F METHOD 208D

A pv.

Date

S.E.

3 /3 /0 0

WHS 5 /19/0 6

MA T'L

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

A NGLE +/-

FINISH

UNIT: mm

IN S E R T D IR E C T IO N :

1 - T OP EN T R Y

2 - S IDE E NT R Y

SCA L E

Issued

Revised for RoHS Compliance

SM P TECHNOLOGY, INC.

Flexible Cable Connectors, ZIF (FFC)

P/N: F 2 1 3 - X X 2 1 - 1 0 0 - Z

TOL. DEC.

Pg: 1

F213-1121-100-Z Related Products

	F213-1121-100-Z	F213-0521-100-Z	F213-0621-100-Z	F213-0321-100-Z	F213-0721-100-Z
Description	Card Edge Connector, 11 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 5 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 6 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 3 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 7 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
body length	0.618 inch	0.382 inch	0.421 inch	0.303 inch	0.461 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	50VAC V	50VAC V	50VAC V	50VAC V	50VAC V
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	11	5	6	3	7
Maker	SMP Technology Inc.	SMP Technology Inc.	-	-	SMP Technology Inc.
Base Number Matches	1	1	1	1	-
