TAPE AND REEL LED LAMPS
L-34HD-TNR2.54, L-34HD-TNR5/7
L-34ID-TNR2.54, L-34ID-TNR5/7
L-34GD-TNR2.54, L-34GD-TNR5/7
L-34YD-TNR2.54, L-34YD-TNR5/7
L-34AD-TNR2.54, L-34AD-TNR5/7
BRIGHT RED
HIGH EFFICIENCY RED
GREEN
YELLOW
YELLOW
Features
!
FOR THE USE OF AUTOMATIC INSERTION
Description
The Bright Red source color devices are made with
Gallium Phosphide Red Light Emitting Diode.
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
MACHINE.
!
5mm FORMED LEAD AND 2.54mm STRAIGHT
LEAD.
!
SPACING AVAILABLE.
!
LED
LAMPS ALSO AVAILABLE IN
TAPE & BOX PACKAGE.

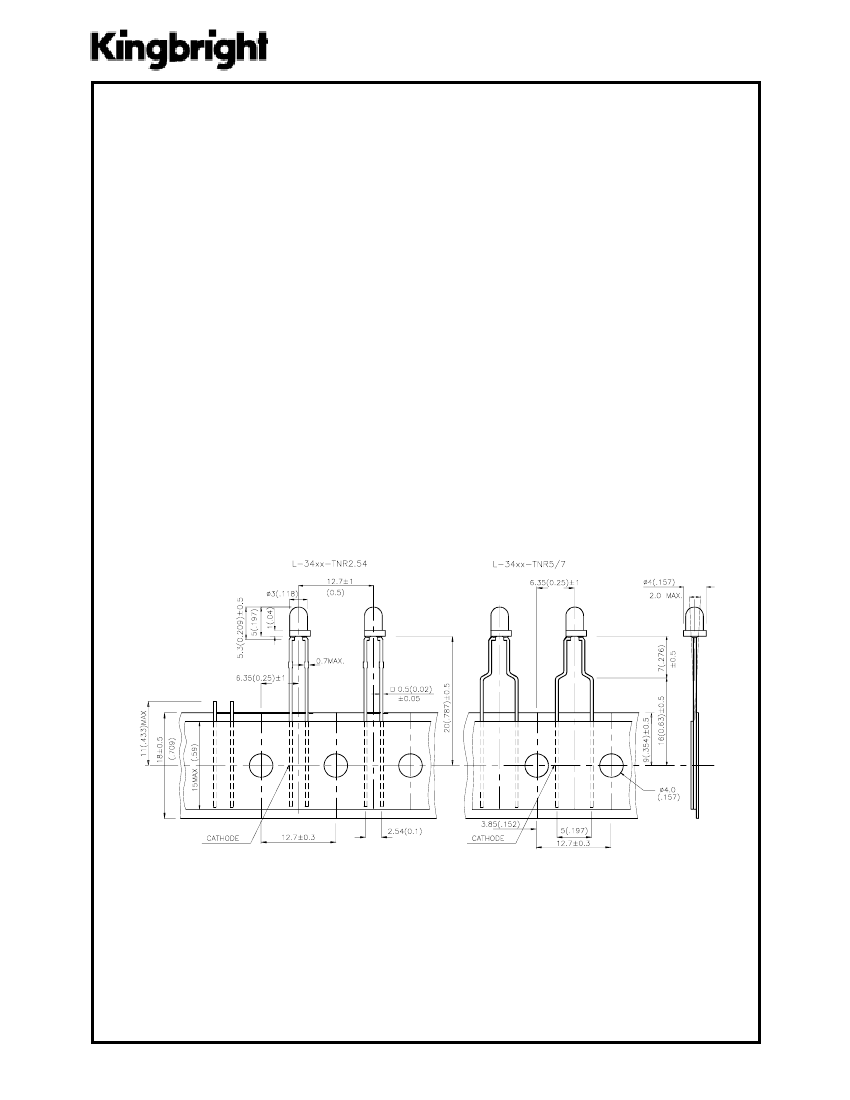

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0651
APPROVED : J.LU
REV NO: V.1
CHECKED :
DATE: OCT/3/2001
DRAWN: X.Q.ZHENG
PAGE: 1 OF 5
Selection Guide
Iv (m c d )
@ 10 m A
Min .
L-34HD-TNR2.54
L-34HD-TNR5/7
L-34ID-TNR2.54
L-34ID-TNR5/7
L-34GD-TNR2.54
L-34GD-TNR5/7
L-34YD-TNR2.54
L-34YD-TNR5/7
L-34AD-TNR2.54
L-34AD-TNR5/7
BRIGHT RED (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
YELLOW (GaAsP/GaP)
YELLOW (GaAsP/GaP)
RED DIFFUSED
RED DIFFUSED
GREEN DIFFUSED
YELLOW DIFFUSED
AMBER DIFFUSED
1
8
5
5
5
Ty p .
3
25
20
10
10
V i ew i n g
An g l e
2θ1/2
60 °
60 °
60 °
60 °
60 °
Par t No .
Dic e
L en s Ty p e
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par am et er
D ev i c e
Bright Red
High Efficiency Red
Green
Yellow
Bright Red
High Efficiency Red
Green
Yellow
Ty p .
700
627
565
590
660
625
568
588
45
45
30
35
40
15
15
20
2.25
2.0
2.2
2.1
2.5
2.5
2.5
2.5
10
Max .
Un it s
Tes t Co n d it io n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
Bright Red
High Efficiency Red
Spectral Line Halfwidth Green
Yellow
Capacitance
Bright Red
High Efficiency Red
Green
Yellow
Bright Red
High Efficiency Red
Green
Yellow
All
nm
IF=20mA
C
pF
VF=0V;f=1MHz
V
F
I
R
Forward Voltage
V
IF=20mA
Reverse Current
uA
V R = 5V
SPEC NO: KDA0651
APPROVED :J.LU
REV NO: V.1
CHECKED :
DATE: OCT/3/2001
DRAWN: X.Q.ZHENG
PAGE: 2 OF 5
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
B r i g h t R ed
12 0
25
120
5
H i g h E f f i c i en c y
R ed
10 5
30
16 0
5
Gr een
105
25
140
5
-40
°
C To +85
°C
Yello w
10 5
30
140
5
Un it s
mW
mA
mA
V
260
°
C For 5 Seconds
Bright Red L-34HD-TNR2.54, L-34HD-TNR5/7
SPEC NO: KDA0651
APPROVED : J.LU
REV NO: V.1
CHECKED :
DATE: OCT/3/2001
DRAWN: X.Q.ZHENG
PAGE: 3 OF 5

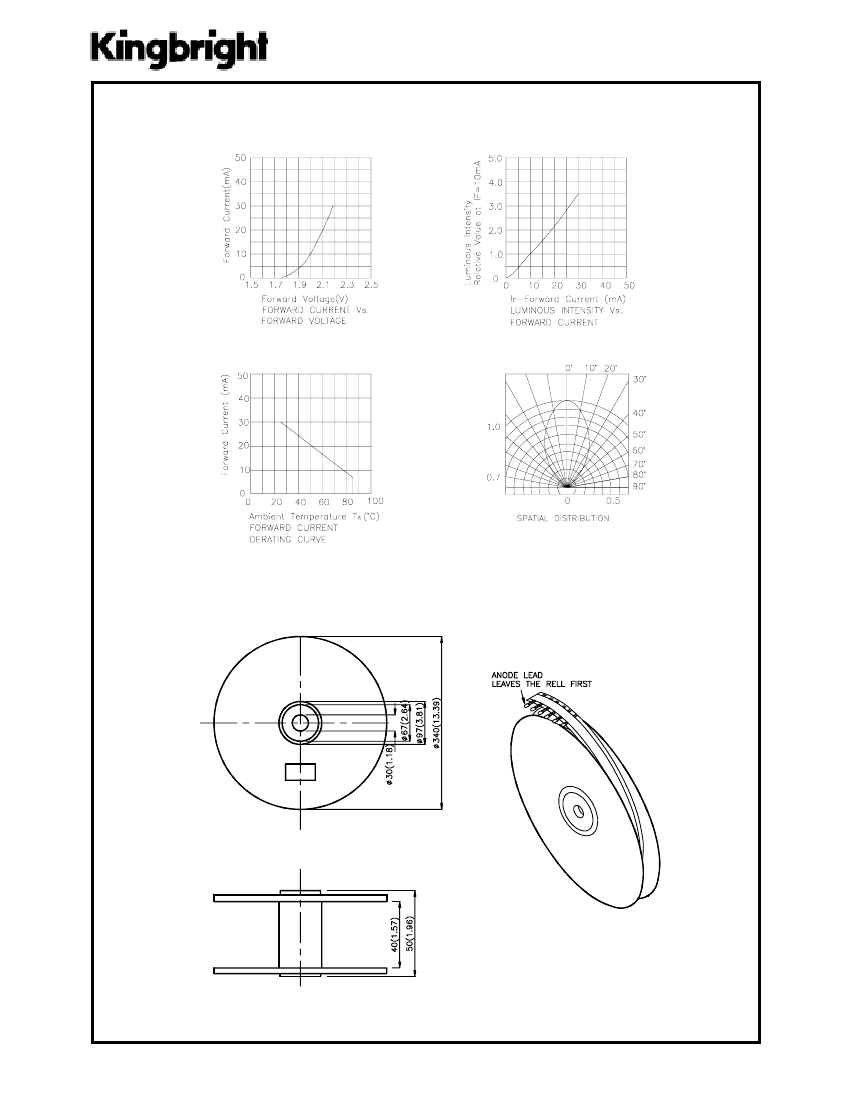

High Efficiency Red L-34ID-TNR2.54, L-34ID-TNR5/7
Green L-34GD-TNR2.54, L-34GD-TNR5/7
SPEC NO: KDA0651
APPROVED :J.LU
REV NO: V.1
CHECKED :
DATE: OCT/3/2001
DRAWN: X.Q.ZHENG
PAGE: 4 OF 5
