8424-15402: DescriptionIC Socket, DIP40, 40 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder; CategoryThe connector socket; File Size87KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8424-15402 Overview

IC Socket, DIP40, 40 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder

8424-15402 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.701 inch
subject depth	0.162 inch
body length	2 inch
Contact to complete cooperation	AU ON NI
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP40
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8424
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	40
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

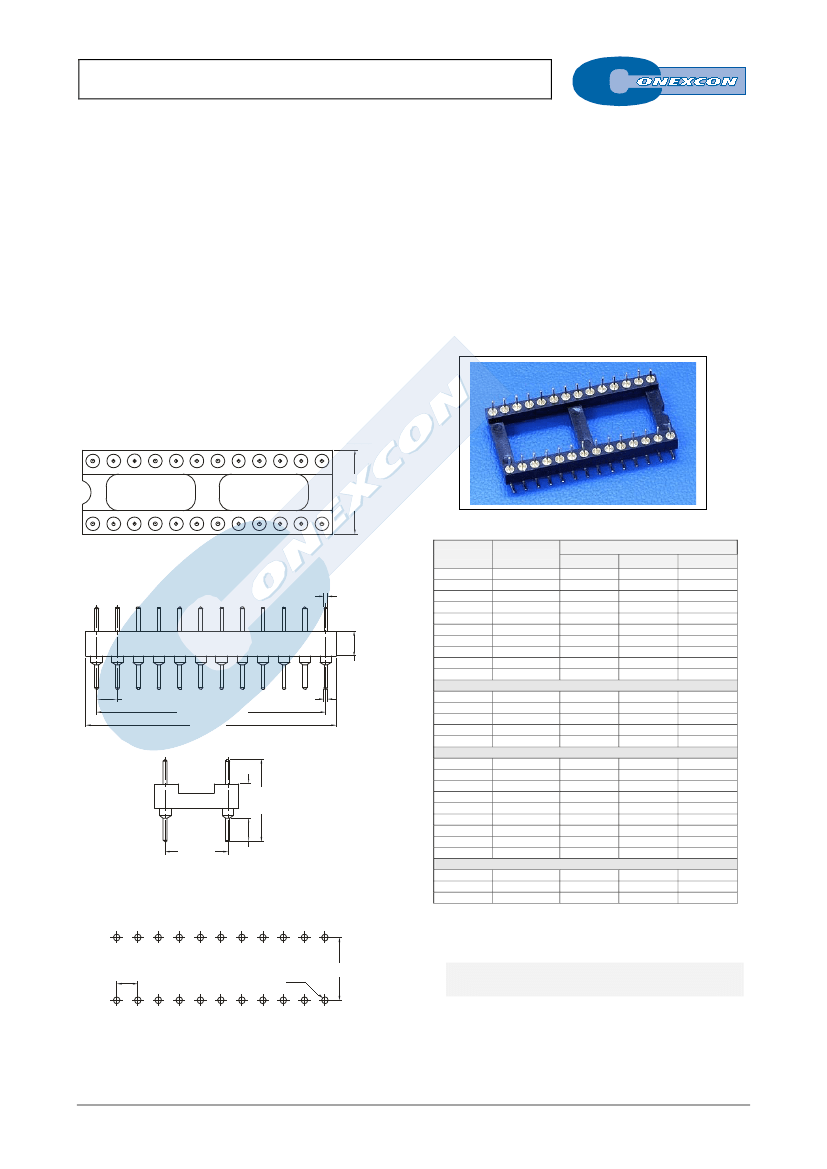

MACHINED CONTACT IC SOCKET

8424 SERIES.

2.54 mm. (0.100”) Pitch.

General Features

Electrical Features



Available in 6 through 64 circuits



Mates with IC sockets 2.54 mm pitch 8421 series



0.45 mm round pin in contact area and 0.45 mm. round

pin in solder PCB area



Machined contact with different plating

Materials



Voltage rating: < 150 V

Current rating: < 1 A

Contact resistance: < 10 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS Black + 30% GF UL 94 V-0

Contact: Clip(4 fingers): Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 0.80 Kgf



Durability: 500 cycles

Figuras y dimensiones

C±0.20

CIRCUITOS

CÓDIGO

8424-T061

8424-T081

8424-T101

8424-T141

8424-T161

8424-T181

8424-T201

8424-T221

8424-T241

8424-T281

8424-T202

8424-T222

8424-T242

8424-T282

8424-T322

8424-T242

8424-T282

8424-T322

8424-T362

8424-T402

8424-T422

8424-T482

8424-T502

8424-T522

8424-T502

8424-T522

8424-T642

DIMENSIONES

7.62

10.16

12.70

17.78

20.32

22.86

25.40

27.94

30.48

35.56

25.40

27.94

30.48

35.56

40.64

30.48

35.56

40.64

45.72

50.80

53.34

60.96

63.50

66.04

63.50

66.04

81.28

7.62

10.16

15.24

22.86

10.20

12.70

17.80

25.40

ø0.45

2.54±0.10

(A-2.54)±0.20

A±0.30

ø0.45

B±0.10

MECANIZADO RECOMENDADO

(Tolerancia ±0.05)

2.90

4.12

10.00

3.00±0.15

T = Contact Plating

2.54

ø0.80



T =

gold flash over 30-50µ" Ni overall

•

Recommended Finish



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

E-XX
