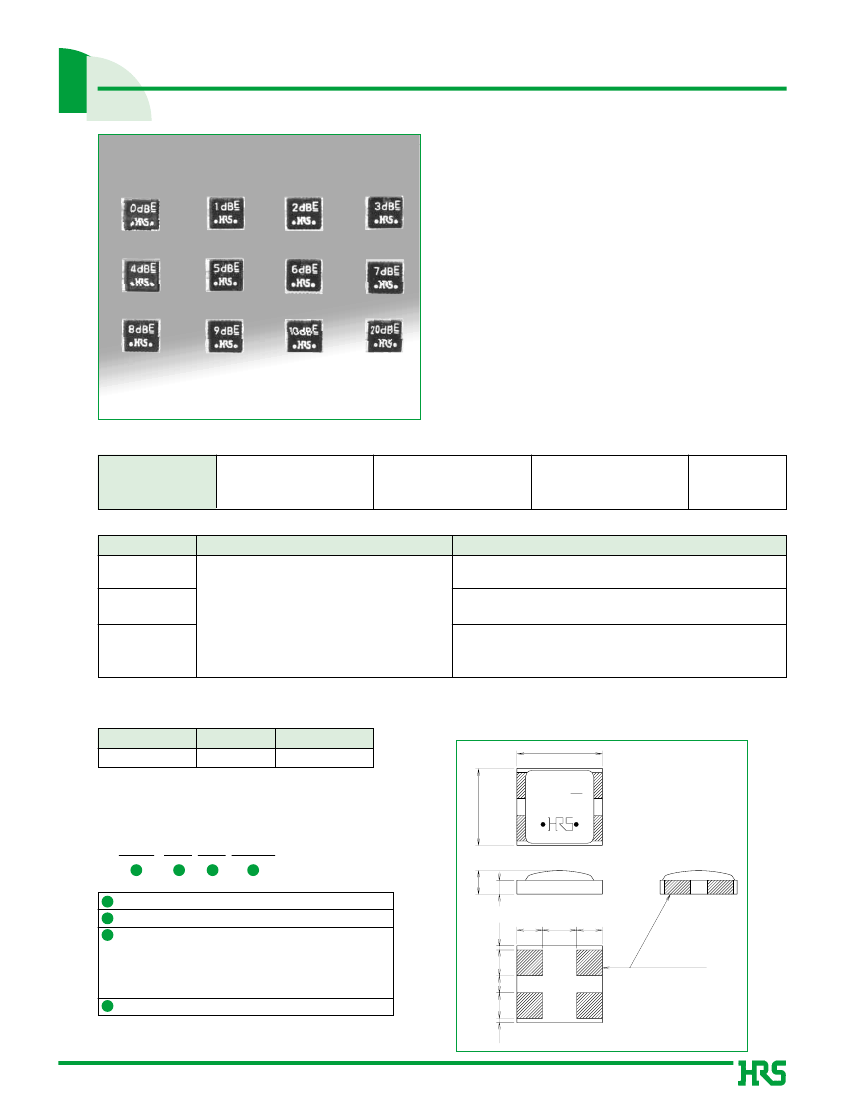

SMT Stripline Mounting Fixed Attenuators
AT-2200 Series
s
Features
1. Small Size and Lightweight
4mm x 3.6 mm x 1.4 mm max height and weighting
only 0.1g.
2. Wide Range of Variations for Each Type
of Attenuator
Attenuation levels available in 1 dB steps from 0 to
10 dB, and 20 dB for a total of 12 types of
variations.
3. Automatic placement
Supplied in embossed packaging to allow
placement with automatic equipment.
Individual piece packaging is also available.
s
Product Specifications
Ratings
Frequency range
Characteristic impedance
Maximum input power
DC to 2.5GHz (Note)
50ø
1W
Operating temperature
Operating humidity
-10ç to +65ç
95% max.
Note: DC to 600MHz for AT-2220.
Item
1.Vibration
2.Shock
Characteristic requirement
Conditions
Frequency of 10 to 2000 Hz, overall amplitude of 1.5mm,
acceleration of 98m/s
2
, 2 hours in each of the 3 directions.
No electrical discontinuity of 1µs or more.
No damage, cracks, or parts dislocation.
Acceleration of 490m/s
2
, sine half-wave waveform, 3 cycles in
each of the 3 axis.
Temperature : -55ç
/
+15ç to +35ç
/
+85ç
/
+15ç to +35ç
Time
5 cycles
: 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
3.Temperature cycle
The test method conforms to MIL-STD-202.
sMaterials
Component
Attenuation element
Material
Metal film
Finish
Tin-lead plated
sDimensions
AT-2203 shown
4
AT - 22 01 (40)
1.4MAX
1
AX:Fixed attenuator
2
Series name :2200 Series
3
Attenuation
00-(0) : 0 dB (Through)
01
06
: 1dB
: 6dB
(0.65)
1
2
3
4
3.6
sOrdering
information
3dB E
1.2 0.8 1.2
(0.2)
(1.2)
1.6
(1.2)
Soldering areas
4
(40): RoHS Compliant
(0.2)
04/2009
83
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be
Mounting Fixed Attenuators
AT-2200 SeriesqSMT Stripline
discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sSpecifications
Attenuation (dB)
Part number DC~
1,000~
2,000~
1,000MHz 2,000MHz 2,500MHz
AT-2200-(0)(40)
AT-2201(40)
AT-2202(40)
AT-2203(40)
AT-2204(40)
AT-2205(40)
AT-2206(40)
AT-2207(40)
AT-2208(40)
AT-2209(40)
AT-2210(40)
AT-2220(40)
0
+0.3
0
1±0.3
2±0.3
3±0.3
4±0.3
5±0.3
6±0.3
7±0.3
8±0.3
9±0.3
10±0.3
0
+0.5
0
1±0.5
2±0.5
3±0.5
4±0.5
5±0.5
6±0.5
7±0.5
8±0.5
9±0.5
10±0.5
10±0.7
1.2
1.2
1.2
V.S.W.R (Max)
DC~2,500MHz
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.25
1.25
1.25
Characteristic Power
Impedance (ø)
50
50
50
50
50
50
50
50
50
50
50
50
(W)
1
1
1
1
1
1
1
1
1
1
1
1
Mounting surface
temperature (ç Max.) at time
of maximum input power
+85
+85
+85
+85
+85
+85
+85
+85
+85
+85
+85
+85
Weight
(g)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
20±1.5(DC to 600MHz)
1.2(DC to 600MHz)
Note: When ordering packaged on tape and reel, add (06) after the end of the part number. One reel = 1,000 pieces
sTypical
data
AT-2203(40)
(dB)
1.75
2.00
2.25
2.50
2.75
3.00
3.25
3.50
3.75
4.00
4.25
0.0
0.5
1.0
1.5
2.0
Frequency(GHz)
2.5
3.0
AT-2210(40)
(dB)
8.75
9.00
9.25
ATTENUATION
9.50
9.75
10.00
10.25
10.50
10.75
11.00
11.25
0.0
ATTENUATION
0.5
1.0
1.5
2.0
Frequency(GHz)
2.5
3.0
1.50
1.45
1.40
1.35
1.30
1.25
1.20
1.15
1.10
1.05
1.00
0.0
0.5
1.0
1.5
2.0
Frequency(GHz)
2.5
3.0
1.50
1.45
1.40
1.35
1.30
1.25
VSWR
1.20
1.15
1.10
1.05
VSWR
1.00
0.0
0.5
1.0
1.5
2.0
Frequency(GHz)
2.5
3.0
84
04/2009
