FODM30XX — 4-Pin Full Pitch Mini-Flat Package Random-Phase Triac Driver Output Optocouplers
April 2009
FODM3011, FODM3012, FODM3022, FODM3023,
FODM3052, FODM3053
4-Pin Full Pitch Mini-Flat Package Random-Phase Triac
Driver Output Optocouplers
Features
■
Compact 4-pin surface mount package (2.4 mm
■
Applications
(Continued)
■
Solid state relay
■
Lamp ballasts
■
Solenoid/valve controls
■
Static AC power switch
■
Incandescent lamp dimmers
■
Motor control
■
■
■
maximum standoff height)
Peak blocking voltage
250V (FODM301X)
400V (FODM302X)
600V (FODM305X)
Available in tape and reel quantities of 2500.
Add “NF098” for new construction version with 260°C
max. reflow temperature rating
UL, C-UL and VDE certifications pending
Description
The FODM301X, FODM302X, and FODM305X series
consists of a GaAs infrared emitting diode driving a
silicon bilateral switch housed in a compact 4-pin
mini-flat package. The lead pitch is 2.54mm. They are
designed for interfacing between electronic controls and
power triacs to control resistive and inductive loads for
115V/240V operations.
Applications
■
Industrial controls
■
Traffic lights
■
Vending machines

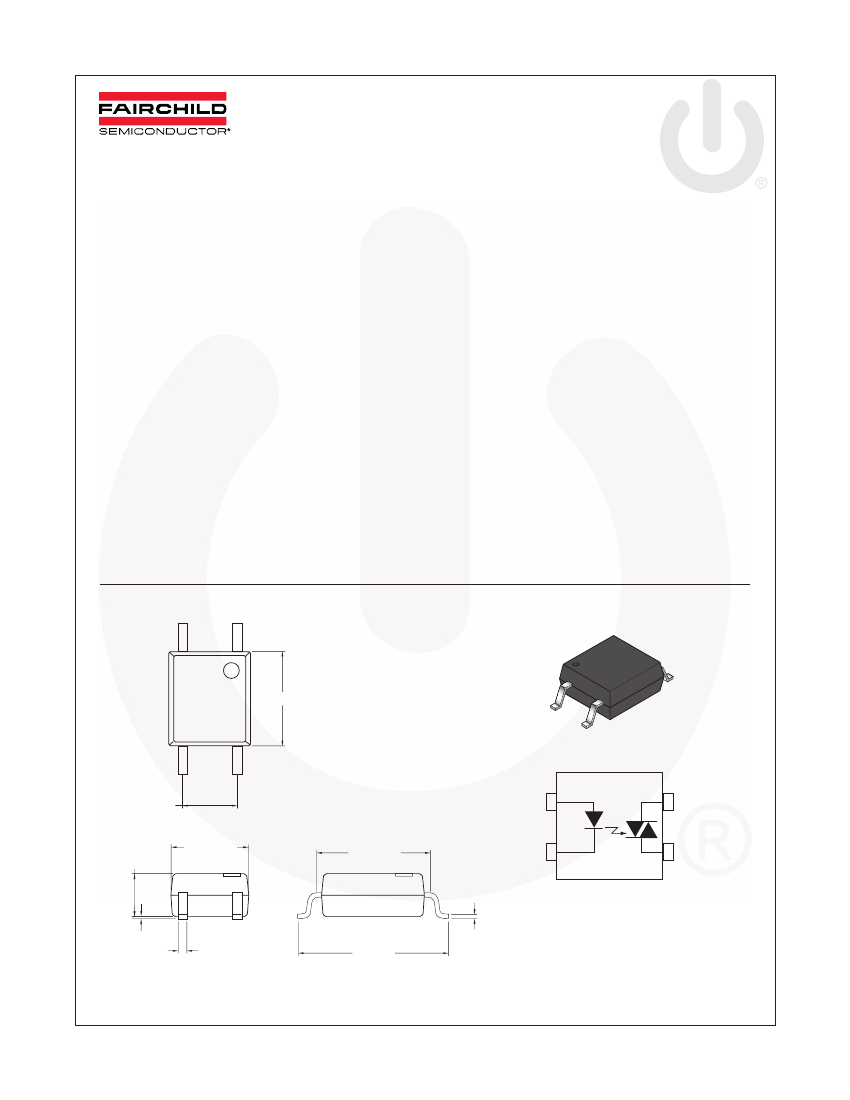

Package Dimensions
4.40
±0.20
2.54
±0.25
3.60
±0.30
2.00
±0.20
ANODE 1
MAIN
4 TERMINAL
5.30
±0.30
CATHODE 2
MAIN
3 TERMINAL
0.20
±0.05
0.10
±0.10
0.40
±0.10
7.00
+0.2
–0.7
Note:
All dimensions are in millimeters.
©2003 Fairchild Semiconductor Corporation
FODM30XX Rev. 1.0.6
www.fairchildsemi.com
FODM30XX — 4-Pin Full Pitch Mini-Flat Package Random-Phase Triac Driver Output Optocouplers
Absolute Maximum Ratings
(T
A
= 25°C unless otherwise specified)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only.
Symbol
TOTAL PACKAGE
T
STG
T
OPR
EMITTER
I
F (avg)
I
F (pk)
V
R
P
D
DETECTOR
I
T(RMS)
V
DRM
On-State RMS Current
Storage Temperature
Operating Temperature
Parameter
Value
-55 to +150
-40 to +100
60
1
3
100
70
FODM3011/FODM3012
FODM3022/FODM3023
FODM3052/FODM3053
250
400
600
300
Units
°C
°C
mA
A
V
mW
mA (RMS)
V
Continuous Forward Current
Peak Forward Current (1µs pulse, 300pps.)
Reverse Input Voltage
Power Dissipation (No derating required over operating temp. range)
Off-State Output Terminal Voltage
P
D
Power Dissipation (No derating required over operating temp. range)
mW
©2003 Fairchild Semiconductor Corporation
FODM30XX Rev. 1.0.6
www.fairchildsemi.com
2
FODM30XX — 4-Pin Full Pitch Mini-Flat Package Random-Phase Triac Driver Output Optocouplers
Electrical Characteristics
(T
A
= 25°C)
Individual Component Characteristics
Symbol
EMITTER
V
F
I
R
I
DRM
dV/dt
Input Forward Voltage
Reverse Leakage Current
Peak Blocking Current Either
Direction
Critical Rate of Rise of
Off-State Voltage
I
F
= 10mA
V
R
= 3V, T
A
= 25°C
Rated V
DRM
, I
F
= 0
(1)
I
F
= 0 (Figure 8)
(2)
All
All
All
FODM3011,
FODM3012,
FODM3022,
FODM3023
FODM3052,
FODM3053
1,000
1.20
0.01
2
10
1.5
100
100
V
µA
nA
V/µs
Parameter
Test Conditions
Device
Min.
Typ.*
Max.
Unit
DETECTOR
Transfer Characteristics
Symbol
I
FT
DC Characteristics
LED Trigger Current
Test Conditions
Main Terminal
Voltage = 3V
(3)
Device
FODM3011,
FODM3022,
FODM3052
FODM3012,
FODM3023,
FODM3053
Min.
Typ.*
Max.
10
Unit
mA
5
I
H
V
TM
Holding Current, Either
Direction
Peak On-State Voltage Either I
TM
= 100mA peak
Direction
All
All
300
1.7
3
µA
V
Isolation Characteristics
Symbol
V
ISO
Characteristic
Steady State Isolation
Voltage
Test Conditions
1 Minute,
R.H. = 40% to 60%
Device
All
Min.
3750
Typ.*
Max.
Unit
VRMS
*All typicals at T
A
= 25°C
Notes:
1. Test voltage must be applied within dv/dt rating.
2. This is static dv/dt. See Figure 1 for test circuit Commutating dv/dt is function of the load-driving thyristor(s) only.
3. All devices are guaranteed to trigger at an I
F
value less than or equal to max I
FT
. Therefore, recommended operating
I
F
lies between max I
FT
(10mA for FODM3011, FODM3022, and FODM3052, 5mA for FODM3012, FODM3023,
and FODM3053) and absolute max I
F
(60mA).
©2003 Fairchild Semiconductor Corporation
FODM30XX Rev. 1.0.6
www.fairchildsemi.com
3
FODM30XX — 4-Pin Full Pitch Mini-Flat Package Random-Phase Triac Driver Output Optocouplers
Typical Performance Curves

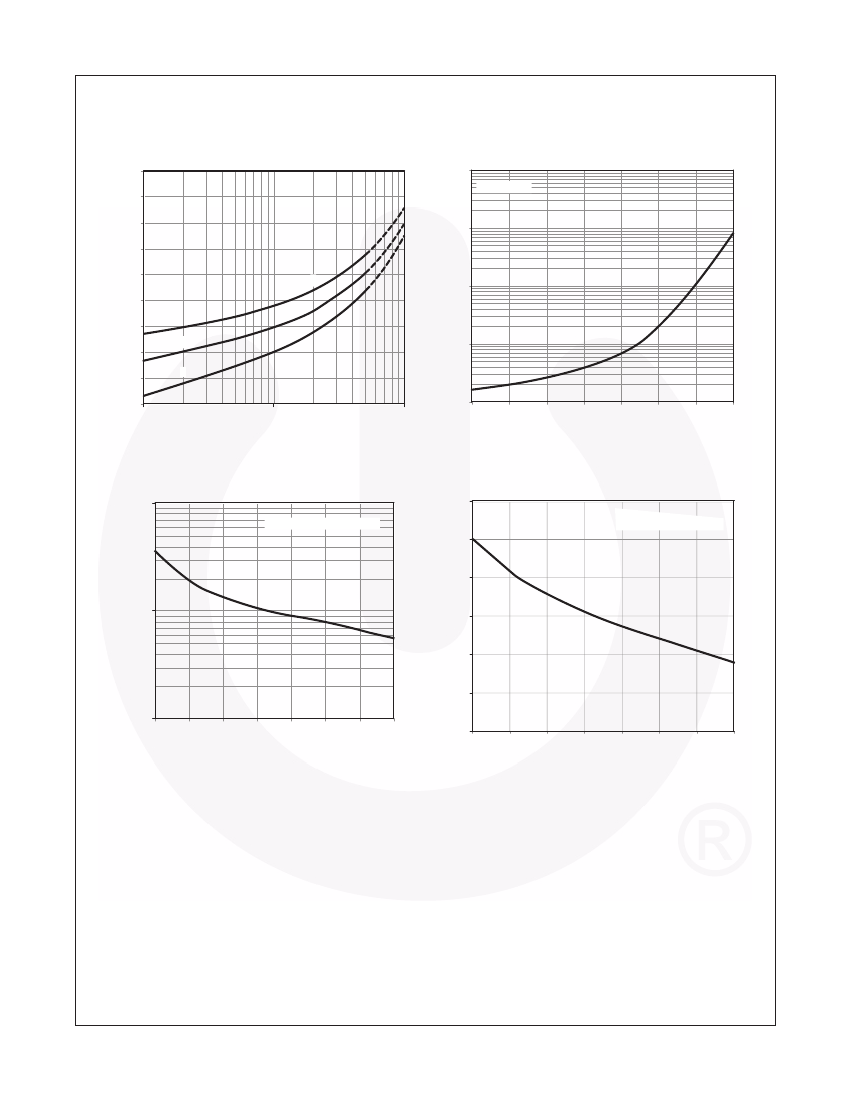

Fig. 1 LED Forward Voltage vs. Forward Current
1.8
1.7
1000
VDRM = 600V
Fig. 2 Leakage Current vs. Ambient Temperature
IDRM - LEAKAGE CURRENT (nA)
1.6
VF - FORWARD VOLTAGE (V)
100
1.5
1.4
1.3
1.2
1.1
1.0
0.9
1
10
IF - FORWARD CURRENT (mA)
100
TA = 25°C
TA = 100°C
TA = -40°C
10
1
0.1
-40
-20
0
20
40
60
80
100
T A - AMBIENT TEMPERATURE (°C)
Fig. 3 Holding Current vs. Ambient Temperature
10
1.6
NORMALIZED TO T
A
= 25°C
Fig. 4 Trigger Current vs. Ambient Temperature
V
TM
= 3V
NORMALIZED TO T
A
= 25°C
I H - HOLDING CURRENT (NORMALIZED)
I FT - TRIGGER CURRENT (NORMALIZED)
-20
0
20
40
60
80
100
1.4
1.2
1.0
1.0
0.8
0.6
0.1
-40
T A - AMBIENT TEMPERATURE (°C)
0.8
-40
-20
0
20
40
60
80
100
T A - AMBIENT TEMPERATURE (°C)
©2003 Fairchild Semiconductor Corporation
FODM30XX Rev. 1.0.6
www.fairchildsemi.com
4
FODM30XX — 4-Pin Full Pitch Mini-Flat Package Random-Phase Triac Driver Output Optocouplers
Typical Performance Curves
(Continued)
Fig. 5 LED Current Required to Trigger vs. LED Pulse Width
12
IFT - LED TRIGGER CURRENT (NORMALIZED)
T
A
=T
25°C
A
NORMALIZED TO PW
IN
>> 100µs
10
V DRM- OFF-STATE OUTPUT TERMINAL VOLTAGE
Fig. 6 Off-State Output Terminal Voltage vs. Ambient Temperature
1.4
NORMALIZED TO T = 25°C
A
1.3
1.2
(NORMALIZED)
1.1
1.0
0.9
0.8
0.7
0.6
-40
8
6
4
2
0
1
10
PW IN - LED TRIGGER PULSE WIDTH (°C)
100
-20
0
20
40
60
80
100
T A - AMBIENT TEMPERATURE (°C)

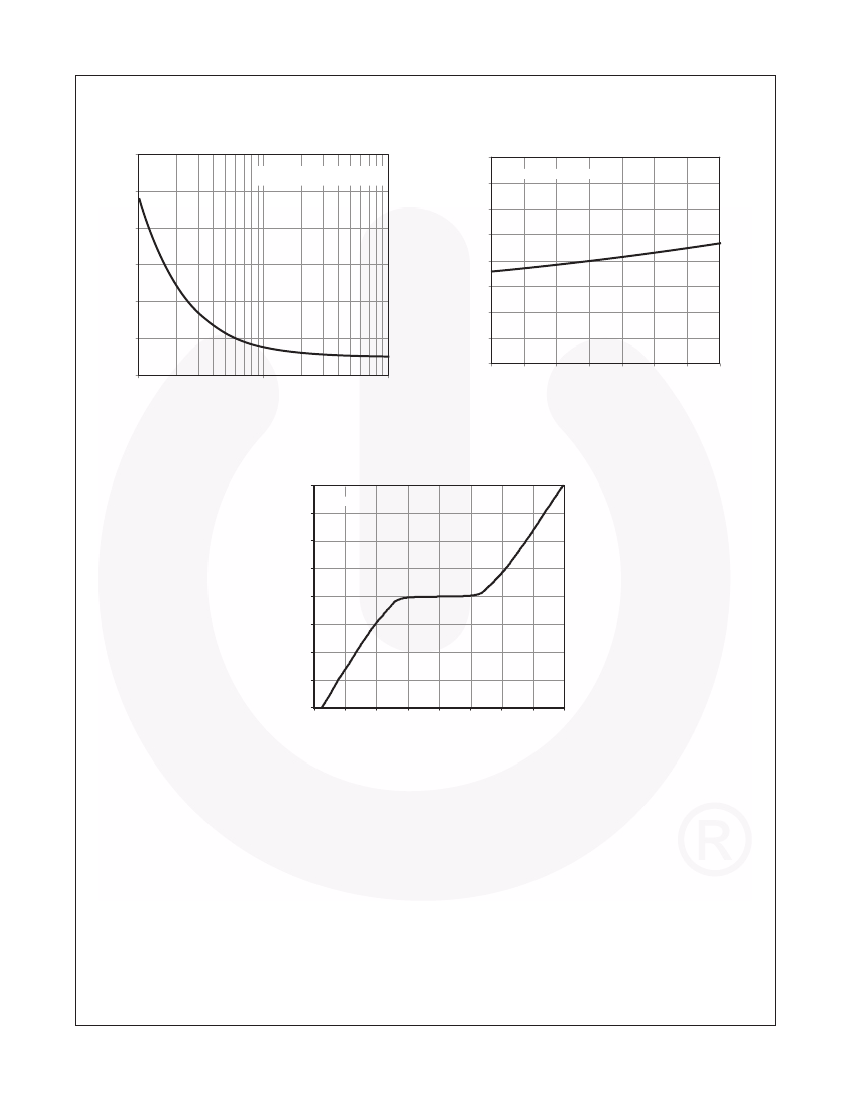

Fig. 7 On-State Characteristics
800
T
A
= 25°C
600
I
TM
- ON-STATE CURRENT (mA)
400
200
0
-200
-400
-600
-800
-4
-3
-2
-1
0
1
2
3
4
V
TM
- ON-STATE VOLTAGE (V)
©2003 Fairchild Semiconductor Corporation
FODM30XX Rev. 1.0.6
www.fairchildsemi.com
5
