5300-319-012-51 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 5300-319-012-51

5300-319-012-51: DescriptionUSB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size131KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

5300-319-012-51 Overview

USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

5300-319-012-51 Parametric

Parameter Name	Attribute value
Dielectric withstand voltage	500VAC V
Insulation resistance	10000000 Ω
Number of ports	1
polarization key	POLARIZED HOUSING
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Guideline	UL
ECCN code	EAR99
Is Samacsys	N
Objectid	305399893
Reach Compliance Code	Unknown
body length	0.591 inch
body width	0.243 inch
subject depth	0.48 inch
Terminal pitch	0.508 mm
insulator material	POLYETHYLENE
Contact to complete cooperation	AU
Contact point gender	MALE
Contact resistance	30 mΩ
Installation type	BOARD
Connector type	USB CONNECTOR
Rated current (signal)	0.5 A
Shell material	COPPER ALLOY
Durability	10000 Cycles
Installation method	RIGHT ANGLE
PCB row number	1
Total number of contacts	19
Body/casing type	RECEPTACLE
Shell surface	NICKEL
Termination type	SURFACE MOUNT
Contact material	COPPER ALLOY
Installation option 1	LOCKING
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch

Preview

Download Datasheet

View All

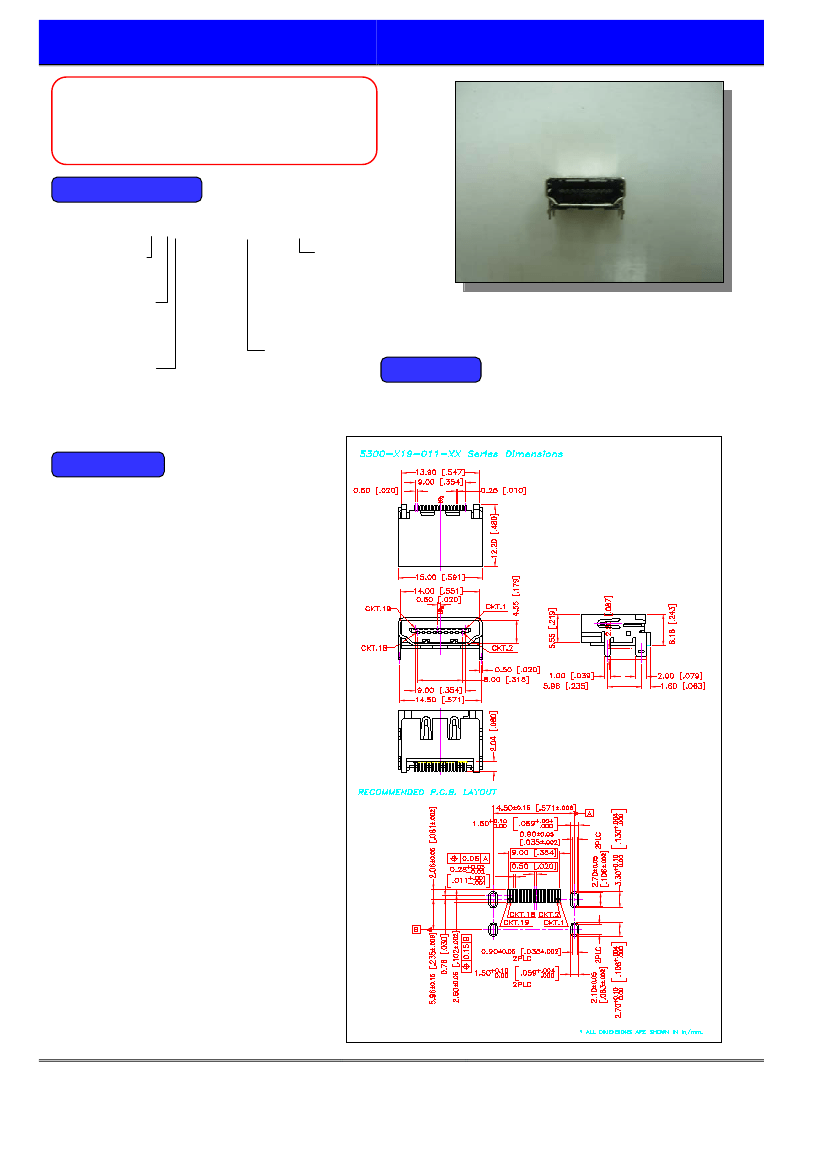

TEKCON

5300 Series

HDMI RIGHT ANGLE HEADER 19PIN SMT

TYPE

Ordering Information

http://www.tekcon.com.tw

5300 - XX9 – 01X – XX

Contact Area Plating:

0:Gold/Flash/Tin

5:15u”Gold/Tin

3:30u”Gold/Tin

Shell Plating;

1:50u”Ni

2:100u” Tin over 50u” Ni

3:Glod plating over all

51:Shell Without

Salient Point, Bright Tin

52:Shell With

Salient Point, Bright Tin

E1:Shell Without

Salient Point, Matte Tin

E2:Shell With

Salient Point, Matte Tin

Packing Type: 1- Tray

2-Reel

No of Contact：19Pin

Dimensions

Specification

Material:

♦

Insulator:

Thermoplastic UL 94V-0

Color：Black

♦

Contact:

Copper Alloy

♦

Shell：Copper

Alloy

Electrical:

♦

Contact Current Rating: 0.5

♦

Rated voltage:40V AC.

♦

Dielectric Withstanding Voltage:

500V AC

♦

Contact Resistance:

Contact (30 Milliohms Max.)

Shell (50 Milliohms Max.)

♦

Insulation Resistance:

100 Megaohms Min.(Unmated)

10 Megaohms Min.(Mated)

Mechanical:

♦

Insertion Force:4.5Kg

(MAX)

♦

Withdrawal Fore: 0.5 Kg

~ 4.0 Kg

♦

Durability：10,000 Cycles.

Enviromental:

♦

Temperature range:

-20℃ to + 85℃

All Dimensions are shown in in/mm.

The above ordering data is for our standard products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.
