2554S05Z000 datasheet, PDF - EEWORLD Datasheet

2554S05Z000: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size355KB，2 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

2554S05Z000 Overview

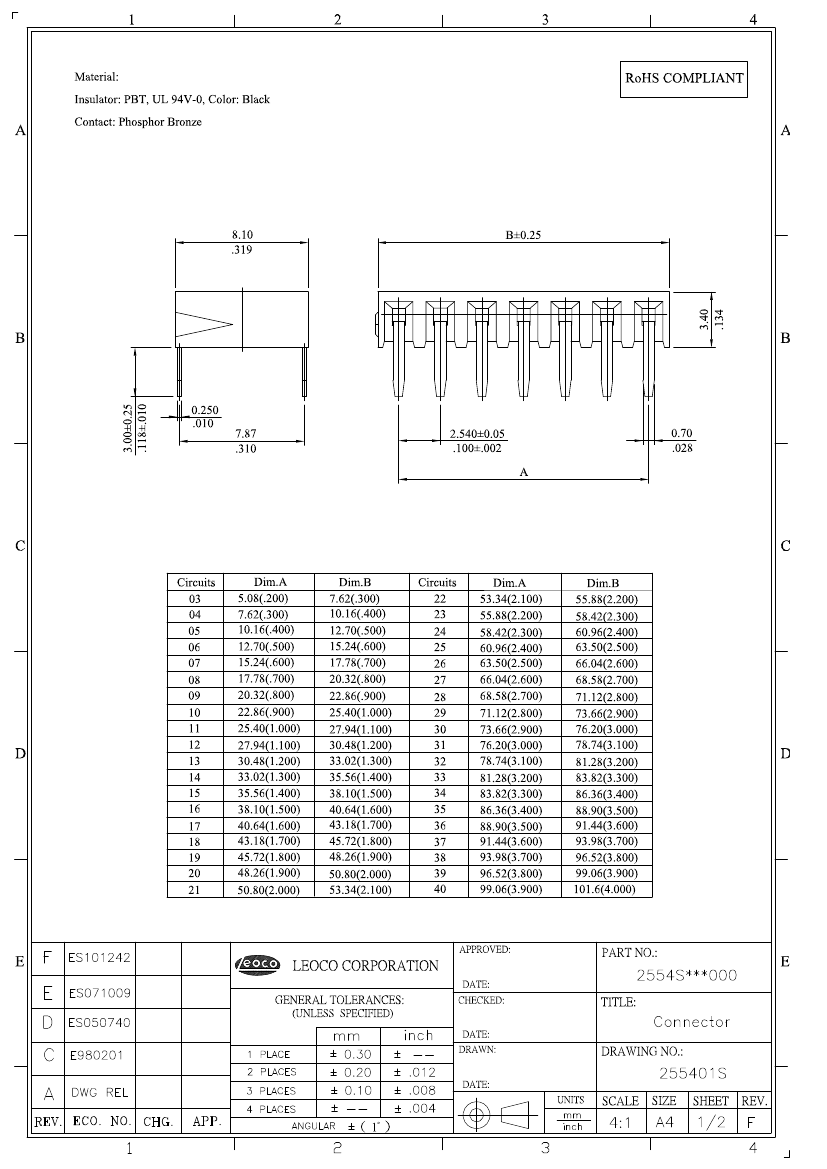

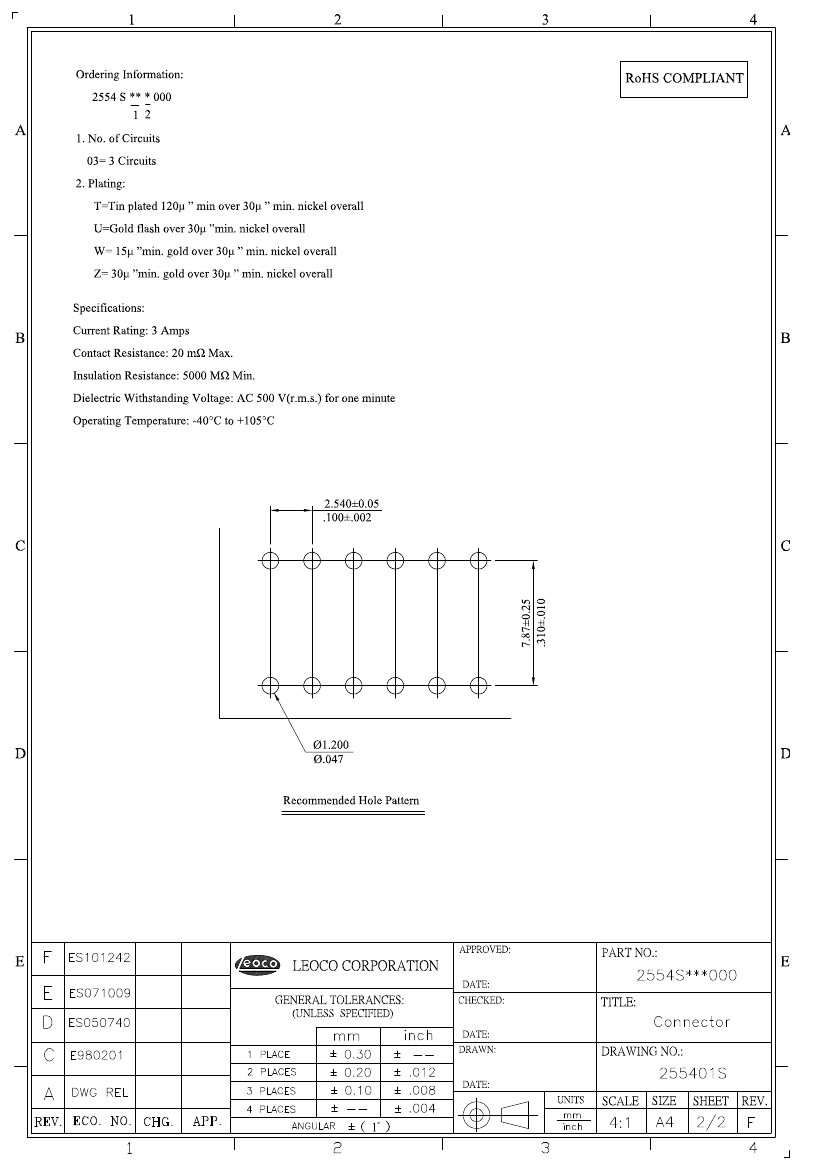

Board Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Is Samacsys	N
Objectid	303559986
Reach Compliance Code	Unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Body/casing type	PLUG
Contact resistance	20 mΩ
Installation type	BOARD
PCB row number	2
Installation method	RIGHT ANGLE
Terminal pitch	2.54 mm
Total number of contacts	5
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Number of rows loaded	1
Rated current (signal)	3 A
insulator material	POLYBUTYLENE TEREPHTHALATE
body length	0.5 inch
Terminal length	0.118 inch
body width	0.134 inch
subject depth	0.319 inch
Contact style	SQ PIN-SKT
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Installation option 1	LOCKING
PCB contact row spacing	7.874 mm
Termination type	SOLDER
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Insulator color	BLACK
Plug contact pitch	0.1 inch
Mixed contacts	NO
Dielectric withstand voltage	700VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
