8401-096-291 datasheet, PDF - EEWORLD Datasheet

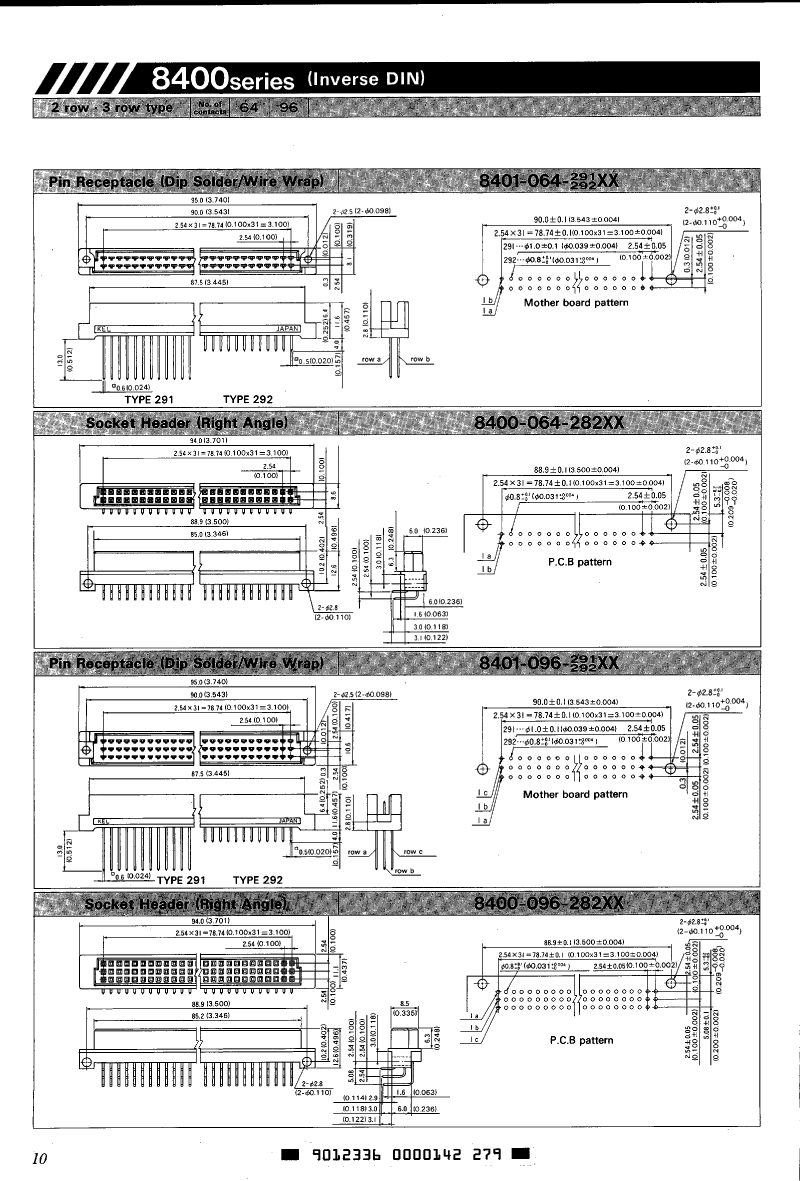

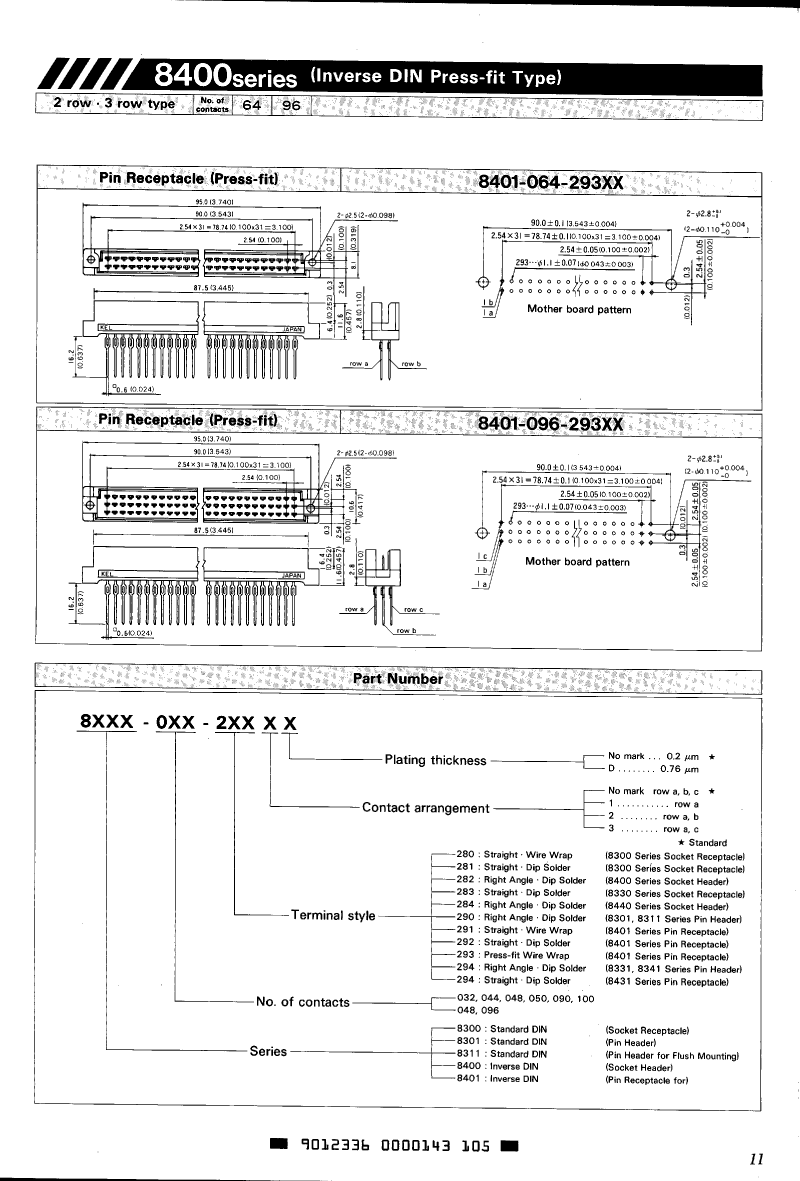

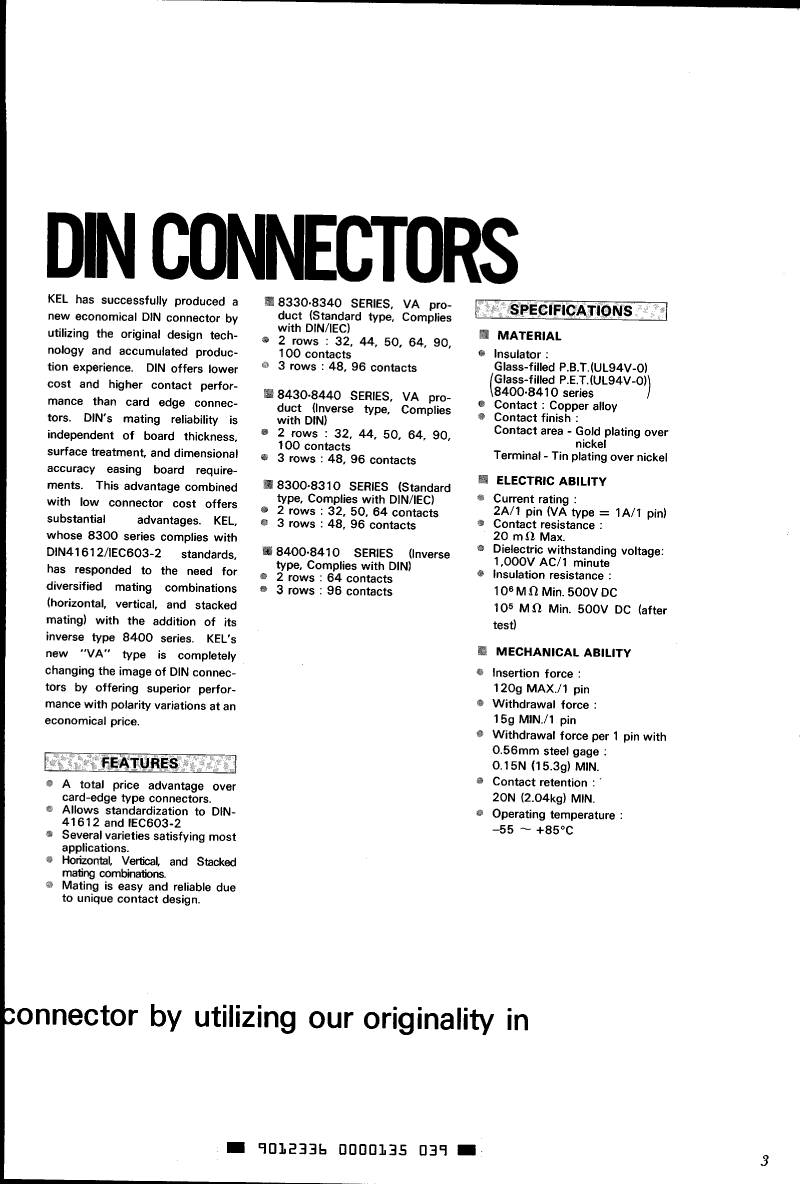

8401-096-291: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle; CategoryThe connector The connector; File Size354KB，3 Pages; ManufacturerKEL Corporation

Download Datasheet Parametric View All

8401-096-291 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	No
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Objectid	300253397
Reach Compliance Code	Unknown
body length	3.74 inch
Terminal length	0.512 inch
body width	0.417 inch
subject depth	0.457 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact resistance	20 mΩ
insulator material	GLASS FILLED POLYETHYLENE TEREPHTALATE
Number of rows loaded	3
Total number of contacts	96
Connector type	BOARD EURO CONNECTOR
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Rated current (signal)	2 A
Terminal pitch	2.54 mm
PCB contact pattern	RECTANGULAR
Plating thickness	8u inch
Contact material	COPPER ALLOY
Match contact row spacing	0.1 inch
Loaded row name	A,B,C
Number of connectors	ONE
PCB contact row spacing	2.54 mm
Termination type	WIRE WRAP
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
Mixed contacts	NO
DIN compliance	YES
Guideline	UL
Evacuation force-minimum value	.139 N
Dielectric withstand voltage	1000VAC V
Filter function	NO
maximum insertion force	1.1676 N
Insulation resistance	100000000000 Ω
polarization key	SHRD ENDS
Minimum operating temperature	-55 °C
Maximum operating temperature	85 °C
