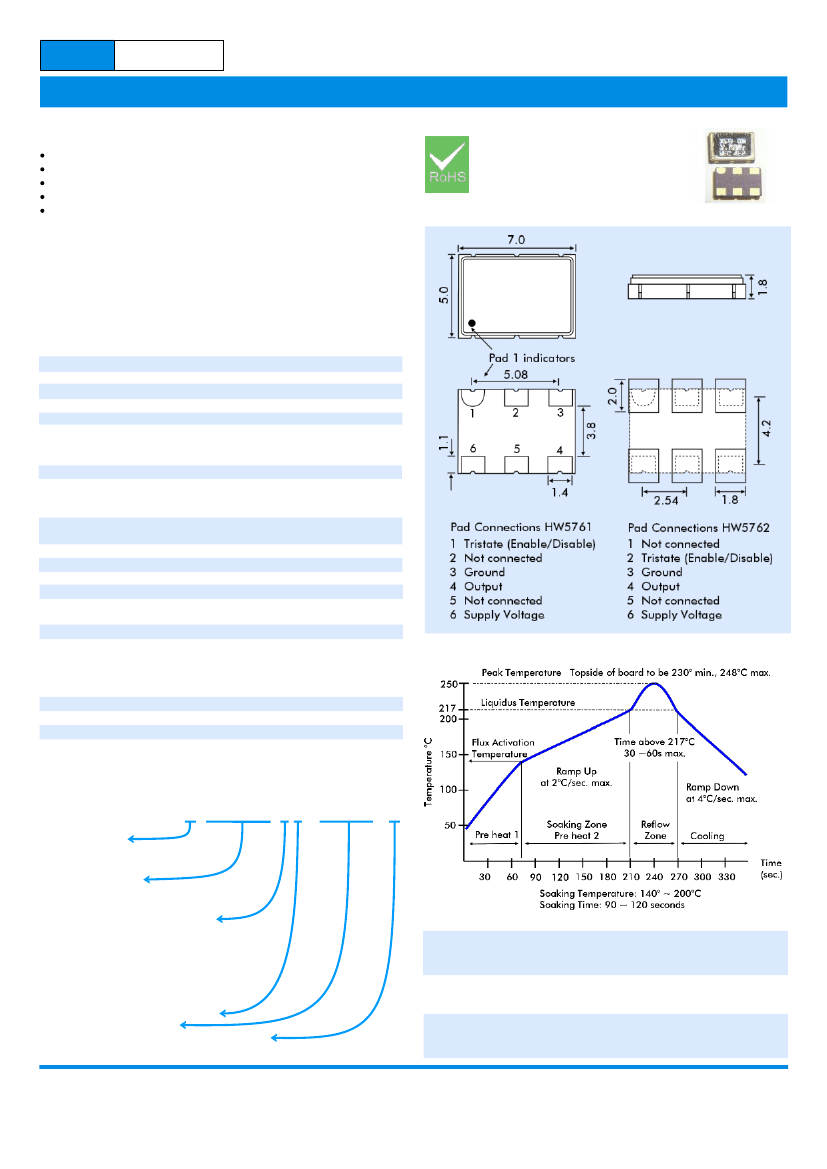

EURO
QUARTZ
7 x 5mm High Frequency HCMOS Oscillator
FEATURES
Industry-standard 7.0 x 5.0mm package
High frequency range 125MHz to 800MHz
High frequency range at low cost
Supply voltage 3.3Volts
Tristate function to conserve power
DESCRIPTION
HW576 oscillators are designed to provide a high quality HCMOS
output at high frequencies from 125MHz to 800MHz. Phase and RMS
period jitter are kept within low limits. An enable/disable function is
standard and the oscillator may also be specified with a power down
function.
SPECIFICATION
Frequency Range:
Output Logic:
Integrated Phase Jitter:
RMS Period Jitter:
Period Jitter Peak to Peak:
Frequency Stability
Commercial:
Industrial:
Input Voltage:
Output Voltage
High '1':
Low '0':
Rise/Fall Time:
Current Consumption:
Load:
Start-up Time:
Duty Cycle:
Input Static
Discharge Protection:
Ageing:
125.0MHz to 800.0MHz
HCMOS
2.6ps typical for 155.520MHz
4.3ps typical for 155.520MHz
27ps typical for 155.520MHz
±25ppm to ±100ppm -10° to +70°C
±25ppm to ±100ppm -40° to +85°C
+2.5V to +3.3VDC ±10%
90% Vdd minimum
10% Vdd maximum
2.4ns typical
(20%Vdd to 80%Vdd, 15pF load)
40mA maximum (15pF load)
15pF
5ms typical, 10ms maximum
50% ±5% (Measured at 50% Vdd)
2kV minimum
±2pmm per year maximum
HW576 Oscillators
125MHz to 800MHz
OUTLINE & DIMENSIONS
ABSOLUTE MAXIMUM RATINGS
Permanent damage may occur if units are operated beyond
specified limits.
Supply Voltage:
+4.6 VDC max.
Input Voltage Vi:
Vss-0.5 min., Vdd +0.5V max.
Input Voltage Vo:
Vss-0.5 min., Vdd +0.5V max.
PART NUMBER SCHEDULE
Example: 3HW5761BT-200.00-S
SOLDER TEMPERATURE PROFILE
3 HW5761 B T - 200.00 - S
Supply Voltage
3 = 3.3 Volts
25 = 2.5 Volts
Series Designation
HV5761 or
HV5762
Stability and Temperature Range:
A = ±25ppm over -10° to +70°C
B = ±50ppm over -10° to +70°C
C = ±100ppm over -10° to +70°C
D = ±25ppm over -40° to +85°C
E = ±50ppm over -40° to +85°C
F = ±100ppm over -40° to +85°C
Tristate (Enable/Disable) Function
Nominal Frequency (MHz)
Duty Cycle/Symmetry option, S = 50%±5%
TRISTATE OPTIONS
DISABLE
Output is disabled when Pad 1 is taken below
0.3 Vcc referenced to ground
Oscillator continues to run while disabled.
Oscillator is enabled when Pad 1 is taken above
0.7 Vcc referenced to ground.
Available by special request: Oscillator shuts
down when disabled. Longer time to enable.
ENABLE
POWER DOWN
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
