QUAD PROGRAMMABLE PCM CODEC
WITH GCI INTERFACE
FEATURES
•
•
•
•
IDT821064
•
•
•
•
•
4 channel CODEC with on-chip digital filters
Software selectable compressed (A/µ-law) or linear code con-
version
Meets ITU-T G.711 - G.714 requirements
Programmable digital filter adapting to system demands:
-
AC impedance matching
- Transhybrid balance
- Frequency response correction
- Gain setting
GCI (IOM-2) control interface
Broadcast mode for coefficient setting
7 SLIC signaling pins (including 2 debounced pins) per channel
Fast hardware ring trip mechanism
Two programmable tone generators per channel for testing,
•
•
•
•
•
•
•
•
•
•
•
ringing and DTMF generation
FSK generator
Two programmable chopper clocks
Master clock frequency selectable: 2.048 MHz or 4.096 MHz
Advanced test capabilities
-
3 analog loop back tests
- 5 digital loop back tests
- Level metering function
High analog driving capability (300Ω AC )
TTL and CMOS compatible digital I/O
CODEC identification
+5 V single power supply
Low power consumption
Operating temperature range: -40 °C to +85 °C
Package available: 64 pin PQFP

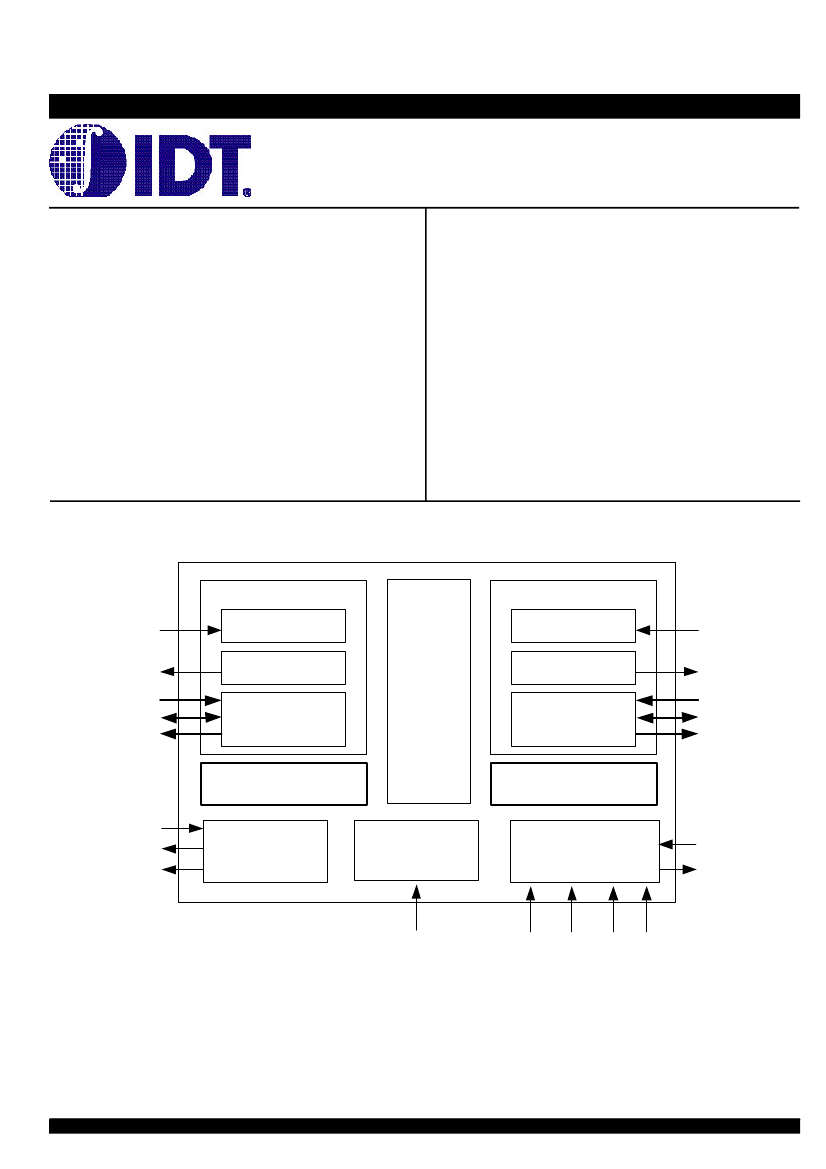

FUNCTIONAL BLOCK DIAGRAM
CH1
VIN1
VOUT1
2 Inputs
3 I/Os
2 Outputs
Filter and A/D
D/A and Filter
CH3
Filter and A/D
VIN3
VOUT3
2 Inputs
3 I/Os
2 Outputs
DSP
CORE
D/A and Filter
SLIC Signaling
SLIC Signaling
CH2
MCLK
CHCLK1
CHCLK2
CH4
PLL and Clock
Generation
General Control
Logic
PCM/GCI Interface
DD
DU
RESET
S0
S1
FSC
DCL
The IDT logo is a registered trademark of Integrated Device Technology, Inc
INDUSTRIAL TEMPERATURE RANGE
1
©
2003 Integrated Device Technology, Inc.
MARCH 14, 2003
DSC-6036/5
IDT821064 QUAD PROGRAMMABLE PCM CODEC WITH GCI INTERFACE
INDUSTRIAL TEMPERATURE RANGE
DESCRIPTION
The IDT821064 is a feature rich, single-chip, programmable 4 chan-
nel PCM CODEC with on-chip filters. Besides the
µ-Law/A-Law
companding and linear coding/decoding (14 effective bits + 2 extra sign
bits), IDT821064 also provides 1 FSK generator (can be used for sending
Caller-ID messages), 2 programmable Tone generators per channel
(which can also generate ring signals) together with 2 programmable
chopper clocks for SLIC.
The digital filters in IDT821064 provide the necessary transmit and
receive filtering for voice telephone circuit to interface with time-division
multiplexed systems. An integrated programmable DSP realizes AC
Impedance Matching, Transhybrid Balance, Frequency Response
Correction and Gain Setting functions. The device also provides 7
signaling pins to SLIC on per channel basis.
The IDT821064 has a General Control Interface (GCI), which is also
known as ISDN Oriented Module (IOM
®
-2). The IDT821064 supports
both compressed and linear data format. This function provides
convenience for the VoXXX applications.
The device also offers strong test capability with several analog/digital
loopbacks and level metering function. It brings convenience to system
maintenance and diagnosis.
A unique feature of ‘Hardware Ring Trip’ is implemented in IDT821064.
When off-hook signal is detected, IDT821064 can reverse an output pin
to stop ringing immediately.
The IDT821064 can be used in Integrated Access Devices (IADs), i.e.
VoIP and VoDSL.
PIN CONFIGURATIONS
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
SI2_2
SI1_2
SB3_2
SB2_2
SB1_2
SO2_2
SO1_2
SO1_1
SO2_1
SB1_1
SB2_1
SB3_1
SI1_1
SI2_1
NC
CHCLK1
VIN1
GNDA1
VOUT1
VDDA12
VOUT2
GNDA2
VIN2
CNF
VDDB
VIN3
GNDA3
VOUT3
VDDA34
VOUT4
GNDA4
VIN4
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
IDT821064
64 pin PQFP
DCL
FSC
NCR
NC
NC
DD
DU
NC
VDDD
RESET
MCLK
GNDD
NC
S1
S0
NCR
IOM
®
-2 is a registered trademark of Siemens AG.
2
SI2_3
SI1_3
SB3_3
SB2_3
SB1_3
SO2_3
SO1_3
SO1_4
SO2_4
SB1_4
SB2_4
SB3_4
SI1_4
SI2_4
NC
CHCLK2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
IDT821064 QUAD PROGRAMMABLE PCM CODEC WITH GCI INTERFACE
INDUSTRIAL TEMPERATURE RANGE
PIN DESCRIPTION
Name
GNDA1
GNDA2
GNDA3
GNDA4
GNDD
VDDA12
VDDA34
VDDD
VDDB
CNF
VIN1-4
VOUT1-4
SI1_(1-4)
SI2_(1-4)
SB1_(1-4)
SB2_(1-4)
SB3_(1-4)
SO1_(1-4)
SO2_(1-4)
DU
DD
FSC
DCL
S0
S1
MCLK
RESET
CHCLK1
CHCLK2
NCR
NC
Type
P
P
P
P
P
-
I
O
I
Pin Number
50
54
59
63
21
52
61
24
57
56
49, 55, 58, 64
51, 53, 60, 62
36, 47, 2, 13
35, 48, 1, 14
39, 44, 5, 10
38, 45, 4, 11
37, 46, 3, 12
41, 42, 7, 8
40, 43, 6, 9
26
27
31
32
18
19
22
23
33
16
17,30
15,20,25
28,29,34
Description
Analog Ground.
All ground pins should be connected together.
Digital Ground.
All digital signals are referred to this pin.
+5V Analog Power Supply.
These pins should be connected to ground via a 0.1
µ
F capacitor. All power supply pins should be connected
together.
+5V Digital Power Supply.
+5V Analog Power Supply.
This pin should be connected to ground via a 0.1
µ
F capacitor. All power supply pins should be connected
together.
Capacitor Noise Filter
This pin should be connected to ground via a 0.22
µ
F capacitor.
Analog Voice Inputs.
These pins should be connected to the SLIC via a capacitor (0.22
µ
F).
Voice Frequency Receiver Outputs.
These pins can drive 300
Ω
AC load. They can drive transformers directly.
SLIC signalling Inputs with debounced function for Channel 1-4.
I/O
Bi-directional SLIC Signalling I/Os for Channel 1-4, can be programmed as Input or Output.
O
O
I
I
I
I
I
I
O
O
SLIC Signalling Outputs for Channel 1-4.
GCI Data Upstream
GCI data is serially transmitted to this pin for all 4 channels of IDT821064.
GCI Data Downstream
GCI data is received serially from this pin for all 4 channels of IDT821064.
Frame Sync.
FSC is an 8 kHz signal that identifies the beginning of Timeslot 0 in the GCI frame.
Data Clock.
The data clock is either 2.048 MHz or 4.096 MHz, which is determined automatically by IDT821064.
Time Slot Select
These pins are used to select one of the four time slot positions for Voice channels, Monitor and C/I channels.
Master Clock Input.
Master clock provides the clock for DSP. It can be 2.048 MHz or 4.096 MHz, which is determined automatically by
IDT821064. It is recommended to connect MCLK pin and DCL pin together.
Reset Input.
Forces the device to default state. Active low.
Chopper Clock Output.
Provides a programmable (2 -28 ms) output signal synchronous to MCLK.
Chopper Clock Output.
Provides a programmable 256 kHz, or 512 kHz or 16.384 MHz output signal synchronous to MCLK
Recommend to be connected to GNDD.
No connection
3
IDT821064 QUAD PROGRAMMABLE PCM CODEC WITH GCI INTERFACE
INDUSTRIAL TEMPERATURE RANGE
FUNCTIONAL DESCRIPTION
The IDT821064 is a four-channel PCM CODEC with on-chip digital
filters. It provides the four-wire solution for the subscriber line circuitry in
digital switches. The IDT821064 converts analog voice signals to digital
PCM samples and digital PCM samples back to analog voice signals.
Digital filters are used to bandlimit the voice signals during conversion.
High performance oversampling Analog-to-Digital Converters (ADC) and
Digital-to-Analog Converters (DAC) in the IDT821064 provide the required
conversion accuracy. The associated decimation and interpolation filters
are realized with both dedicated hardware and Digital Signal Processor
(DSP). The DSP also handles all other necessary functions such as
PCM bandpass filtering, sample rate conversion and PCM companding.
See the Functional Block Diagram.
In the transmit path, the analog voice signal input from VIN pin is
converted to PCM code by ADC, DSP and PCM companding circuits.
Band-limiting functions as specified in ITU-T are implemented by digital
filters. At last the fully processed signal is transferred to the GCI interface,
in a compressed or linear signal presentation.
In the receive path, the digital signal is received via the GCI interface.
Then it is expanded and sent to the DSP for interpolation and receive
channel filtering function. The filtered signal is then sent to an
oversampling DAC. The DAC output is post-filtered and then delivered
at VOUT pin by a power amplifier. The amplifier can drive resistive load
higher than 300
Ω
AC
.
The Frame Sync (FSC) pulse identifies the beginning of the Transmit
and Receive frames and all GCI time slots are referenced to it. The Data
Clock (DCL) is either 2.048 MHz or 4.096MHz, the internal circuit of
IDT821064 monitors this input to determine which frequency is being
used. The internal timing will be adjusted according to the DCL frequency
so that DU and DD operate at 2M rate.
IDT821064 allows both compressed and linear data format coding/
decoding. VDS bit in Global Regiser 5 makes the selection of voice data
format.
COMPRESSED GCI MODE
In GCI compressed mode, one GCI frame consists of 8 GCI time
slots, the Data Upstream Interface transmits four 8-bit bytes per GCI
time slot. They are:
- Two voice data bytes from the A-law or
µ-law
compressor for two
different channel, for easy description, we name the two channels as
channel A and channel B. The compressed voice data bytes for channel
A and B are 8-bit wide;
- One Monitor channel byte, which is used for reading control data
from the device for Channel A and B;
- One C/I channel byte, which contains a 6 bit width C/I channel sub-
byte together with an MX bit and an MR bit. All real time signaling infor-
mation is carried on the C/I channel sub-byte. The MX (Monitor Trans-
mit) bit and MR (Monitor Receive) bit are used for handshaking func-
tions for Channel A and B. Both MX and MR are active low.
Transmit logic controls the transmission of data onto the GCI bus.
The data structure of the Data Downstream is as same as that of
Upstream. The Data Downstream Interface logic controls the reception
of data bytes from the GCI bus. The two compressed voice channel
data bytes of the GCI time slot are transferred to the A-law or
µ-law
ex-
pansion logic circuit. The expanded data is passed to the receive path of
the signal processor. The Monitor Channel and C/I Channel bytes are trans-
ferred to the GCI control logic for processing.
Figure 1 shows the overall compressed GCI frame structure.
GCI INTERFACE
The General Control Interface (GCI) provides communication of both
control and voice data between the GCI highway and SLIC over a pair of
pins on the IDT821064. The IDT821064 sends Data Upstream out of
the DU pin and receives Data Downstream on the DD pin. DCL and FS
are two input clock signals providing Data Clock (DCL) and Frame
Synchronization (FS) information for the device. A complete GCI frame
is sent upstream on DU pin and received downstream on DD pin every
125
µs.
125
µs
FSC
DCL
DD
DU
Detail
DD
DU
Voice Channel A
Voice Channel B
Monitor Channel
C/I Channel
M M
R X
M M
R X
TS0
TS0
TS1
TS1
TS2
TS2
TS3
Detail
TS3
TS4
TS4
TS5
TS5
TS6
TS6
TS7
TS7
Voice Channel A
Voice Channel B
Monitor Channel
C/I Channel
Figure 1. Compressed GCI Frame Structure
4
IDT821064 QUAD PROGRAMMABLE PCM CODEC WITH GCI INTERFACE
INDUSTRIAL TEMPERATURE RANGE
Table 1 - Time Slot Selection for Compressed GCI
IDT821064
Channels
1
2
3
4
S1=0,S0=0
Voice
Time Slot
Channel
Time slot 0
A
Time slot 0
B
Time slot 1
A
Time slot 1
B
S1=0,S0=1
Voice
Time Slot
Channel
Time slot 2
A
Time slot 2
B
Time slot 3
A
Time slot 3
B
S1=1,S0=0
Voice
Time Slot
Channel
Time slot 4
A
Time slot 4
B
Time slot 5
A
Time slot 5
B
S1=1,S0=1
Voice
Time Slot
Channel
Time slot 6
A
Time slot 6
B
Time slot 7
A
Time slot 7
B
In compressed operation, two GCI time slots are required to access
the four channels of IDT821064. The GCI time slot assignment is
determined by S1 and S0 as shown in Table 1.
LINEAR GCI MODE
In GCI linear mode, one GCI frame consists of 8 GCI time slots, each
GCI time slot consists of four 8-bits bytes. Four of the 8 GCI time slots
are used as Monitor Channel and C/I octet, they have a common data
structure:
- Two don’t_care bytes.
- One Monitor Channel byte, which is used for reading/writing control
data/coefficients from/to the device for Channel A and B.
- One C/I byte, which contains a 6 bit width C/I channel sub-byte together
with an MX bit and an MR bit. All real time signaling information is carried
on the C/I channel sub-byte. The MX (Monitor Transmit) bit and MR
(Monitor Receive) bit are used for handshaking functions for Channel A
and B. Both MX and MR bits are active low .
Other four GCI time slots are used for linear voice data (a 16-bit 2’s
complement number, b15 and b14 are the same as b13, which is the
sign bit, b13 to b0 are effective bits). Each GCI time slot consists of two
16-bit linear voice data bytes: one byte contains the linear voice data for
Channel A, the other byte contains the linear voice data for Channel B.
The GCI time slot assignment is determined by S1 and S0 pin. When
S0 and S1 are both low, the linear GCI Frame Structure is shown in
Figure 2.
In linear operation, because one chip of the four-channel IDT821064
occupies four GCI time slots ( two for voice data and two for C/I and
monitor), the rest four GCI time slots can be used by other device. There
are four locations in the 8-time-slots GCI bus for one IDT821064 to select,
see Table 2.
125
µs
FSC
DCL
DD
DU
Detail A
DD
DU
TS0
Detail A
TS0
TS1
TS1
TS2
Detail B
TS2
TS3
TS4
TS5
TS6
TS7
TS3
TS4
TS5
TS6
TS7
TS0-1 for Monitor and C/I
Unused
TS2-3 for Linear Voice
Data
Unused
Monitor Channel
C/I Channel
M M
R X
M M
R X
Unused
Unused
Monitor Channel
C/I Channel
Detail B
DD
DU
16-bit Linear Voice Data for Channel A
16-bit Linear Voice Data for Channel B
16-bit Linear Voice Data for Channel A
16-bit Linear Voice Data for Channel B
Figure 2. Linear GCI Frame Structure
5
京公网安备 11010802033920号
EEWORLD
