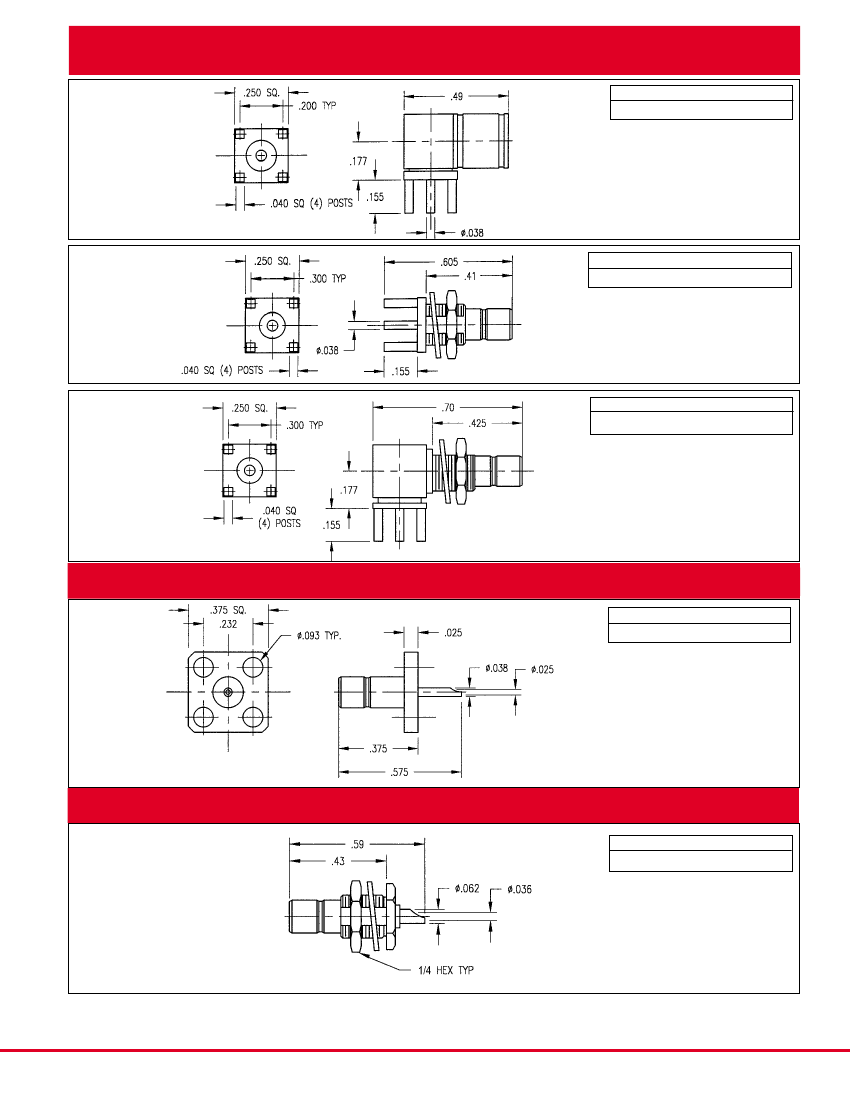

RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack
| Parameter Name | Attribute value |
| Maker | Winchester Electronics |
| Reach Compliance Code | unknown |
| Other features | STANDARD: MIL-C-39012 |
| Body/casing type | JACK |
| Characteristic impedance | 50 Ω |
| Connector type | RF SMB CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Coupling type | SNAP |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insertion loss | 0.25 dB |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | YES |
| Manufacturer's serial number | 51 |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Maximum operating frequency | 4 GHz |
| Options | GENERAL PURPOSE |
| Panel mounting | YES |
| Termination type | SOLDER |
| Base Number Matches | 1 |
| 513-060-0080H | 512-060-0040H | 512-060-0040N | 511-080-6040H | 511-080-6040N | |
|---|---|---|---|---|---|
| Description | RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack | RF SMB Connector, Female, Board Mount, Solder Terminal, Plug | RF SMB Connector, Female, Board Mount, Solder Terminal, Plug | RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack | RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack |
| Reach Compliance Code | unknown | unknow | unknow | unknown | unknown |
| Other features | STANDARD: MIL-C-39012 | STANDARD: MIL-C-39012 | STANDARD: MIL-C-39012 | STANDARD: MIL-C-39012 | STANDARD: MIL-C-39012 |
| Body/casing type | JACK | PLUG | PLUG | JACK | JACK |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR | RF SMB CONNECTOR |
| Contact to complete cooperation | GOLD | GOLD | NICKEL | GOLD | NICKEL |
| Contact completed and terminated | GOLD | GOLD | NICKEL | GOLD | NICKEL |
| Contact point gender | MALE | FEMALE | FEMALE | MALE | MALE |
| Coupling type | SNAP | SNAP | SNAP | SNAP | SNAP |
| DIN compliance | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| Insertion loss | 0.25 dB | 0.25 dB | 0.25 dB | 0.25 dB | 0.25 dB |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| MIL compliance | YES | YES | YES | YES | YES |
| Manufacturer's serial number | 51 | 51 | 51 | 51 | 51 |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Maximum operating frequency | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | YES | NO | NO | YES | YES |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| JESD-609 code | e4 | e4 | - | e4 | - |
