BZX84C2V4S - BZX84C39S
DUAL 200mW SURFACE MOUNT ZENER DIODE
SPICE MODELS: BZX84C2V4S BZX84C2V7S BZX84C3V0S BZX84C3V3S BZX84C3V6S BZX84C3V9S BZX84C4V3S BZX84C4V7S BZX84C5V1S
BZX84C5V6S BZX84C6V2S BZX84C6V8S BZX84C7V5S BZX84C8V2S BZX84C9V1S BZX84C10S BZX84C11S BZX84C12S BZX84C13S BZX84C15S
BZX84C16S BZX84C18S BZX84C20S BZX84C22S BZX84C24S BZX84C27S BZX84C30S BZX84C33S BZX84C36S BZX84C39S
Features
·
·
·
·
·
Planar Die Construction
200mW Power Dissipation
Zener Voltages from 2.4V - 39V
Ultra-Small Surface Mount Package
Available in Lead Free/RoHS Compliant Version (Note 6)
G
H
K
M
B C
A
SOT-363
Dim
A
B
C
D
F
H
J
K
L
M
a
Min
0.10
1.15
2.00
0.30
1.80
¾
0.90
0.25
0.10
0°
Max
0.30
1.35
2.20
0.40
2.20
0.10
1.00
0.40
0.25
8°
Mechanical Data
·
·
·
·
·
·
·
·
Case: SOT-363
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Also Available in Lead Free Plating (Matte Tin Finish
annealed over Alloy 42 leadframe). Please see Ordering
Information, Note 5, on Page 1
Polarity: See Diagram
Marking: See Table page 2
Weight: 0.006 grams (approx.)
@ T
A
= 25°C unless otherwise specified
NC
C
1
0.65 Nominal
J
A
1
D
NC
F
L
A
2
C
2
All Dimensions in mm
Maximum Ratings
Forward Voltage
Power Dissipation (Note 1)
Characteristic
@ I
F
= 10mA
Symbol
V
F
P
d
R
qJA
T
j,
T
STG
Value
0.9
200
625
-65 to +150
Unit
V
mW
°C/W
°C
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Ordering Information
Device
(Note 4)
Packaging
SOT-363
Shipping
3000/Tape & Reel
(Type Number)-4*
* Add “-7” to the appropriate type number in Table 1 from Sheet 2 example: 6.2V Zener = BZX84C6V2S-7.
Notes:
1. Mounted on FR4 PC Board with recommended pad layout which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used to minimize self-heating effect.
3. f = 1KHz.
4. For Packaging Details, got to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5. For Lead Free/RoHS Compliant version part number, please add "-F" suffix to the part number above. Example: BZX84C39S-7-F.
6. No purposefully added lead.
DS30108 Rev. 10 - 2
1 of 3
www.diodes.com
BZX84C2V4S - BZX84C39S
ã
Diodes Incorporated
Electrical Characteristics
Type
Number
Marking
Code
Nom (V)
BZX84C2V4S
BZX84C2V7S
BZX84C3V0S
BZX84C3V3S
BZX84C3V6S
BZX84C3V9S
BZX84C4V3S
BZX84C4V7S
BZX84C5V1S
BZX84C5V6S
BZX84C6V2S
BZX84C6V8S
BZX84C7V5S
BZX84C8V2S
BZX84C9V1S
BZX84C10S
BZX84C11S
BZX84C12S
BZX84C13S
BZX84C15S
BZX84C16S
BZX84C18S
BZX84C20S
BZX84C22S
BZX84C24S
BZX84C27S
BZX84C30S
BZX84C33S
BZX84C36S
BZX84C39S
Notes:
@ T
A
= 25°C unless otherwise specified
Maximum Zener Impedance
(Note 8)
I
ZT
Max (V)
2.6
2.9
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
mA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
2.0
2.0
2.0
2.0
2.0
Z
ZT
@ I
ZT
W
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
Z
ZK
@ I
ZK
W
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
Temperature
Maximum
Reverse Current Coefficient of
Zener Voltage
(Note 7)
@ I
ZT
= 5mA
V
R
I
R
mV/°C
uA
50
20
10
5.0
5.0
3.0
3.0
3.0
2.0
1.0
3.0
2.0
1.0
0.7
0.5
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
Min
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-2.7
-2.0
0.4
1.2
2.5
3.2
3.8
4.5
5.4
6.0
7.0
9.2
10.4
12.4
14.4
16.4
18.4
21.4
24.4
27.4
30.4
33.4
Max
0
0
0
0
0
0
0
0.2
1.2
-2.5
3.7
4.5
5.3
6.2
7.0
8.0
9.0
10.0
11.0
13.0
14.0
16.0
18.0
20.0
22.0
25.3
29.4
33.4
37.4
41.2
Zener Voltage
Range (Note 7)
V
Z
@ I
ZT
Min (V)
2.2
2.5
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28.0
31.0
34.0
37.0
KZB
KZC
KZD
KZE
KZF
KZG
KZH
KZ1
KZ2
KZ3
KZ4
KZ5
KZ6
KZ7
KZ8
KZ9
KY1
KY2
KY3
KY4
KY5
KY6
KY7
KY8
KY9
KYA
KYB
KYC
KYD
KYE
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
7. Short duration test pulse used to minimize self-heating effect.
8. f = 1KHz.
Marking Information
KXX = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
Jan
1
Feb
2
March
3
2002
N
Apr
4
2003
P
May
5
2004
R
Jun
6
Jul
7
2005
S
Aug
8
2006
T
Sep
9
2007
U
Oct
O
2008
V
Nov
N
2009
W
Dec
D
DS30108 Rev.10 - 2
KXX YM
KXX YM
2 of 3
www.diodes.com
BZX84C2V4S - BZX84C39S
300
See Note 1
50
T
j
= 25°C
C2V7
C3V9
C5V6
C6V8
C3V3
C4V7
P
D
, POWER DISSIPATION (mW)
40
I
Z
, ZENER CURRENT (mA)
C8V2
200
30
20
100
10
Test Current I
Z
5.0mA
0
0
100
T
A
, AMBIENT TEMPERATURE, (°C)

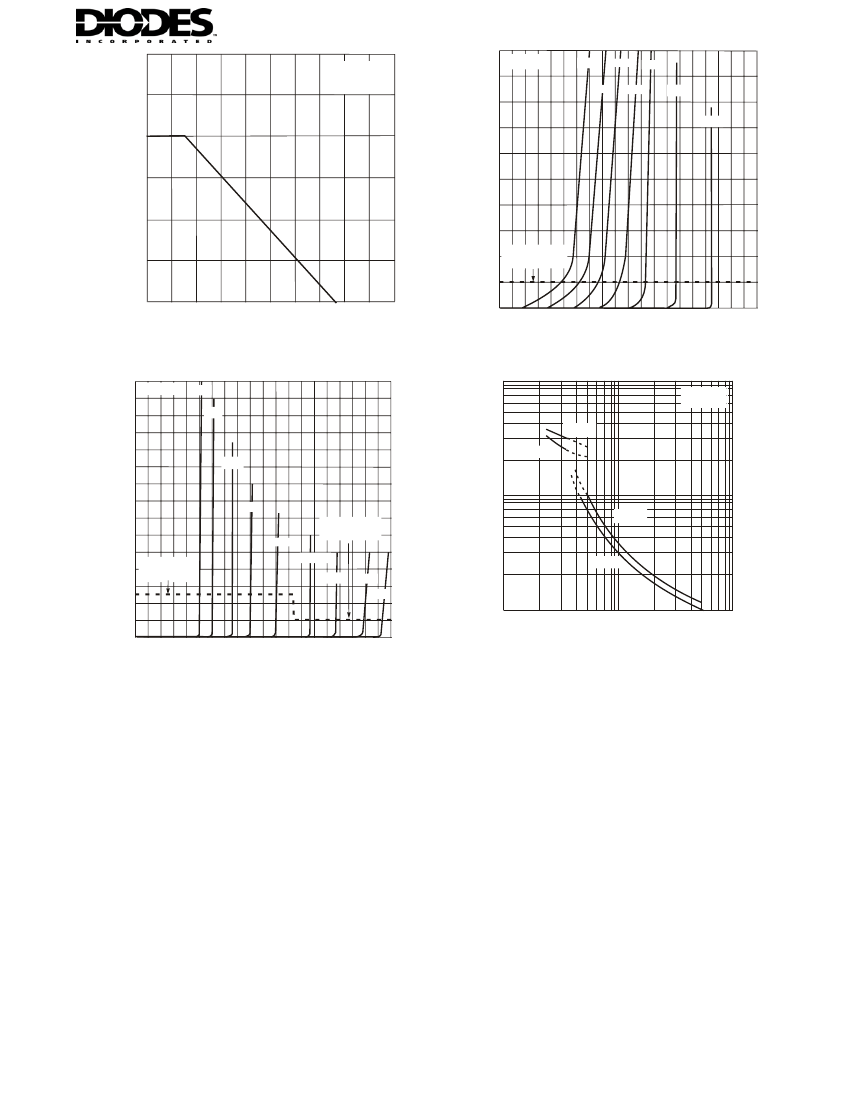

Fig. 1. Power Derating Curve
200
0
0
1
3
4
5
6
8
9
7
V
Z
, ZENER VOLTAGE (V)
Fig. 2 Zener Breakdown Characteristics
2
10
30
T
j
= 25°C
C10
C12
1000
T
j
= 25 °C
I
Z
, ZENER CURRENT (mA)
C
T
, TOTAL CAPACITANCE (pF)
V
R
= 1V
V
R
= 2V
20
C15
100
V
R
= 1V
C18
Test current I
Z
2mA
10
Test current I
Z
5mA
C22
C27
C33
C36
C39
V
R
= 2V
10
1
10
100
0
0
10
20
30
V
Z
, ZENER VOLTAGE (V)
Fig. 3, Zener Breakdown Characteristics
40
V
Z
, NOMINAL ZENER VOLTAGE (V)
Fig. 4. Total Capacitance vs Nominal Zener Voltage
DS30108 Rev. 10 - 2
3 of 3
www.diodes.com
BZX84C2V4S - BZX84C39S
