10128403-32ELF datasheet, PDF - EEWORLD Datasheet

10128403-32ELF: DescriptionBoard Connector, 64 Contact(s), 8 Row(s), Male, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator; CategoryThe connector The connector; File Size3MB，11 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10128403-32ELF Overview

Board Connector, 64 Contact(s), 8 Row(s), Male, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator

Parameter Name	Attribute value
body width	0.744 inch
subject depth	1.055 inch
body length	0.88 inch
Terminal length	0.055 inch
Rated current (signal)	0.5 A
Terminal pitch	2.0066 mm
insulator material	POLYETHYLENE
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	8
Number of rows loaded	8
Total number of contacts	64
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Durability	200 Cycles
Termination type	PRESS FIT
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Number of connectors	ONE
Insulator color	BLACK
Installation option 1	GUIDE PIN
PCB contact row spacing	2.0066 mm
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
polarization key	SHRD LEFT
Evacuation force-minimum value	.15012 N
Filter function	NO
JESD-609 code	e3
Guideline	UL
Minimum operating temperature	-55 °C
Maximum operating temperature	85 °C
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	8
Objectid	7099511611
Reach Compliance Code	Compliant
ECCN code	EAR99

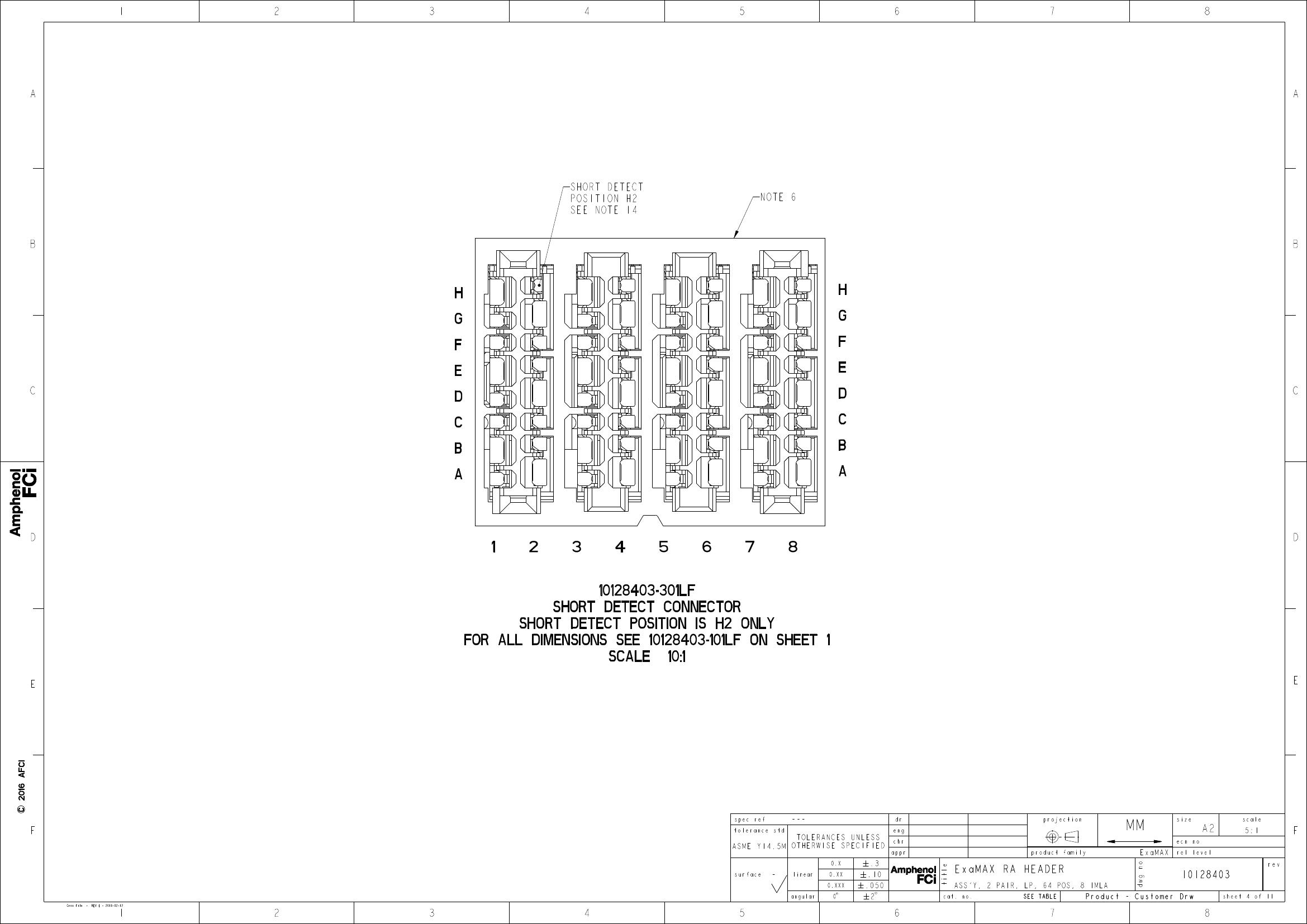

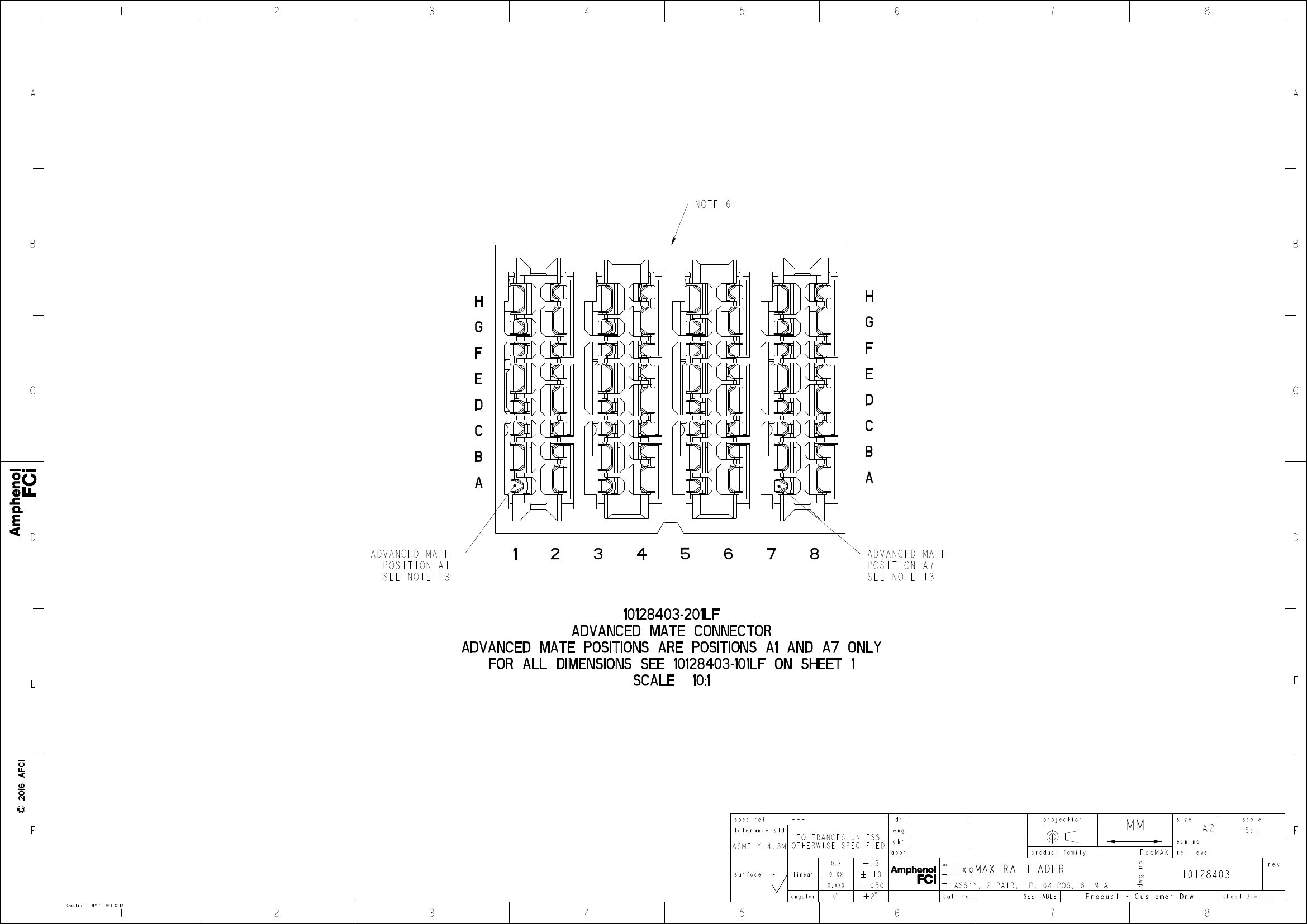

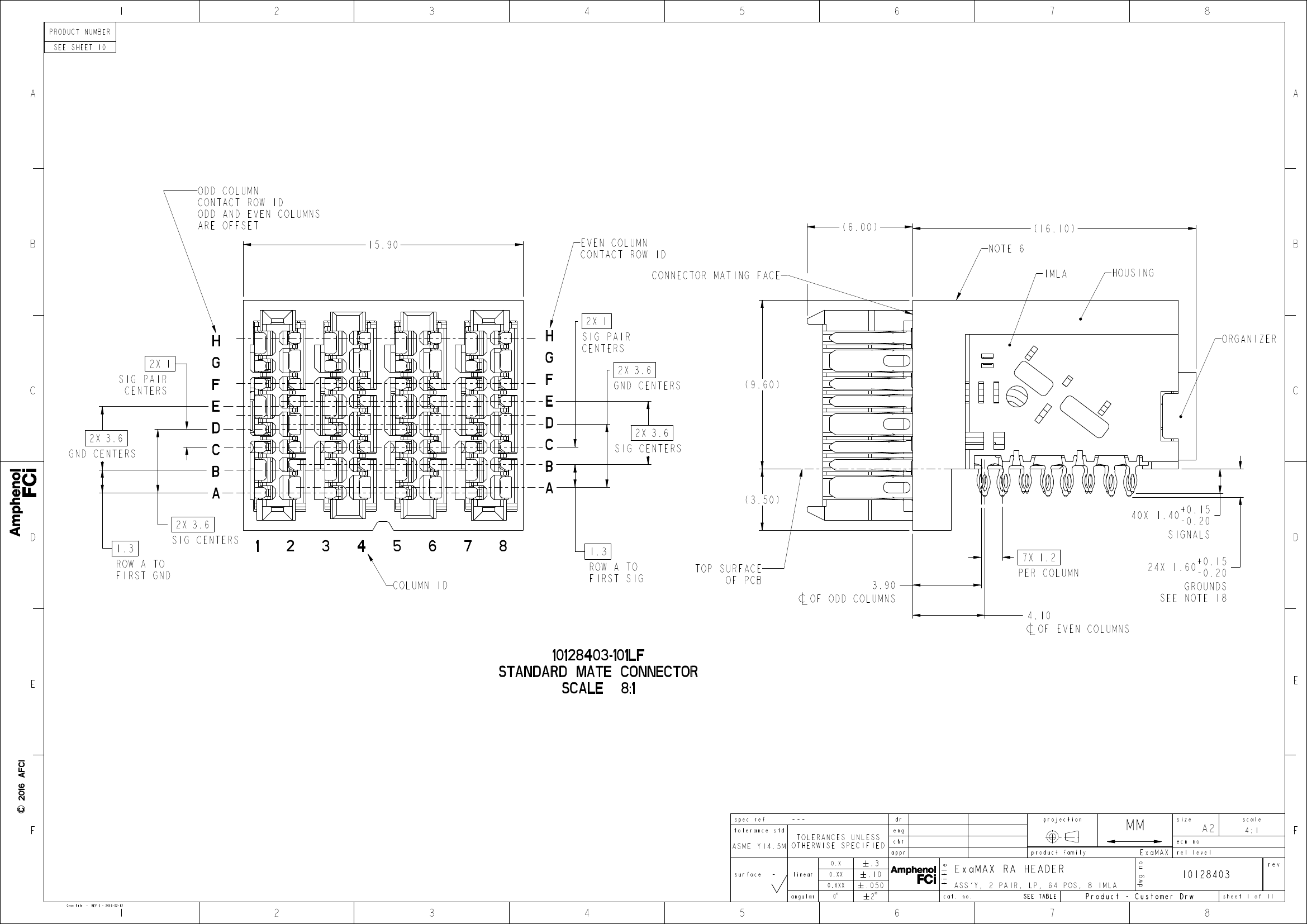

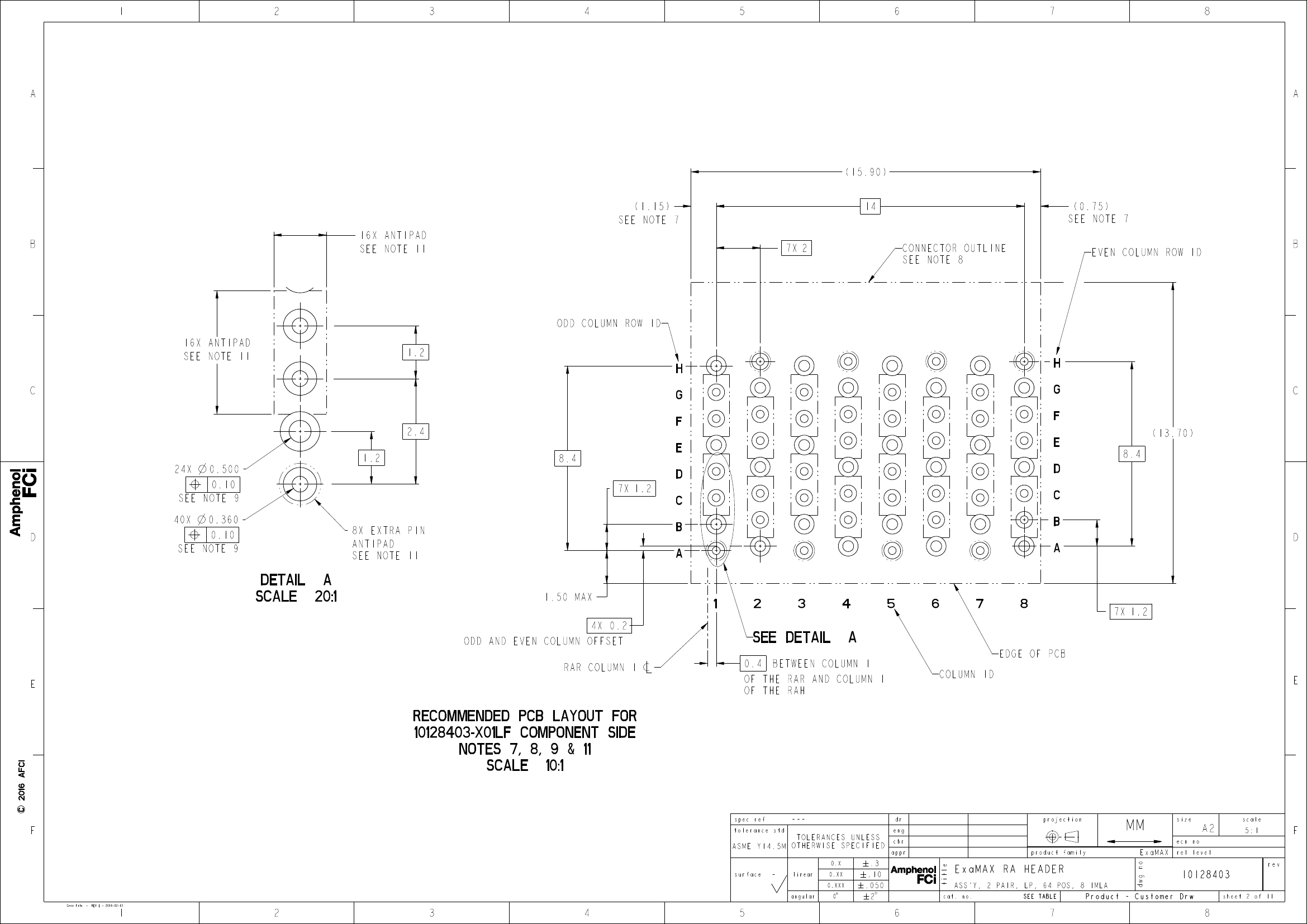

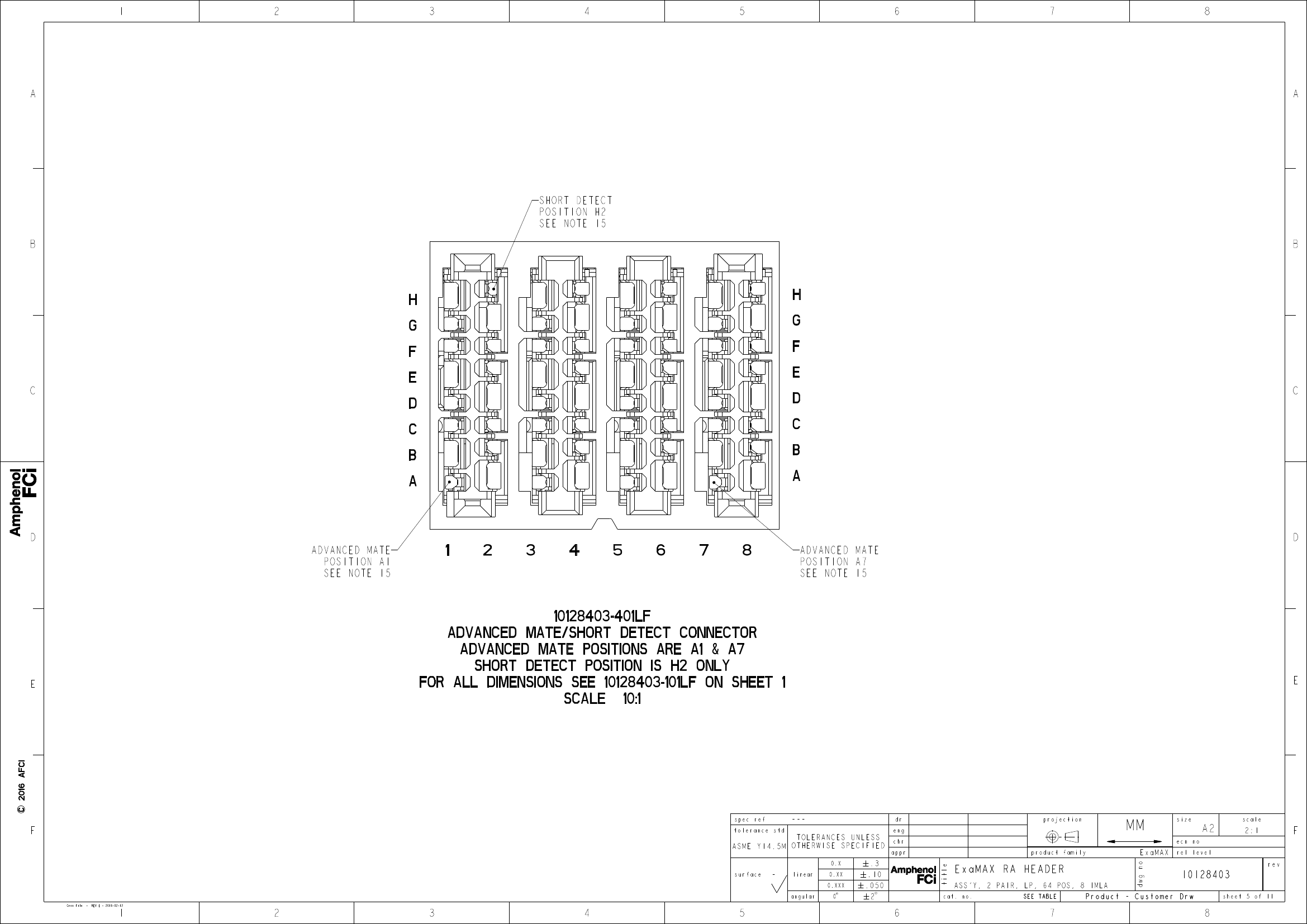

Greg Hull

Terry Luo

-

2014/02/13

2016/04/18

-

Preliminary

6

For information only. This is a preliminary customer document that is subject to change without notice.
