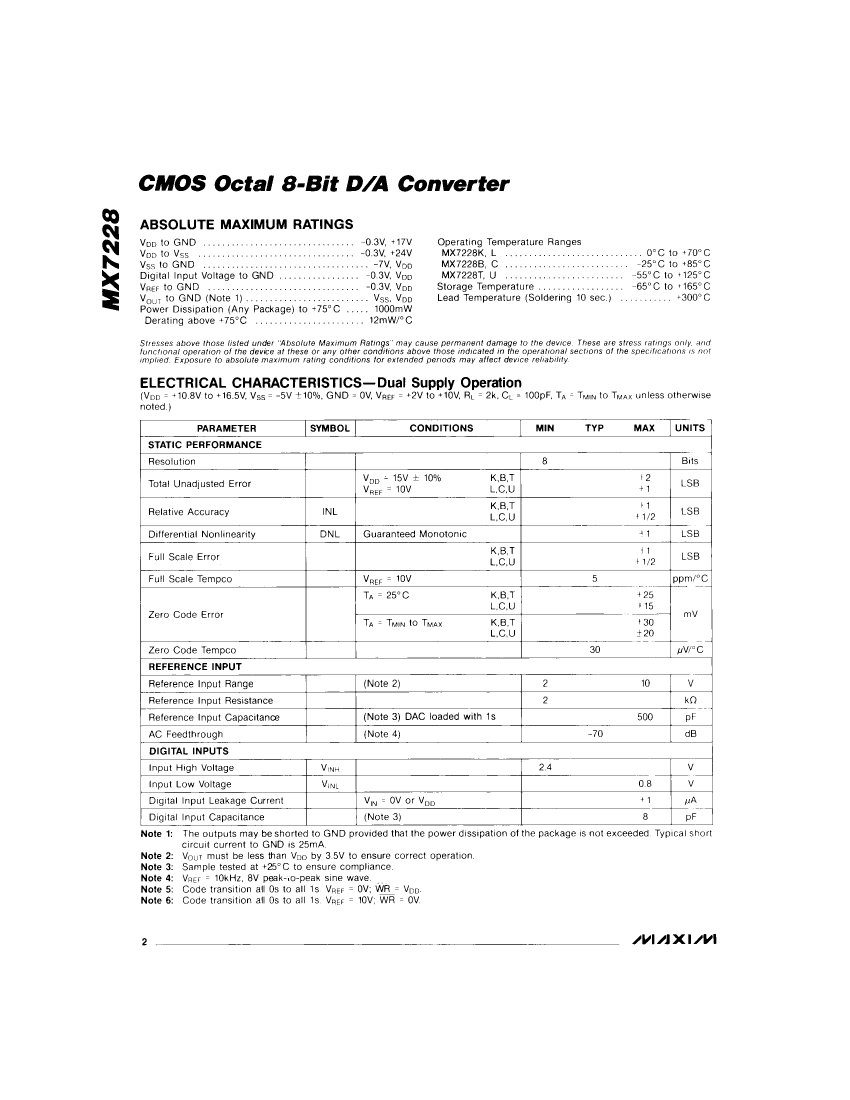

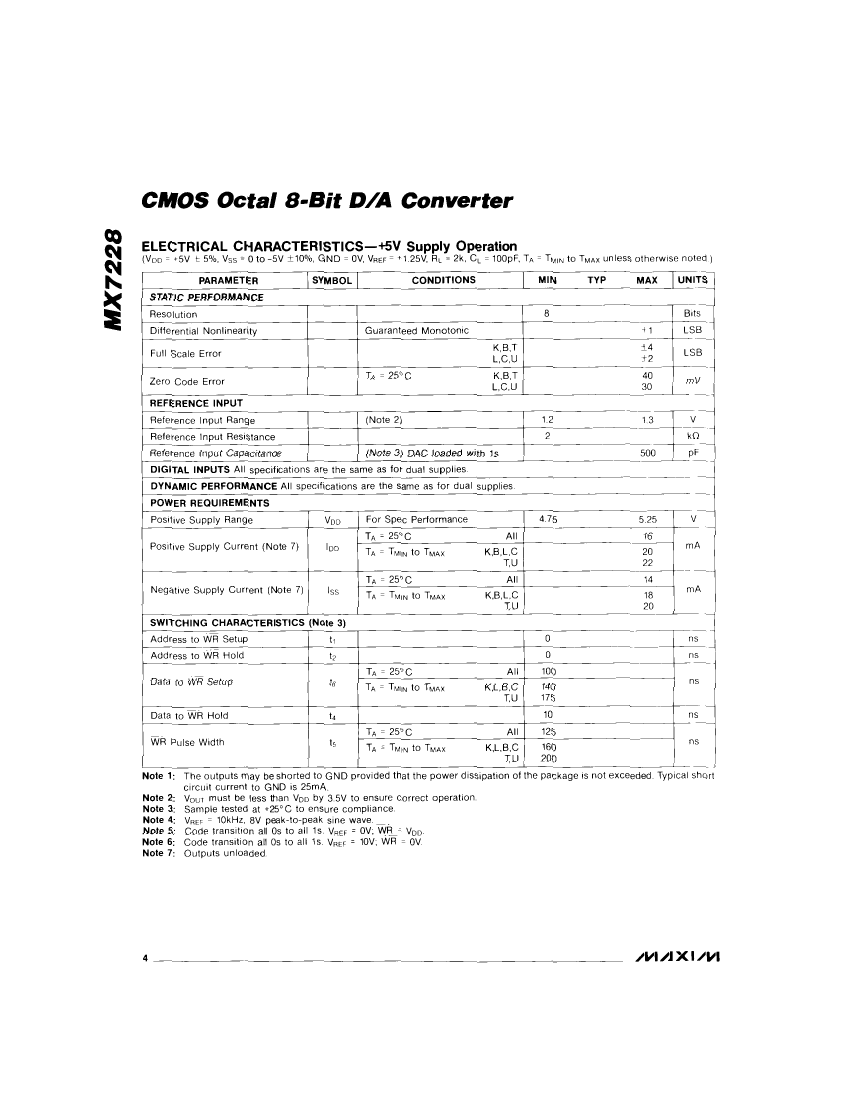

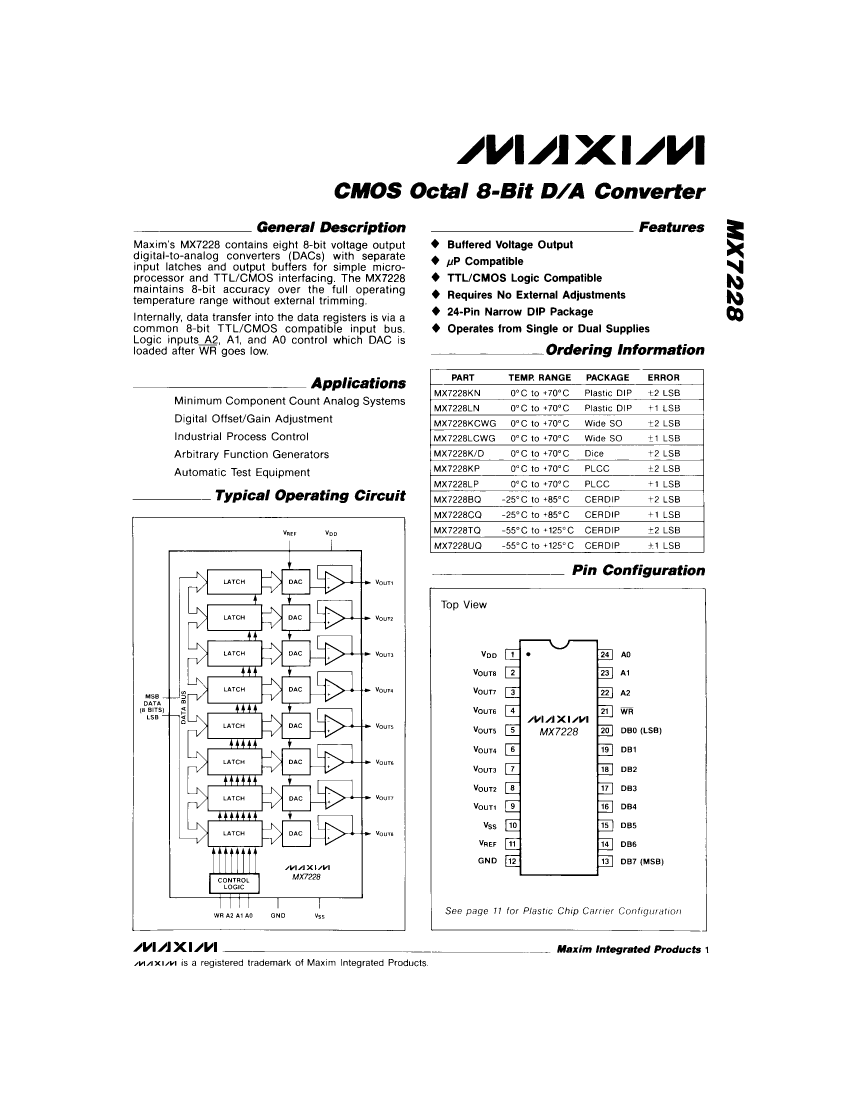

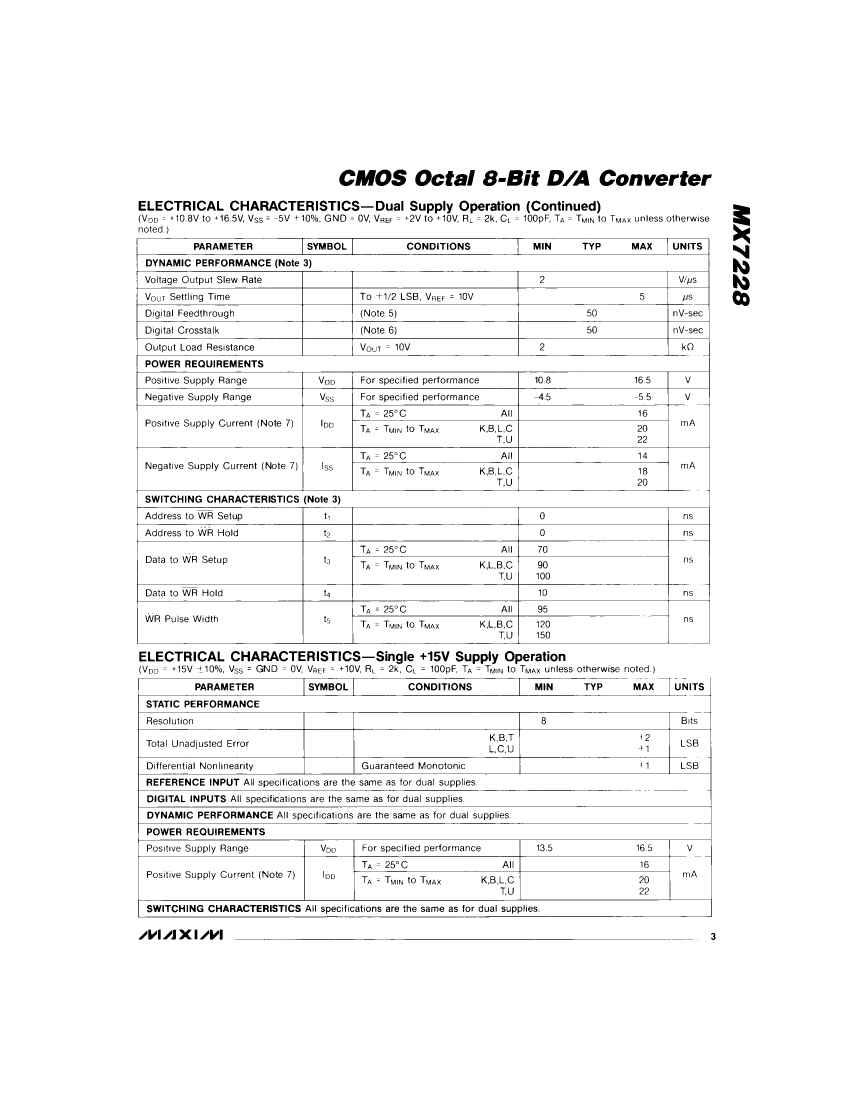

Preview

MX7228KCWG+T: Descriptiondigital to analog converters - dac 8-bit 8ch precision dac; CategoryAnalog mixed-signal IC converter; File Size378KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MX7228KCWG+T Overview

digital to analog converters - dac 8-bit 8ch precision dac

MX7228KCWG+T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP24,.4
Contacts	24
Reach Compliance Code	compliant
Maximum analog output voltage	10 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-PDSO-G24
JESD-609 code	e3
length	15.4 mm
Maximum linear error (EL)	0.3906%
Humidity sensitivity level	1
Nominal negative supply voltage	-5 V
Number of digits	8
Number of functions	8
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	12/15, GND/-5 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum stabilization time	5 µs
Maximum slew rate	38 mA
Nominal supply voltage	15 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

Preview

Download Datasheet

View All

MX7228KCWG+T Related Products

	MX7228KCWG+T	MX7228KP+T	MX7228KN+	MX7228KEWG+	MX7228KEWG+T
Description	digital to analog converters - dac 8-bit 8ch precision dac	digital to analog converters - dac 8-bit 8ch precision dac	digital to analog converters - dac 8-bit 8ch precision dac	digital to analog converters - dac 8-bit 8ch precision dac	digital to analog converters - dac 8-bit 8ch precision dac
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	SOIC	QLCC	DIP	SOIC	SOIC
package instruction	SOP, SOP24,.4	QCCJ, LDCC28,.5SQ	DIP, DIP24,.3	SOP,	SOP,
Contacts	24	28	24	24	24
Reach Compliance Code	compliant	compli	compli	compli	compliant
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-PDSO-G24	S-PQCC-J28	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e3	e3	e3	e3	e3
length	15.4 mm	11.505 mm	30.545 mm	15.4 mm	15.4 mm
Maximum linear error (EL)	0.3906%	0.3906%	0.3906%	0.3906%	0.3906%
Humidity sensitivity level	1	1	1	1	1
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V
Number of digits	8	8	8	8	8
Number of functions	8	8	8	8	8
Number of terminals	24	28	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	QCCJ	DIP	SOP	SOP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	CHIP CARRIER	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	4.57 mm	4.572 mm	2.65 mm	2.65 mm
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	J BEND	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	11.505 mm	7.62 mm	7.5 mm	7.5 mm
Encapsulate equivalent code	SOP24,.4	LDCC28,.5SQ	DIP24,.3	-	-
power supply	12/15, GND/-5 V	12/15, GND/-5 V	12/15, GND/-5 V	-	-
Maximum stabilization time	5 µs	5 µs	5 µs	-	-
Maximum slew rate	38 mA	38 mA	38 mA	-	-
