FRL-274NH009/01AY01A datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> FRL-274NH009/01AY01A

FRL-274NH009/01AY01A: DescriptionPower/Signal Relay, SPST, Momentary, 0.067A (Coil), 9VDC (Coil), 600mW (Coil), 30A (Contact), 14VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size518KB，9 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FRL-274NH009/01AY01A Overview

Power/Signal Relay, SPST, Momentary, 0.067A (Coil), 9VDC (Coil), 600mW (Coil), 30A (Contact), 14VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

FRL-274NH009/01AY01A Parametric

Parameter Name	Attribute value
Maker	FUJITSU
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum coil current (DC)	0.067 A
Coil operating voltage (DC)	7.8 V
Coil power	600 mW
Coil resistance	135 Ω
Maximum coil voltage (DC)	9 V
Coil/Input Power Type	DC
Maximum contact current (DC)	30 A
Contact (DC) maximum rated R load	30A@14VDC
Maximum contact voltage (DC)	14 V
Contact/Output Power Type	DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	FRL-274
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

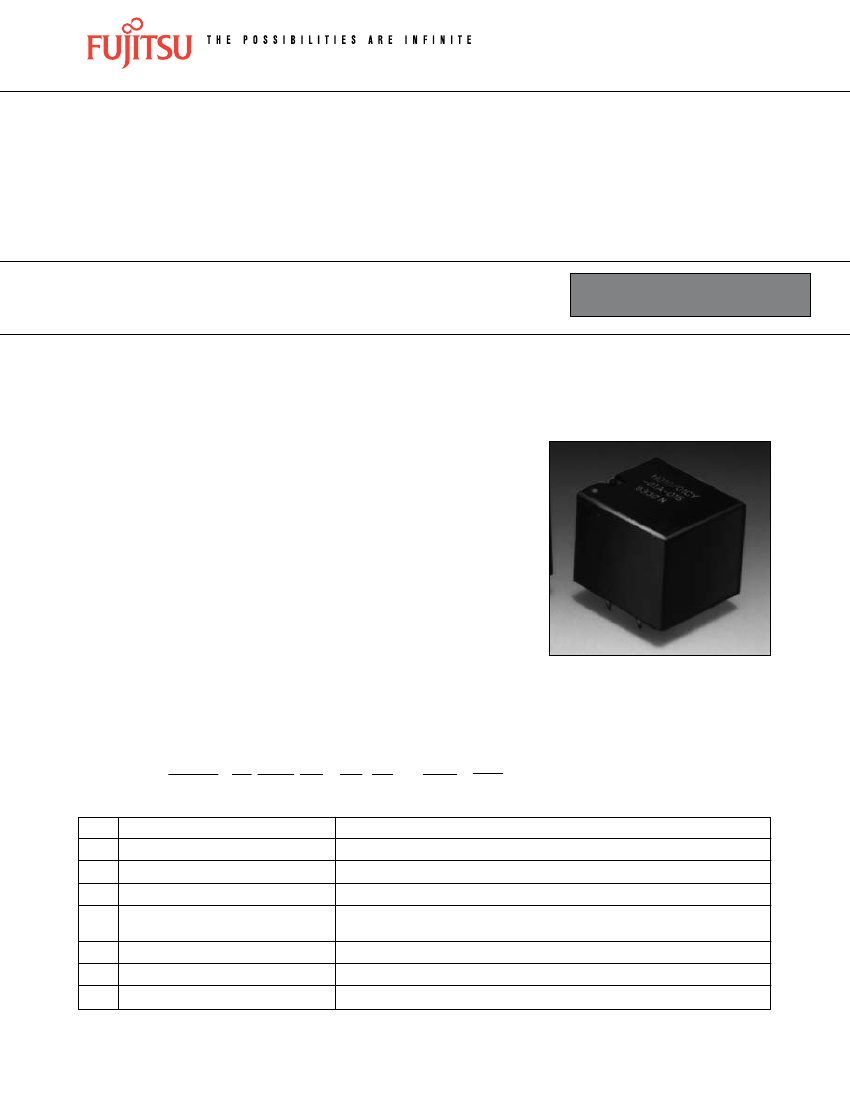

HIGH POWER RELAY

1 POLE— 12, 30, 40 A

(FOR AUTOMOTIVE APPLICATIONS)

FRL-274 SERIES

FEATURES

High current switching and carry by using new conductive materi-

als.

Suitable for automotive applications such as ABS, power assisted

steering,etc.

High heat resistance (40A type)

Designed for use in high ambient temperature, such as engine com-

partment, and able to carry continuous current of

20 A in+125°C.

New contact material

New contact material formulation which is resistant to welding.

Three types of contact gaps (0.4mm, 1.0mm, 1.4mm)

RoHS compliant

RoHS compliant since date code: 0631

Please see page 8 for more information

1. 40A Type

ORDERING INFORMATION

[Example]

FRL-274 N D012 / 81

(a)

(b) (c) (d)

C Y

(e) (f )

- 01A -001

(g) (h)

(a)

(b)

(c)

(d)

(e)

(f)

(g)

(h)

Series Name

Enclosure

Nominal Voltage

Carrying Current

Contact Arrangement

Contact Material

Cover Terminal

Custom Designation

FRL-274: FRL-274 Series

N : Plastic sealed type

D012

: 12 VDC

: 40 A type

: 1 form A

: 1 form C

: Silver-tin oxide

01A : w/cover, wide terminal width

To be assigned custom specification

FRL-274NH009/01AY01A Related Products

	FRL-274NH009/01AY01A	FRL-274ND024/61CY01A	FRL-274ND024/51AY01A	FRL-274NH012/01AY01A	FRL-274NH009/01CY01A	FRL-274ND024/61AY01A	FRL-274ND024/51CY01A	FRL-274NH012/01CY01A
Description	Power/Signal Relay, SPST, Momentary, 0.067A (Coil), 9VDC (Coil), 600mW (Coil), 30A (Contact), 14VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPDT, Momentary, 0.088A (Coil), 24VDC (Coil), 2100mW (Coil), 12A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPST, Momentary, 0.071A (Coil), 24VDC (Coil), 1700mW (Coil), 12A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPST, Momentary, 0.05A (Coil), 12VDC (Coil), 600mW (Coil), 30A (Contact), 14VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPDT, Momentary, 0.067A (Coil), 9VDC (Coil), 600mW (Coil), 30A (Contact), 14VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPST, Momentary, 0.088A (Coil), 24VDC (Coil), 2100mW (Coil), 12A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPDT, Momentary, 0.071A (Coil), 24VDC (Coil), 1700mW (Coil), 12A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPDT, Momentary, 0.05A (Coil), 12VDC (Coil), 600mW (Coil), 30A (Contact), 14VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum coil current (DC)	0.067 A	0.088 A	0.071 A	0.05 A	0.067 A	0.088 A	0.071 A	0.05 A
Coil operating voltage (DC)	7.8 V	21 V	21 V	10.4 V	7.8 V	21 V	21 V	10.4 V
Coil power	600 mW	2100 mW	1700 mW	600 mW	600 mW	2100 mW	1700 mW	600 mW
Coil resistance	135 Ω	275 Ω	340 Ω	240 Ω	135 Ω	275 Ω	340 Ω	240 Ω
Maximum coil voltage (DC)	9 V	24 V	24 V	12 V	9 V	24 V	24 V	12 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC	DC
Maximum contact current (DC)	30 A	12 A	12 A	30 A	30 A	12 A	12 A	30 A
Contact (DC) maximum rated R load	30A@14VDC	12A@28VDC	12A@28VDC	30A@14VDC	30A@14VDC	12A@28VDC	12A@28VDC	30A@14VDC
Maximum contact voltage (DC)	14 V	28 V	28 V	14 V	14 V	28 V	28 V	14 V
Contact/Output Power Type	DC	DC	DC	DC	DC	DC	DC	DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Manufacturer's serial number	FRL-274	FRL-274	FRL-274	FRL-274	FRL-274	FRL-274	FRL-274	FRL-274
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPST	SPDT	SPST	SPST	SPDT	SPST	SPDT	SPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1	1
