85823-905 datasheet, PDF - EEWORLD Datasheet

85823-905: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

85823-905 Overview

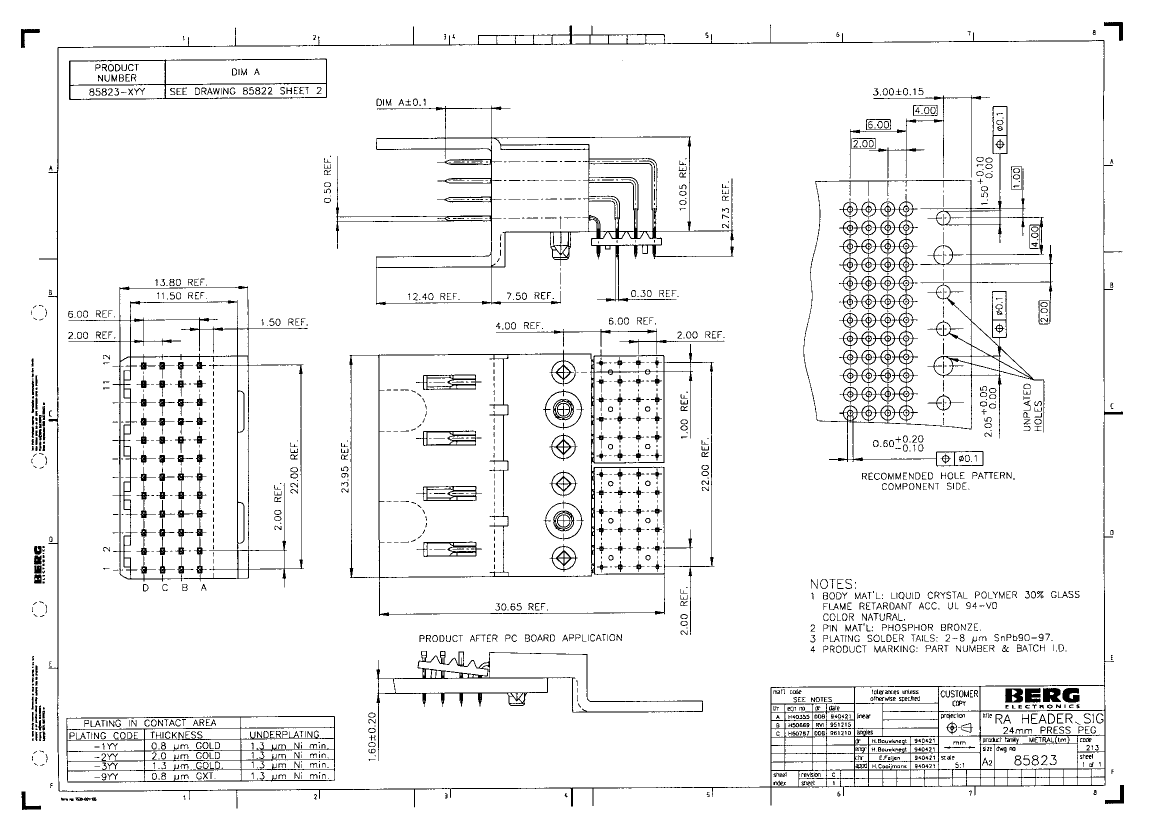

Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle

Parameter Name	Attribute value
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact style	SQ PIN-SKT
Plug contact pitch	0.079 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Insulator color	NATURAL
Match contact row spacing	0.079 inch
Plating thickness	31u inch
Termination type	SOLDER
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
polarization key	POLARIZING PEG
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL, CSA
Objectid	1177536294
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
YTEOL	8
Connector type	BOARD CONNECTOR
Durability	250 Cycles
PCB row number	4
Terminal pitch	2.0066 mm
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	MALE
Installation type	BOARD
Body/casing type	RECEPTACLE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Installation method	RIGHT ANGLE
Other features	TUBE PACKAGING
Number of rows loaded	4
Rated current (signal)	1 A
Total number of contacts	48
body width	0.543 inch
subject depth	1.207 inch
body length	0.943 inch
Terminal length	0.107 inch

PDM: Rev:C

STATUS:

Released

Printed: Aug 02, 2002
