89853-404: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Blue Insulator; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

89853-404 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Blue Insulator

Parameter Name	Attribute value
Terminal length	0.11 inch
body width	0.2 inch
subject depth	0.276 inch
body length	0.697 inch
Total number of contacts	14
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Installation type	BOARD
Number of rows loaded	2
Contact to complete cooperation	SN-PB ON NI
Installation method	STRAIGHT
PCB row number	2
Terminal pitch	2.54 mm
Number of connectors	ONE
PCB contact row spacing	2.54 mm
Termination type	SOLDER
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Installation option 1	LOCKING
Insulator color	BLUE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
Plating thickness	197u inch
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
polarization key	POLARIZED HOUSING
Filter function	NO
JESD-609 code	e0
Guideline	UL
Is it Rohs certified?	No
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Objectid	1657689624
Reach Compliance Code	Unknown

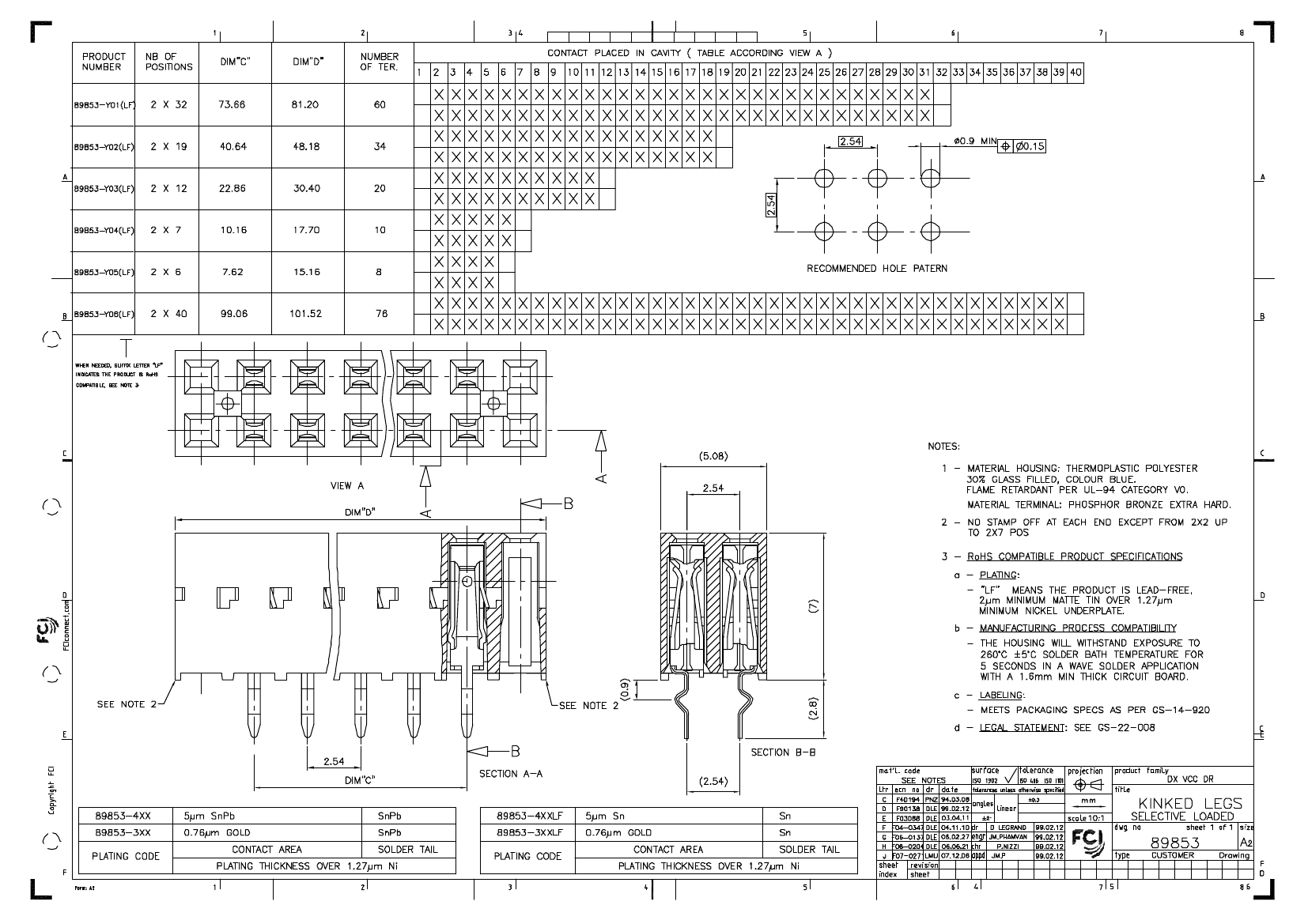

R:\Dcu\Public\Engineering\Product\ELX\f07-0271\89853c01.dwg

PDM: Rev:J

STATUS:

Released

Printed: Jun 06, 2009

.
