ML61C232PL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ML61C232PL

ML61C232PL: DescriptionPower Management Circuit, Fixed, +2.3VV, CMOS; CategoryPower/power management The power supply circuit; File Size891KB，14 Pages; ManufacturerMinilogic; Websitehttp://www.minilogic.com.hk

Download Datasheet Parametric View All

ML61C232PL Overview

Power Management Circuit, Fixed, +2.3VV, CMOS

ML61C232PL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	No
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Objectid	104459475
package instruction	, TO-243
Other features	MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N
Analog Integrated Circuits - Other Types	VOLTAGE DETECTOR
Number of functions	1
technology	CMOS
Temperature level	OTHER
Number of channels	1
Maximum supply current (Isup)	0.004 mA
Maximum supply voltage (Vsup)	10 V
Minimum supply voltage (Vsup)	0.8 V
Nominal supply voltage (Vsup)	1 V
surface mount	YES
Threshold voltage nominal	+2.3V
Adjustable threshold	NO
JESD-609 code	e0
Certification status	Not Qualified
JESD-30 code	R-PDSO-F3
length	4.5 mm
Maximum seat height	1.6 mm
width	2.45 mm
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package form	SMALL OUTLINE, LOW PROFILE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	1.5 mm
Terminal location	SINGLE
encapsulated code	LSOF
Encapsulate equivalent code	TO-243
Package shape	RECTANGULAR
Terminal form	FLAT
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C

Preview

Download Datasheet

View All

ML61

ML61 Series Positive Voltage Detector

Application

Memory Battery Back-up Circuits

Microprocessor Reset Circuitry

Power Failure Detection

Power-on Reset Circuit

System Battery Life and Charge Voltage

Monitor

Features

CMOS Low Power Consumption : Typical 1.0uAat

Vin=2.0V

Selectable Detect V

oltage : 1.1V to 6.0V in 0.1V increments

HighlyAccurate : Detect V

oltage 1.1V to 1.9V + 3%

Detect V

oltage 2.0V to 6.0V + 2%

Operating V

oltage : 0.8V to 10.0V

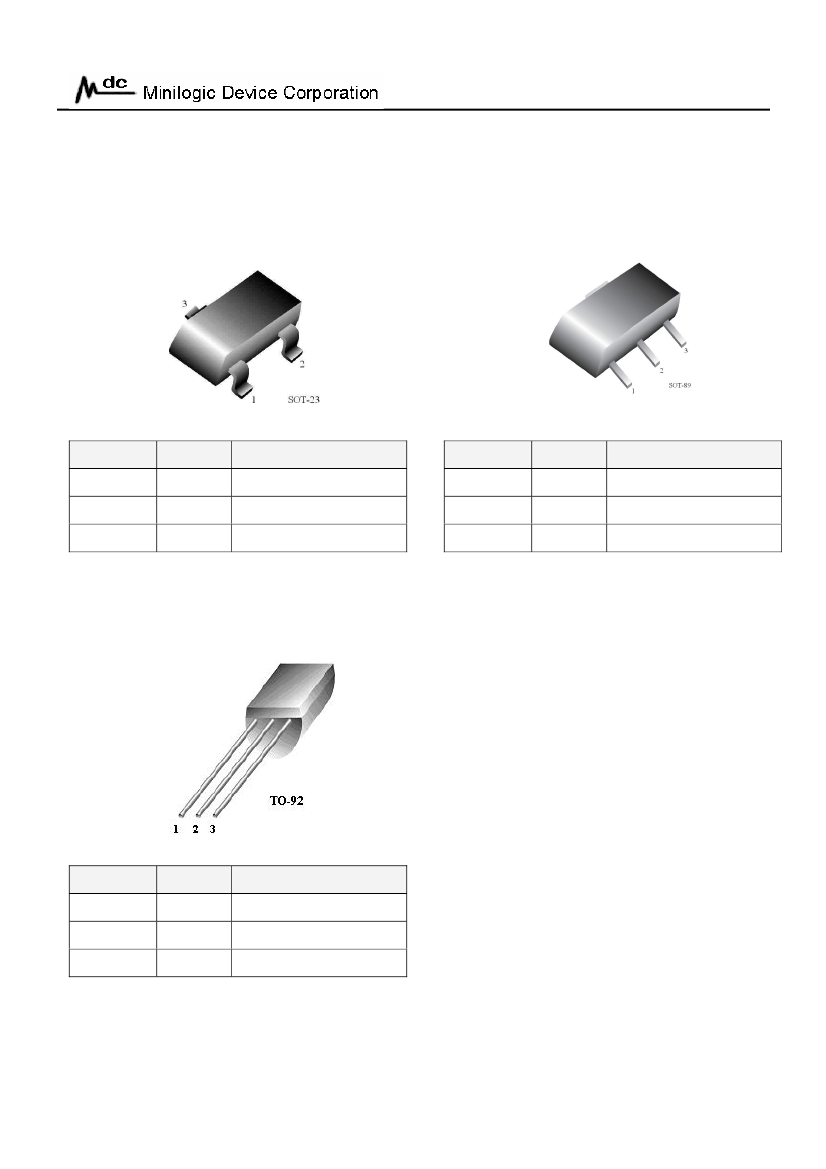

PackageAvailable : SOT23 (150mW), SOT89 (500mW)

& TO92 (300mW)

General Description

The ML61 is a group of high-precision and low-power voltage detectors.

The ML61 consists of a highly-accurate and low-power reference voltage source, a comparator,

a hysteresis circuit, and an output driver. Detect voltage is very accurate and stable with

N-channel open drain and CMOS, are available.

Block Diagram

(1) CMOS Output

(2) N-Channel Open Drain Output

Absolute Maximum Ratings

Parameter

Input Voltage

Output Current

Output Voltage

Continuous SOT-23

Total Power SOT-89

Dissipation TO-92

Operating Ambient

Temperature

Storage Temperature

Symbol

OUT

opr

stg

P1/14

Ratings

-0.3 ~V

+0.3

150

500

300

-40 ~ +70

Units
