DG200ADJ datasheet, PDF - EEWORLD Datasheet

DG200ADJ: DescriptionMonolithic Dual SPST CMOS Analog Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size3MB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DG200ADJ Overview

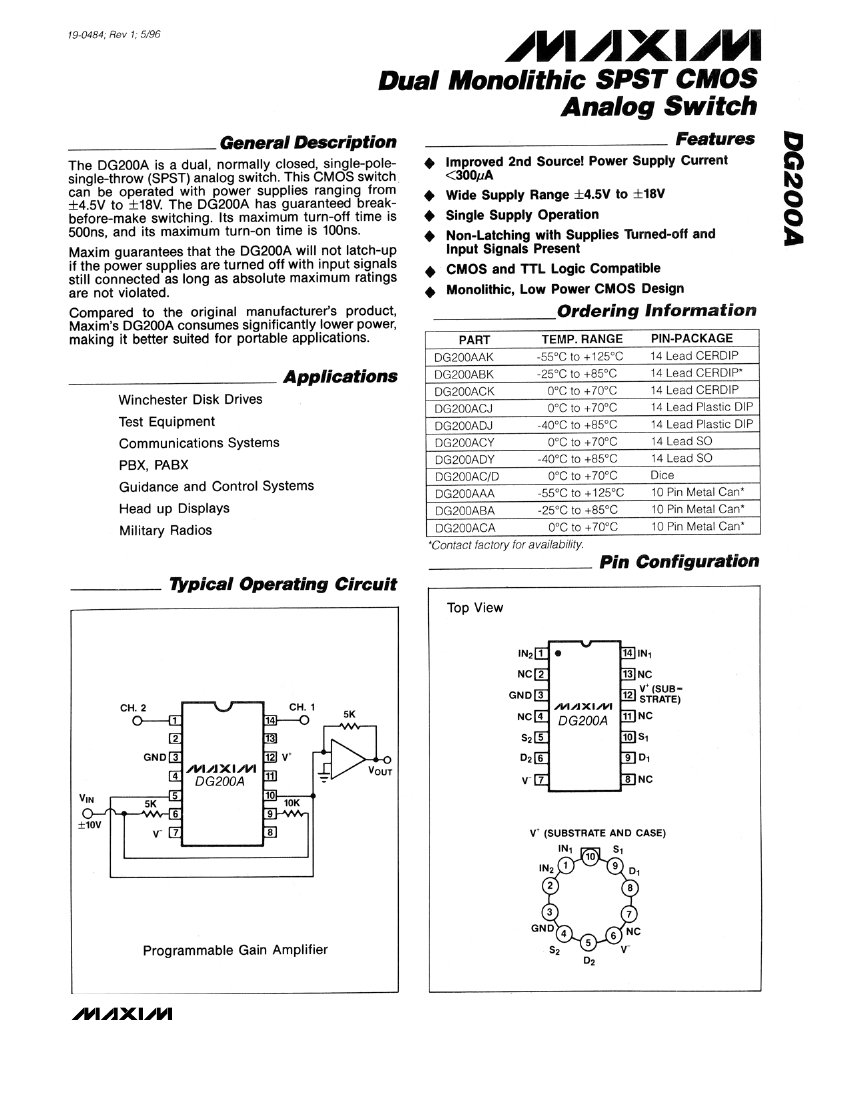

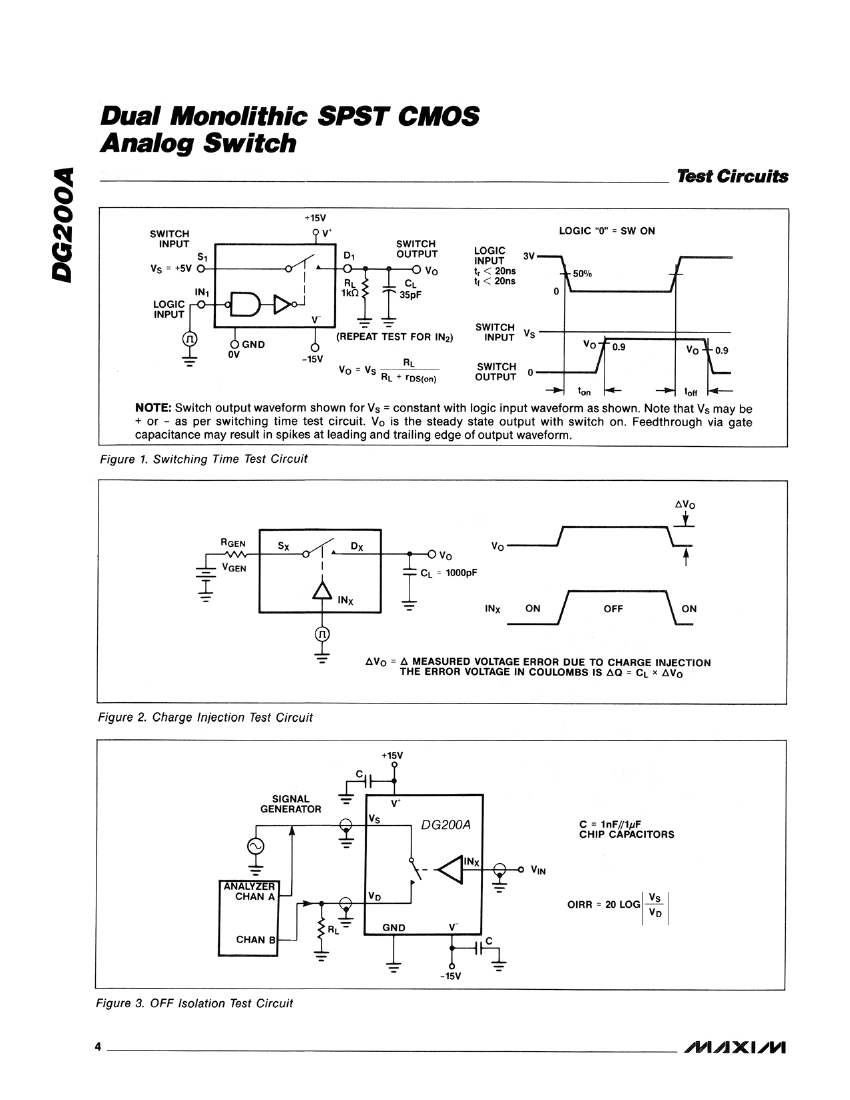

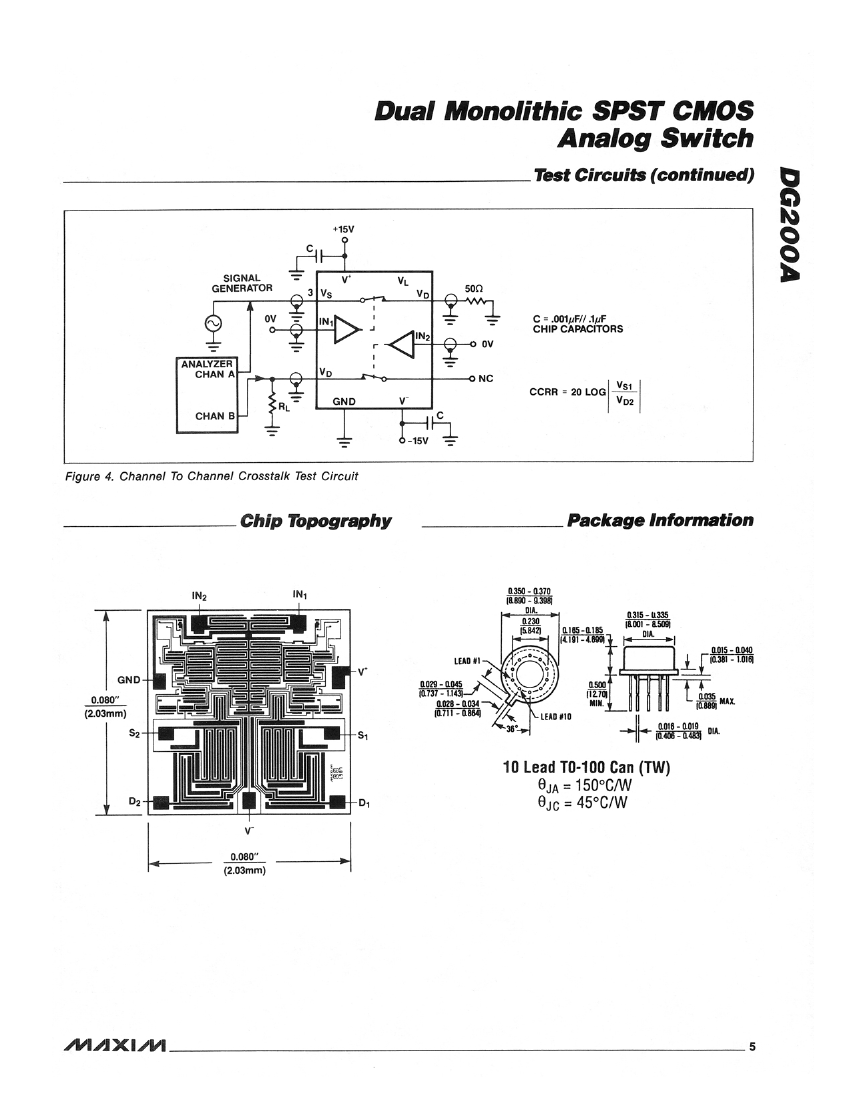

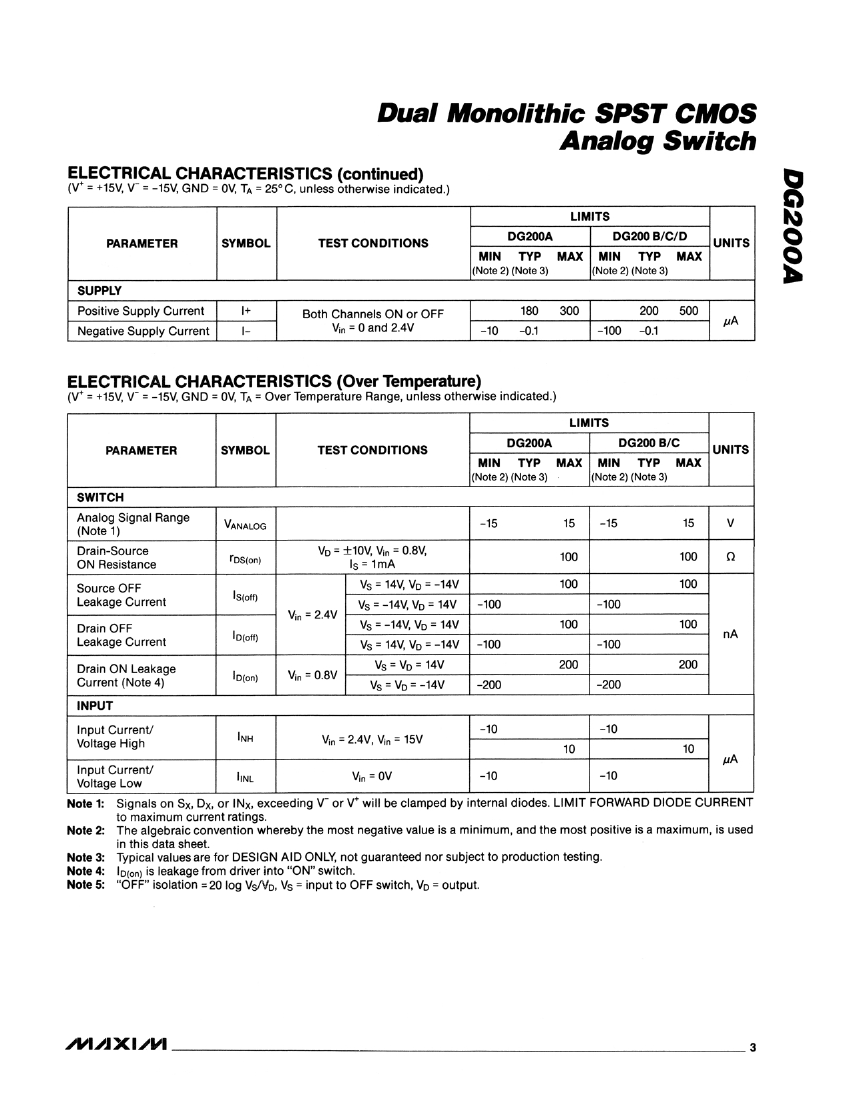

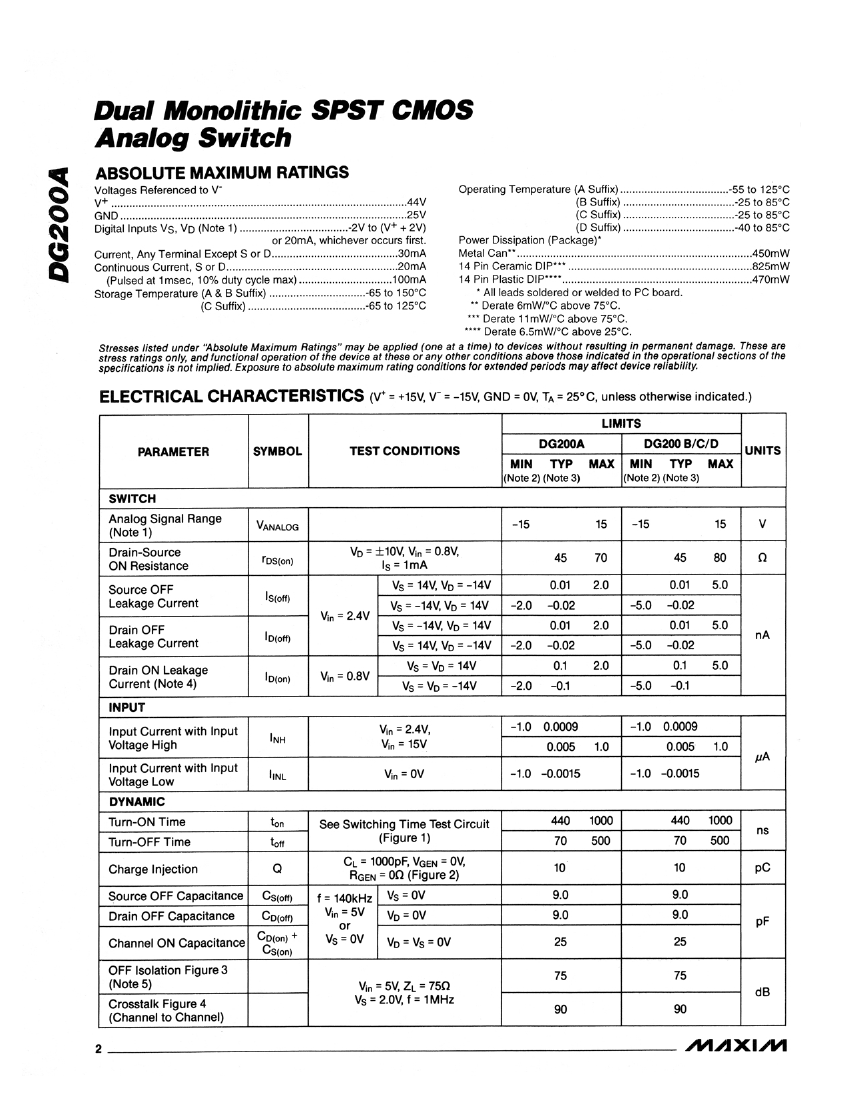

Monolithic Dual SPST CMOS Analog Switch

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	2
Number of terminals	14
Nominal off-state isolation	75 dB
Maximum on-state resistance (Ron)	70 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.72 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	500 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

___________________________________________________________________________

Maxim

Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

	DG200ADJ	DG200	DG200A
Description	Monolithic Dual SPST CMOS Analog Switch	Monolithic Dual SPST CMOS Analog Switch	Monolithic Dual SPST CMOS Analog Switch
