MAX9060–MAX9064
Ultra-Small, nanoPower Single
Comparators in 4-Bump UCSP and 5 SOT23
Features
General Description
The MAX9060–MAX9064 are small single comparators,
ideal for a wide variety of portable electronics applications
such as cell phones, media players, and notebooks that
have extremely tight board space and power constraints.
These comparators are offered in both, a miniature
4-bump UCSP™ package with a 1mm x 1mm footprint (as
small as two 0402 resistors), and a 5-pin SOT23 package.
The MAX9060–MAX9064 feature an input voltage range
of -0.3V to +5.5V independent of supply voltage. These
devices maintain high impedance at the inputs even when
powered down (V
CC
or V
REF
= 0V). They also feature
internal filtering to provide high RF immunity.
The MAX9060 and MAX9061 have open-drain outputs and
draw quiescent supply current from a user-supplied refer-
ence voltage, V
REF
, between 0.9V and 5.5V. These devic-
es consume only 100nA (max) supply current and operate
over the extended -40°C to +85°C temperature range.
The MAX9062, MAX9063 and MAX9064 are single com-
parators with an internal 0.2V reference. These devices
feature either a push-pull or an open-drain output. They
consume only 700nA (max) supply current. The MAX9062,
MAX9063, and MAX9064 operate down to V
CC
= 1V over
the extended -40°C to +85°C temperature range.
Tiny 1mm x 1mm x 0.6mm 4-Bump UCSP
Footprint = Two 0402 Resistors
Also Available in a 5-Pin SOT23 Package
Ultra-Low Operating Current (100nA max)
Input Voltage Range = -0.3V to +5.5V
External REF Range = 0.9V to 5.5V
(MAX9060/MAX9061)
●
Internal REF Voltage = 0.2V
(MAX9062/MAX9063/MAX9064)
● 15μs Propagation Delay
●
-40°C to +85°C Extended Temperature Range
●
●
●
●
●
●
Ordering Information
PART
MAX9060EBS+G45
MAX9060EUK+
MAX9061EBS+G45
MAX9061EUK+
MAX9062EBS+G45
MAX9062EUK+
MAX9063EBS+G45
MAX9063EUK+
MAX9063EUK/V+T
MAX9064EBS+G45
MAX9064EUK+
PIN PACKAGE
4 UCSP
5 SOT23
4 UCSP
5 SOT23
4 UCSP
5 SOT23
4 UCSP
5 SOT23
5 SOT23
4 UCSP
5 SOT23
TOP MARK
AFX
AFFG
AFY
AFFH
AFZ
AFFI
AGA
AFFJ
+AMGH
AGB
AFFK
Applications
●
●
●
●
●
Cell Phones
Portable Media Players
Electronic Toys
Notebook Computers
Portable Medical Devices
Selector Guide
and
Typical Operating Circuits
appears at
end of data sheet.
Note:
All devices are specified over the extended -40°C
to+85°C operating temperature range.
+Denotes a lead(Pb)-free/RoHS-compliant package.
/V denotes an automotive qualified device.
T = Tape and reel.
G45 = Protective die coating.
UCSP is a trademark of Maxim Integrated Products, Inc.
Pin Configurations
TOP VIEW (BUMPS ON BOTTOM)
OUT
A1
A2
IN
REF
(V
CC
)
1
+
5
OUT
MAX9060–MAX9064
REF
(V
CC
)
B1
B2
GND
GND
2
MAX9060–
MAX9064
GND
REF = MAX9060/MAX9061
(V
CC
) = MAX9062–MAX9064
3
SOT23
4
IN
UCSP
19-4105; Rev 7; 3/17
MAX9060–MAX9064
Ultra-Small, nanoPower Single
Comparators in 4-Bump UCSP and 5 SOT23
Absolute Maximum Ratings
V
CC
, REF, IN to GND ..............................................-0.3V to +6V
OUT to GND (MAX9060–MAX9063) .......................-0.3V to +6V
OUT to GND (MAX9064 Only) .............. -0.3V to + (V
CC
+ 0.3V)
Output Short-Circuit Current Duration ................................... 10s
Input Current into Any Terminal ........................................±20mA
Continuous Power Dissipation
4-Bump UCSP (derate 3.0mW/°C above +70°C) ........ 238mW
5-Pin SOT23 (derate 3.9mW/°C above +70°C) .......... 312mW
Operating Temperature Range ............................-40°C to +85°C
Junction Temperature ...................................................... +150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (excluding UCSP, soldering, 10s) ..... +300°C
Soldering Temperature (reflow) ....................................... +260°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these
or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect
device reliability.
MAX9060/MAX9061 Electrical Characteristics
PARAMETER
DC CHARACTERISTICS
Input Offset Voltage (Note 2)
Hysteresis
Input Voltage Range
Input Bias Current
Input Shutdown Current
V
OS
V
HYS
V
IN
I
IN
I
IN_PD
T
A
= +25°C
(Note 3)
SYMBOL
(V
REF
= 1.8V, R
PULLUP
= 10kΩ to V
PULLUP
= 3.3V, T
A
= -40°C to +85°C. Typical values are at T
A
= +25°C, unless otherwise noted.)
(Note 1)
CONDITIONS
MIN
TYP
1.3
±12
-0.3
0V < V
IN
< V
REF
+ 0.6V
V
REF
+ 0.6V < V
IN
< 5.5V
V
REF
= 0V, V
IN
= 5.5V (Note 4)
I
SINK
= 25µA, V
REF
= 0.9V, T
A
= +25°C
Output Voltage Low
V
OL
I
SINK
= 200µA, V
REF
= 1.2V
I
SINK
= 500µA, V
REF
= 1.8V
I
SINK
= 1.2mA, V
REF
= 5.5V
Output Leakage Current
(OUT = High)
AC CHARACTERISTICS
Propagation Delay
Fall Time
REF SUPPLY
REF Voltage
V
REF
Guaranteed by V
OS
tests
V
REF
= 0.9V, V
IN
= V
REF
, T
A
= +25°C
REF Input Current
I
REF
V
REF
= 1.8V, V
IN
= V
REF
, T
A
= +25°C
V
REF
= 5.5V, V
IN
= V
REF
, T
A
= +25°C
V
REF
= 5.5V, V
IN
= V
REF
, -40°C < T
A
< +85°C
REF Rejection Ratio
Power-Up Time
RRR
t
ON
V
REF
= 0.9V to 5.5V, T
A
= +25°C
63
90
3
0.9
50
60
170
320
350
dB
ms
nA
5.5
V
t
PD
t
F
Overdrive = ±100mV (Note 5)
C
L
= 10pF
25
14
µs
ns
I
OUT_LEAKAGE
V
PULLUP
= 5.5V (Note 4)
10
<0.1
0.04
0.08
0.13
0.19
<0.1
+5.5
40
100
27
0.20
0.20
0.23
0.50
35
nA
V
MAX
6
9
UNITS
mV
mV
V
nA
nA
www.maximintegrated.com
Maxim Integrated
│
2
MAX9060–MAX9064
Ultra-Small, nanoPower Single
Comparators in 4-Bump UCSP and 5 SOT23
MAX9062/MAX9063/MAX9064 Electrical Characteristics
PARAMETER
DC CHARACTERISTICS
Input Voltage Range
Input Bias Current
Input Leakage Current
V
IN
I
IN
I
IN_SHDN
Guaranteed by I
IN
test
V
IN
= 0.2V to 5.5V (Note 4)
V
CC
= 0V, V
IN
= 5.5V (Note 4)
I
SINK
= 50µA, V
CC
= 1.0V
I
SINK
= 200µA, V
CC
= 1.2V
Output Voltage Low
V
OL
I
SINK
= 500µA, V
CC
= 1.8V
I
SINK
= 0.75mA, V
CC
= 3.3V
I
SINK
= 1.2mA, V
CC
= 5.5V
I
SOURCE
= 15µA, V
CC
= 1.0V
I
SOURCE
= 40µA, V
CC
= 1.2V
Output Voltage High
(MAX9064 Only)
V
OH
I
SOURCE
= 180µA, V
CC
= 1.8V
I
SOURCE
= 0.3mA, V
CC
= 3.3V
SYMBOL
CONDITIONS
(V
CC
= 3.3V, R
PULLUP
= 10kΩ to V
PULLUP
= 3.3V for MAX9062/MAX9063, T
A
= -40°C to +85°C. Typical values at T
A
= +25°C, unless
otherwise noted.) (Note 1)
MIN
-0.3
0.06
<0.1
0.03
0.08
0.13
0.14
TYP
MAX
+5.5
15
15
0.2
0.20
0.23
0.3
V
UNITS
V
nA
nA
I
SOURCE
= 0.75mA, V
CC
= 5.5V
Output Leakage Current
(MAX9062/MAX9063 Only)
AC CHARACTERISTICS
Propagation Delay
Fall Time
Rise Time
REFERENCE VOLTAGE
Input Threshold (Note 6)
Input Threshold Hysteresis
REF Tempco
Power-Supply Rejection Ratio
POWER SUPPLY
Supply Voltage
Supply Current
V
CC
I
CC
Guaranteed by V
OL
/V
OH
tests
V
CC
= 1.0V
V
CC
= 5.5V
1.0
V
REF
V
HYS
PSRR
T
A
= +25°C
T
A
= -40°C to +85°C
T
A
= -40°C to +85°C (Note 3)
V
CC
= 1.0V to 5.5V
40
188
185
I
OUT_LEAKAGE
OUT = high, V
PULLUP
= 5.5V (Note 4)
t
PD
t
F
t
R
V
OVERDRIVE
= ±100mV (Note 5)
C
L
= 10pF
C
L
= 10pF, MAX9064 only
0.19
0.5
V
CC
- V
CC
-
0.08V 0.02V
V
CC
- V
CC
-
0.08V 0.20V
V
CC
- V
CC
-
0.15V 0.23V
V
CC
- V
CC
-
0.13V 0.3V
V
CC
- V
CC
-
0.24V 0.5V
<0.1
15
14
30
200
200
±0.9
6
53
5.5
0.4
0.6
0.7
1.1
212
215
15
V
nA
µs
ns
ns
mV
mV
µV/°C
dB
V
µA
V
REF_TEMPCO
(Note 7)
Power-Up Time
t
ON
3
ms
Note 1:
All devices are 100% production tested at T
A
= +25°C. Temperature limits are guaranteed by design.
Note 2:
Guaranteed by ATE and/or bench characterization over temperature. V
OS
is the average of the trip points minus V
REF
.
Note 3:
Hysteresis is half the input voltage difference between the two switching points.
Note 4:
Too small to be measured in an ATE test environment. Only gross test to catch failures is implemented.
Note 5:
Overdrive is defined as the voltage above or below the switching points.
Note 6:
Guaranteed by ATE and/or bench characterization over temperature. V
REF
is the average of the trip points.
Note 7:
Includes reference error along with comparator offset voltage error.
www.maximintegrated.com
Maxim Integrated
│
3
MAX9060–MAX9064
Ultra-Small, nanoPower Single
Comparators in 4-Bump UCSP and 5 SOT23

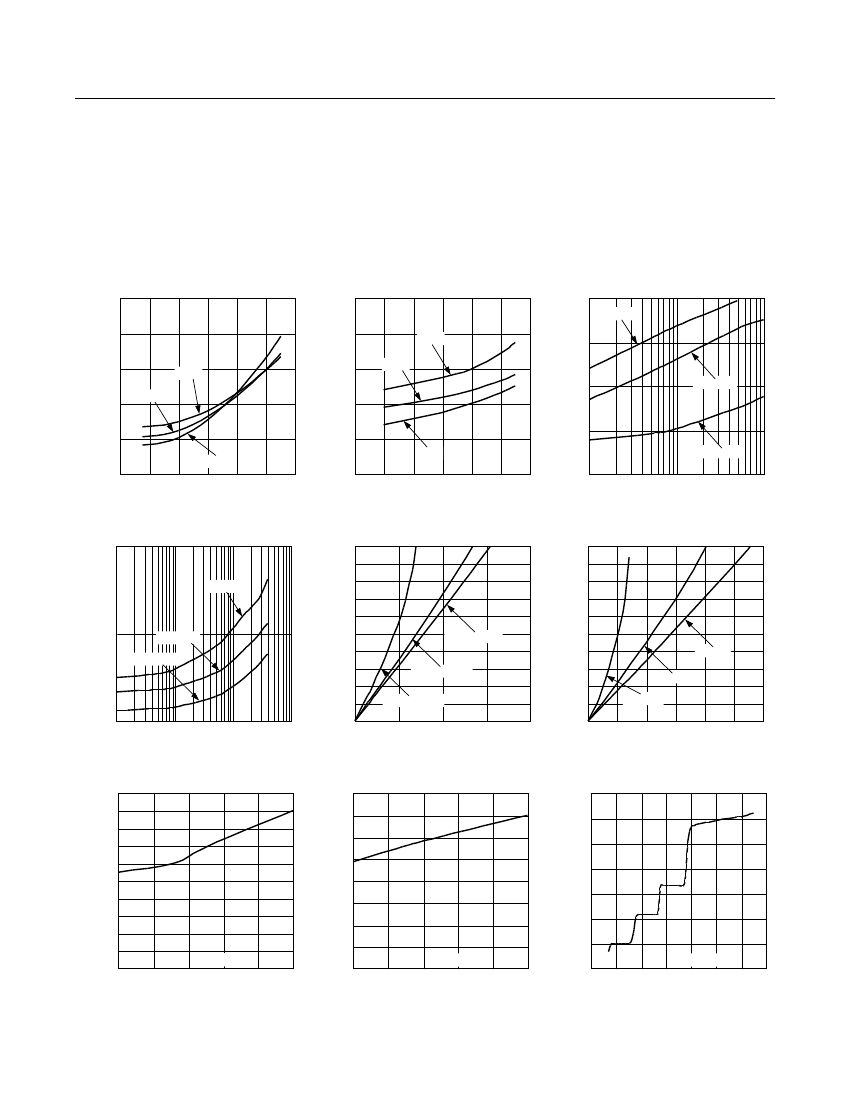

Typical Operating Characteristics
(V
CC
= 3.3V, V
REF
= 1.8V, R
PULLUP
= 10kΩ to V
PULLUP
= 3.3V for MAX9060–MAX9063, V
GND
= 0V, T
A
= +25°C, unless otherwise noted.)
MAX9060 toc01
MAX9060 toc02
V
REF
= 5V
SUPPLY CURRENT (A)
10
SUPPLY CURRENT (nA)
SUPPLY CURRENT (nA)
200
150
100
50
0
-40C
0
1
2
3
4
5
+25C
800
600
400
200
+25C
+85C
+85C
1
V
REF
= 3.3V
0.1
V
REF
= 1.8V
-40C
6
0
0
1
2
3
4
5
6
0.01
0.1
1
10
REF VOLTAGE (V)
SUPPLY VOLTAGE (V)
OUTPUT TRANSITION FREQUENCY (kHz)
MAX9060 toc04
MAX9060 toc05
OIUTPUT VOLTAGE HIGH (V
CC
- V
OH
, V)
0.9
OUTPUT VOLTAGE LOW (V)
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
V
CC
/V
REF
= 3.3V
V
CC
/V
REF
= 1.8V
0
2
4
SINK CURRENT (mA)
6
V
CC
/V
REF
= 5V
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
0.5
V
CC
= 3.3V
V
CC
= 1.8V
1.0
1.5
2.0
2.5
V
CC
= 5V
SUPPLY CURRENT (A)
V
CC
= 5V
10
V
CC
= 3.3V
V
CC
= 1.8V
1
0.1
1
10
100
8
3.0
OUTPUT TRANSITION FREQUENCY (kHz)
SOURCE CURRENT (mA)
MAX9060 toc07
MAX9060 toc08
0.9
OFFSET VOLTAGE (mV)
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-40
-15
10
V
REF
= 1.8V
35
60
14
HYSTERESIS VOLTAGE (mV)
12
10
8
6
4
2
V
REF
= 1.8V
-40
-15
10
35
60
25
INPUT BIAS CURRENT (nA)
20
15
10
5
0
85
0
85
-5
V
REF
= 1.8V
-1
0
1
2
3
4
5
6
INPUT BIAS VOLTAGE (V)
TEMPERATURE (C)
TEMPERATURE (C)
www.maximintegrated.com
Maxim Integrated
│
4
MAX9060 toc09
1.0
MAX9060 OFFSET VOLTAGE
vs. TEMPERATURE
16
MAX9060 HYSTERESIS VOLTAGE
vs. TEMPERATURE
30
MAX9060 INPUT BIAS CURRENT
vs. INPUT BIAS VOLTAGE
MAX9060 toc06
100
MAX9064 SUPPLY CURRENT
vs. OUTPUT TRANSITION FREQUENCY
1.0
MAX9060 AND MAX9064 OUTPUT
VOLTAGE LOW vs. SINK CURRENT
1.0
MAX9064 OUTPUT VOLTAGE HIGH
vs. SOURCE CURRENT
MAX9060 toc03
250
MAX9060 SUPPLY CURRENT
vs. REF VOLTAGE
1000
MAX9064 SUPPLY CURRENT
vs. SUPPLY VOLTAGE
100
MAX9060 SUPPLY CURRENT
vs. OUTPUT TRANSITION FREQUENCY
MAX9060–MAX9064
Ultra-Small, nanoPower Single
Comparators in 4-Bump UCSP and 5 SOT23

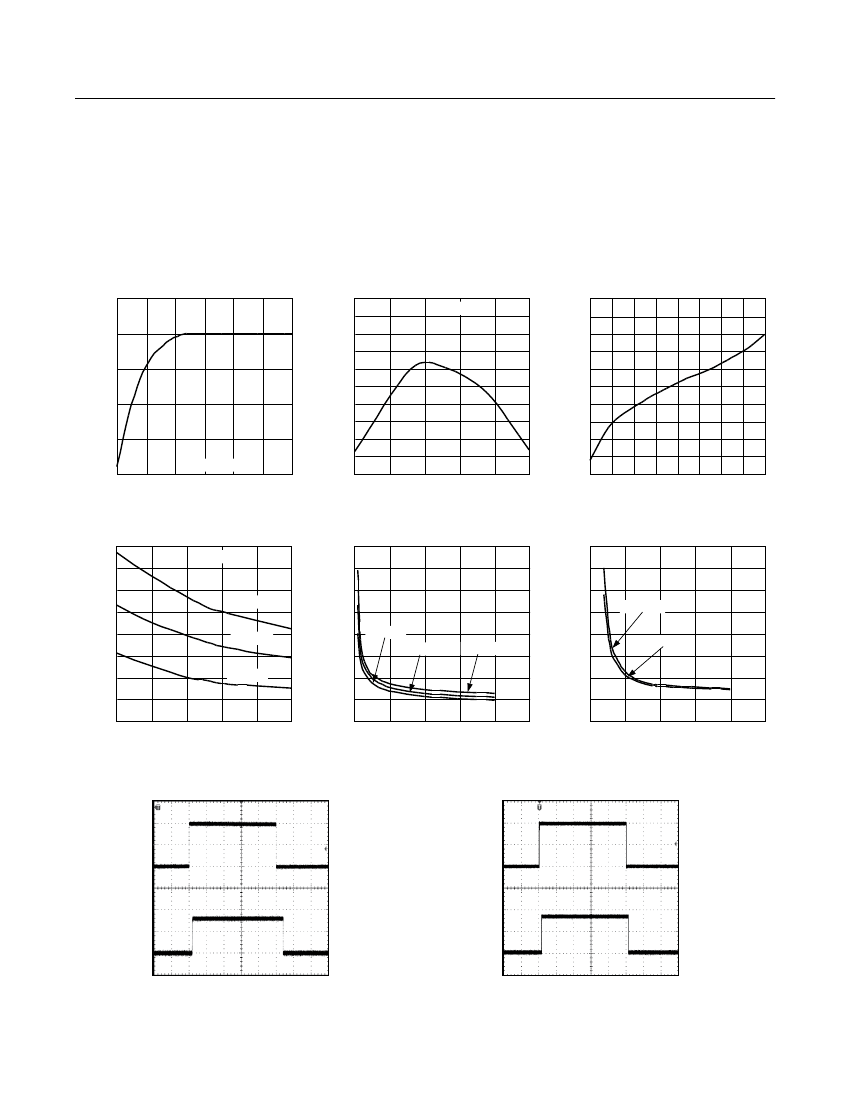

Typical Operating Characteristics (continued)
(V
CC
= 3.3V, V
REF
= 1.8V, R
PULLUP
= 10kΩ to V
PULLUP
= 3.3V for MAX9060–MAX9063, V
GND
= 0V, T
A
= +25°C, unless otherwise noted.)
MAX9060 toc10
MAX9060 toc11
201.9
REFERENCE VOLTAGE (mV)
201.8
201.7
201.6
201.5
201.4
201.3
201.2
201.1
201.0
V
CC
= 3.3V
200.8
REFERENCE VOLTAGE (mV)
200.6
200.4
200.2
200.0
199.8
199.6
199.4
199.2
199.0
INPUT BIAS CURRENT (nA)
0
-5
-10
-15
-20
V
CC
= 3.3V
0
0.05
0.10
0.15
0.20
0.25
0.30
-40
-15
10
35
60
85
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
INPUT BIAS VOLTAGE (V)
TEMPERATURE (C)
SUPPLY VOLTAGE (V)
MAX9060 toc13
MAX9060 toc14
16
PROPAGATION DELAY (s)
15
14
13
12
11
10
9
-40
-15
10
V
OD
= 100mV
70
PROPAGATION DELAY (s)
60
50
40
30
20
10
V
CC
= 1.8V
V
CC
= 3.3V
V
CC
= 5V
70
PROPAGATION DELAY (s)
60
50
40
30
20
10
V
REF
= 1.8V
V
REF
= 5V
V
CC
= 5V
V
CC
= 3.3V
V
CC
= 1.8V
35
60
85
0
0
50
100
150
200
250
0
0
50
100
150
200
250
TEMPERATURE (C)
INPUT OVERDRIVE (mV)
INPUT OVERDRIVE (mV)
MAX9060 PROPAGATION DELAY
AT V
REF
= 1.8V
1.9V
MAX9060 toc16
MAX9064 PROPAGATION DELAY
AT V
CC
= 3.3V
0.3V
IN+
100mV/div
MAX9060 toc17
1.7V
0.1V
IN+
100mV/div
0V
100s/div
OUT
2V/div
0V
100s/div
OUT
2V/div
www.maximintegrated.com
Maxim Integrated
│
5
MAX9060 toc15
17
MAX9064 PROPAGATION DELAY
vs. TEMPERATURE
80
MAX9064 PROPAGATION DELAY
vs. INPUT OVERDRIVE
80
MAX9060 PROPAGATION DELAY
vs. INPUT OVERDRIVE
MAX9060 toc12
5
MAX9064 INPUT BIAS CURRENT
vs. INPUT BIAS VOLTAGE
202.0
MAX9064 REFERENCE VOLTAGE
vs. TEMPERATURE
201.0
MAX9064 REFERENCE VOLTAGE
vs. SUPPLY VOLTAGE
京公网安备 11010802033920号
EEWORLD
