460-90-222-00-001100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 460-90-222-00-001100

460-90-222-00-001100: DescriptionIC Socket, 22 Contact(s); CategoryThe connector socket; File Size87KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

460-90-222-00-001100 Overview

IC Socket, 22 Contact(s)

460-90-222-00-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP HEADER
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (150)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e0
Manufacturer's serial number	460
Number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

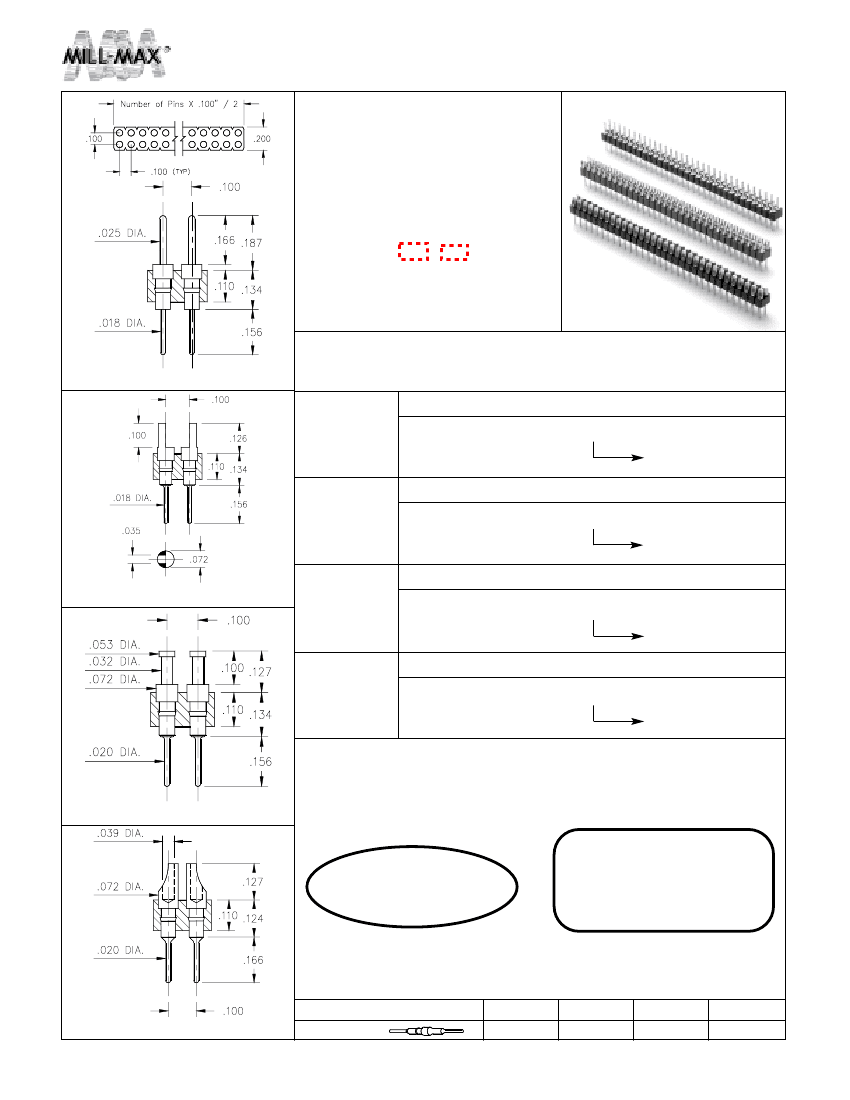

HEADER STRIPS

Solder Tail

Double Row

Series 450, 460

470, 480

•

Series 450, 460, 470, 480 double

row Header Strips come with

various contacts (pin, slotted

head, turret and solder cup) with

pluggable solder tails.

(M-M# 0290, 0282, 0700, or 8000

see pages 173 & 174 for details).

Ordering Information

Fig. 1

Series 450...001

Pin / Solder Tail

450-XX-2_ _-00-001

Specify # of pins

02-64

Fig. 2

Series 460...001

Slotted Head / Solder Tail

460-XX-2_ _-00-001

Specify # of pins

02-64

Fig. 2

Fig. 3

Series 470...001

Turret / Solder Tail

470-XX-2_ _-00-001

Specify # of pins

02-64

Fig. 4

Series 480...001

Solder Cup / Solder Tail

480-XX-2_ _-00-001

Specify # of pins

02-64

Fig. 3

XX= Plating Code

See Below

For High

Temperature

Insulators Add ‘100’

To End Of

Part Numbers

SPECIFY PLATING CODE XX=

10µ” Au

200µ”Sn/Pb

Fig. 4

Pin Plating

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
