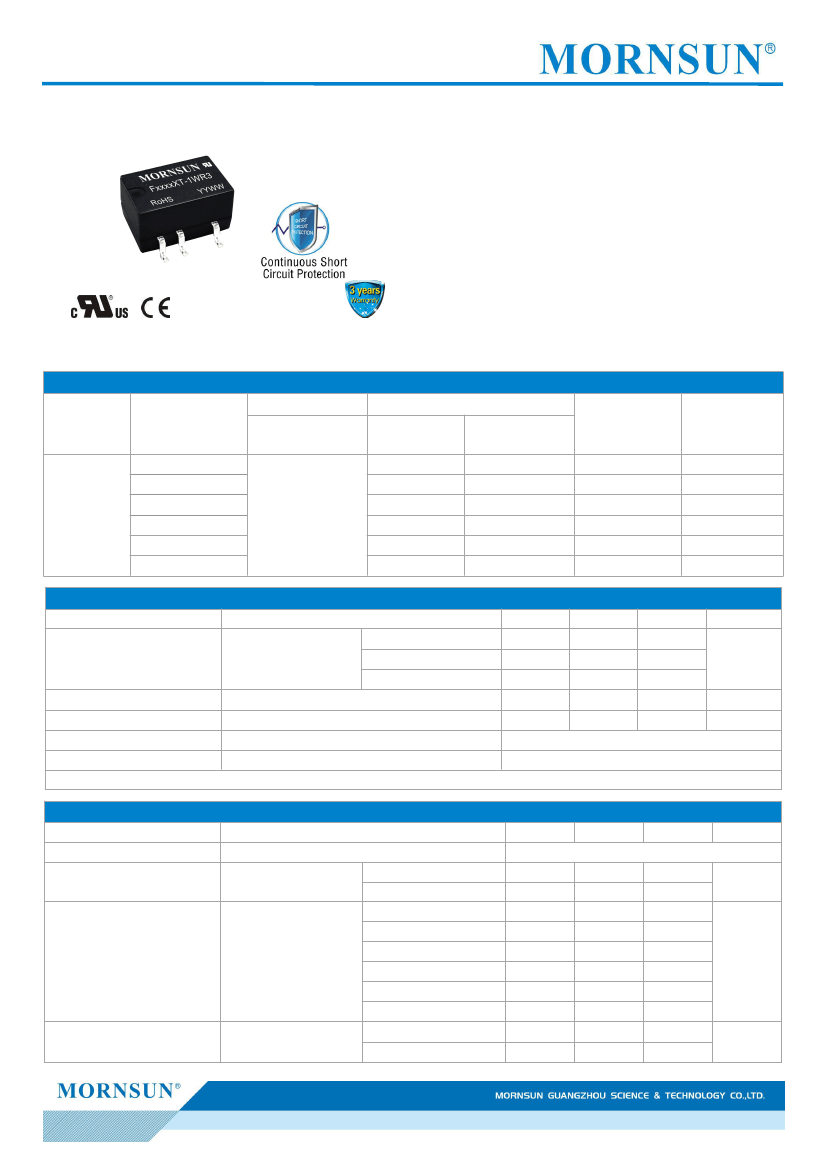

DC/DC Converter
F05_XT-1WR3 Series
1W, Fixed input voltage, isolated & unregulated
single output
FEATURES
Continuous short-circuit protection
No-load input current as low as 5mA
Operating temperature range: -40℃ to +105℃
High efficiency up to 85%
Compact SMD package
Isolation voltage: 3K VDC
International standard pin-out
UL62368, EN62368 approval
Patent Protection
RoHS
F05_XT-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They
are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
Selection Guide
Input Voltage (VDC)
Certification
Part No.
F0503XT-1WR3
F0505XT-1WR3
UL/CE
F0509XT-1WR3
F0512XT-1WR3
F0515XT-1WR3
F0524XT-1WR3
5
(4.5-5.5)
Nominal
(Range)
(VDC)
3.3
5
9
12
15
24
Output
Output Voltage
Output Current
(mA)(Max./Min.)
303/30
200/20
111/12
84/9
67/7
42/4
Efficiency
(%,Min./Typ.)
@ Full Load
70/74
78/82
79/83
79/83
79/83
81/85
Max. Capacitive
Load
(µF)
2400
2400
1000
560
560
220
Input Specifications
Item
Input Current
(full load / no-load)
Reflected Ripple Current*
Surge Voltage (1sec. max.)
Input Filter
Hot Plug
Note: * Reflected ripple current testing method please see DC-DC Converter Application Notes for specific operation.
Operating Conditions
3.3VDC/5VDC output
5VDC input
9VDC/12VDC output
15VDC/24VDC output
5VDC input
Min.
--
--
--
--
-0.7
Typ.
270/5
241/12
241/18
15
--
Max.
286/10
254/20
254/30
--
9
Unit
mA
mA
VDC
Filter capacitor
Unavailable
Output Specifications
Item
Output Voltage Accuracy
Line Regulation
Input voltage change:
±1%
3.3VDC output
Other outputs
3.3VDC output
5VDC output
Load Regulation
10%-100% load
9VDC output
12VDC output
15VDC output
24VDC output
Ripple & Noise*
20MHz bandwidth
Other outputs
24VDC output
--
--
--
--
--
--
--
--
--
---
Operating Conditions
Min.
Typ.
--
--
15
10
8
7
6
5
30
50
Max.
1.5
1.2
20
15
10
10
10
10
75
100
mVp-p
%
Unit

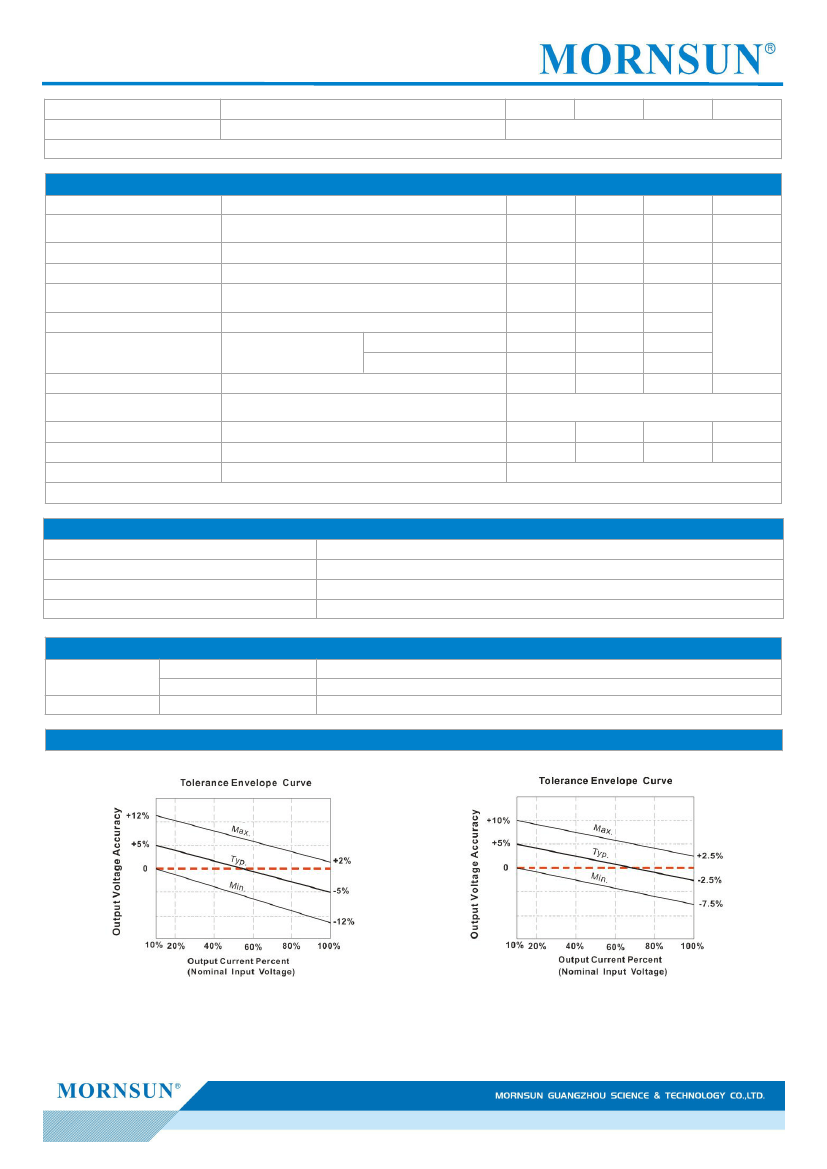

See tolerance envelope curve(Fig. 1)
%/%
2018.07.04-A/2
Page 1 of 4
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Converter
F05_XT-1WR3 Series
Temperature Coefficient
Short Circuit Protection
Full load
--
±0.02
--
%/℃
Continuous, self-recovery
Note:*Ripple and noise are measured by “parallel cable” method, please see DC-DC Converter Application Notes for specific operation.
General Specifications
Item
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Operating Temperature
Storage Temperature
Casing Temperature Rise
Storage Humidity
Reflow Soldering Temperature*
Switching Frequency
MTBF
Moisture Sensitivity Level (MSL)
Full load, nominal input voltage
MIL-HDBK-217F@25℃
IPC/JEDEC J-STD-020D.1
Ta=25℃
Non-condensing
3.3VDC output
Other outputs
Operating Conditions
Input-output, with the test time of 1 minute and the
leak current lower than 1mA
Input-output, isolation voltage 500VDC
Input-output, 100KHz/0.1V
Derating when operating temperature up to 100℃,
(see Fig. 2)
Min.
3000
1000
--
-40
-55
--
--
Typ.
--
--
20
--
--
25
15
Max.
--
--
--
105
125
--
--
℃
Unit
VDC
MΩ
pF
%RH
--
--
95
Peak temp.≤245℃, maximum duration time≤60s
at 217℃
--
3500
270
--
Level 2
--
--
KHz
K hours
Note: * For actual application, please refer to IPC/JEDEC J-STD-020D.1.
Physical Specifications
Casing Material
Dimensions
Weight
Cooling Method
Black flame-retardant and heat-resistant plastic(UL94 V-0)
13.20*11.40*7.25 mm
1.4g(Typ.)
Free air convection
EMC Specifications
EMI
EMS
CE
RE
ESD
CISPR32/EN55032 CLASS B (see Fig. 4 for recommended circuit)
CISPR32/EN55032 CLASS B (see Fig. 4 for recommended circuit)
IEC/EN61000-4-2
Air ±8kV , Contact ±4kV
perf. Criteria B
Product Characteristic Curve
3.3VDC output
Other output
Fig. 1
2018.07.04-A/2
Page 2 of 4
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Converter
F05_XT-1WR3 Series
Temperature Derating Cur ve
Output P ower Percent(%)
120
100
80
60
40
20
0
-40
40
71 100 105
0
Ambient Temp.(
℃
)
Safe Ope rating Area
Fig. 2

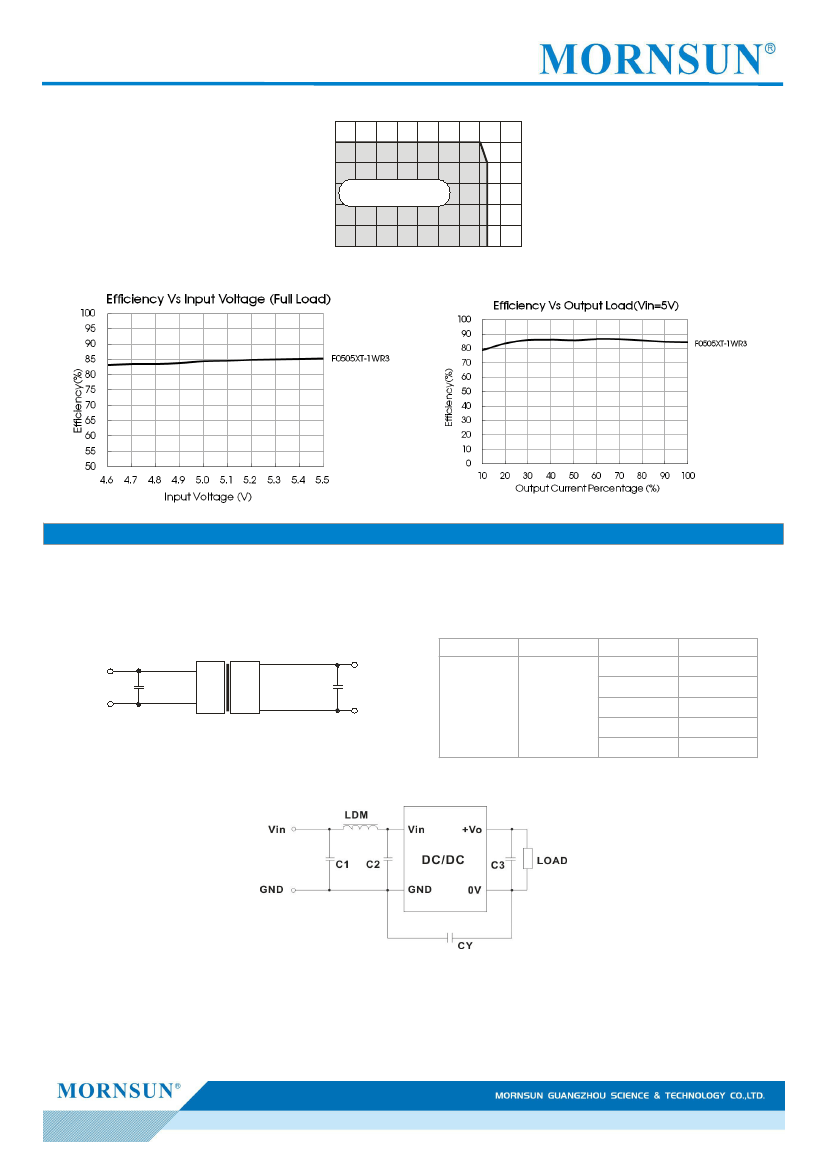

Design Reference
1. Typical application circuit
If it is required to further reduce input and output ripple, a filter capacitor may be connected to the input and output terminals, see Fig.3.
Moreover, choosing a suitable filter capacitor is very important, start-up problems may be caused if the capacitance is too large. Under the
condition of safe and reliable operation, the recommended capacitive load values are shown in Table 1.
Recommended capacitive load value table (Table 1)
Vin(VDC)
Cin(µF)
Vo (VDC)
Cout(µF)
Vin
C in
+Vo
3.3/5
9
5
4.7
12
15
24
10
4.7
2.2
1
0.47
DC
DC
C out
GND
0V
Fig.3
2. EMC solution-recommended circuit
Fig. 4
2018.07.04-A/2
Page 3 of 4
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Converter
F05_XT-1WR3 Series
EMC recommended circuit value table (Table 2)
Output voltage(VDC)
C1/C2
Input
voltage
5VDC
EMI
CY
C3
LDM
6.8µH
3.3/5/9
4.7µF /25V
12/15/24
4.7µF /25V
1nF/4KVDC
VISHAY HGZ102MBP
TDK CD45-E2GA102M-GKA
Refer to the Cout in table 1
6.8µH
--
Note: In the case of actual use, the requirements for EMI are high, it is subject to CY.
3. For more information please find DC-DC converter application notes on
www.mornsun-power.com

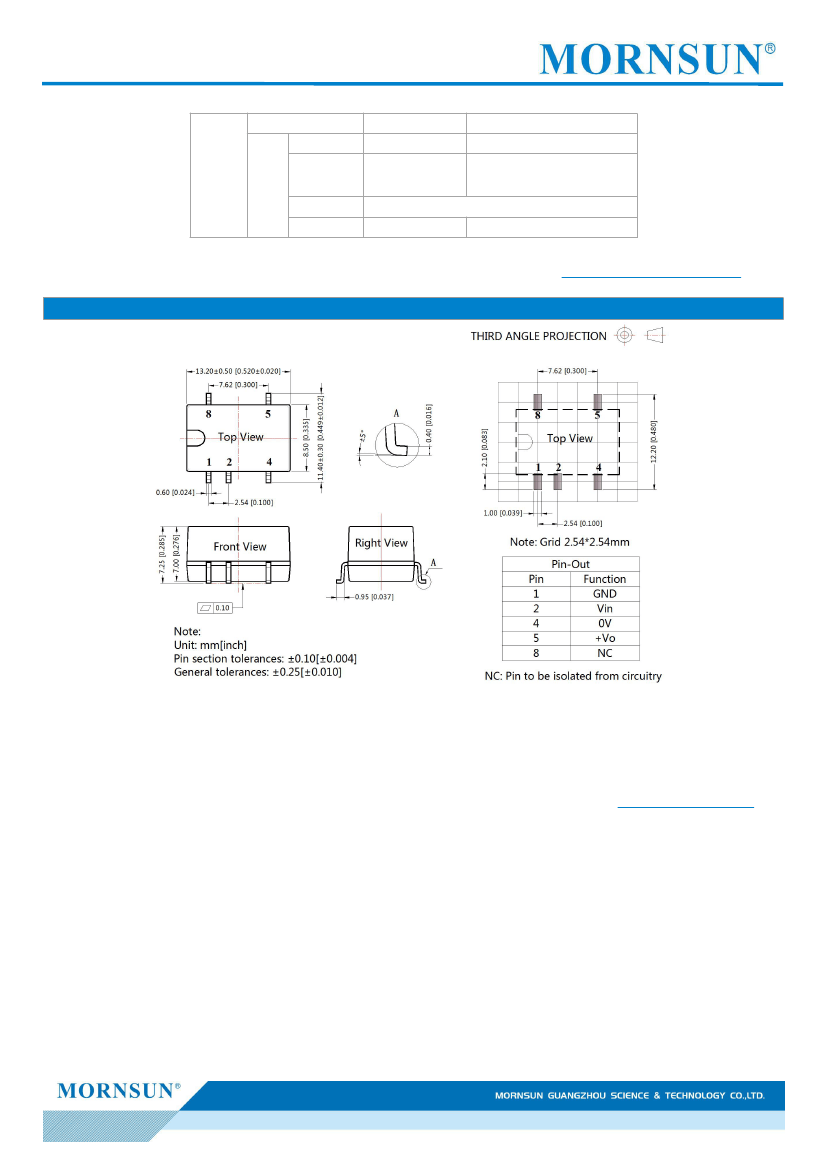

Dimensions and Recommended Layout
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
Packing information please refer to Product Packing Information which can be downloaded from
www.mornsun-power.com.
Tube
Packing bag number: 58210024, Roll Packing bag number: 58200054;
If the product is not operated within the required load range, the product performance cannot be guaranteed to comply with all
parameters in the datasheet;
The maximum capacitive load offered were tested at input voltage range and full load;
Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal
input voltage and rated output load;
All index testing methods in this datasheet are based on our Company’s corporate standards;
We can provide product customization service, please contact our technicians directly for specific information;
Products are related to laws and regulations: see "Features" and "EMC";
Our products shall be classified according to ISO14001 and related environmental laws and regulations, and shall be handled by
qualified units.
MORNSUN Guangzhou Science & Technology Co., Ltd.
Address: No. 5, Kehui St. 1, Kehui Development Center, Science Ave., Guangzhou Science City, Luogang District, Guangzhou, P. R. China
Tel: 86-20-38601850-8801
Fax: 86-20-38601272
E-mail: info@mornsun.cn
2018.07.04-A/2
Page 4 of 4
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
