MAX8214ACSE+T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MAX8214ACSE+T

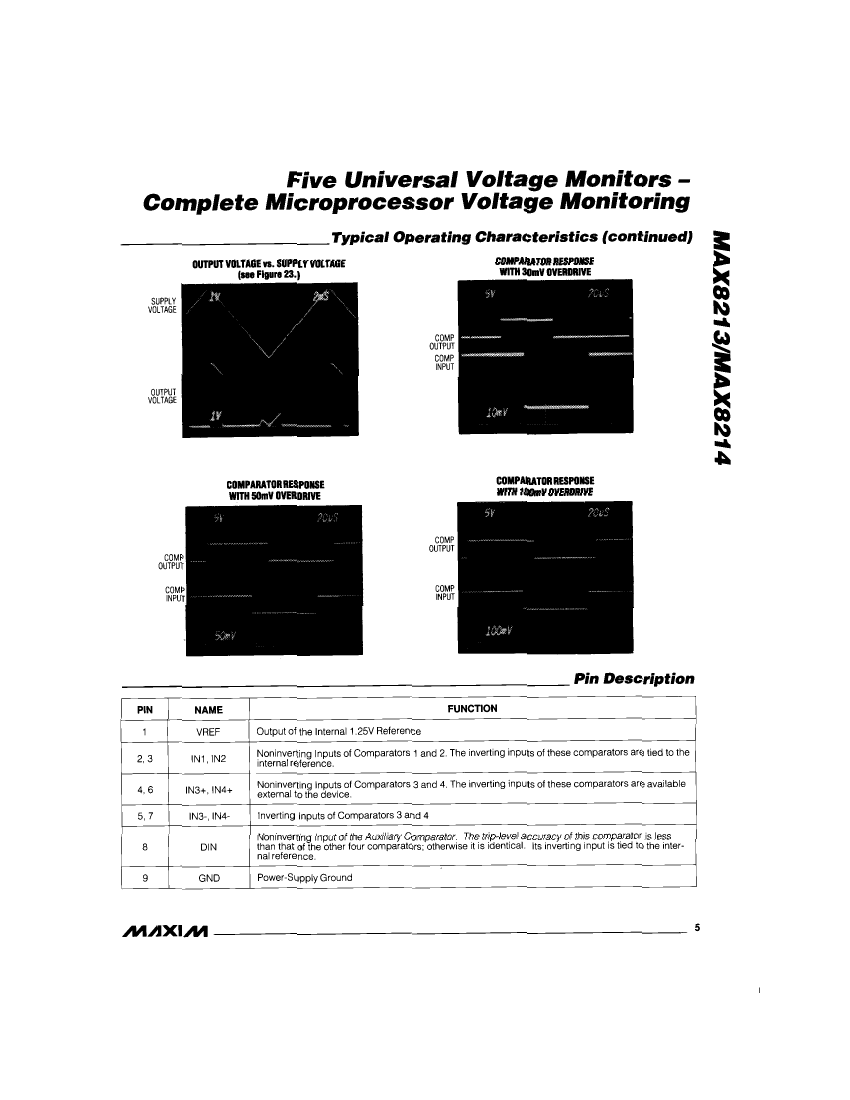

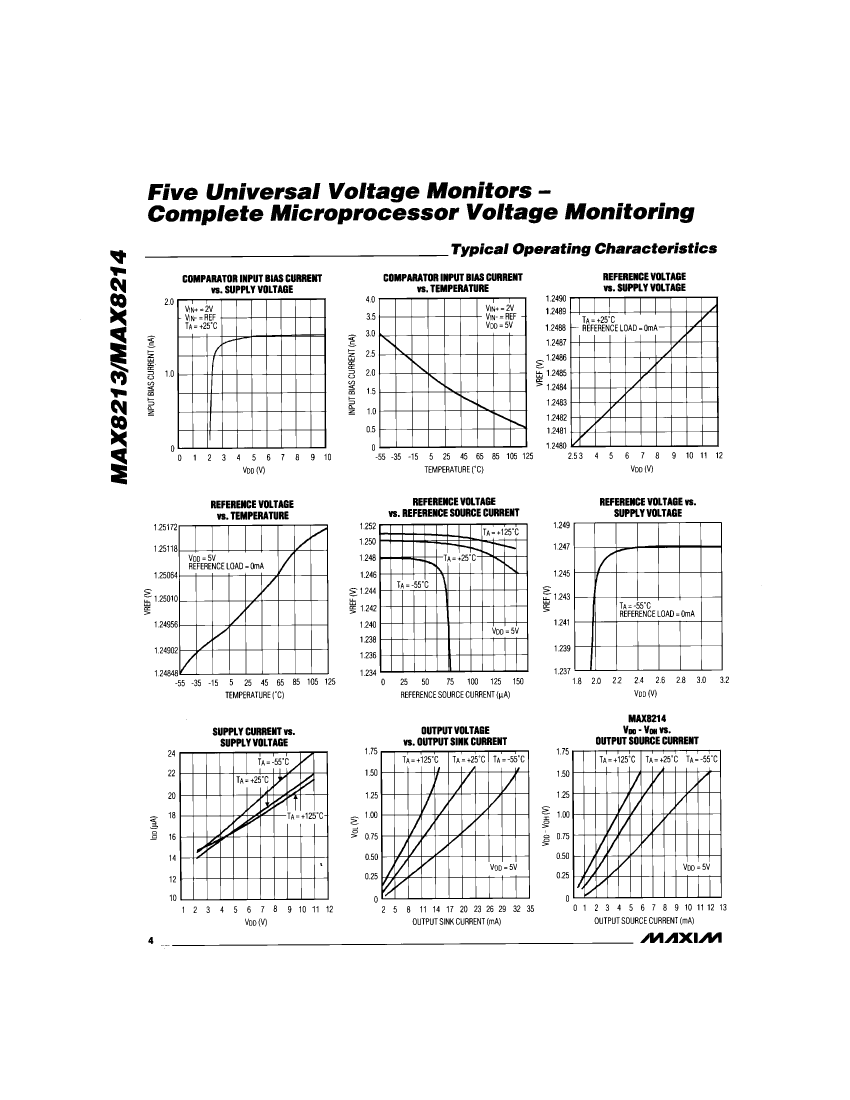

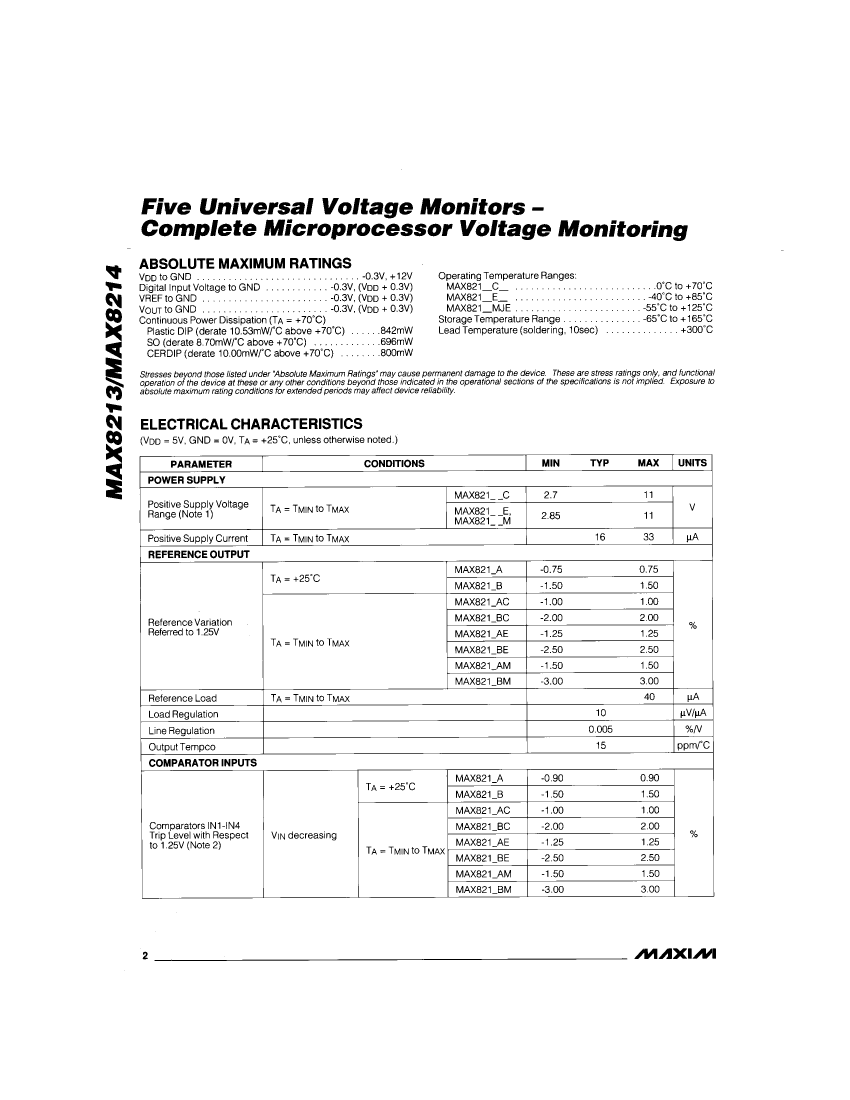

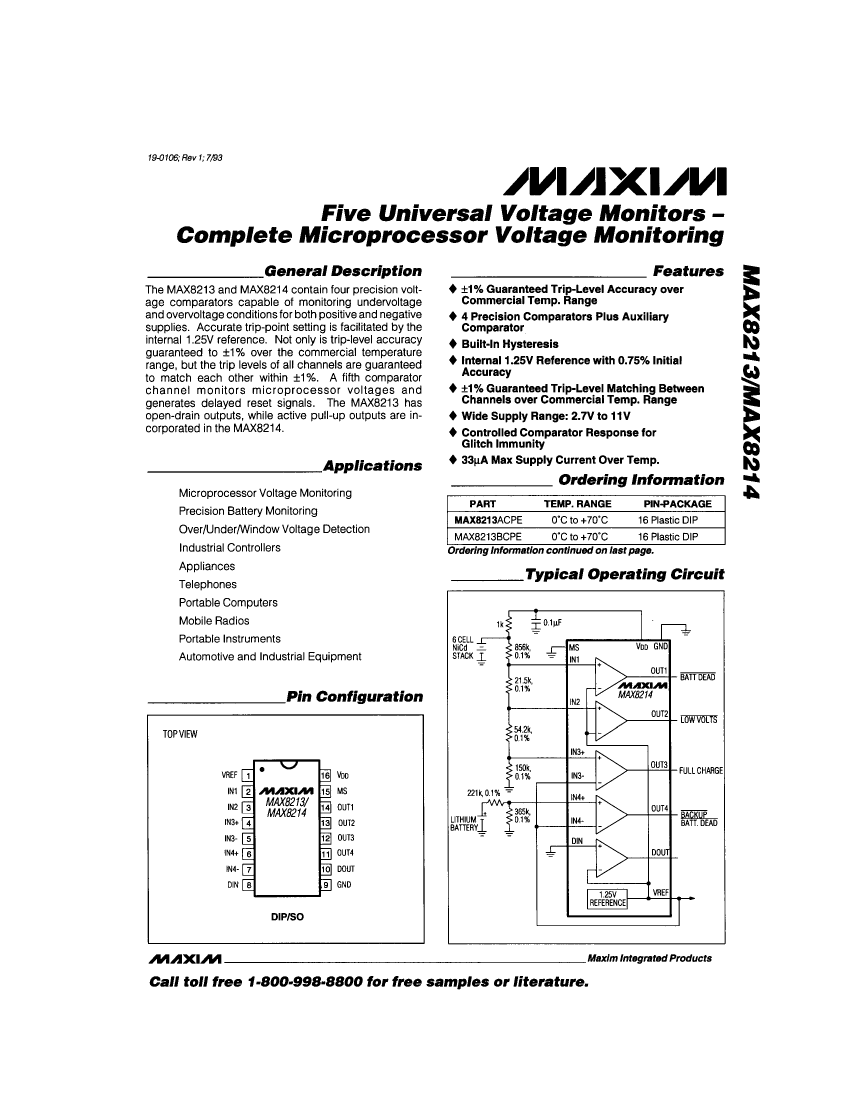

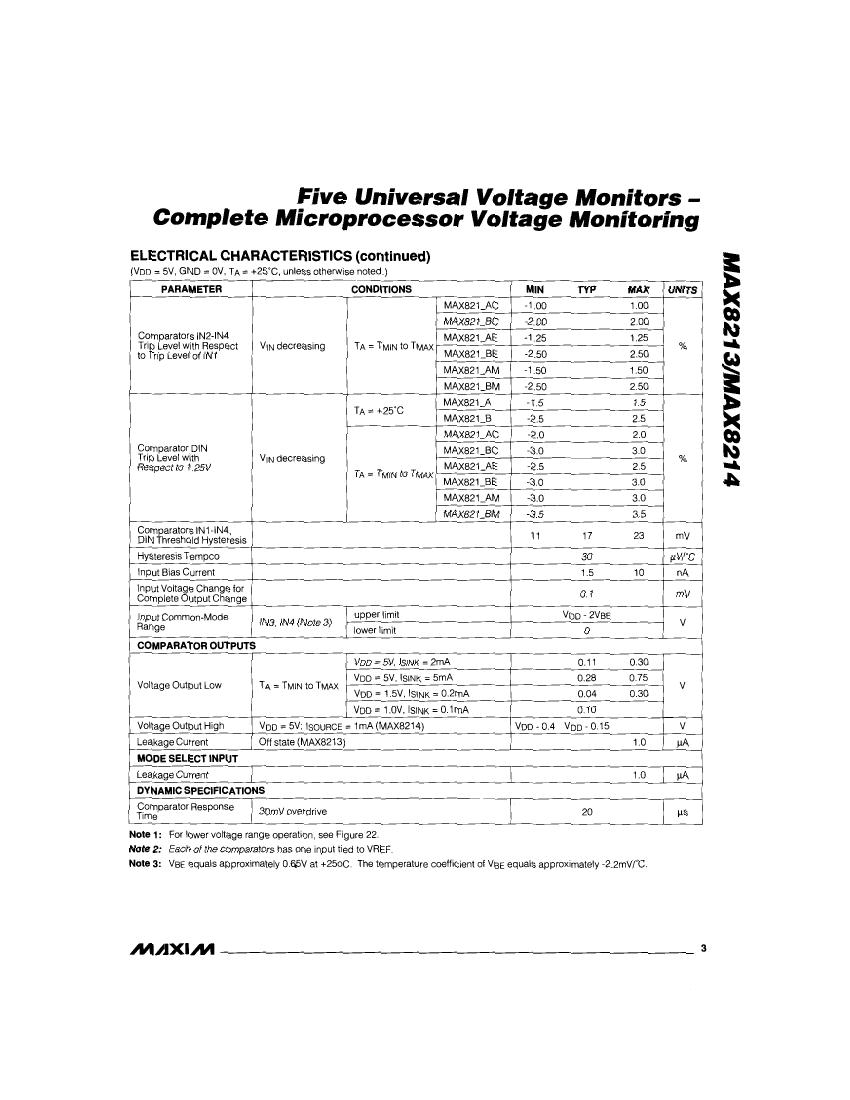

Preview

MAX8214ACSE+T: Descriptionsupervisory circuits quint upower voltage monitor; CategoryPower/power management The power supply circuit; File Size606KB，16 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX8214ACSE+T Overview

supervisory circuits quint upower voltage monitor

MAX8214ACSE+T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Is Samacsys	N
Other features	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	9.9 mm
Humidity sensitivity level	1
Number of channels	5
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.033 mA
Maximum supply voltage (Vsup)	11 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MAX8214ACSE+T Related Products

	MAX8214ACSE+T	MAX8213ACPE+	MAX8213BCSE+	MAX8214ACSE+	MAX8213AESE+	MAX8213BEPE+	MAX8214BCSE+T	MAX8213BESE+
Description	supervisory circuits quint upower voltage monitor	supervisory circuits quint upower voltage monitor	supervisory circuits quint upower voltage monitor	supervisory circuits quint upower voltage monitor	supervisory circuits quint upower voltage monitor	supervisory circuits quint upower voltage monitor	supervisory circuits quint upower voltage monitor	supervisory circuits quint upower voltage monitor
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	SOIC	DIP	SOIC	SOIC	SOIC	DIP	SOIC	SOIC
package instruction	SOP,	DIP,	SOP,	SOP,	SOP, SOP16,.25	DIP,	SOP,	SOP,
Contacts	16	16	16	16	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	13 weeks	6 weeks	6 weeks	6 weeks	6 weeks	1 week	12 weeks	6 weeks
Other features	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING
Adjustable threshold	NO	NO	NO	NO	NO	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
length	9.9 mm	19.175 mm	9.9 mm	9.9 mm	9.9 mm	19.175 mm	9.9 mm	9.9 mm
Humidity sensitivity level	1	1	1	1	1	1	1	1
Number of channels	5	5	5	5	5	5	5	5
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	SOP	SOP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	4.572 mm	1.75 mm	1.75 mm	1.75 mm	4.572 mm	1.75 mm	1.75 mm
Maximum supply current (Isup)	0.033 mA	0.033 mA	0.033 mA	0.033 mA	0.033 mA	0.033 mA	0.033 mA	0.033 mA
Maximum supply voltage (Vsup)	11 V	11 V	11 V	11 V	11 V	11 V	11 V	11 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.85 V	2.85 V	2.7 V	2.85 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	TIN	MATTE TIN	TIN	Matte Tin (Sn)	Matte Tin (Sn)	MATTE TIN	TIN	TIN
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	7.62 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm	3.9 mm	3.9 mm
Base Number Matches	1	1	1	1	1	1	-	-
