ASTMUPCFL-28-165.000MHZ-LC-E datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASTMUPCFL-28-165.000MHZ-LC-E

ASTMUPCFL-28-165.000MHZ-LC-E: DescriptionLVCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size5MB，10 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASTMUPCFL-28-165.000MHZ-LC-E Overview

LVCMOS Output Clock Oscillator

ASTMUPCFL-28-165.000MHZ-LC-E Parametric

Parameter Name	Attribute value
Is Samacsys	N
YTEOL	0
Objectid	7014702721
package instruction	SMD, 4 PIN
Reach Compliance Code	Compliant
Maximum supply voltage	3.08 V
Minimum supply voltage	2.52 V
maximum symmetry	55/45 %
Other features	ENABLE/DISABLE FUNCTION; BULK
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
longest rise time	2 ns
frequency stability	50%
Nominal operating frequency	165 MHz
Oscillator type	LVCMOS
Output load	15 pF
Nominal supply voltage	2.8 V
Installation features	SURFACE MOUNT
Number of terminals	4
surface mount	YES
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	5.0mm x 3.2mm x 0.75mm
Is it Rohs certified?	Yes

Preview

Download Datasheet

View All

High Performance, Programmable LVCMOS SMD MEMS Oscillator

ASTMUPC

FEATURES:

Moisture Sensitivity Level (MSL) – 1

ASTMUPC

ESD Sensitive

RoHS/RoHS II compliant

2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm;

5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm

• Industry Standard package sizes: 2.7 x 2.4 x 0.75mm (compatible with 2520

package footprint), 3.2 x 2.5 x 0.75mm, 5 x 3.2 x 0.75mm, 7.0 x 5.0 x 0.9mm

• Any frequency between 1MHz and 220MHz

• Supply Voltage options: 3.3V, 2.8V, 2.5V, 1.8V

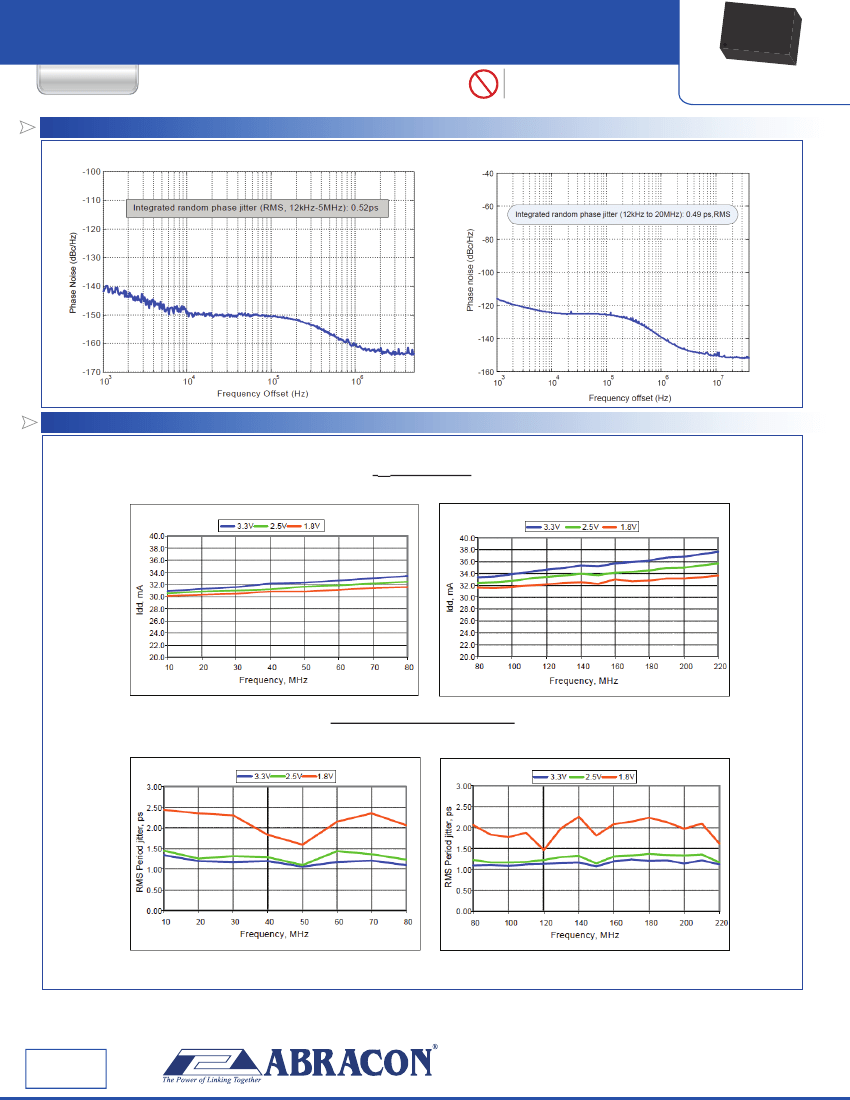

• Ultra-low RMS phase jitter: 0.5ps typ. (@156.25MHz,

integration bandwidth: 12kHz to 20MHz)

• Frequency Stability options: ±10ppm, ±20ppm, ±25ppm,

±50ppm over -20 to +70°C and -40 to +85°C

• Factory programmable drive strength (for 1MHz ~80MHz) for

improved jitter, reduced EMI or higher capacitive output load

• High Performance MEMS Technology by SiTime

• Ethernet, SATA, SAS, PCI Express

• WiFi

• Video

• Computing

• Storage

• Networking

• Telecom

• Industrial control

• Harsh environment (vibration, shock-prone and humid)

APPLICATIONS:

STANDARD SPECIFICATIONS:

All electrical specifications in this table are specified with 15pF output load and for all V

options unless otherwise stated.

Parameters

Output Frequency Range (F)

Frequency Stability (F

stab

)

Min

-10

-20

-25

-50

-20

-40

-1.5

-5

1.71

2.25

2.52

2.97

Typ

Max

220

+10

+20

+25

+50

+70

+85

+1.5

1.89

2.75

3.08

3.63

Unit

MHz

ppm

Notes

Inclusive of initial tolerance at 25°C,

and variations over operating

temperature, rated power supply

voltage and load (15pF±10%)

Option “E”

Option “L”

Operating Temperature Range (T

use

)

Aging@25°C

year

10 years

°C

ppm

Supply Voltage (V

)

1.8

2.5

2.8

3.3

Option “18”

Option “25”

Option “28”

Option “33”

No load, F=20MHz, V

=2.5V, 2.8V,

3.3V

No load, F=20MHz, V

=1.8V

No load, F=100MHz, V

=2.5V, 2.8V,

3.3V

No load, F=100MHz, V

=1.8V

=2.5V, 2.8V, 3.3V, OE=GND, output

is weakly pulled down

=1.8V, OE=GND, output is weakly

pulled down

=2.5V, 2.8V, 3.3V, ST =GND, output

is weakly pulled down

=1.8V, ST=GND, output is weakly

pulled down

Measured from the time V

reaches its

rated minimum value

F=80MHz. For other frequencies,

=100ns+3*cycles

F=220MHz. For other frequencies,

=100ns+3*cycles

In standby mode. Measured from the

time ST pin crosses 50% threshold

Current Consumption ( I

)

OE Disable Current (I

)

Standby Current (I

std

)

Startup Time (T

start

)

OE Enable/Disable Time (T

)

Resume Time ( T

resume

)

ABRACON IS

ISO9001:2008

CE RTIFIED

µA

150

115

LLC

2 Faraday, Suite# B

Irvine

CA 92618

Revised: 07.22.15

Ph. 949.546.8000

Fax. 949.546.8001

Visit

www.abracon.com

for Terms and Conditions of Sale
