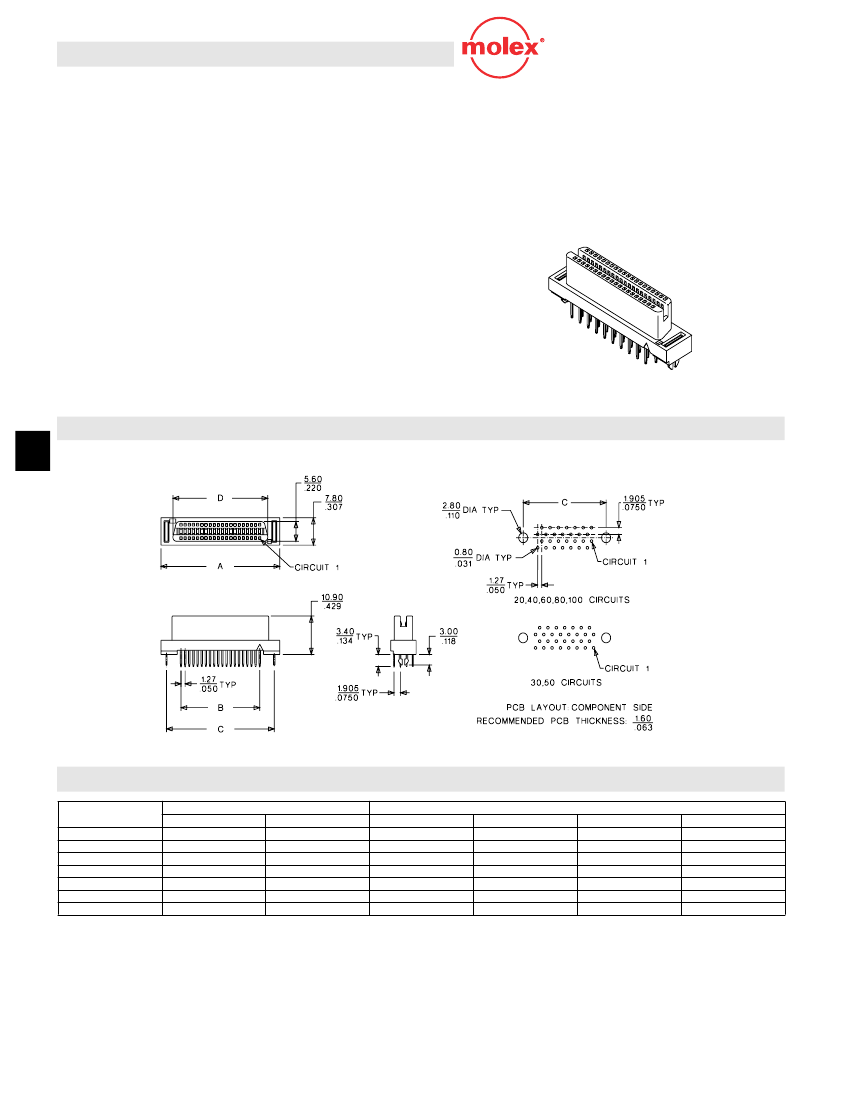

FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 20 to 100 circuits
s
Bellows-style terminal provides low insertion force and
reliable contact
s
Molded-in slot allows plug to be twisted in and out
s
Optional metal peg provides secure retention during
wave soldering
Reference Information
Packaging: Tray
Mates With: 52411, 52340, 52327 and 52412
(does not mate with EBBI 50-D)
Designed In: Millimeters
Electrical
Voltage: 125V
Current: 0.5A
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 500V AC/1 min.
Insulation Resistance: 1000 M
Ω
min.
Physical
Housing: Glass-filled polyester, UL 94V-0
Contact: Phosphor Bronze
Plating: Selective Gold flash over Nickel
Metal Peg: Phosphor Bronze
Temperature: -55 to +85
˚
C
1.27mm (.050") Pitch
D-50L
Receptacle
52326/52368
Dual Row
Vertical
I
Micro Connector
ORDERING INFORMATION AND DIMENSIONS
Circuits
20
30
40
50
60
80
100
Order No.
Metal Peg
52326-0201
52326-0301
52326-0401
52326-0501
52326-0601
52326-0801
52326-1001
Without Metal Peg
52368-0201
52368-0301
52368-0401
52368-0501
52368-0601
52368-0801
52368-1001
23.75
30.10
36.45
42.80
49.15
61.85
74.55
A
(.935)
(1.185)
(1.435)
(1.685)
(1.935)
(2.435)
(2.935)
11.43
17.78
24.13
30.48
36.83
49.53
62.23
B
(.450)
(.700)
(.950)
(1.200)
(1.450)
(1.950)
(2.450)
Dimension
20.32
26.67
33.02
39.37
45.72
58.42
71.12
C
(.800)
(1.050)
(1.300)
(1.550)
(1.800)
(2.300)
(2.800)
16.40
22.75
29.10
35.45
41.80
54.50
67.20
D
(.646)
(.896)
(1.146)
(1.396)
(1.646)
(2.146)
(2.646)
I-64
990

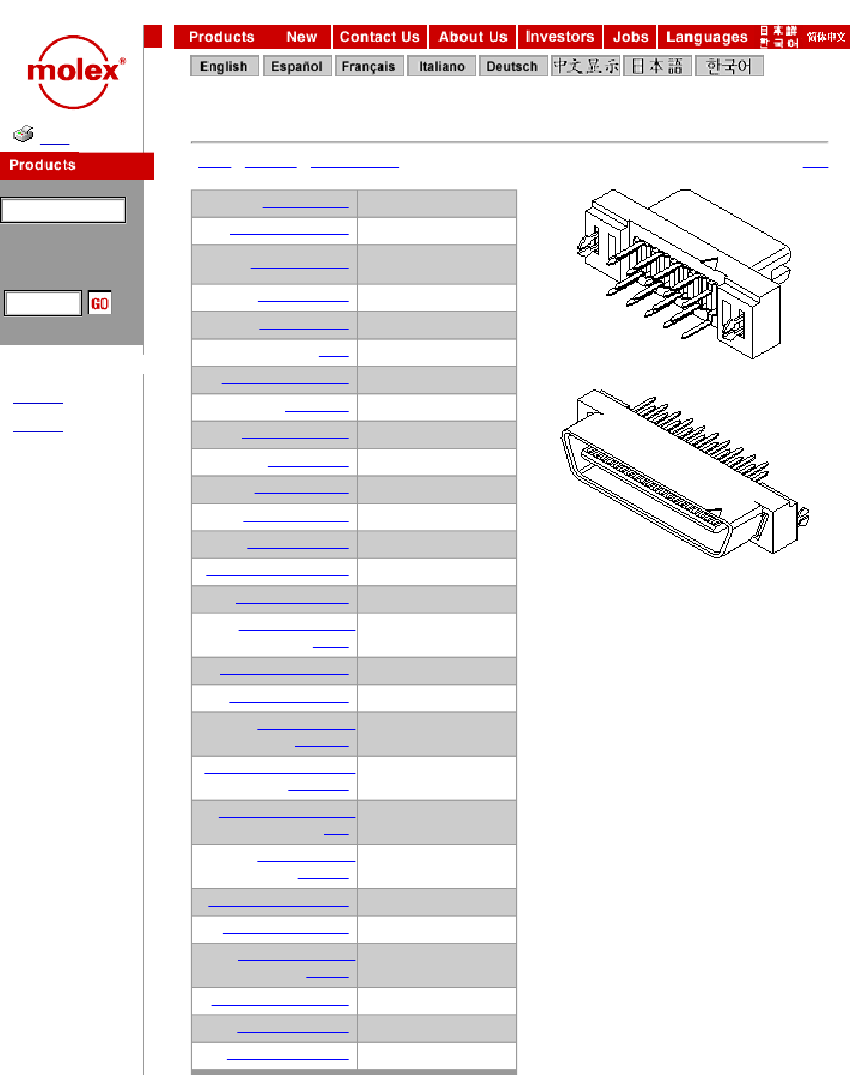

Molex Welcome Connectors Interconnects electrical,electronic, fiber optic...IA, Cable, SIMM, DIMM, PLCC, I/O, Input/output, Microminature, industrial
Datasheet
Board-to-Board
1.27mm (.050") D-50L Dual Row, Vertical: Receptacle - Header
52326:52340
Print
[
Home
>
Products
>
Board-to-Board
> Datasheet ]
Help
Search By:
- Select -
PCB Orientation
Pitch / Center Spacing
Parallel
1.27mm (.050")
20, 30, 40, 50, 60, 70, 80,
100
14.90mm (.587")
7.80mm (.307")
2
Female Receptacle 52326
Polarized to Mating Part
Yes
Millimeters
-55°C to +85°C
Gold (Au)
*
0.5A
125V
20 milliohms max.
500V
1000 Megohms min.
Vertical
Through Hole
1.60mm (.063")
q
q
Enter Molex Part No.
Circuits / Positions
Mated Height (H)
Mated Width (W)
More Information
-
52326
-
52340
Rows
Designed In
Temperature Range
Plating Contact
Durability (cycles)
Current-max [amps]
Voltage-max [volts]
Contact Resistance [ohms]
Withstanding Voltage
Insulation Resistance
[ohms]
Receptacle - Orientation
Receptacle - Mounting
Receptacle - PCB
Thickness
Receptacle - Surface Mount
Compatible
Receptacle - Polarized to
PCB
Receptacle - PCB
Retention
Receptacle - Stagger Tails
Receptacle - Packaging
Receptacle - Housing
Material
Receptacle - Flammability
Receptacle - Contact
Receptacle - Comment
Male Header 52340
Features and Benefits
Sizes 20 to 100 circuits
Offered with and without nail
Leaf-style contact
DIP-type mounting
q
q
No
Yes
Nail
Yes
Tray
Polyester Glass-filled
UL 94V-0
Phosphor Bronze
In-Line Mating term.
Molex Welcome Connectors Interconnects electrical,electronic, fiber optic...IA, Cable, SIMM, DIMM, PLCC, I/O, Input/output, Microminature, industrial
Header - Orientation
Header - Mounting
Header - PCB Thickness
Header - Surface Mount
Compatible
Header - Polarized to PCB
Header - PCB Retention
Header - Stagger Tails
Shrouded
Breakaway
Pin Header
Header - Packaging
Header - Housing Material
Header - Flammability
Header - Contact
Header - Comment
Product Name
Vertical
Through Hole
1.60mm (.063")
No
Yes
*
Yes
Yes
No
No
Tray
Polyester, Glass-filled
UL 94V-0
Brass
In-Line Mating terminal
D-50L
