5962-8965501LA datasheet, PDF - EEWORLD Datasheet

5962-8965501LA: DescriptionIC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, 1.280 X 0.310 INCH, CERDIP-24, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size189KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

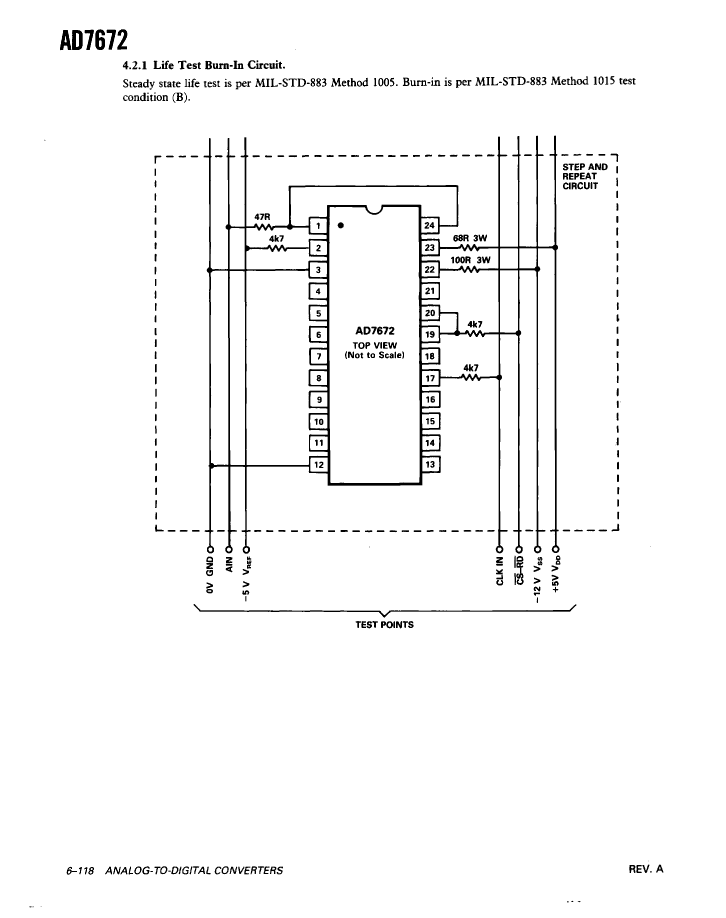

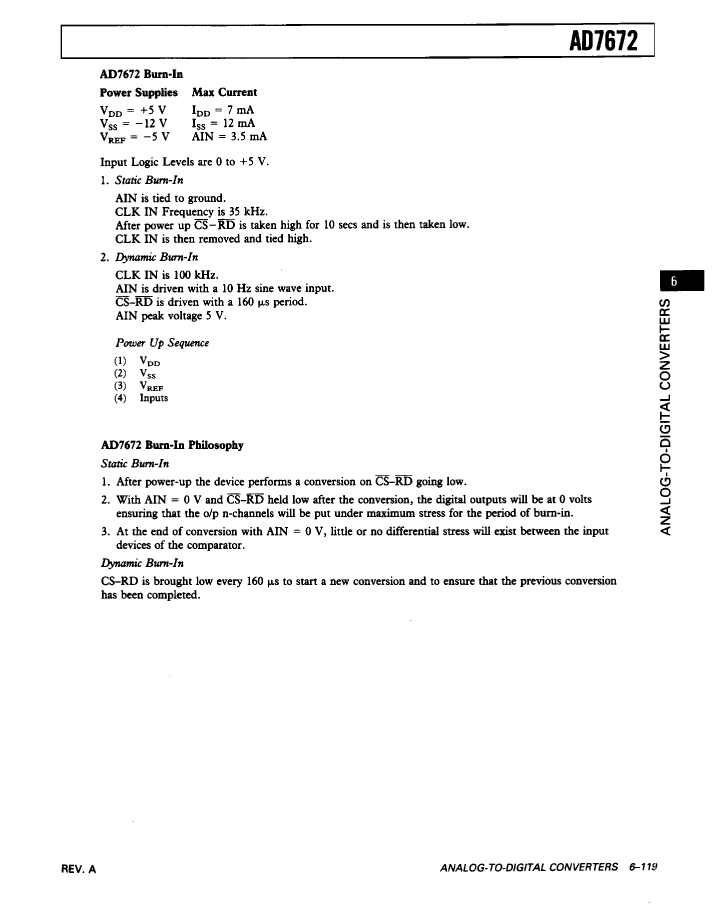

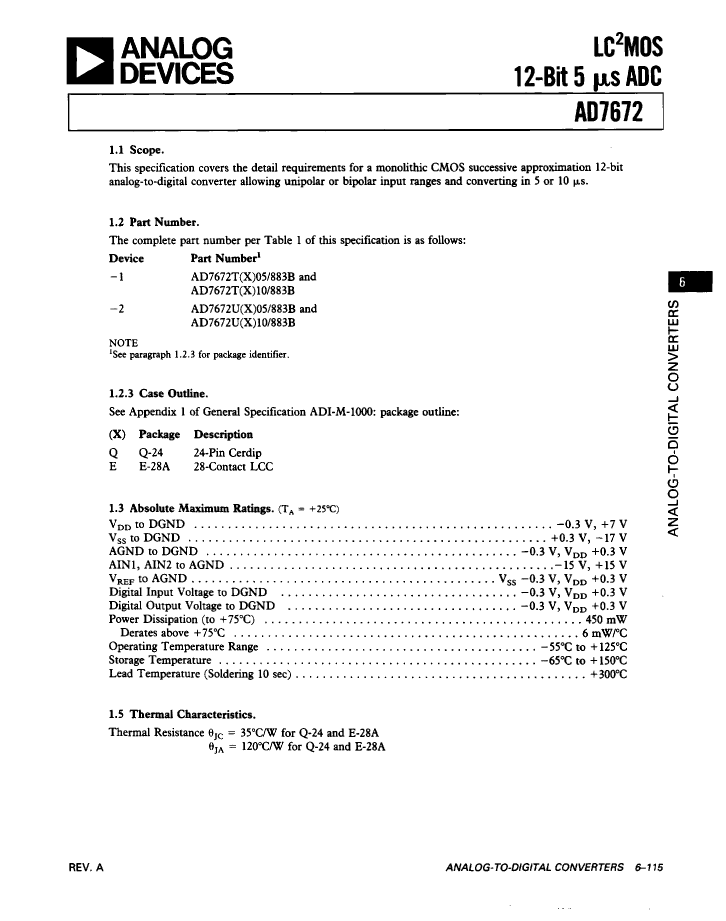

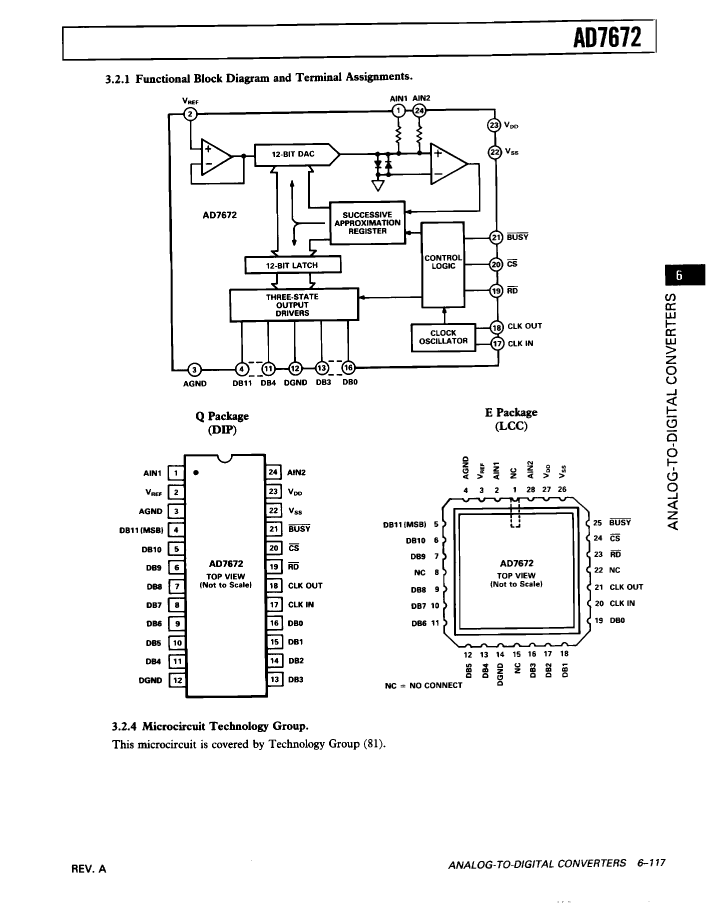

5962-8965501LA Overview

IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, 1.280 X 0.310 INCH, CERDIP-24, Analog to Digital Converter

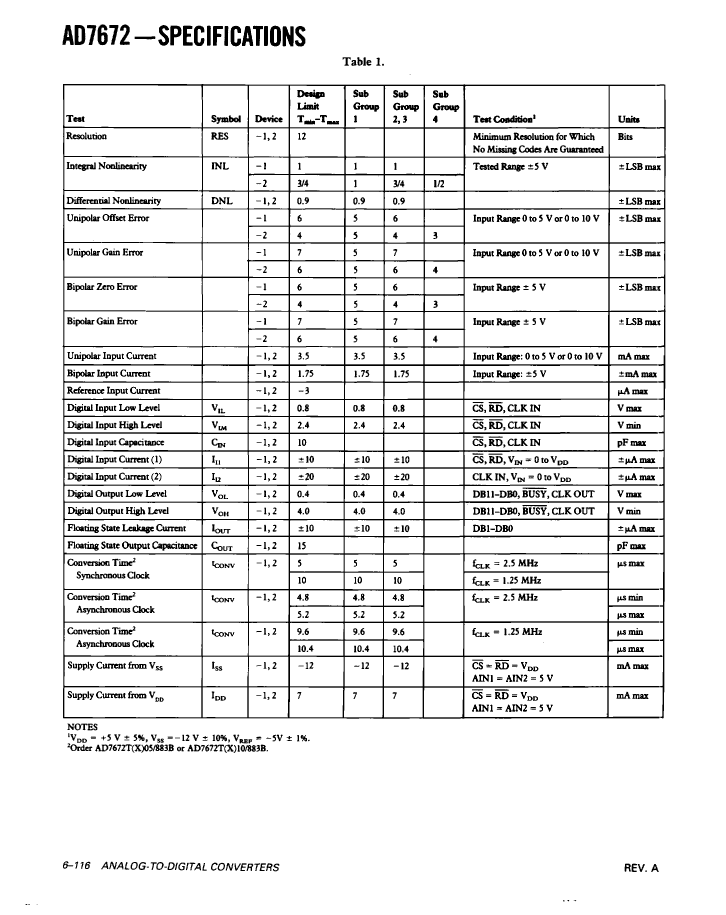

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	1.280 X 0.310 INCH, CERDIP-24
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum analog input voltage	5 V
Minimum analog input voltage	-5 V
Maximum conversion time	10.4 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.0244%
Nominal negative supply voltage	-12 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-12 V
Certification status	Not Qualified
Sample and hold/Track and hold	SAMPLE
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum slew rate	12 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
