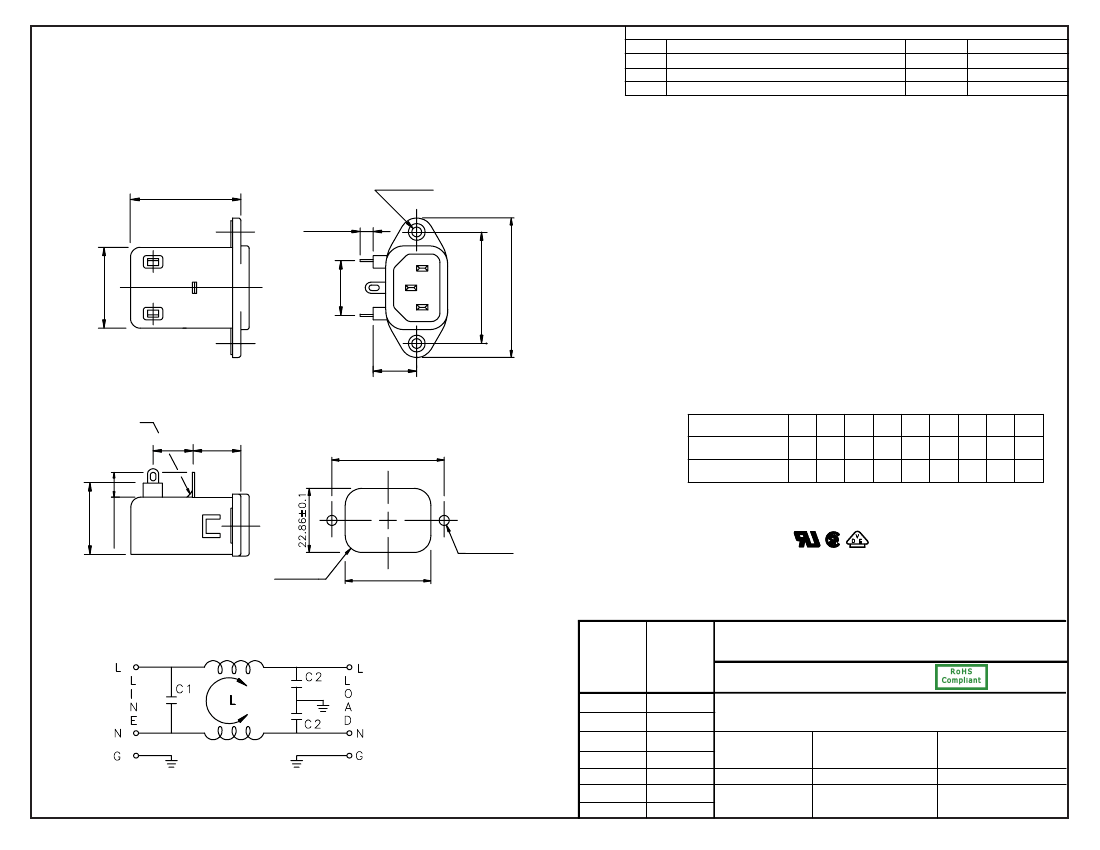

1. PHYSICAL DIMENSIONS:
38.0MAX
5.5 ± 0.5
Ø3.3 ± 0.3
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115 VAC..........................................10 A RMS MAX
B. @ 250 VAC.........................................10 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1740 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
/
/
.10
/
/
.15
4
2
.50
10
5
1.0
15
10
5.0
30
25
10
38
35
30
45
40
1-3.
20.50 ± 0.3
40.0 ± 0.5
31.0MAX
50.5MAX
1-4.
1-5.
15.0 ± 0.7
SOLDER
14.0 ± 0.5 16.95 ± 0.5
1-6.
FREQ. MHz
40.0 ± 0.1
COM. MODE dB
DIF. MODE dB
25.9MAX
8.6 ± 0.5
1-7.
1-8.
OPERATING TEMPERATURE.................-25° TO +85° C
SAFETY:
RoHS COMPLIANT
Ø3.6 ± 0.2
R6.0(4X)
2. SCHEMATIC:
30.5 ± 0.1
PANEL CUTOUT
Dim
range
1-9.
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
L: 0.18mH
C1: 0.033uF
C2: 2200pF
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
PPC DIVISION
857-10/049
EMI FILTER
UNIT: mm
REV. B
Approved / Date
JJH / 12-10-02
Drawn / Date
B.ZHANG
12-10-02
Checked / Date
12-10-02
