AF0402AQ2700A-T10: DescriptionFixed Resistor, Thin Film, 0.0625W, 270ohm, 50V, 0.05% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP; CategoryPassive components The resistor; File Size200KB，3 Pages; ManufacturerThin Film Technology Corp (TFT); Environmental Compliance

Download Datasheet Parametric View All

AF0402AQ2700A-T10 Overview

Fixed Resistor, Thin Film, 0.0625W, 270ohm, 50V, 0.05% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP

AF0402AQ2700A-T10 Parametric

Parameter Name	Attribute value
Guideline	AEC-Q200
Is it Rohs certified?	Yes
YTEOL	9.2
Objectid	145048488036
Country Of Origin	Mainland China
ECCN code	EAR99
Is Samacsys	N
package instruction	CHIP
Reach Compliance Code	Compliant
Rated temperature	85 °C
surface mount	YES
Operating Voltage	50 V
Other features	ANTI-SULFUR
Terminal shape	WRAPAROUND
structure	Rectangular
Number of terminals	2
method of packing	TR
Terminal surface	MATTE TIN OVER NICKEL
resistance	270 Ω
Installation features	SURFACE MOUNT
Package form	SMT
Rated power dissipation(P)	0.0625 W
Resistor type	FIXED RESISTOR
size code	0402
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Tolerance	0.05%
Minimum operating temperature	-55 °C
Maximum operating temperature	155 °C
Package height	0.305 mm
Package length	0.991 mm
Package width	0.508 mm

AF0402AQ2700A-T10 Preview

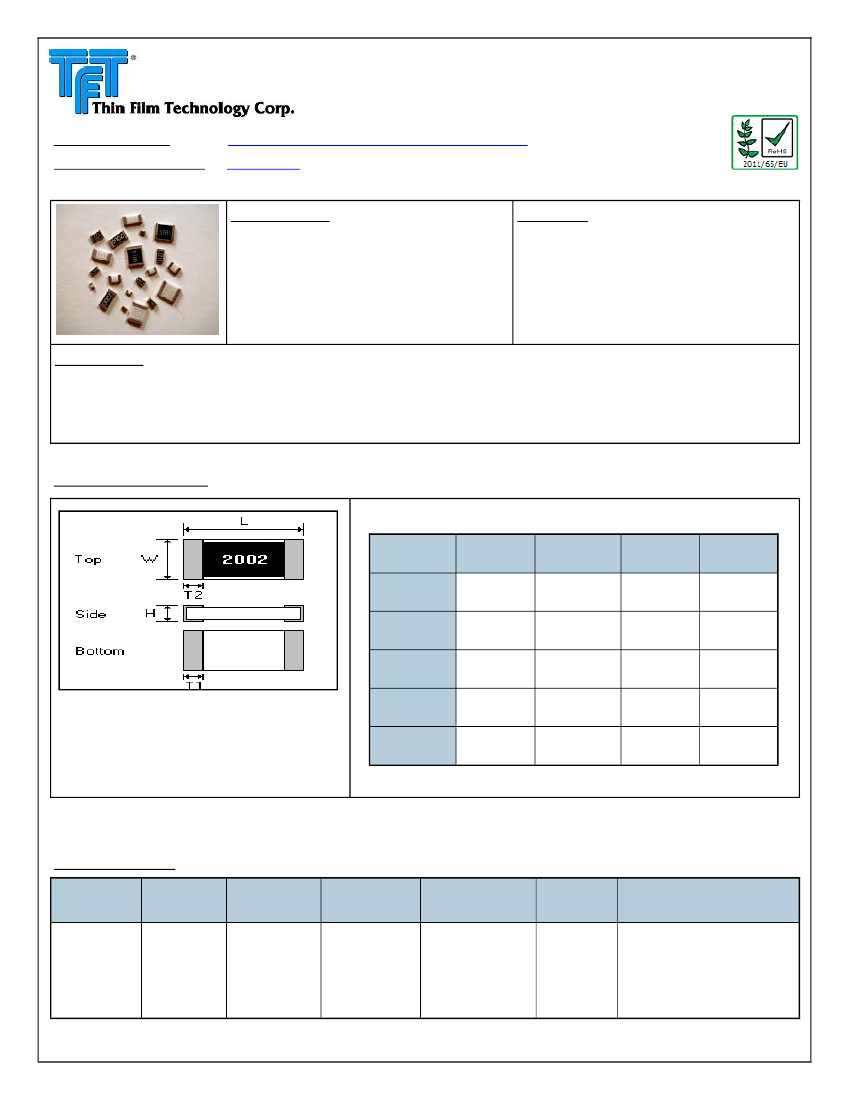

CR02M557-02 Rev. A - Page 1 of 3

Product Family:

Part Number Series:

Tantalum Nitride Thin Film Chip Resistor

AF Series

Construction:



High Purity Alumina Substrate

TaN resistive element

Anti-Sulfur (ASTM B09-95)

Wrap around electrodes

100% matte tin over Ni terminations

(RoHS compliant and Pb Free)

Features:



0402, 0603, 0805, 1206; E24 + E 96

values

TCR’s down to ±10ppm/°C

Resistance down to 10Ω available

AEC Q200 Qualified—Automotive Grade

Description:

These AF Series precision chip resistors are AEC Q200 qualified, sulfur resistant, offer excellent performance and

tolerance in TCR, current noise, and linearity for high frequency circuit applications and other applications requiring

precision and stability. They are perfect for demanding applications where high reliability and sulfur resistance is a must,

such as automotive applications. High volume manufacturing allows for lower costs for the customer.

Product Dimensions:

Dimension

No marking code for 0402 size

3– digit marking for 0603 size

4– digit marking for 0805 & 1206 size

TF0402

(1005)

0.039

±0.004

0.020

±0.002

0.012

±0.004

0.012

±0.004

0.010

±0.006

TF0603

(1608)

0.061

±0.004

0.031

±0.004

0.018

±0.006

0.012

±0.006

0.012

±0.008

TF0805

(2012)

0.079

±0.004

0.049

±0.004

0.020

±0.006

0.016

±0.008

0.014

±0.008

TF1206

(3216)

0.122

±0.004

0.063

±0.004

0.024

±0.006

0.018

±0.008

0.018

±0.008



All dimensions are shown in inches, Metric case sizes are shown in parenthesis.

Part Numbering:

Ex:AF0603AE2002B-T5

Product

Designator

Size W x L

English

0402

0603

0805

1206

Internal

Code

Temp. Coefficient

of Resistance

(TCR)

Resistance

Value

For all sizes, use 4

digit code for all

values. “R” denotes

decimal position as

necessary

Resistance

Tolerance

A = ±0.05%

B = ±0.10%

C = ±0.25%

D = ±0.50%

F = ±1.00%

T&R Packaging Quantity

Y = ±10ppm/°C

X = ±15ppm/°C

E = ±25ppm/°C

Q = ±50ppm/°C

-T5 = 5,000 PCS

(0603, 0805, 1206)

-T10 = 10,000 PCS

(0402)

Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 / www.thin-film.com

CR02M557-02 Rev. A - Page 2 of 3

Electrical Specifications:

Type

English Size

Power

Tolerance% (code)

Resistance Range (Ω)

Resistance Offering

TCR ppm/°C (code)

Max Operating Voltage

Operating Temp. Range

Packaging

10,000 pcs/reel

50 V

40~35K

AF0402

0402

0.0625 Watt

AF0603

0603

0.15 Watt

40~130K

AF0805

0805

0.2 Watt

10~350K

E-24, E-96 Values

±10 (Y), ±15 (X), ±25 (E), ±50 (Q)

AF1206

1206

0.4 Watt

10~1M

±0.05(A) , ±0.1(B) , ±0.25 (C) , ±0.5(D) , ±1 (F)

75 V

-55°C ~ 155°C

100 V

5,000 pcs/reel

200 V

Reliability Specifications:

Test

Short time overload

(S.T.O.L)

IEC60115-1 4.13

Resistance to soldering heat

(R.S.H)

AEC Q200-15

Solderability

IEC 60068-2-58

Thermal Shock

MIL-STD-202 Method 107

Bias Humidity

AEC Q200-7

Load Life

IEC60115-1 4.25

Operational Life

AEC Q200-8

MIL-STD-202 -108

High Temperature

Exposure

AEC Q200-3

Moisture Resistance

AEC-Q200 -6

MIL-STD-202 Method 106

Mechanical Shock

MIL-STD-202 Method 213

Vibration

MIL-STD-202 Method 204

Terminal strength

AEC-Q200-6

Board flex

AEC-Q200-21

Bending 2mm for 60 sec

Δ R/R max. ±(0.1%+0.02Ω)

5 g's for 20 min , 12 cycles each of 3 orientations

1 kg for 60 s

65±2°C, 80~100% RH, 10 cycles, 24 hours/ cycle

Δ R/R max. ±(0.1%+0.02Ω)

Un-mounted chips completely immersed for 10±1second in a SAC solder bath at no visible damage

260

5ºC

Δ R/R max. ±(0.1%+0.02Ω)

Un-mounted chips completely immersed for 2±0.5 second in a SAC solder bath good tinning (>95% covered)

at 235°C±5°C

no visible damage

Test –55°C to 125

1000 cycles

dwell time 15min/ Max transfer time 20sec

no visible damage

Δ R/R max. ±(0.1%+0.02Ω)

Test Method

Specification

Permanent resistance change after a 5second application of a voltage 2.5 times Δ R/R max. ±(0.1%+0.02Ω)

RCWV or the maximum overload voltage specified in the above list, whichever is

less.

1000 +48/-0 hours, loaded with 10% rated power in humidity chamber controller at Δ R/R max. ±(0.1%+0.02Ω)

+85

85%RH

1000 +48/-0 hours, loaded with RCWV or Vmax in chamber controller 85 ±2ºC,

1.5 hours on and 0.5 hours off

1,000 hours at 125±2°C, loaded with rated power continuously

Δ R/R max. ±(0.1%+0.02Ω)

1000 hrs @ 125

un-powered

1/2 Sine Pulse / 1500g Peak / Velocity 15.4ft/sec

Δ R/R max. ±(0.1%+0.02Ω)

No broken

Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 / www.thin-film.com

CR02M557-02 Rev. A - Page 3 of 3

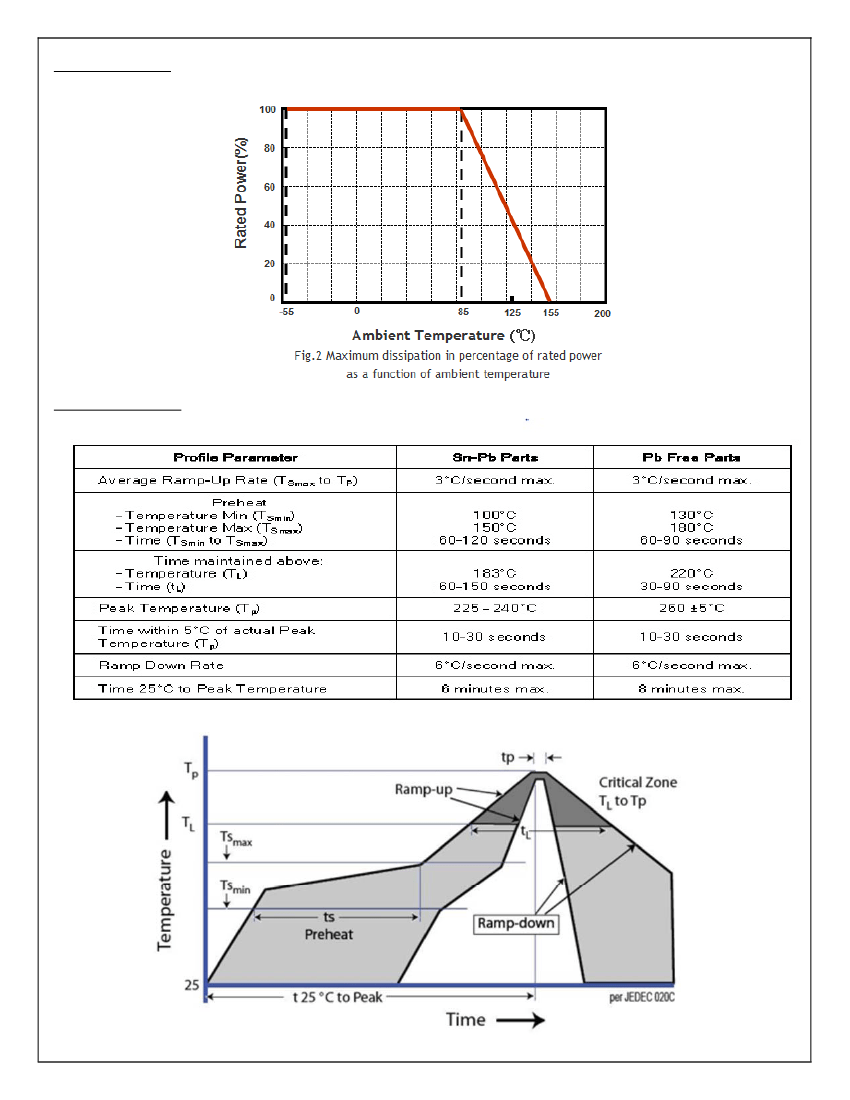

Derating Curve:

Soldering Profile:

Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 / www.thin-film.com
