57815350 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 57815350

57815350: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size295KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

57815350 Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle

57815350 Parametric

Parameter Name	Attribute value
PCB contact pattern	RECTANGULAR
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Mixed contacts	NO
Installation option 1	LOCKING
Number of connectors	ONE
Contact completed and terminated	TIN
Contact material	BRASS
Plug contact pitch	0.098 inch
Termination type	SOLDER
Dielectric withstand voltage	800VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Minimum operating temperature	-25 °C
Maximum operating temperature	85 °C
Guideline	UL
Is Samacsys	N
Objectid	304374158
Reach Compliance Code	Compliant
ECCN code	EAR99
body width	0.197 inch
subject depth	0.335 inch
body length	1.575 inch
Terminal length	0.134 inch
insulator material	POLYETHYLENE
Installation type	BOARD
Number of rows loaded	1
Rated current (signal)	1 A
Total number of contacts	15
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
PCB row number	1
Terminal pitch	2.4892 mm
Contact to complete cooperation	SN
Contact resistance	10 mΩ
Installation method	STRAIGHT

Preview

Download Datasheet

View All

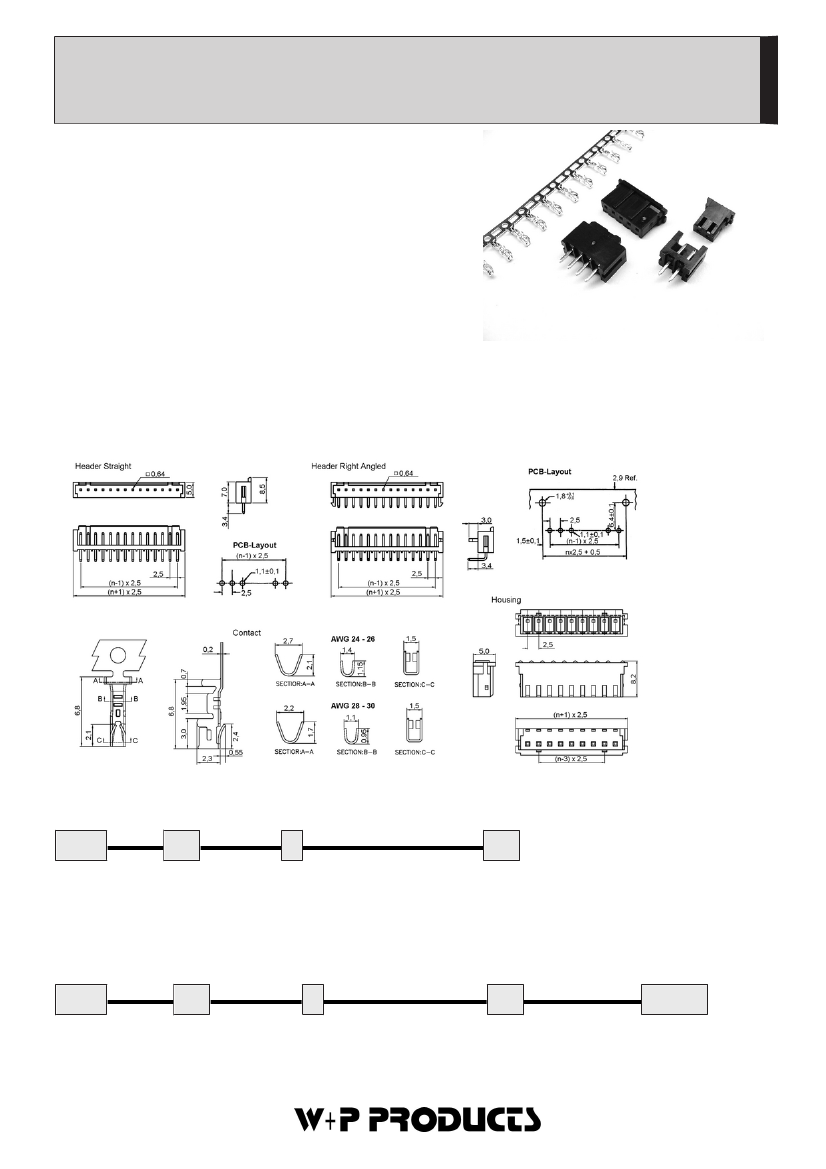

578

Stift-/Buchsenleisten - Crimp-Rast-System - RM 2,5mm

Header and Crimp-Housing - Pitch 2,5mm

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Messing

Contact Material

Brass

Aderquerschnitt

AWG 24 ... 30

Applicable wire Gauge

AWG 24 ... 30

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 10mΩ

Contact Resistance

< 10mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

800V

Test Voltage

800V

Nennspannung

250V

AC/DC

max.

Voltage Rating

250V

AC/DC

max.

Nennstrom

Current Rating

Temperaturbereich

-25°C ... +85°C

Temperature Range

-25°C ... +85°C

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Series

Contacts

Type

Plating

578

02-20

Buchsengehäuse

Housing

Stiftleiste gerade

Straight pin header

Stiftleiste gewinkelt

Right angled pin header

Verzinnt (für Gehäuse nicht erforderlich)

Tin plated (not necessary for housings)

Series

Contacts

Type

Plating

Wire Gauge

578

Buchsenkontakte

Crimp contacts

Verzinnt

Tin plated

2426

AWG 24-26

2830

AWG 28-30

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
