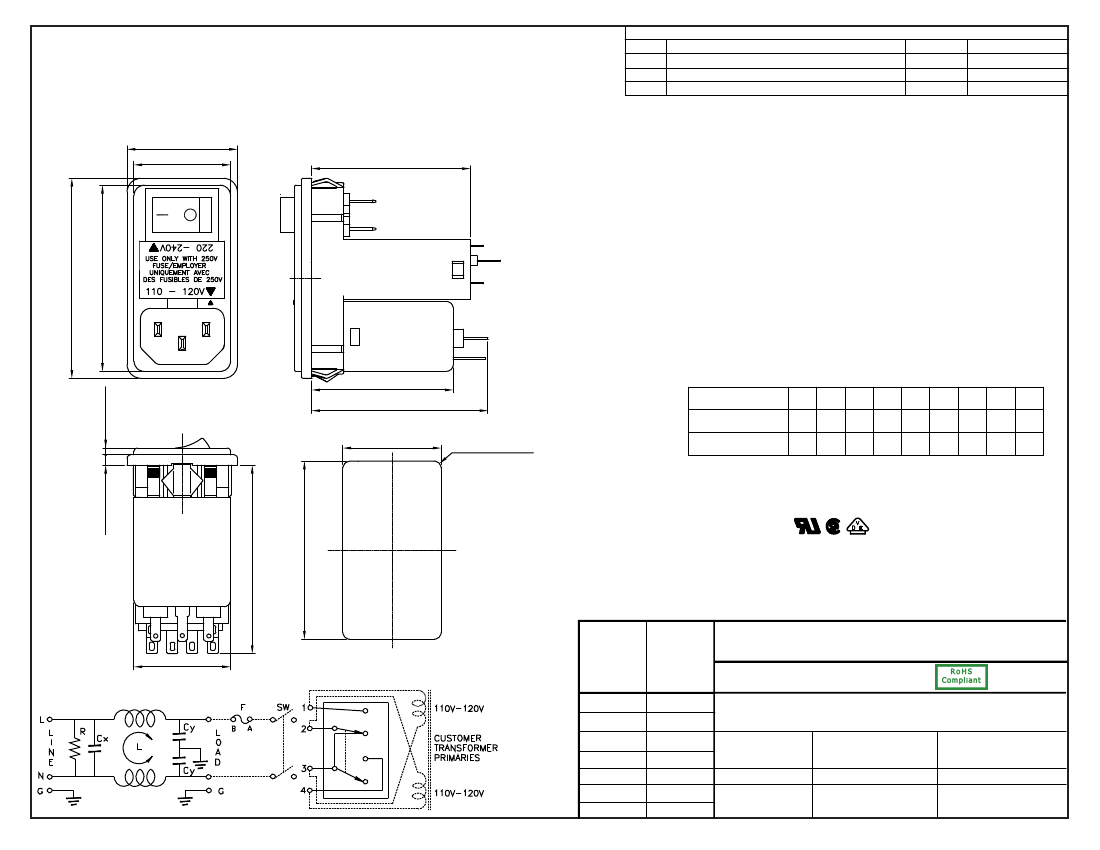

1. PHYSICAL DIMENSIONS
32.0 ± 0.5
28.0 ± 0.5
REVISION
REV.
B
C
DESCRIPTION
RoHS Compliancy
Updated Temp Rating, Insertion Loss, and Notes
DATE
06-01-06
07-28-16
APPROVED
DP
LY
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
46.0 ± 0.5
1-2.
CURRENT RATING
A. @ 115 VAC..........................................6 A RMS MAX
B. @ 250 VAC.........................................6 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
6
1
.10
10
2
.15
12
4
.50
18
10
1.0
24
15
5.0
35
35
10
40
40
30
40
40
1-3.
58.0 ± 0.5
54.0 ± 0.5
1-4.
1-5.
1-6.
2.0 ± 0.3
41.0 ± 0.5
51.3 ± 1.0
28.5 ±
0.2
0
FREQ. MHz
COM. MODE dB
R2.0MAX (4X)
DIF. MODE dB
3.0 ± 0.3
55.0 ± 1.0
L ±
0.2
0
L ACCORDING TO PANEL THICKNESS
0.8~2.0mm L=55.9
2.1~3.2mm L=56.2
1-7.
OPERATING TEMPERATURE.................-25° TO +100° C
(DERATING ABOVE 40˚C)
SAFETY:
FUSE SIZE: 5x20mm (FUSES NOT INCLUDED)
RoHS COMPLIANT
1-8.
1-9.
1-10.
27.9 ± 0.5
2. ELECTRICAL SCHEMATIC
PANEL CUTOUT
(MOUNTING FROM FRONT)
Dim
range
(mm)
0-1
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
PPC DIVISION
882-06/013
EMI FILTER
UNIT: mm
REV. C
Approved / Date
JJH / 10-31-02
Part Number:
Description:
L:
Cx:
Cy:
R:
1.05mH
0.1uF
2200pF
1.0MΩ
1-6
6-18
18-50
50-120
120-250
250-500
Drawn / Date
B.ZHANG
10-31-02
Checked / Date
10-31-02
