5HTP160-R: DescriptionElectric Fuse, Time Lag Blow, 0.16A, 250VAC, 1500A (IR), Through Hole, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size97KB，2 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

5HTP160-R Overview

Electric Fuse, Time Lag Blow, 0.16A, 250VAC, 1500A (IR), Through Hole, ROHS COMPLIANT

5HTP160-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bel Fuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	21 mm
Body length or diameter	5.5 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK
physical size	5.5mm x 21mm
Rated breaking capacity	1500 A
Rated current	0.16 A
Rated voltage (AC)	250 V
Guideline	CCC; CE; IRAM; PSE; SEMKO; UL; VDE
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

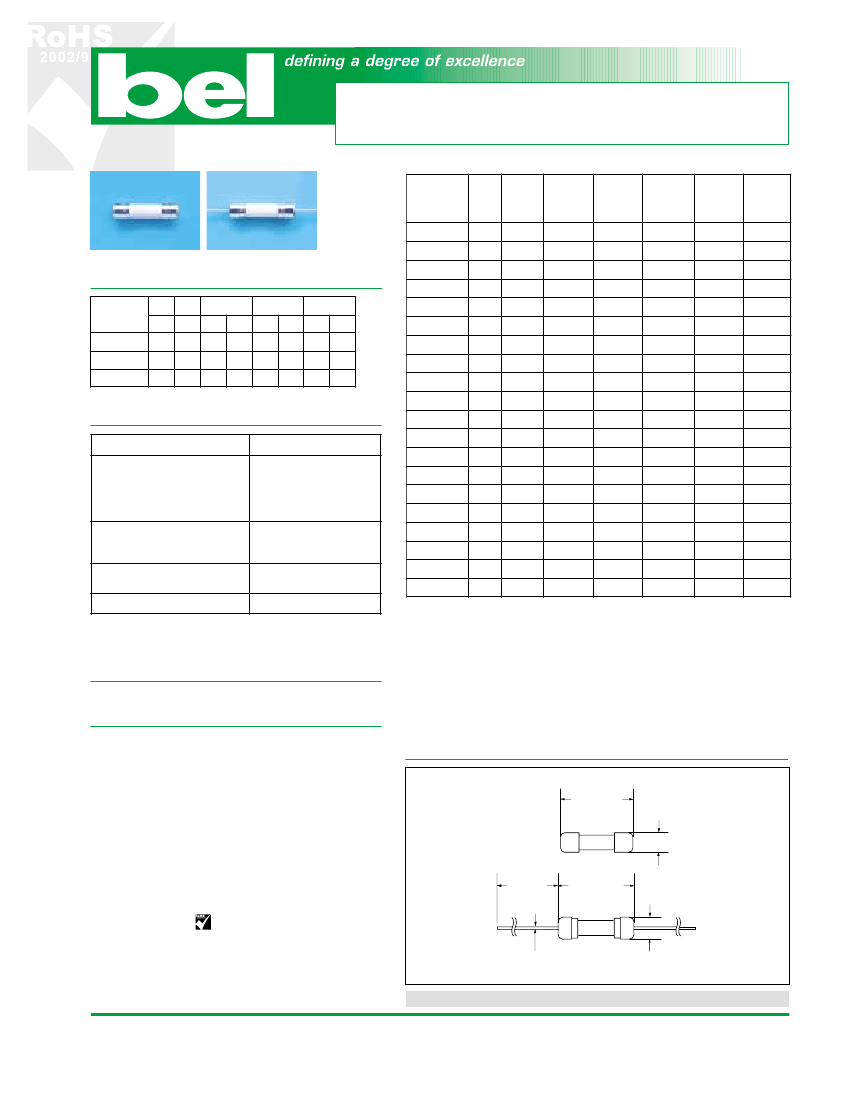

Type 5HT / 5HTP

5HTD1105

W5HTD0405-A21

5 x 20mm Ceramic Tube

RoHS Compliant

Time-lag Fuse Series (High - Breaking Capacity)

Catalog

Number

RoHS

Suffix

Ampere

Rating

Typical

Volt-drop Melting I

2

T Melting I

2

T Maximum

Cold

@100%

In

< 10 mSec @10

In

Power

Resistance

Dissipation

(ohm) (Volt) max. (A

2

Sec)

(A

2

Sec)

(W)

5HT (P) 100

5HT (P) 160

5HT (P) 200

5HT (P) 250

5HT (P) 315

5HT (P) 400

5HT (P) 500

5HT (P) 630

5HT (P) 800

5HT (P) 1

5HT (P) 1.25

5HT (P) 1.6

5HT (P) 2

5HT (P) 2.5

1A - 6.3A / 250V AC @ 1,500A

-R

100mA

160mA

200mA

250mA

315mA

400mA

500mA

630mA

800mA

1A

1.25A

1.6A

2A

2.5A

3.15A

4A

5A

6.3A

8A

10A

18.00

12.10

8.00

3.40

2.20

1.40

1.00

0.60

0.40

0.20

0.14

0.10

0.07

0.05

0.04

0.03

0.02

0.01

0.009

0.007

2.05

1.80

1.50

1.20

1.00

0.75

0.70

0.52

0.45

0.25

0.22

0.20

0.19

0.17

0.14

0.10

0.11

0.074

0.092

0.078

0.059

0.035

0.062

0.098

0.18

0.28

0.46

0.70

1.08

1.70

3.00

5.40

9.70

17

31

56

101

181

330

601

0.06

0.04

0.08

0.12

0.22

0.34

0.58

0.90

1.50

1.70

3.20

5.90

11

20

38

69

128

237

439

812

0.27

0.28

0.30

0.34

0.38

0.41

0.48

0.55

0.64

0.73

0.81

0.91

1.00

1.10

1.20

1.40

1.50

1.70

2.70

2.90

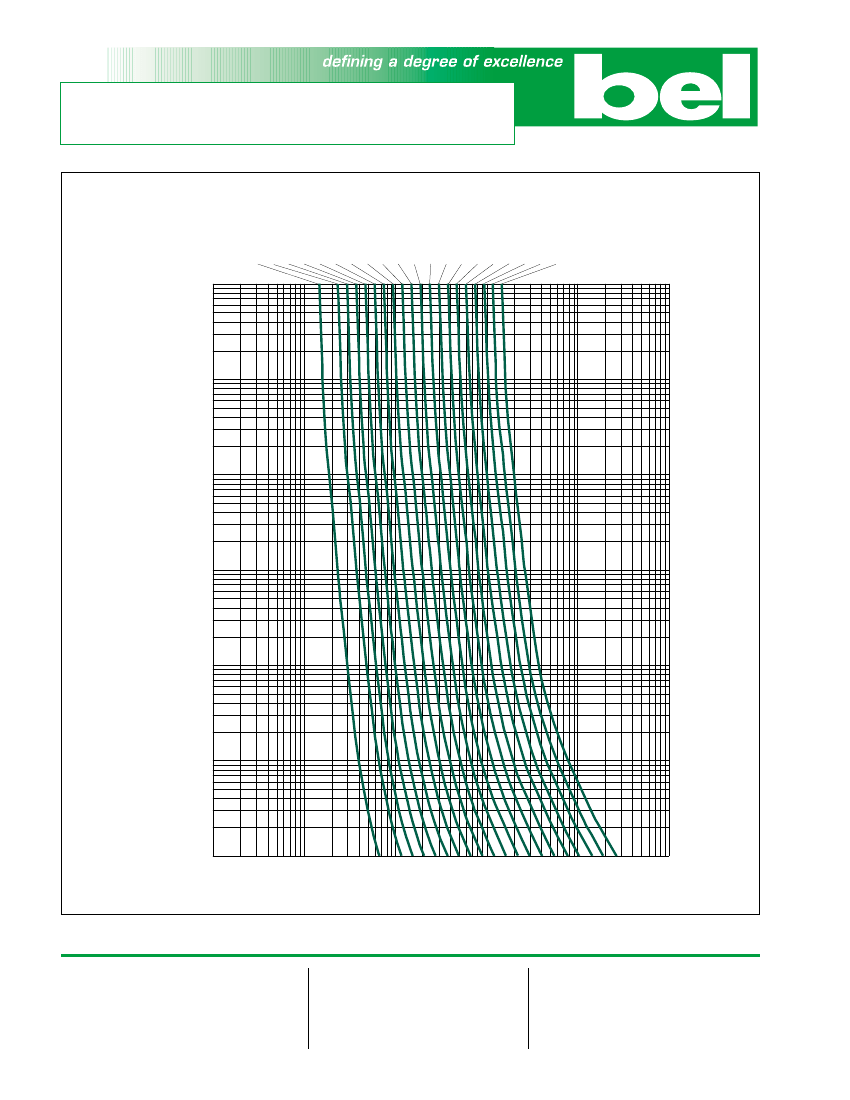

Electrical Characteristics

(IEC-127-2 STANDARD SHEET 5)

Rated Current

100mA to 3.15A

4A and above

1.5

In

2.1

In

MIN

MAX

2.75

In

MIN

MAX

4

In

MIN

MAX

10

In

MIN

MAX

1

hr.

30

min.

1

sec

80

sec

95

150

ms

5

sec

10

20

ms

100

ms

Approvals

sd

m

r

Spc

c

Safety Agency Approvals

Amp range / Volt @ I.R. ability

s

d

m

r

Certificate No. 408893

Licence No. 40000505

Certificate No. EM232

Recognized File No. E20624

250mA - 10A / 250V AC @ 1,500A

Acceptance File No. LR39772

File No. JET1037-31003-1004,

JET1037-31003-1005

Licence No. 2002010207021531

1A - 5A / 250V AC @ 1,500A

250mA - 10A / 250V AC @ 1,500A

5HT (P) 3.15

5HT (P) 4

5HT (P) 5

5HT (P) 6.3

5HT (P) 8

5HT (P) 10

S

p

c

Consult manufacturer for other ratings

RoHS Compliant Product

For RoHS Compliant Version, add suffix “R” after catalog number

Operating Temperature

-55ºC to +125ºC

Physical Specification

Materials

Ceramic body / Nickel Plated Brass Caps

Lead wire:

Tin plated copper alloy,

Diameter 0.032", 6.3A and less

Diameter 0.040", 8A and above

Marking

On fuse:

“bel”, “T”, “Current Rating”, “H”, “250V”,

“Appropriate Safety Logos”, “✔” (RoHS Version)

On label:

“bel”, “5HT”, or “5HTP”,“Current Rating”,

“Voltage Rating”, “Interrupting Rating”, “Approporiate

Safety Logos” and

+ suffix “R” for RoHS Version

Packaging

1. In bulk:

5HT

- 1,000 pcs per box;

5HTP

- 500 pcs per box

2. On Axial Tape & Reel:

1,500 pcs per reel

3. Tape & Reel specification:

per EIA-296-E & IEC 286-1@ 10mm Pitch and 63.5mm inside Tape Spacing

Mechanical Dimensions

1.5"

±

0.08"

(38.1

±

2mm)

0.827"

±

0.02"

(21.0

±

0.5mm)

0.217"

±

0.004"

(5.5

±

0.1mm)

5HTP

SEE LEAD SIZE LISTED IN “ MATERIAL”

ORDERING INFORMATION SEE LAST 2 PAGES

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 • Tel: 201-432-0463 • Fax: 201-432-9542 • E-Mail: belfuse@belfuse.com

Website: www.belfuse.com

47

Specifications subject to change without notice

5HT

0.787"

±

0.02"

(20

±

0.5mm)

0.20"

±

0.004"

(5.1

±

0.1mm)

5HTP160-R Related Products

	5HTP160-R	5HT160-R
Description	Electric Fuse, Time Lag Blow, 0.16A, 250VAC, 1500A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 0.16A, 250VAC, 1500A (IR), Inline/holder, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Bel Fuse	Bel Fuse
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Fusing characteristics	TIME LAG	TIME LAG
body height	21 mm	20 mm
Body length or diameter	5.5 mm	5.1 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE
JESD-609 code	e3	e3
Installation features	THROUGH HOLE	INLINE/HOLDER
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
method of packing	BULK	BULK
physical size	5.5mm x 21mm	5.1mm x 20mm
Rated breaking capacity	1500 A	1500 A
Rated current	0.16 A	0.16 A
Rated voltage (AC)	250 V	250 V
Guideline	CCC; CE; IRAM; PSE; SEMKO; UL; VDE	CCC; CE; IRAM; PSE; SEMKO; UL; VDE
surface mount	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	PIN WIRE	END CAP
Base Number Matches	1	1
