HD74BC16244ASS datasheet, PDF - EEWORLD Datasheet

HD74BC16244ASS: DescriptionBus Driver, BCT/FBT Series, 4-Func, 4-Bit, True Output, BICMOS, PDSO48, SSOP-48; Categorylogic logic; File Size136KB，5 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74BC16244ASS Overview

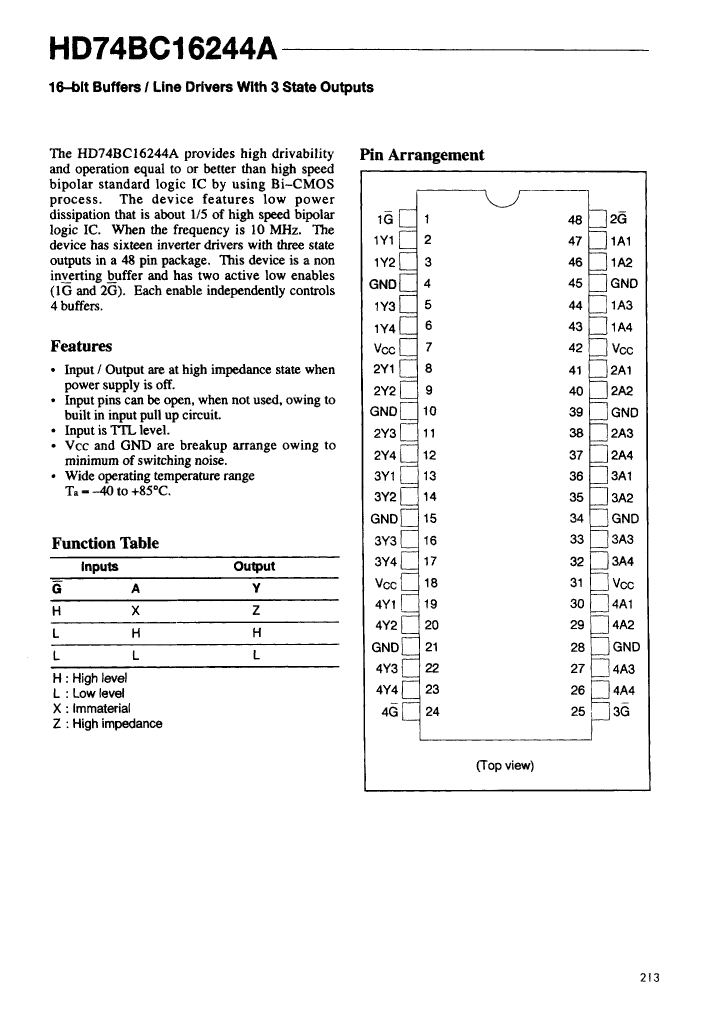

Bus Driver, BCT/FBT Series, 4-Func, 4-Bit, True Output, BICMOS, PDSO48, SSOP-48

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	48
Reach Compliance Code	unknown
series	BCT/FBT
JESD-30 code	R-PDSO-G48
length	15.85 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH

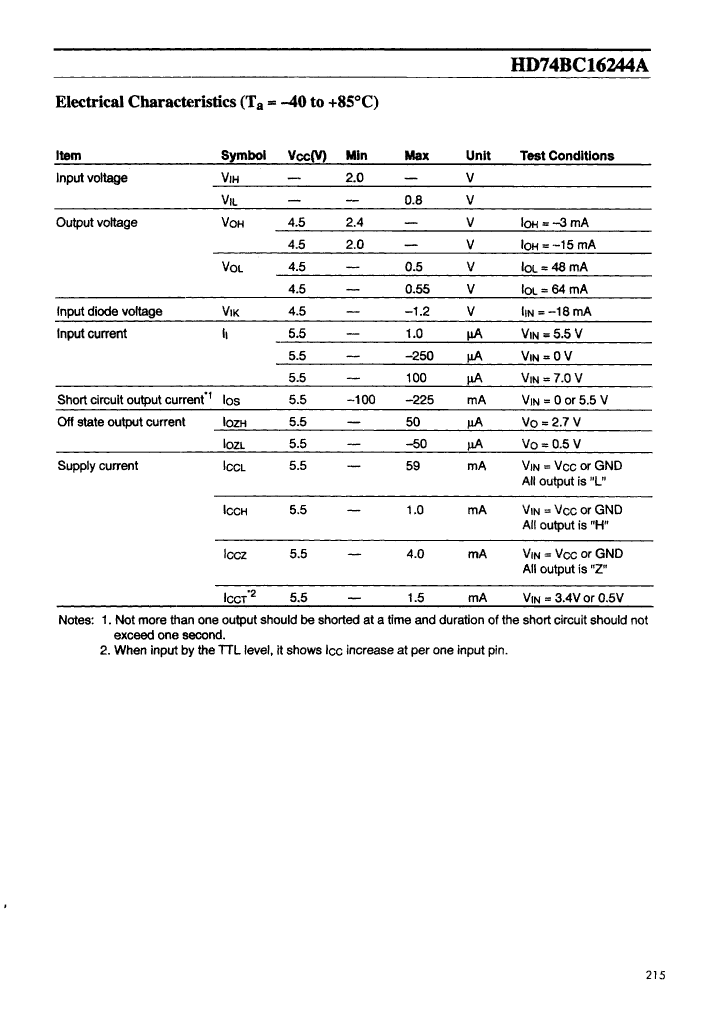

Maximum supply current (ICC)	59 mA

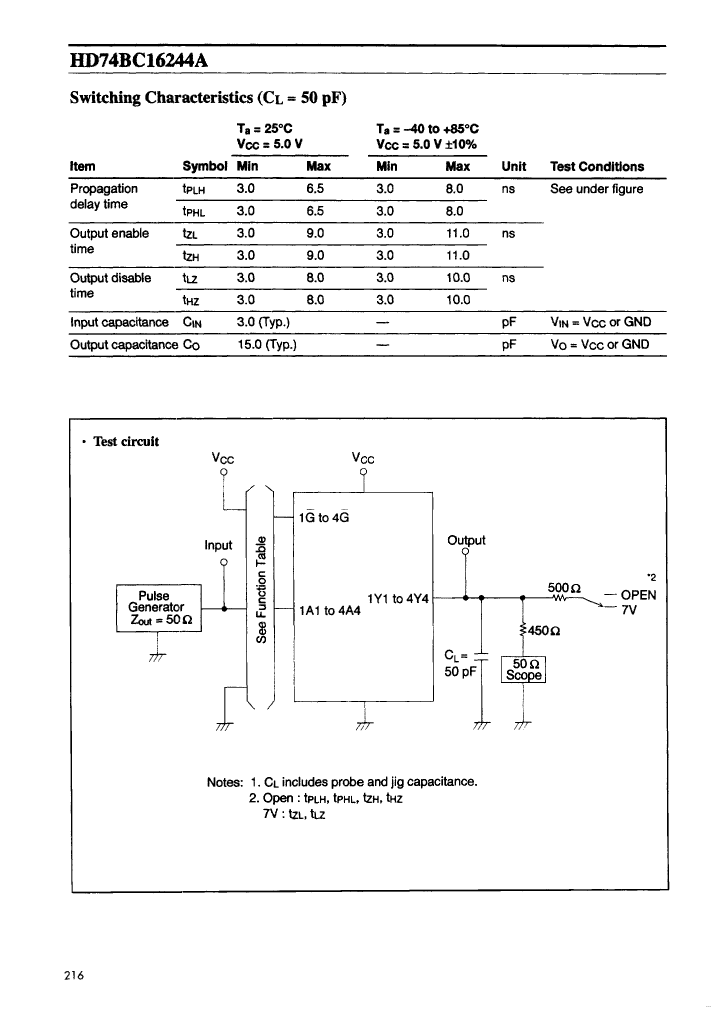

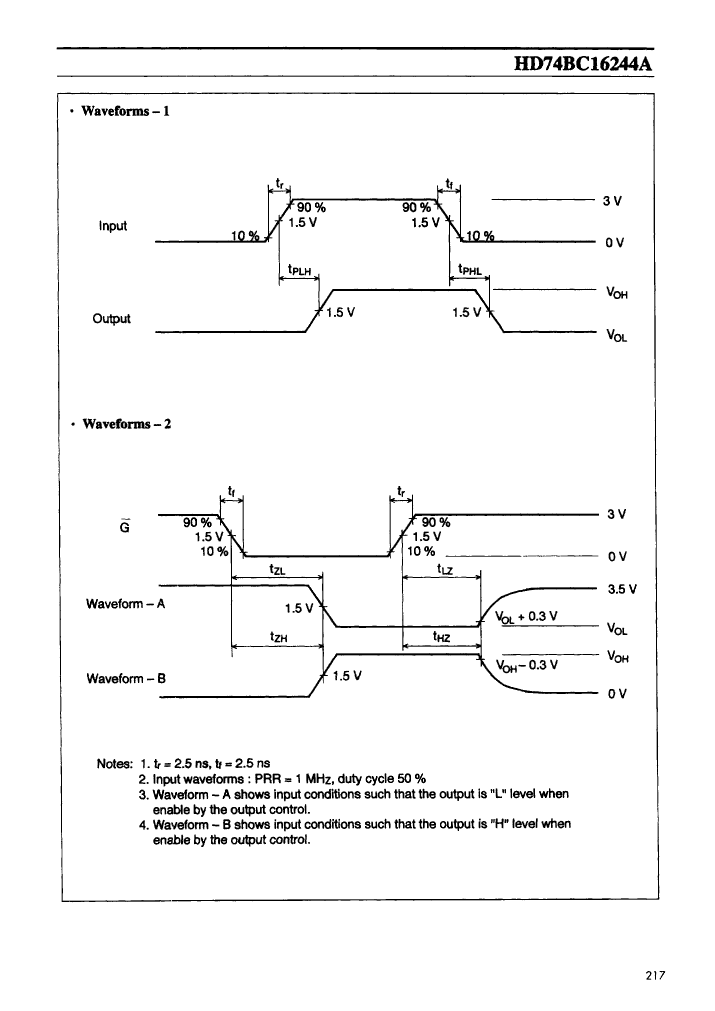

propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm

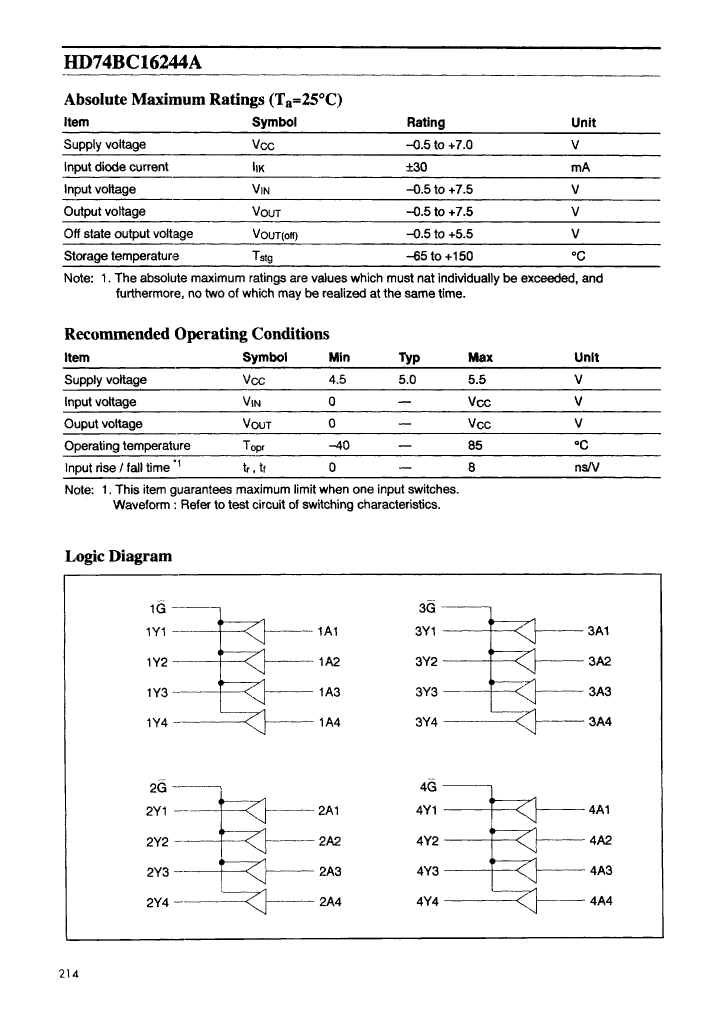

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

	HD74BC16244ASS	HD74BC16244AT
Description	Bus Driver, BCT/FBT Series, 4-Func, 4-Bit, True Output, BICMOS, PDSO48, SSOP-48	Bus Driver, BCT/FBT Series, 4-Func, 4-Bit, True Output, BICMOS, PDSO48, TSOP-48
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SSOP	TSOP
package instruction	SSOP,	TSSOP,
Contacts	48	48
Reach Compliance Code	unknown	unknown
series	BCT/FBT	BCT/FBT
JESD-30 code	R-PDSO-G48	R-PDSO-G48
length	15.85 mm	12.5 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	4	4
Number of functions	4	4
Number of ports	2	2
Number of terminals	48	48
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Maximum supply current (ICC)	59 mA	59 mA
propagation delay (tpd)	8 ns	8 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL
width	7.5 mm	6.1 mm
