1251R-12TR-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1251R-12TR-L

Preview

1251R-12TR-L: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

1251R-12TR-L Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle

1251R-12TR-L Parametric

Parameter Name	Attribute value
Terminal pitch	1.2446 mm
Total number of contacts	12
Contact to complete cooperation	SN
Contact resistance	20 mΩ
Installation method	RIGHT ANGLE
PCB row number	1
Rated current (signal)	1 A
Number of rows loaded	1
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
insulator material	POLYAMIDE
Installation type	BOARD
contact mode	RECTANGULAR
Mixed contacts	NO
Installation option 1	LOCKING
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Contact completed and terminated	TIN
Contact material	BRASS
Contact style	SQ PIN-SKT
Plug contact pitch	0.049 inch
Filter function	NO
Insulation resistance	100000000 Ω
Dielectric withstand voltage	500VAC V
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Guideline	UL
Objectid	304367873
Reach Compliance Code	Compliant
Country Of Origin	Germany
ECCN code	EAR99
Is Samacsys	N
body width	0.132 inch
subject depth	0.22 inch
body length	0.659 inch
Terminal length	0.067 inch

Preview

Download Datasheet

View All

Ratioplast - Electronics

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

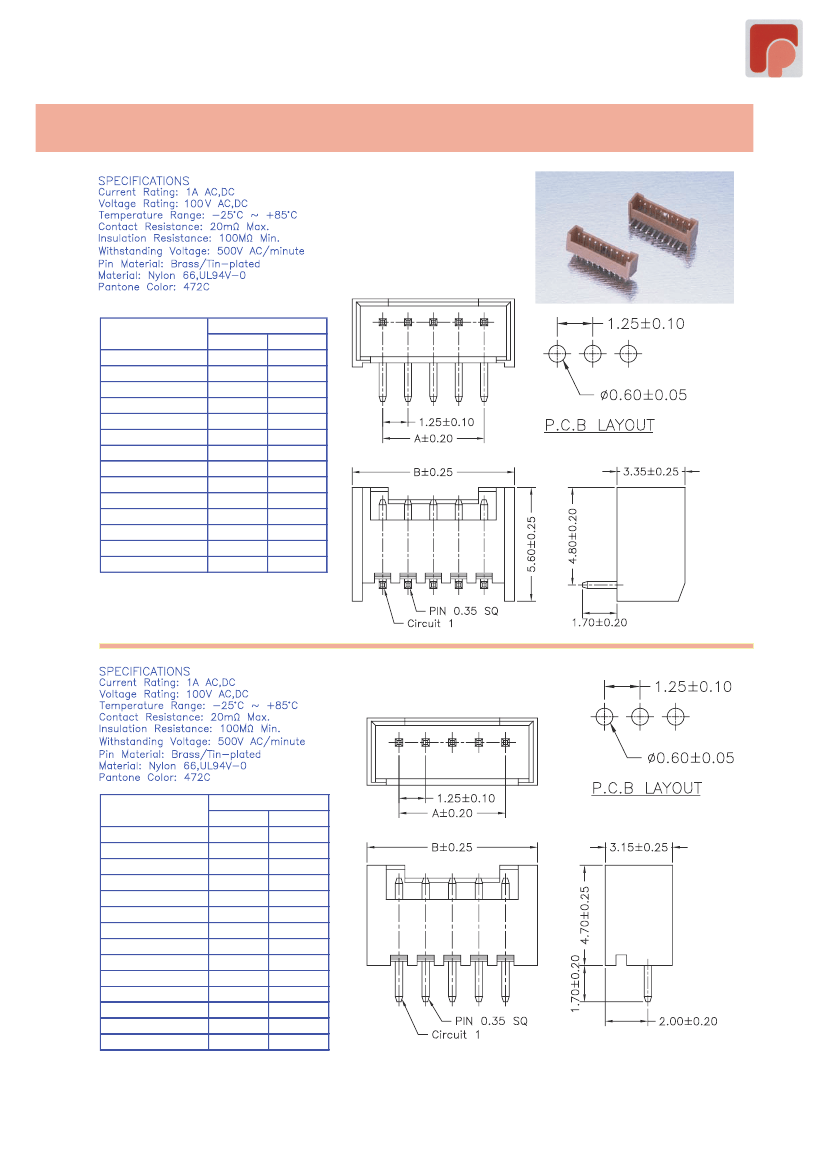

1.25mm WAFER RIGHT ANGLE / STRAIGHT TYPE

PART NO.

1251R-02TR-L

1251R-03TR-L

1251R-04TR-L

1251R-05TR-L

1251R-06TR-L

1251R-07TR-L

1251R-08TR-L

1251R-09TR-L

1251R-10TR-L

1251R-11TR-L

1251R-12TR-L

1251R-13TR-L

1251R-14TR-L

1251R-15TR-L

Dimensions

A

B

1.25

4.25

2.50

5.50

3.75

6.75

5.00

8.00

6.25

9.25

7.50

10.50

8.75

11.75

10.00

13.00

11.25

14.25

12.50

15.50

13.75

16.75

15.00

18.00

16.25

19.25

17.50

20.50

Part No.:1251R-XXTR-L

PART NO.

1251S-02TR-L

1251S-03TR-L

1251S-04TR-L

1251S-05TR-L

1251S-06TR-L

1251S-07TR-L

1251S-08TR-L

1251S-09TR-L

1251S-10TR-L

1251S-11TR-L

1251S-12TR-L

1251S-13TR-L

1251S-14TR-L

1251S-15TR-L

Dimensions

A

B

1.25

4.25

2.50

5.50

3.75

6.75

5.00

8.00

6.25

9.25

7.50

10.50

8.75

11.75

10.00

13.00

11.25

14.25

12.50

15.50

13.75

16.75

15.00

18.00

16.25

19.25

17.50

20.50

Part No.:1251S-XXTR-L
