Preview

5278-15Q/K: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Locking, Plug; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5278-15Q/K Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Locking, Plug

5278-15Q/K Parametric

Parameter Name	Attribute value
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
Is it Rohs certified?	Yes
Objectid	306939158
Reach Compliance Code	Compliant
Country Of Origin	Germany
ECCN code	EAR99
Is Samacsys	N
body width	0.494 inch
subject depth	0.386 inch
body length	1.541 inch
Terminal length	0.512 inch
Contact to complete cooperation	AU ON NI
Contact resistance	25 mΩ
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation type	BOARD
Number of rows loaded	2
Body/casing type	PLUG
Contact point gender	FEMALE
Installation method	RIGHT ANGLE
PCB row number	2
Rated current (signal)	5 A
Terminal pitch	2.7686 mm
Total number of contacts	15
Connector type	D SUBMINIATURE CONNECTOR
contact mode	STAGGERED
Contact style	RND PIN-SKT
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Contact material	BRASS
Shell surface	TIN
Termination type	WIRE WRAP
Installation option 1	LOCKING

5278-15Q/K Preview

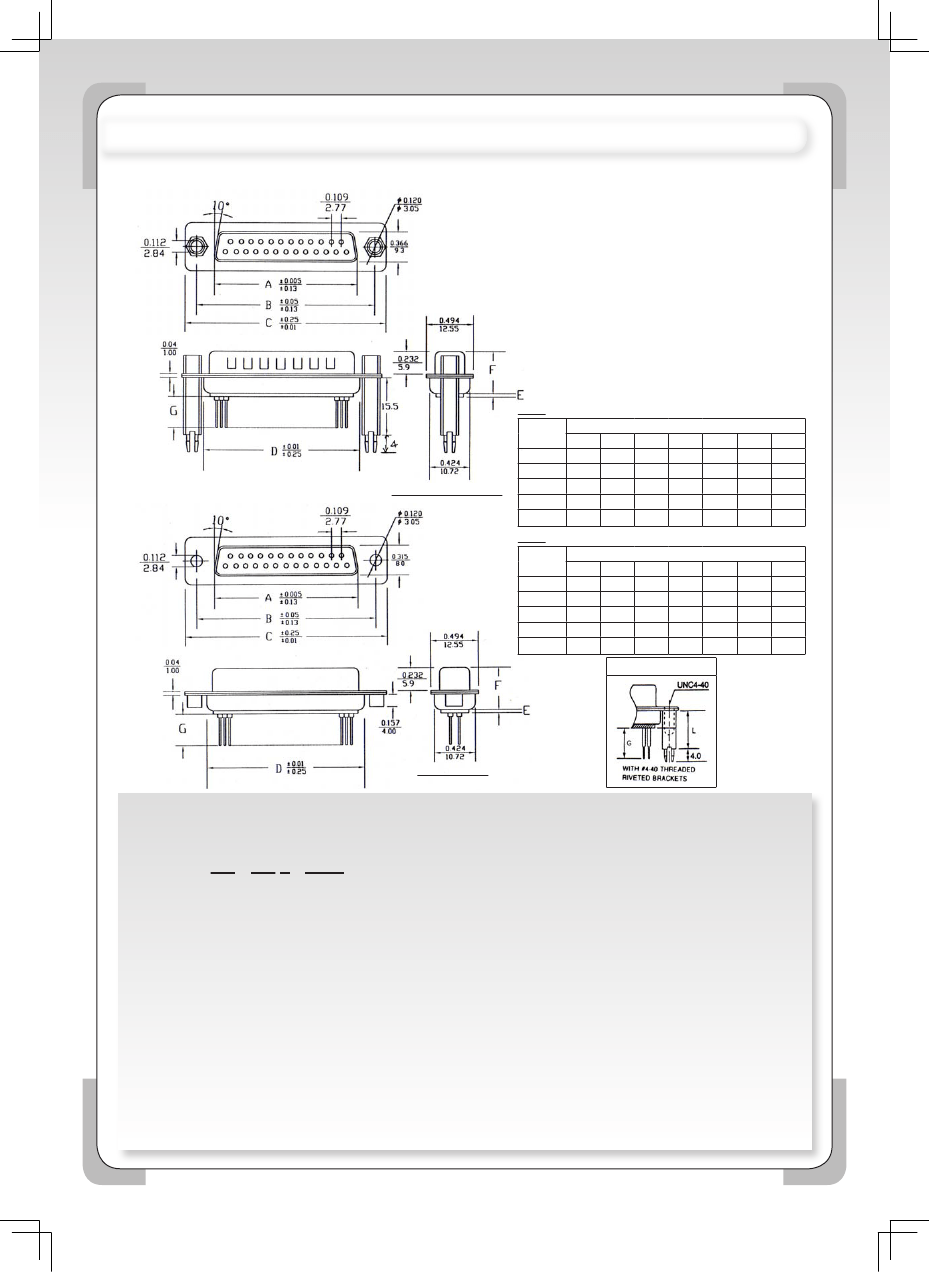

D-SUB. CONNECTOR STRAIGHT PCB TYPE WITH LONG MACHINED TAILS

SPECIFICATIONS

Current Rating:

5A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

MATERIALS

5277

No. of

Contacts

09

15

25

37

50

A

16.92

25.25

38.96

55.42

52.86

B

24.99

33.32

47.04

63.50

61.11

Dimensions(mm)

C

D

E

30.81 19.28 1.20

39.14 27.51 1.20

53.04 41.30 1.20

69.32 57.71 1.20

66.92 55.30 1.20

Dimensions(mm)

C

D

E

30.81 19.28 1.20

39.14 27.51 1.20

53.04 41.30 1.20

69.32 57.71 1.20

66.92 55.30 1.20

F

11.00

G

13.00

5277-25R/BR15.5J

5278

No. of

Contacts

09

15

25

37

50

A

16.33

24.66

38.38

54.84

52.34

B

24.99

33.32

47.04

63.50

61.11

F

11.00

G

13.00

BR

5278-25R/K

ORDERING INFORMATION:

P/N 5 2 x x - x x x / x x x

1

2 3

4

1. CONNECTOR TYPE:

"77" MALE

"78" FEMALE

2. NO. OF CONTACTS:

09, 15, 25, 37, 50

3. PIN LENGTH:

"Q" G=10.0MM

"R" G=13.0MM

4. MOUNTING OPTION:

K, J, KJ, BRxx, BRxxJ

"BR14.5" L= 14.50MM

"BR15.5" L= 15.50MM

OTHER LENGTHES:

8.4, 11, 9.5, 12.5, 15.5, 10.5MM...ETC.

C0040

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
