1257S19HT1A datasheet, PDF - EEWORLD Datasheet

1257S19HT1A: DescriptionCard Edge Connector, 19 Contact(s), 1 Row(s), Right Angle, 0.049 inch Pitch, Solder Kinked Leads Terminal, Locking, White Insulator; CategoryThe connector The connector; File Size96KB，2 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1257S19HT1A Overview

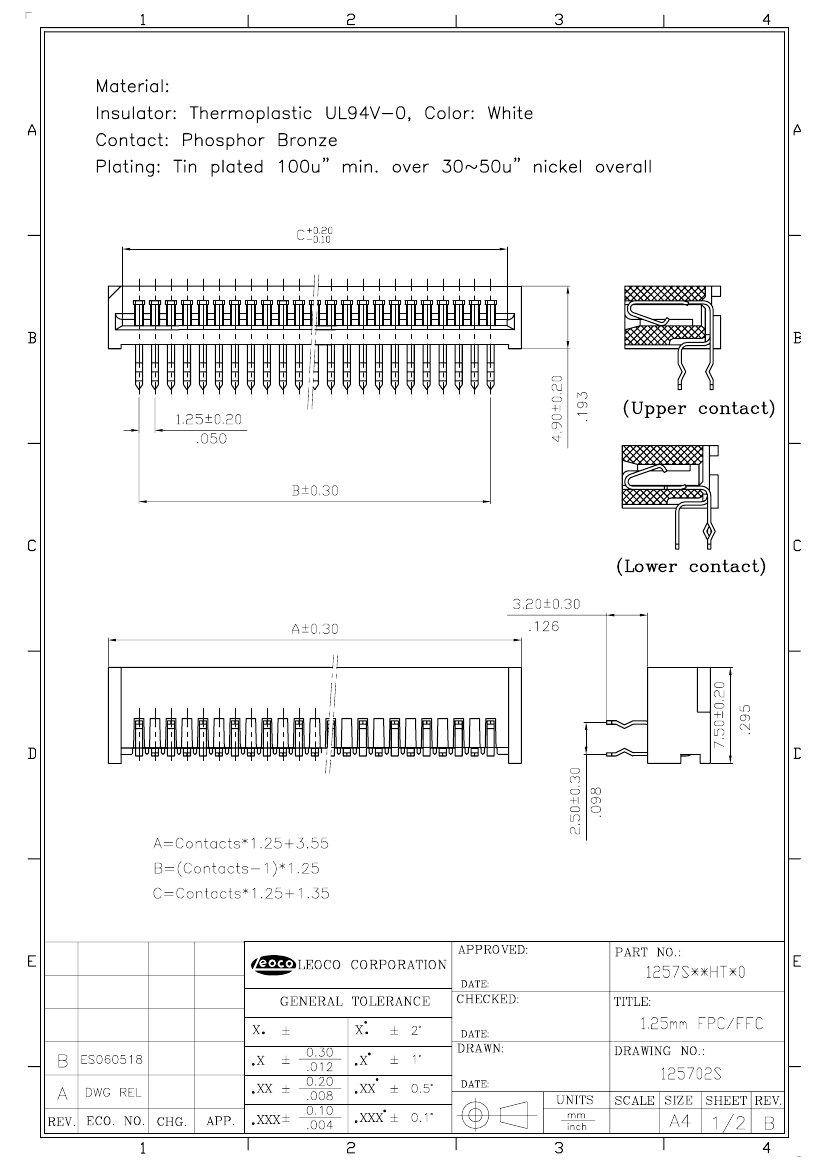

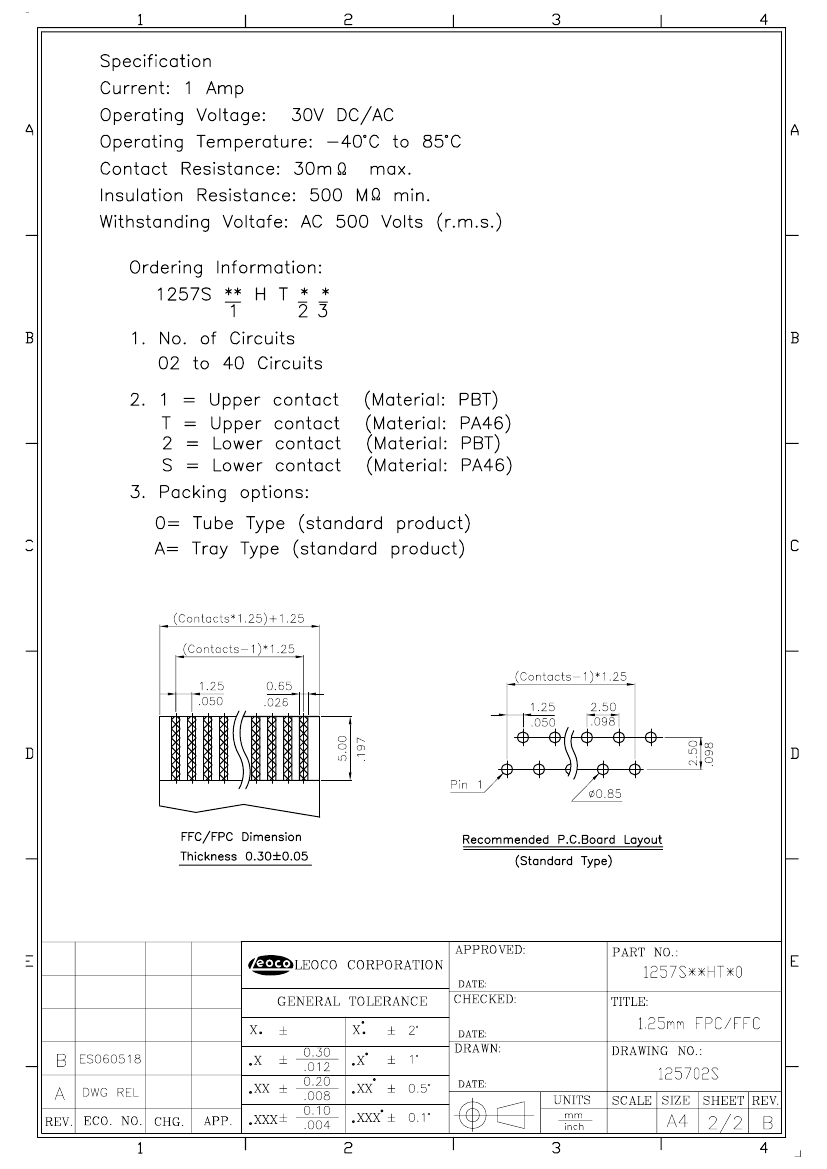

Card Edge Connector, 19 Contact(s), 1 Row(s), Right Angle, 0.049 inch Pitch, Solder Kinked Leads Terminal, Locking, White Insulator

Parameter Name	Attribute value
subject depth	0.295 inch
body length	1.075 inch
Terminal length	0.126 inch
body width	0.193 inch
Installation option 1	LOCKING
Number of connectors	ONE
PCB contact row spacing	2.4892 mm
Plating thickness	100u inch
Plug contact pitch	0.049 inch
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Insulator color	WHITE
Mixed contacts	NO
PCB contact pattern	STAGGERED
Termination type	SOLDER
Contact material	PHOSPHOR BRONZE
Dielectric withstand voltage	700VAC V
Filter function	NO
Insulation resistance	500000000 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Guideline	UL
Objectid	305222523
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
PCB row number	2
Number of rows loaded	1
insulator material	POLYBUTYLENE TEREPHTHALATE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact resistance	30 mΩ
Installation method	RIGHT ANGLE
Installation type	BOARD
Rated current (signal)	1 A
Terminal pitch	2.4892 mm
Other features	ROHS COMPLIANT
Total number of contacts	19
