A2540H-07P

Description
Board Connector, 7 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug
CategoryThe connector    The connector
File Size58KB,1 Pages
ManufacturerJoint Tech Electronic Industrial Co., Ltd.
Download Datasheet Parametric View All

A2540H-07P Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug

A2540H-07P Parametric

Parameter NameAttribute value
Is SamacsysN
Objectid304418439
Reach Compliance CodeUnknown
ECCN codeEAR99
body width0.228 inch
subject depth0.561 inch
body length0.778 inch
Contact resistance10 mΩ
Rated current (signal)3 A
Total number of contacts7
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
insulator materialPOLYAMIDE
Installation typeCABLE
Number of rows loaded1
Contact styleSQ PIN-SKT
Insulator colorWHITE
Plug contact pitch0.098 inch
Mixed contactsNO
Installation option 1LOCKING
Number of connectorsONE
Termination typeCRIMP
contact modeRECTANGULAR
Dielectric withstand voltage800VAC V
Filter functionNO
Insulation resistance500000000 Ω
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
GuidelineUL

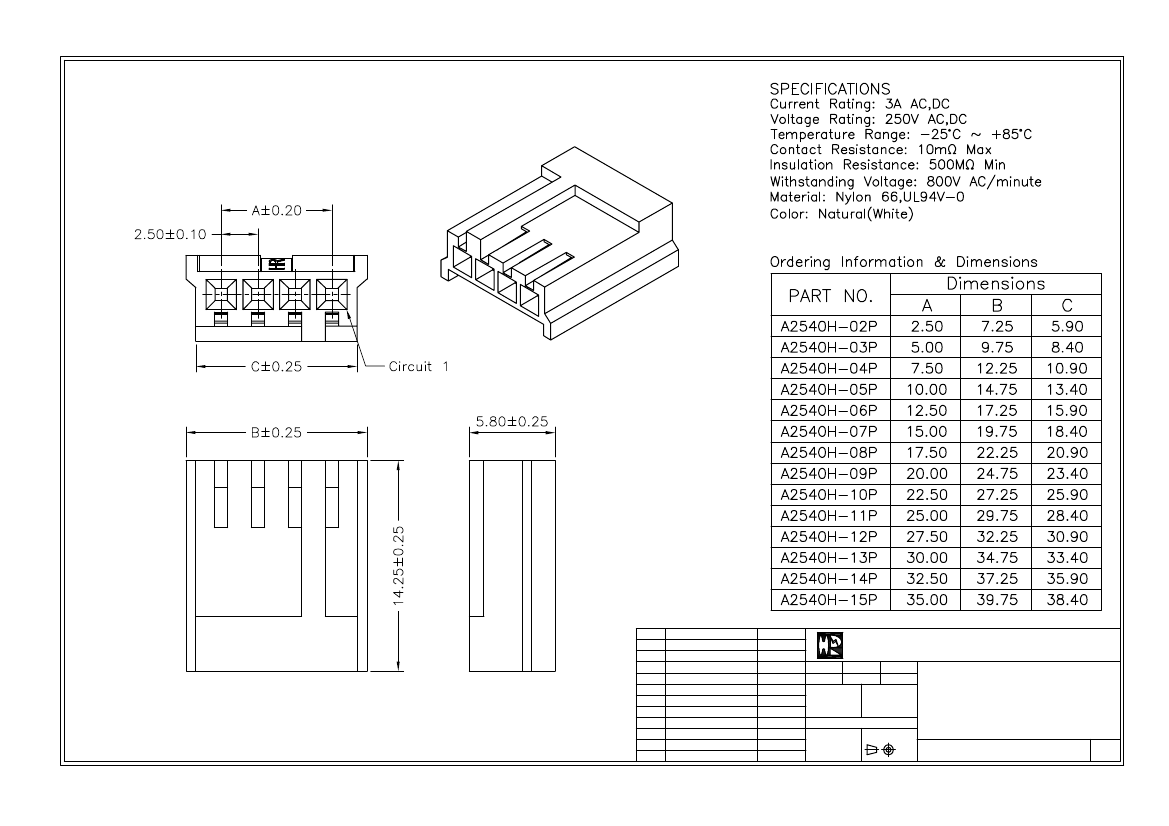

JOINT TECH ELECTRONIC IND. CO., LTD.
JOY DAY INDUSTRIAL CO., LTD.
UNIT
SCALE
SHEET
TITLE:
mm
1 of 1
DRAWN BY
APPROVED BY
董正一
董正一
2001.02.01 2001.02.01
GENERAL TOLERANCE
ANGLE±
X.X±0.25
X.XX±0.15
DRAW NO.:
X.XXX±0.05
A2540H-XP
B3
B2
B1
B0
REVISE
REVISE
REVISE
NEW RELEASE
2006.10.23
2006.09.18
2006.05.15
2005.12.23
2.50mm PITCH
HOUSING
REV.
B3
REV.
DESCRIPTION
DATE
