Sealed Power For Environmental Connections

Ground Support

Harsh Environments

Anderson Power Products

Rugged and Sealed

(IP68) Plugs and Receptacles

For Use with APP

Powerpole

Signal, Power & Ground Contacts & Housings

The SPEC Pak

High Power uses rugged and environmentally sealed (IP68) shells to protect APP

Powerpole

contacts

and housings. Customer configured SPEC Pak

High Power Connectors are capable of up to 260 amps and may be used

anywhere a rugged and/or waterproof high power, signal and ground interconnect solution is required.

The SPEC Pak

High Power shell accepts 75 to 180 amp Powerpole

contacts and up to 8 auxiliary contacts. The wide

range of Powerpole

housing colors and contact sizes, coupled with the available Powerpole

insert holders, offers the user

a wide array of design options. Wire sizes which can accommodate a range from 24 to 3/0 AWG (0.25 to 85.0 mm²). SPEC

Pak

High Power is highly configurable with thousands of design options in a single interconnect.

Powerpole

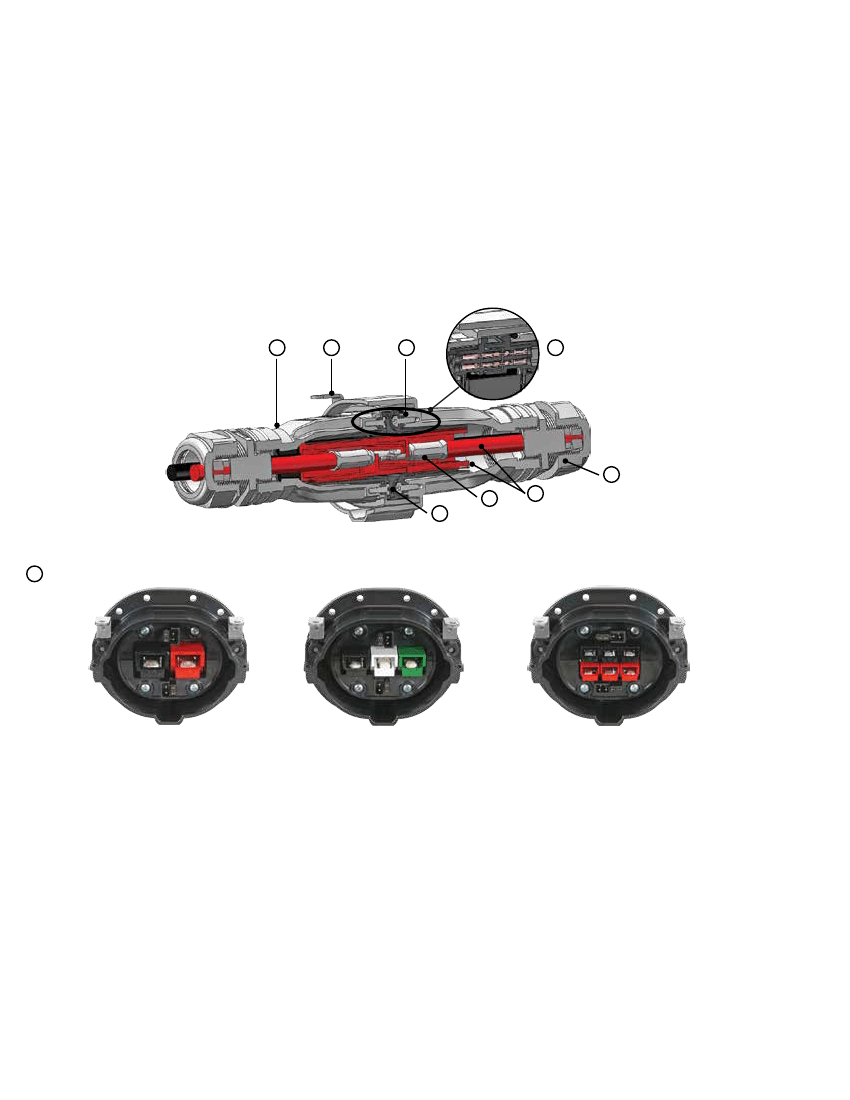

Insert Arrangement

H02

• Wire to Wire Configurations

• Wire to Panel Configurations

H03

H06

6 - Power Contacts

(up to 260 amps with 3/0 AWG)

7- Color Coded Powerpole

Housings

Match Wire Colors

8 - Industry Standard Sealing (IP68) Components

• PG Gland Compatible - Size 36 & 42

• Multi Hole Glands For Use With Discrete Wires

• Single Hole Glands For Use With Jacketed Cable

1 - Chemical & UV Resistant Ruggedized Shells

2 - Stainless Steel Latches

(securing plug to receptacle)

3 - IP68 Interfacial Sealing O-Ring

4 - Auxiliary Contacts (up to 8)

5 - Powerpole

Insert Holders (user configurable)

• H02 Arrangement - up to two PP180 & 8 Auxiliaries

• H03 Arrangement - up to three PP120 & 8 Auxiliaries

• H06 Arrangement - up to six PP75 & 8 Auxiliaries

- 2 -

| www.andersonpower.com

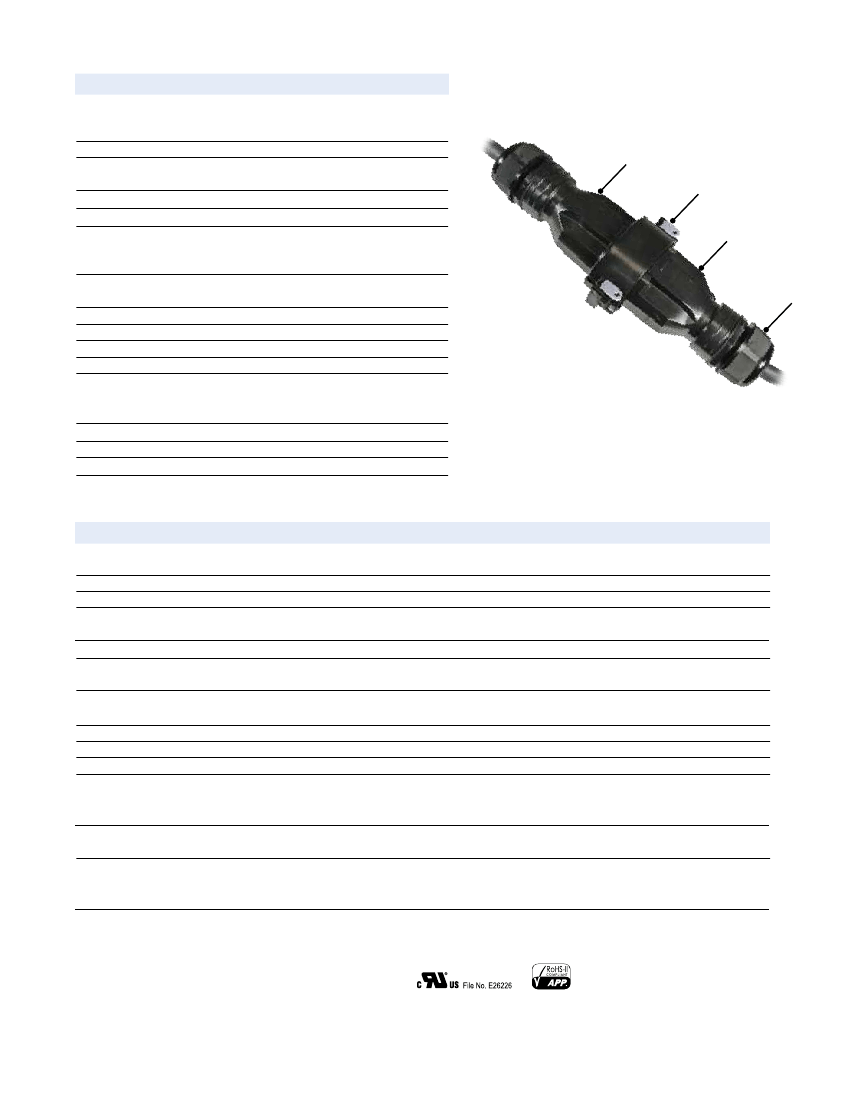

Specifications

High Power SPEC Pak

Shell / Components

Electrical

UL Voltage Rating (AC/DC)

Dielectric Withstanding Voltage (AC)

Operating Temperature (°C )

[1]

(°F )

Flammability Rating of SPEC Pak

Shells

UV Rating (equivalent)

Mechanical

Shell/Latch Mating Cycles

Average Connect/Disconnect (lbf)

(N)

IP Rating

UL50E Sealing Requirement

Crush Test per EIA-364-40B

Drop Test per UL50E

Material

SPEC Pak

- Receptacle, Plug & Holders

Latch

Latch Retainer

Holder Mount Hardware

600

3000

-40 to 105

-40 to 221

UL94 V-0

UL746C F1

Inline Receptacle

Latch

Plug

1,500 Min.

125

IP68

Pass

PG Gland

Mated pair

High Power Plug To

Inline Receptacle

PBT

Stainless Steel

Nickel Plated Steel

Powerpole

Contacts

UL Current Rating (Amperes)

[2]

CSA (30C Rise) (Amperes)

[2]

Voltage Rating (AC/DC)

Contact Barrel Wire Size (AWG)

(mm²)

Average Contact Resistance (milliohm)

Contact Retention Force (lbf)

(N)

Operating Temperature (°C)

[1]

(°F)

Flammability Rating

Contact Materials

Contact Plating

Mechanical

Mating Cycles - no load

[3]

Average Connect/Disconnect (lbf)

PP180

260

140

600

3/0 to 6

85 to 13.3

0.10

170

756

-20 to 105

-4 to 221

UL94 V-0

Copper

Silver

PP120

190

100

600

1/0 to 6

53.5 to 13.3

0.14

100

445

-20 to 105

-4 to 221

UL94 V-0

Copper

Silver

PP75

600

6 to 12

13.3 to 3.3

0.20

222

-20 to 105

-4 to 221

UL94 V-0

Copper

Silver

PowerMod

600

12 to 24

4.0 to 0.25

3.00

-20 to 105

-4 to 221

UL94 V-0

Copper Alloy

Gold over Nickel

10,000

5 (Low Detent)

7 (High Detent)

10,000

10 oz. (3N) Average

Material

Powerpole

Housing Material

Polycarbonate

PBT

NOTE: [1] -40° to 105° C (-40° to 221° F) can be achieved by using APP Chemical Resistant Powerpole

housing. Contact factory for more information.

[2] Based on Panel Mount Receptacle to Plug configuration.

[3] Based on silver plated contacts.

For other industry tests and/or agency approvals, contact customer service.

www.andersonpower.com |

-3-

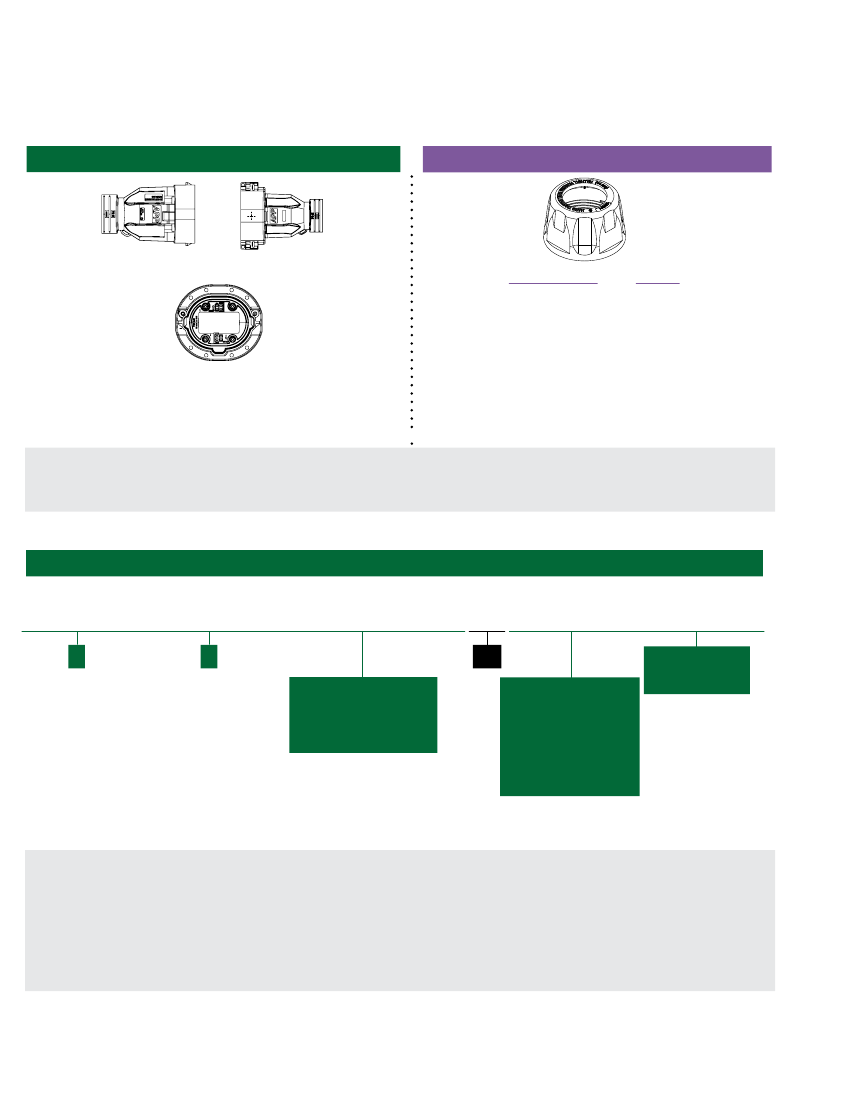

Product Selection Guide

SPEC Pak

High Power Series is a highly configurable environmentally sealed connector, that can be purchased as

components in bulk for volume production, or pre-packaged as a kit. For your convenience, follow the steps below to

determine the component or kit part number.

| COMPONENT PART NUMBER GUIDE (FOR COMPONENT BULK PURCHASE) |

Step 1: Select Shell

Step 2: Select Wire Protection

Plug

Inline Receptacle

* Define:

Wires

- Discrete

- Bundled

Number of Wires

______________

Wire OD

_____________

* Select PG Gland size PG36 ________ PG42 ________

Panel Mount Receptacle

* Select wire protection that will accommodate the number of

wires and outer diameter (OD) of the wire used in your

application, from page 7.

* Wire protection is required for use with Inline Receptacles and

Plugs to obtain IP68 seal.

* Select shell kit for use with PG36 _____ or PG42 _____ from page 6.

List Component Part Numbers Here:

| KIT PART NUMBER GUIDE (FOR KITTED CONNECTOR PURCHASE) |

Step 1 -

(see page 6)

............................................................................................. Shell ........................................................................................

SPEC Pak

Series

Shell Color

Shell Style

Shell Size

Insert Arrangement

(Select One)

Dash

(Select One)

1 = Inline Receptacle

2 = Panel Mount Receptacle

6 = Plug

9 = Receptacle Cover

9P = Plug Cover

095 = 095mm Panel Mount

Receptacle Shell

A95 = 095mm Inline

Receptacle or Plug

Shell, PG 36

B95 = 095mm Inline

Receptacle or Plug

Shell, PG 42

H02, PP180, 2 Pole

H03, PP120, 3 Pole

H06, PP75, 6 Pole

List Kit Part Number Here:

- 4 -

| www.andersonpower.com

Step 3: Select Housing Arrangement

Step 4: Select Contacts

Pin Auxiliary Contact

Power Contact

Socket Auxiliary Contact

* Define:

Housing Arrangement

- AC

- DC

- Other

Number of

Wires

___________

Number of

Auxiliaries

____________

* Define:

Contacts

- Power

- Auxiliary

- Other

Number of Wire Gauge

____________________

Wire Gauge

_______________

* Select housing arrangement colors appropriate for your AC

or DC application, from page 8, 9 or 10.

Amps (continuous): ____ Max amps at ____ volts

* Select power and/or auxiliary contacts appropriate for your wire

size (AWG or mm²), from page 8, 9 or 10.

List Component Part Numbers Here:

Step 2 -

Wire Protection

Step 3 -

Select Housing

Arrangement (Style)

Step 4 -

Select Contacts

Custom

.................... Wire Protection ....................

.. Housing Arrangement ..

........... Contacts ...........

.... APP Content ....

Number of Holes Cable Sealing Range

(Select Two)

Dash

(Select One)

Dash

00 = None

PS = Plastic Single Hole

PM = Plastic Multi Hole

00 = None

“01 to 99 = Various Gland Types

From Page 7

0 = Custom Configuration

A = AC Single Phase

B = AC 3 Phase, 3 Wire

E = AC 3 Phase, 4 wire

F = AC 3 phase, 5 wire

G = DC 2 Circuit, 6 wire

R = DC 1 Circuit, 2 Wire

Z = All Black

Contact

Code

20 =

21 =

22 =

23 =

24 =

Insert

Arrangement

H03

H06

H02, H03

H02, H03, H06

Contact the factory

Custom Configuration

Contact

Code

00 =

11 =

12 =

13 =

Wire Size

Contact AWG

(mm²)

Insert

Custom Configuration

Arrangement

5900

13.3

H06

5952

8.4

H06

5915

#10/12 5.3/3.3 H06

#10/12

13.3

8.4

5.3/3.3

H06

Contact

1323G2

1323G1

1319

1319G4

1319G6

[1]

With Auxiliary

[1]

14 =

5900

15 =

5952

16 =

5915

With Auxiliary

25 = 1323G2

26 = 1323G1

27 = 1319

28 = 1319G4

29 = 1319G6

Contact

Code Contact

80 = 1328G2

81 = 1328G1

Wire Size

Insert

82 = 1382

AWG (mm²) Arrangement 83 = 1347

1/0

53.5

H03

84 = 1383

42.4

H03

85 = 1384

33.6

H03

86 = 1348

21.2

H03

13.3

H03

With Auxiliary

[1]

87 = 1328G2

88 = 1328G1

1/0

53.5

H03

89 = 1382

42.4

H03

90 = 1347

33.6

H03

91 = 1383

21.2

H03

92 = 1384

13.3

H03

93 = 1348

Wire Size

Insert

AWG (mm²) Arrangement

3/0 85.0

H02

2/0 67.4

H02

1/0 53.5

H02

42.4

H02

33.6

H02

21.2

H02

13.3

H02

3/0

2/0

1/0

85.0

67.4

53.5

42.4

33.6

21.2

13.3

H02

NOTE:

[1] Contact code designation #25 to 29 uses 4 each of PM16P12S30 (pins) & 4 each of part number PM16S12S32 (sockets) as signal.

www.andersonpower.com |

-5-
