M83723/90Y-22-32P6 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83723/90Y-22-32P6

M83723/90Y-22-32P6: DescriptionMIL Series Connector, 32 Contact(s), Stainless Steel, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerHiRel Connectors Inc; Websitehttps://hirelco.net

Download Datasheet Parametric View All

M83723/90Y-22-32P6 Overview

MIL Series Connector, 32 Contact(s), Stainless Steel, Male, Solder Terminal, Receptacle

M83723/90Y-22-32P6 Parametric

Parameter Name	Attribute value
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
IEC compliance	NO
MIL compliance	YES
DIN compliance	NO
Filter function	NO
ECCN code	EAR99
Is Samacsys	N
YTEOL	8.85
Objectid	1861725938
Reach Compliance Code	Unknown
Country Of Origin	USA
Other features	STANDARD: MIL-DTL-83723
Body/casing type	RECEPTACLE
Installation type	CABLE AND PANEL
Shell material	STAINLESS STEEL
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Housing size	22
Total number of contacts	32
Termination type	SOLDER
Back shell type	SOLID
Coupling type	THREADED
empty shell	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Options	HERMETIC

Preview

Download Datasheet

View All

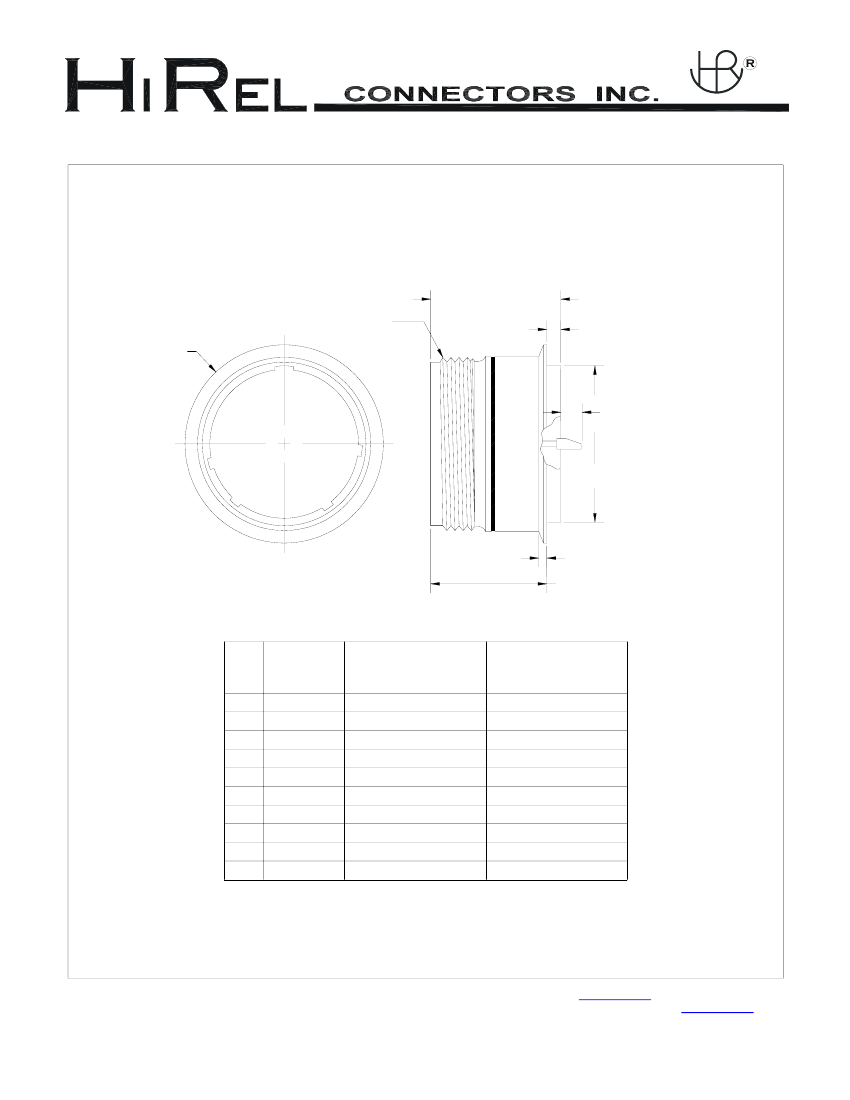

M83723/90

Hermetic Solder Mount Receptacle (Pin Solder Cup)

MIL-DTL-83723

Series III – Threaded Coupling

(.904 [22.96]) MAX

A Thd

ØG

.109/.079 [2.77/2.01]

.194/.134 [4.93/3.40] <1>

.224/.164 [5.69/4.17] <2>

ØE

.062/.047 [1.57/1.19]

.795/.775 [20.19/19.69]

SHELL

SIZE

<3>

A Thd

CLASS 2A

.562-24 UNEF

.688-24 UNEF

.875-20 UNEF

.938-20 UNEF

1.062-18 UNEF

1.188-18 UNEF

1.312-18 UNEF

1.438-18 UNEF

1.562-18 UNEF

1.812-16 UN

ØE

.500/.494 [12.70/12.55]

.562/.556 [14.27/14.12]

.750/.744 [19.05/18.90]

.812/.806 [20.62/20.47]

.937/.931 [23.80/23.65]

1.062/1.056 [26.97/26.82]

1.187/1.181 [30.15/30.00]

1.312/1.306 [33.32/33.17]

1.437/1.431 [36.50/36.35]

1.686/1.680 [42.82/42.67]

ØG

.723/.703 [18.36/17.86]

.850/.830 [21.59/21.08]

1.055/1.035 [26.80/26.29]

1.100/1.080 [27.94/27.43]

1.220/1.200 [30.99/30.48]

1.350/1.330 [34.29/33.78]

1.470/1.450 [37.34/36.83]

1.600/1.580 [40.64/40.13]

1.720/1.700 [43.69/43.18]

1.977/1.957 [50.22/49.71]

NOTES:

<1> = FOR SIZE 20 CONTACTS

<2> = FOR SIZE 16 & 12 CONTACTS

<2> = CONNECTOR SIZE NOT PER M83723

DIMENSIONS ARE IN INCHES [MILLIMETERS], TOLERANCE UNLESS OTHERWISE NOTED IS ±.005 [0.13]
