250G1-H08: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

250G1-H08 Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug

250G1-H08 Parametric

Parameter Name	Attribute value
Is Samacsys	N
Objectid	303817502
Reach Compliance Code	Unknown
ECCN code	EAR99
Other features	NONE
Contact to complete cooperation	SN
Contact point gender	FEMALE
Installation type	CABLE
Number of rows loaded	1
Rated current (signal)	3 A
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact resistance	20 mΩ
insulator material	POLYAMIDE
Total number of contacts	8
Terminal length	0.144 inch
body width	0.15 inch
subject depth	0.28 inch
body length	0.868 inch
Termination type	CRIMP
Contactor design	STAMPED, STRIP
Contact completed and terminated	TIN
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Mixed contacts	NO
Number of connectors	ONE
contact mode	RECTANGULAR
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Filter function	NO
Minimum insulation diameter	0.039 inch
Insulation resistance	1000000000 Ω
polarization key	POLARIZED HOUSING
Maximum wire diameter	22 AWG
Minimum wire diameter	30 AWG
Dielectric withstand voltage	800VAC V
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Guideline	UL

Preview

Download Datasheet

View All

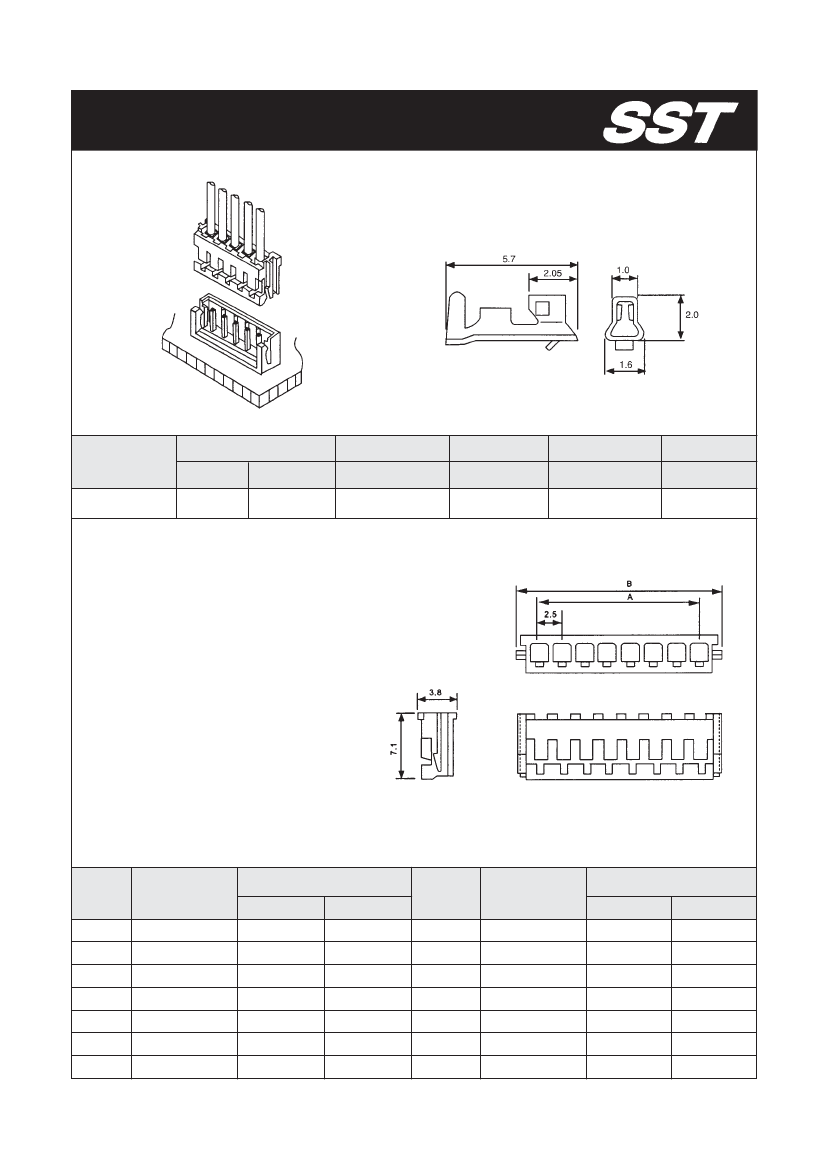

250G1 CONNECTOR SYSTEM

.098” (2.5mm) pitch wire-to-board type

WIRE RANGE

PART NO.

AWG#

250G1-TP

22-30

mm

2

0.3-0.05

MATERIAL/

FINISH

PHOS/TIN

THICKNESS

mm

0.20

INSULATION

O.D.(mm)

1.9-1.0

REEL

PCS

10000

250G1-H SERIES HOUSING

MATERIAL : NYLON 66UL 94V-0

ACCEPT 250G1-TP TERMINAL

MATE WITH 200G1-V(R) HEADER

CURRENT RATING : 3A AC,DC

VOLTAGE RATING : 250V AC,DC

CONTACT RESISTANCE : 20m MAX

INSULATION RESISTANCE : 1000M MIN

WITHSTANDING VOLTAGE : 800V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

POLES

2

3

4

5

6

7

8

PART NO.

250G1-H02

250G1-H03

250G1-H04

250G1-H05

250G1-H06

250G1-H07

250G1-H08

DIMENSIONS (mm)

POLES

A

2.50

5.00

7.50

10.00

12.50

15.00

17.50

B

7.05

9.55

12.05

14.55

17.05

19.55

22.05

9

10

11

12

13

14

15

250G1-H09

250G1-H10

250G1-H11

250G1-H12

250G1-H13

250G1-H14

250G1-H15

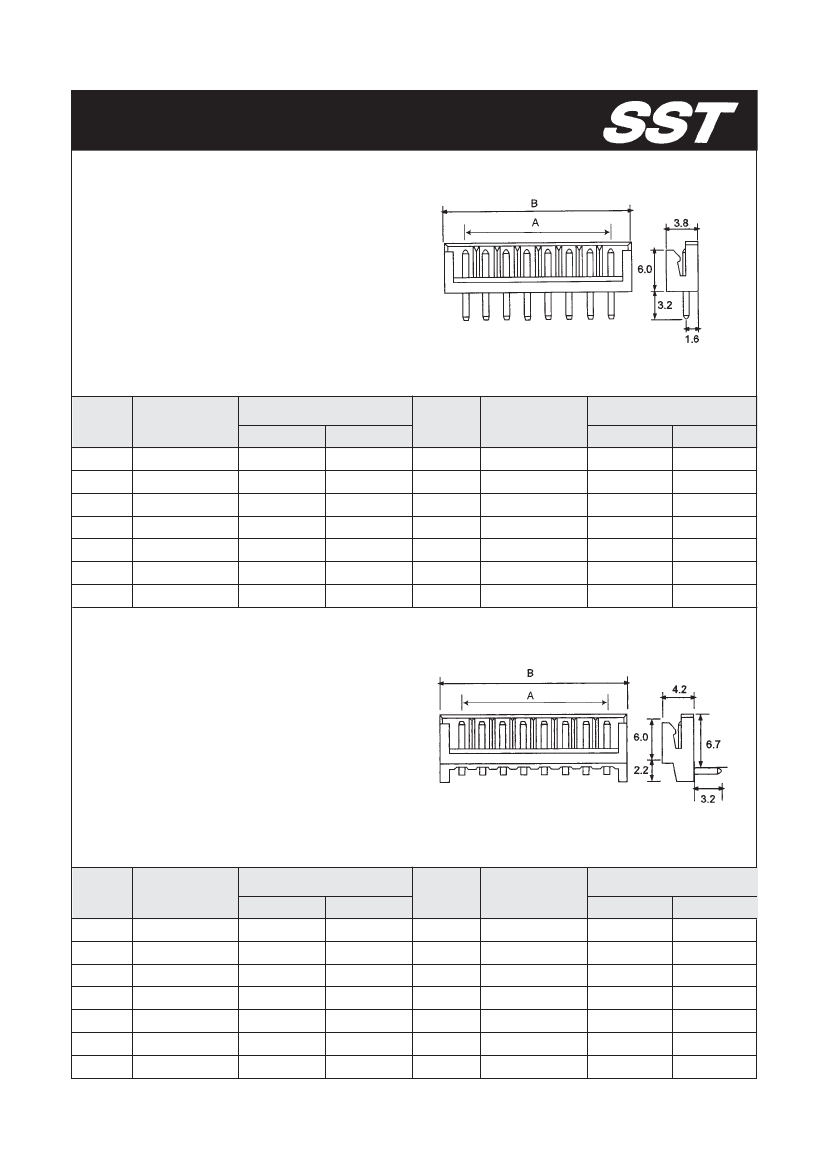

PART NO.

DIMENSIONS (mm)

A

20.00

22.50

25.00

27.50

30.00

32.50

35.00

B

24.55

27.05

29.55

32.05

34.55

37.05
