250G4-V10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 250G4-V10

250G4-V10: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Detent, Receptacle; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

250G4-V10 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Detent, Receptacle

250G4-V10 Parametric

Parameter Name	Attribute value
Is Samacsys	N
Objectid	303821146
Reach Compliance Code	Unknown
ECCN code	EAR99
body length	0.984 inch
Terminal length	0.126 inch
body width	0.177 inch
subject depth	0.346 inch
Terminal pitch	2.4892 mm
Total number of contacts	10
Contact point gender	MALE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact resistance	20 mΩ
insulator material	POLYAMIDE
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	1
Body/casing type	RECEPTACLE
Rated current (signal)	2.5 A
Number of rows loaded	1
Contact completed and terminated	TIN
Mixed contacts	NO
Number of connectors	ONE
Installation option 2	LOCKING
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.098 inch
Installation option 1	DETENT
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
polarization key	POLARIZED HOUSING
Minimum operating temperature	-25 °C
Maximum operating temperature	85 °C
Guideline	UL

Preview

Download Datasheet

View All

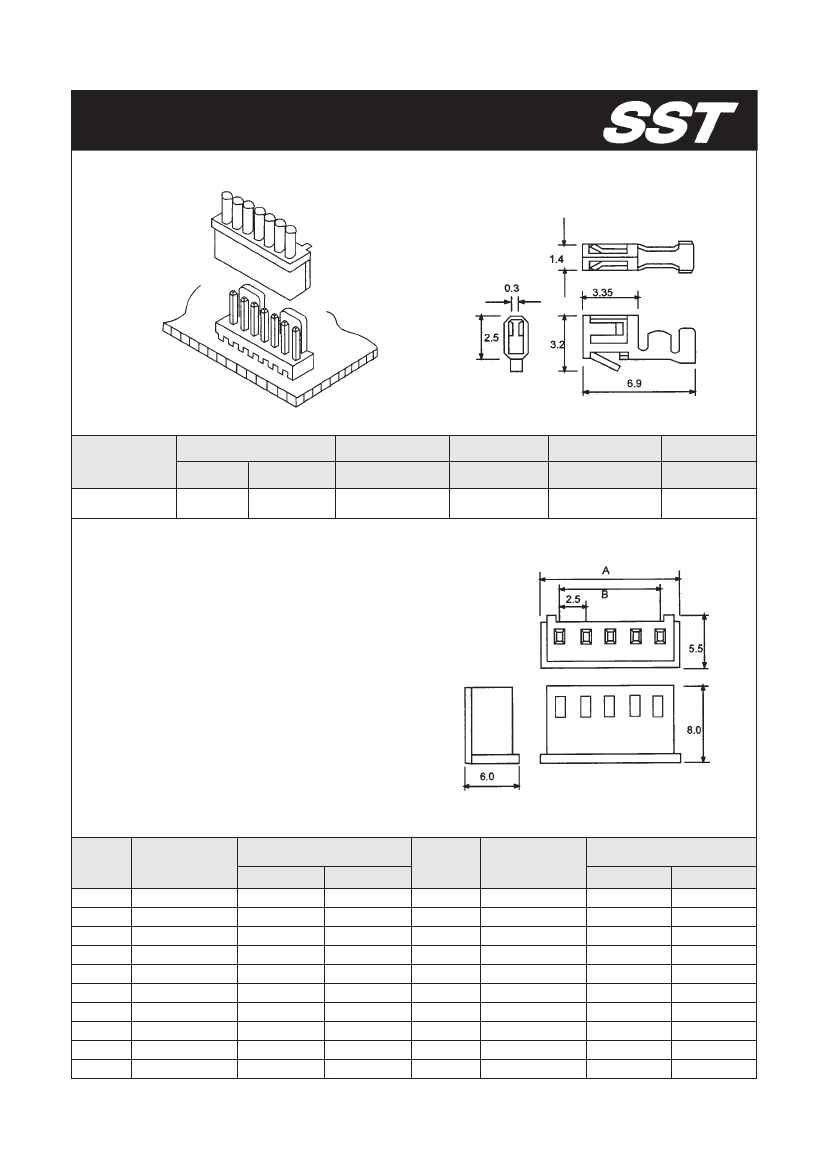

250G4 CONNECTOR SYSTEM

.098” (2.5mm) pitch wire-to-board type

WIRE RANGE

PART NO.

AWG#

250G4-T

22-28

0.33-0.08

MATERIAL/

FINISH

BRASS/TIN

THICKNESS

0.20

INSULATION

O.D.(mm)

1.9-1.2

REEL

PCS

10000

250G4-H SERIES HOUSING

MATERIAL : NYLON 66UL 94V-2

ACCEPT 250G4-T TERMINAL

MATE WITH 250G4-V(R) HEADER

CURRENT RATING : 2.5A AC,DC

VOLTAGE RATING : 250V AC,DC

CONTACT RESISTANCE : 20m MAX

INSULATION RESISTANCE : 1000M MIN

WITHSTANDING VOLTAGE : 1000V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

POLES

PART NO.

250G4-H02

250G4-H03

250G4-H04

250G4-H05

250G4-H06

250G4-H07

250G4-H08

250G4-H09

250G4-H10

250G4-H11

DIMENSIONS (mm)

POLES

6.74

9.24

11.74

14.24

16.74

19.24

21.74

24.24

26.74

29.24

2.50

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

25.00

250G4-H12

250G4-H13

250G4-H14

250G4-H15

250G4-H16

250G4-H17

250G4-H18

250G4-H19

250G4-H20

PART NO.

DIMENSIONS (mm)

31.74

34.24

36.74

39.24

41.74

42.24

46.74

49.24

51.74

27.50

30.00

32.50

35.00

37.50

40.00

42.50

45.00

47.50
