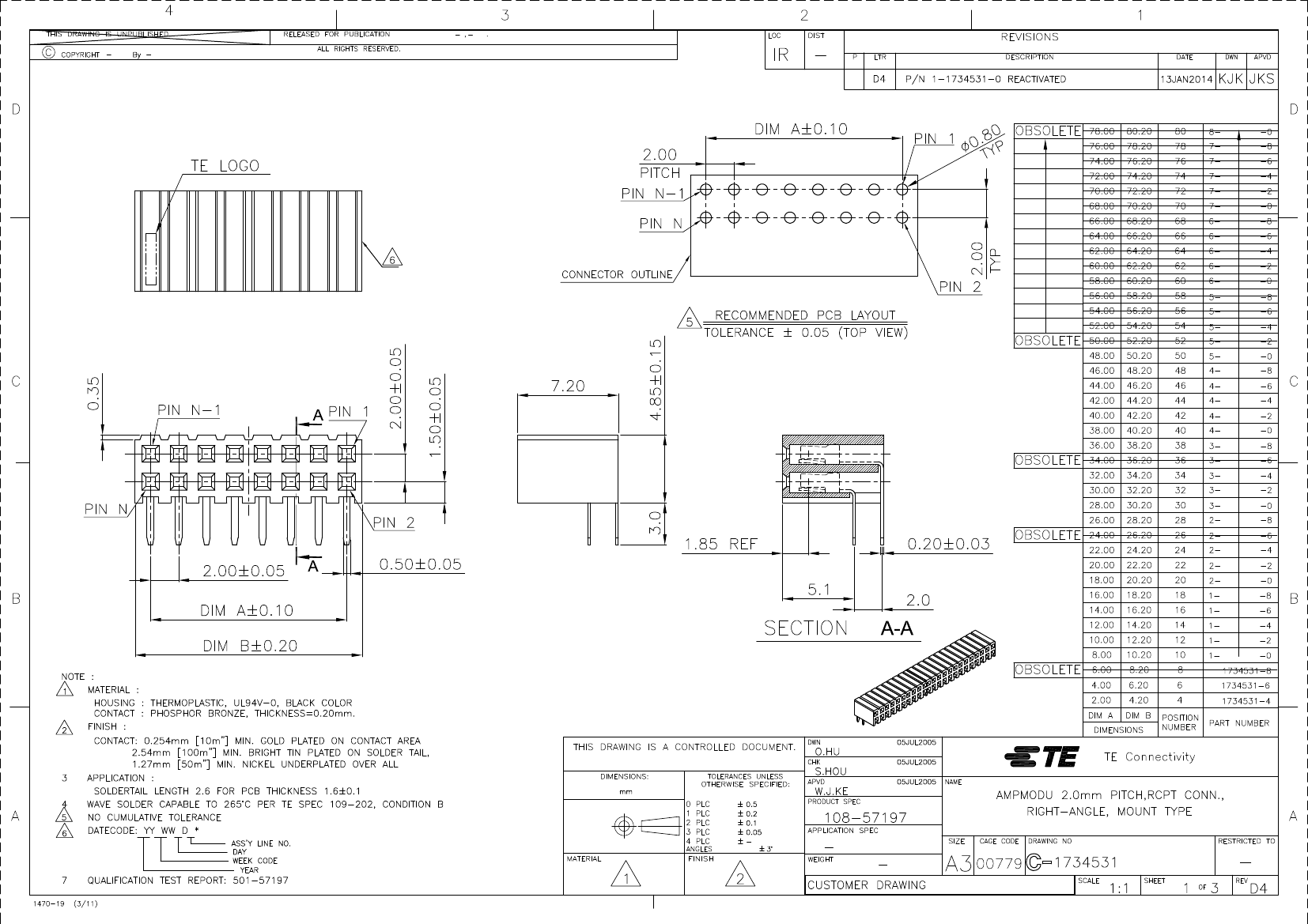

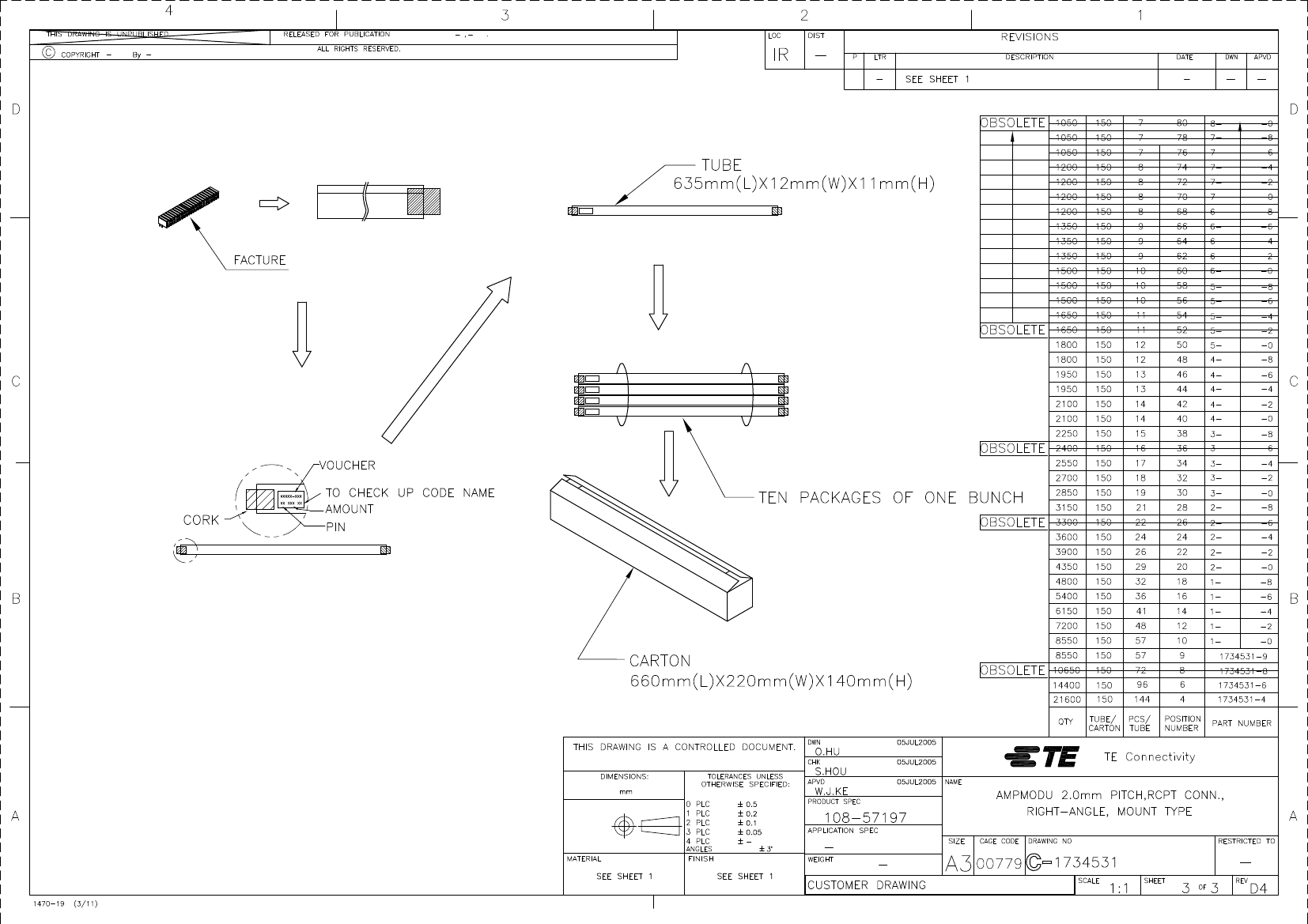

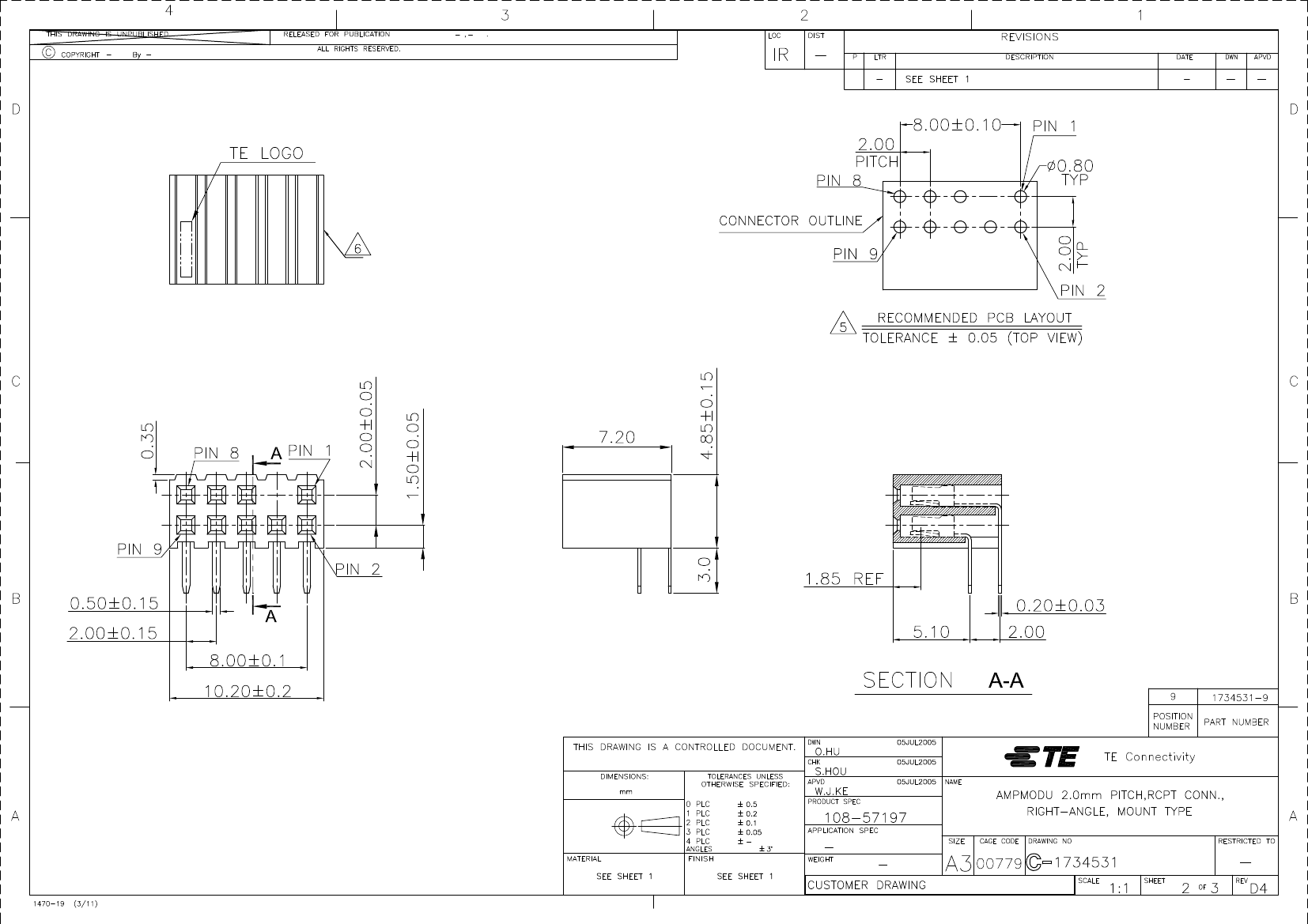

RCPT,2MM,14P,R ANG MT,8AU,3.ST
| Parameter Name | Attribute value |
| Brand Name | TE Connectivity |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 20 weeks |
| Is Samacsys | N |
| Other features | AMPMODU |
| body width | 0.191 inch |
| subject depth | 0.283 inch |
| body length | 0.559 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 650VAC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.946 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 10u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 14 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .0973 N |
| Base Number Matches | 1 |
| 1-1734531-4 | 5-1734531-0 | 1-1734531-6 | 4-1734531-4 | 2-1734531-0 | 1-1734531-0 | UMSTBVK2,5/9-GF-5,08 | 2-1734531-2 | |
|---|---|---|---|---|---|---|---|---|
| Description | RCPT,2MM,14P,R ANG MT,8AU,3.ST | RCPT,2MM,50P,R ANG MT,8AU,3.ST | RCPT,2MM,16P,R ANG MT,8AU,3.ST | RCPT,2MM,44P,R ANG MT,8AU,3.ST | RCPT,2MM,20P,R ANG MT,8AU,3.ST | RCPT,2MM,10P,R ANG MT,8AU,3.ST | Modular Terminal Block, | RCPT,2MM,22P,R ANG MT,8AU,3.ST |
| Reach Compliance Code | compliant | compli | unknown | compliant | compliant | unknown | unknown | compliant |
| Brand Name | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | - | TE Connectivity |
| Is it lead-free? | Lead free | Lead free | - | Lead free | Lead free | Lead free | - | Lead free |
| Is it Rohs certified? | conform to | conform to | - | conform to | conform to | - | - | conform to |
| ECCN code | EAR99 | EAR99 | EAR99 | - | EAR99 | - | EAR99 | EAR99 |
| Factory Lead Time | 20 weeks | 15 weeks | 20 weeks | 11 weeks 2 days | 11 weeks 2 days | 21 weeks 2 days | - | 20 weeks 5 days |
| Other features | AMPMODU | AMPMODU | - | AMPMODU | AMPMODU | - | - | AMPMODU |
| body width | 0.191 inch | 0.191 inch | - | 0.191 inch | 0.191 inch | - | - | 0.191 inch |
| subject depth | 0.283 inch | 0.283 inch | - | 0.283 inch | 0.283 inch | - | - | 0.283 inch |
| body length | 0.559 inch | 1.976 inch | - | 1.74 inch | 0.795 inch | - | - | 0.874 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | - | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | GOLD (8) OVER NICKEL | NOT SPECIFIED | TIN | GOLD (8) OVER NICKEL | - | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | - | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | PHOSPHOR BRONZE | - | - | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT | SQ PIN-SKT | - | - | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO | - | NO |
| Dielectric withstand voltage | 650VAC V | 650VAC V | - | 650VAC V | 650VAC V | - | - | 650VAC V |
| Durability | 50 Cycles | 50 Cycles | - | 50 Cycles | 50 Cycles | - | - | 50 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO | - | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | - | NO |
| maximum insertion force | 1.946 N | 1.946 N | - | 1.946 N | 1.946 N | - | - | 1.946 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω | - | - | 1000000000 Ω |
| Insulator color | BLACK | BLACK | - | BLACK | BLACK | - | - | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | - | THERMOPLASTIC | THERMOPLASTIC | - | - | THERMOPLASTIC |
| MIL compliance | NO | NO | NO | NO | NO | NO | - | NO |
| Plug contact pitch | 0.079 inch | 0.079 inch | - | 0.079 inch | 0.079 inch | - | - | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | - | 0.079 inch | 0.079 inch | - | - | 0.079 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO | - | NO |
| Installation option 1 | LOCKING | LOCKING | - | LOCKING | LOCKING | - | - | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | - | BOARD |
| Number of connectors | ONE | ONE | - | ONE | ONE | - | - | ONE |
| PCB row number | 2 | 2 | - | 2 | 2 | - | - | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | - | 2 |
| Maximum operating temperature | 105 °C | 105 °C | - | 105 °C | 105 °C | - | - | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | - | -40 °C | -40 °C | - | - | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | - | 2.0066 mm | 2.0066 mm | - | - | 2.0066 mm |
| Plating thickness | 10u inch | 10u inch | - | 10u inch | 10u inch | - | - | 10u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | - | POLARIZED HOUSING | POLARIZED HOUSING | - | - | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A | - | 1 A | 1 A | - | - | 1 A |
| Guideline | UL, CSA | UL, CSA | - | UL, CSA | UL, CSA | - | - | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | - | - | COMMERCIAL |
| Terminal length | 0.118 inch | 0.118 inch | - | 0.118 inch | 0.118 inch | - | - | 0.118 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | - | 2 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | - | SOLDER |
| Total number of contacts | 14 | 50 | 16 | 44 | 20 | 10 | - | 22 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | - | 94V-0 |
| Evacuation force-minimum value | .0973 N | .0973 N | - | .0973 N | .0973 N | - | - | .0973 N |
| Base Number Matches | 1 | - | 1 | 1 | 1 | 1 | - | 1 |
